In industrial applications, ball valves play a crucial role in controlling the flow of liquids and gases. When choosing a ball valve for a particular application, industries often face the decision between a 1-piece vs 2-piece ball valve. While both perform similar functions, their design differences can significantly impact the efficiency, maintenance, and cost-effectiveness of the system.

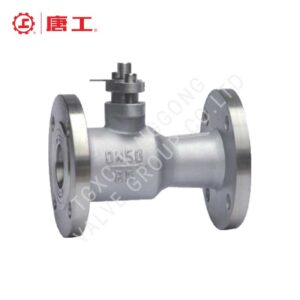

What Is A 1-Piece Ball Valve?
A 1-piece ball valve is a type of valve with a simple design, consisting of a single, solid body. This design reduces the number of components, making it a compact and reliable option for applications that do not require frequent maintenance or complex modifications. Typically, 1-piece ball valves are used in lower-pressure systems, and they are ideal for fluid control applications where minimal parts are preferred.
The ball valve’s operation involves a spherical ball with a hole in the center. When the valve is opened, the ball rotates to allow fluid to pass through the hole. Conversely, when the valve is closed, the ball rotates to block the flow, providing a secure shut-off. This simple mechanism is effective in ensuring tight sealing, making it suitable for many industrial applications where leak prevention is critical.
A major advantage of 1-piece ball valves is their reduced risk of leakage due to the fewer connections and parts compared to other types of valves. They are often used in systems where space and simplicity are important factors. However, 1-piece ball valves typically have limited size and pressure ratings, making them less suitable for high-pressure applications. Additionally, they do not offer the same flexibility for modifications or upgrades, such as adding actuators or accessories.

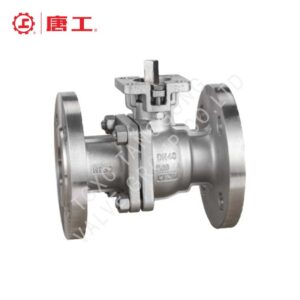

What Is A 2-Piece Ball Valve?
A 2-piece ball valve consists of two main components: the body and the end cap. These valves are often favored for their ease of maintenance and ability to handle a wider range of pressures and sizes compared to 1-piece ball valves. The design allows the valve to be dismantled more easily, which is crucial in applications where routine inspection or repair is required.
The body of a 2-piece ball valve holds the ball, valve seat, and stem. The end cap, which is bolted or threaded to the body, houses the remaining components. The ball inside the valve rotates to control the flow of fluid in the pipeline. This configuration allows for greater flexibility in terms of design and customization, making it a preferred choice in various industrial sectors that require specific performance standards or adjustments.
While 2-piece ball valves are more versatile and capable of handling higher pressures, they come with a trade-off. The increased number of parts and connections can make them more susceptible to leaks if not properly maintained. Despite this, their advantage lies in the convenience of disassembling the valve for repairs without removing the entire valve from the pipeline, making them a popular option for systems where downtime is a concern.
Design Considerations: 1-Piece vs 2-Piece Ball Valve
1-Piece Ball Valve Design
The 1-piece ball valve features a single, integrated body structure. This design provides an inherently more compact and robust solution due to the absence of multiple parts. With a solid, unibody construction, 1-piece ball valves are less prone to leakage, as there are fewer joints that might fail under high pressure. This type of valve is typically used in systems where space constraints are not an issue, and where simplicity and reliability are paramount.
The key advantage of the 1-piece valve design is its ability to offer a streamlined and efficient flow path, which minimizes the likelihood of clogging and improves the overall flow capacity. It also provides increased durability, as the single body structure ensures that the valve is less susceptible to mechanical stress. Moreover, the one-piece design is ideal for applications where low maintenance and fewer operational failures are essential.
2-Piece Ball Valve Design
In contrast, the 2-piece ball valve consists of two distinct sections: the valve body and an end cap. These two parts are typically connected by either bolts or threads, which allows for easier disassembly during maintenance. The 2-piece design is especially favored in industries requiring flexibility in installations and repairs. It enables the user to remove and replace parts, such as the valve trim, without disassembling the entire valve structure.
The key benefit of the 2-piece design is that it allows for easier installation, modification, and repair. This makes it a go-to choice in applications where frequent maintenance or modifications to the system are anticipated. However, the bolted or threaded connections between the two sections can be prone to wear and leakage over time if not properly maintained. Despite this, 2-piece ball valves remain a cost-effective solution for many low- to medium-pressure applications.
Both 1-piece and 2-piece ball valves offer distinct advantages based on specific application needs, including factors such as pressure, temperature, installation complexity, and long-term durability. The choice between the two largely depends on the operational environment and the level of maintenance flexibility required.
Advantages of 1-Piece Ball Valves
1-piece ball valves are renowned for their simple design and high reliability, making them ideal for applications where minimal complexity is desired. With only one body component, these valves have fewer parts, which significantly reduces the risk of leaks. This streamlined structure also makes them easier to manufacture and more cost-effective compared to other valve types.
In terms of functionality, 1-piece ball valves are highly effective in low-pressure systems, where they provide tight sealing and excellent flow control. Their design ensures that there is little to no leakage, making them a trusted choice for industries where reliability is paramount. Additionally, the simplicity of a 1-piece valve makes it incredibly easy to operate and maintain, as there are fewer components to monitor or replace.
These valves are especially useful in environments where space is limited and the need for complex disassembly and reassembly is minimal. They are typically favored for smaller-scale applications, such as in residential or light commercial settings, where their compact nature provides both a practical and efficient solution for fluid control.
Advantages of 2-Piece Ball Valves
2-piece ball valves offer increased versatility and functionality compared to their one-piece counterparts. Their design, which consists of two body components, allows for greater flexibility in terms of size and pressure ratings, making them suitable for a broader range of industrial applications. These valves are particularly well-suited for high-pressure environments, where a robust and dependable sealing mechanism is crucial.
One of the key benefits of 2-piece ball valves is their ease of maintenance. The ability to disassemble the valve into two parts makes it much simpler to access the internal components for inspection, cleaning, or repair. This feature is especially valuable in industries where downtime must be minimized and regular servicing is required to ensure optimal performance.
The full-bore design of 2-piece ball valves also provides lower flow resistance, enhancing their ability to transport fluids efficiently. This characteristic makes them an attractive choice for applications where high flow capacity is essential. Furthermore, the availability of various sizes and pressure ratings adds to their appeal, allowing them to be customized to meet specific system requirements.
Application Areas for 1-Piece Ball Valves
1-piece ball valves are typically used in low-pressure applications where the system does not require frequent maintenance or disassembly. They are ideal for situations where cost-effectiveness and simplicity are essential. Common areas of use include residential plumbing systems, water treatment plants, and small-scale industrial operations. Due to their simple construction, they are often used in applications where a reliable shut-off valve is needed, but the system operates under less demanding conditions.
The 1-piece design offers a compact and leak-proof solution, but it is not suitable for systems where maintenance or repairs are expected. Since these valves cannot be disassembled for cleaning or repairs, they are best suited for operations where replacements are easier or periodic servicing is not required. Their primary advantage lies in their cost-effectiveness and ease of installation, making them a popular choice for non-critical systems.
Application Areas for 2-Piece Ball Valves
2-piece ball valves are versatile and more robust than their one-piece counterparts. They are widely used in applications where moderate pressures and temperatures are encountered, but disassembly and maintenance are necessary. These valves are ideal for industries such as food and beverage processing, chemical manufacturing, and pharmaceuticals, where periodic maintenance or cleaning is a requirement. The design of 2-piece valves allows for easier servicing and replacement of parts, making them suitable for operations that do not require frequent breakdowns but still demand a higher level of durability and performance.
Unlike the 1-piece valve, the 2-piece design allows for easy removal of the valve body for maintenance, ensuring that the valve can be cleaned or repaired without disturbing the entire system. This feature makes them ideal for systems where operational efficiency and reliability over time are critical. Additionally, 2-piece ball valves are typically used in systems that handle larger flow rates, as they are available in full-port configurations, which minimize pressure drop and ensure a smooth flow of materials.
Analysis of 1-Piece vs 2-Piece Ball Valve
When comparing the 1-piece and 2-piece ball valve, the primary differences are seen in their design, maintenance, sealing, and applications. Both types serve the fundamental purpose of controlling fluid flow, but their construction and ease of maintenance cater to different industrial needs.
- Design and Structure: The 1-piece ball valve features a single body construction, which makes it simpler and more compact. It is ideal for applications where size is a limitation, and minimal flow obstruction is necessary. The 2-piece valve, by contrast, is constructed with two parts: a body and an end cap, which enables disassembly and easier maintenance.
- Maintenance: Maintenance is one of the most significant differentiators. A 1-piece valve is not designed for disassembly and, therefore, if it becomes damaged, it usually requires replacement. In contrast, a 2-piece valve offers flexibility in maintenance; it can be partially disassembled for repairs or servicing without the need for full replacement.
- Sealing: Due to the single-piece design, the 1-piece valve offers better sealing, with fewer potential leak paths compared to a 2-piece valve. In the 2-piece valve, the connection between the body and the end cap creates a potential leak point, making sealing more critical and requiring periodic inspection.
- Applications and Suitability: The 1-piece valve is typically more suitable for low-maintenance environments where the valve is not exposed to high pressures or frequent usage. It is a cost-effective solution for straightforward applications. On the other hand, the 2-piece valve is often chosen for more demanding applications that require frequent servicing or where disassembly and cleaning are necessary.
Comparison Table: 1-Piece vs 2-Piece Ball Valve
| Feature | 1-Piece Ball Valve | 2-Piece Ball Valve |
| Design | Single body design, permanently sealed. | Two separate pieces (body and end cap), can be disassembled. |
| Maintenance | Difficult to repair or service due to one-piece construction. | Easier to maintain; partially disassemble for repairs. |
| Sealing | Reliable sealing due to fewer joints; fewer leak points. | Potential for leaks between the two pieces; seal requires maintenance. |
| Cost | Generally more affordable. | Typically more expensive due to the added complexity. |
| Flow Path | Smaller flow diameter due to compact design. | Flow path closer to full diameter. |
| Size and Port Type | Limited to smaller sizes; reduced port designs. | Available in larger sizes; full port designs possible. |
| Pressure Rating | Suitable for low to moderate pressure. | Not suitable for high-pressure applications. |
| Applications | Used in low-maintenance, cost-sensitive environments. | Ideal for applications requiring more frequent maintenance. |
| Disassembly | Not designed for disassembly; replacement needed when damaged. | Easier to disassemble for cleaning or repairs. |
| Durability | Can last long in simple applications, but non-repairable. | More versatile; can be serviced or repaired. |
Factors to Consider When Choosing Between 1-Piece vs 2-Piece Ball Valve
When selecting between Between 1-Piece vs 2-Piece Ball Valve, several factors influence the decision based on the specific needs of the application. Understanding the key distinctions between these valve types ensures that you make the most informed choice, whether for cost efficiency, installation ease, maintenance accessibility, or long-term performance.
1. Construction and Design
One of the primary differences lies in the design and construction of the valves. A 1-piece ball valve is manufactured from a single block of material, typically stainless steel, and has a seamless design. This streamlined construction reduces the number of potential leak points, offering superior structural integrity. This type of valve is an excellent choice for applications where space is limited, as it offers a compact design without compromising performance. Its robust structure also means it’s less likely to experience failure due to stress or damage at connection points.
In contrast, the 2-piece ball valve is made up of two distinct sections: the body and the end caps, which are connected through bolts or threaded ends. This modularity allows for flexibility in material selection for both the body and the end caps, making it adaptable to a broader range of operating conditions. The design makes the valve easier to disassemble, offering greater convenience for maintenance and modification.
2. Ease of Installation and Maintenance
Installation processes for both types of valves vary significantly. The 1-piece ball valve generally offers straightforward installation due to its simple, single-body construction. This makes it ideal for applications with limited access, where ease of installation is critical. Maintenance for one-piece valves is also simplified because fewer components mean fewer points of potential failure.
On the other hand, 2-piece ball valves are designed for easier maintenance and repair. The ability to disassemble the valve without removing the entire unit from the pipeline is a significant advantage, especially in systems that require frequent inspections or modifications. This makes two-piece valves a preferred option for industries where continuous maintenance and adaptability are essential, such as chemical processing or oil and gas operations.
3. Cost Considerations
In terms of initial purchase price, the 1-piece ball valve is often the more cost-effective option. The simplicity of its design leads to lower upfront costs and simpler installation procedures, which can further reduce overall expenses.
Conversely, 2-piece ball valves typically have a higher initial cost, primarily due to their more complex construction and material flexibility. However, their disassembly and replaceable parts can lead to long-term savings in maintenance costs, making them a more economical choice for applications where extensive repairs or replacements are expected over time.
4. Application Suitability
Each type of valve excels in different applications. The 1-piece ball valve is well-suited for systems where space is constrained or where installation speed is a priority. These valves are commonly found in residential plumbing, irrigation, and low-pressure systems, where their compact design and ease of installation are highly beneficial.
In contrast, the 2-piece ball valve is favored in industrial settings where the ability to maintain and adapt the system is crucial. These valves are widely used in industries like chemical processing, petrochemicals, and oil and gas, where ongoing maintenance, durability, and the ability to replace individual components are critical factors.
Conclusion
Choosing between a 1-piece and 2-piece ball valve depends on your specific needs. For high-pressure, high-temperature, or hazardous fluid systems, the 1-piece valve may offer superior performance. However, if ease of maintenance and cost-effectiveness are more important, a 2-piece ball valve might be the better choice. By evaluating factors such as performance, cost, and maintenance needs, you can make a more informed decision about which valve will best serve your application. Contact a valve supplier to discuss your specific requirements and get expert advice on the best solution for your needs.
