Industrial valves are crucial components in various sectors, including oil & gas, chemical processing, and water treatment. They play a pivotal role in regulating, controlling, and directing the flow of liquids and gases under different conditions. Each valve type has specific characteristics and functions, tailored to fit specific applications. In this article, we will explore 10 of the most common types of industrial valves, providing an overview of their features, applications, advantages, and limitations.



1. Gate Valves

Mechanism: Gate valves employ a flat or wedge-shaped gate that moves perpendicular to the flow path, enabling or obstructing fluid passage. When fully open, the gate retracts entirely, allowing unobstructed flow with minimal pressure drop.

Applications: Ideal for on/off control in pipelines where a straight-line flow and minimal restriction are desired. Commonly utilized in water distribution systems, oil and gas pipelines, and chemical processing plants.

Advantages: Provide a tight seal with minimal flow resistance when open, making them suitable for applications requiring full flow or complete shut-off.

Limitations: Not recommended for throttling purposes, as partial opening can cause gate vibration and potential damage. Additionally, they require significant space for installation due to the vertical movement of the gate.

(Click here to know more about gate valves >>)



2. Ball Valves

Mechanism: Ball valves feature a spherical disc with a central bore that aligns with the pipeline when open, permitting flow. A 90-degree turn of the handle rotates the ball, either allowing or blocking fluid passage.

Applications: Extensively used in industries requiring rapid shut-off, such as oil and gas, water treatment, and chemical processing. Their quick operation and reliability make them suitable for emergency shut-off applications.

Advantages: Offer quick operation, durability, and a tight seal with minimal leakage. Their compact design and low torque requirement facilitate easy operation.

Limitations: Not ideal for precise flow control due to their binary on/off nature. In slurry applications, suspended particles can cause wear or damage to the ball and seats.

(Click here to know more about ball valves >>)



3. Globe Valves

Mechanism: Globe valves utilize a movable plug (disc) and a stationary ring seat within a spherical body. The linear motion of the plug allows for precise regulation of flow rate.

Applications: Commonly employed in systems requiring throttling and frequent operation, such as cooling water systems, fuel oil systems, and feedwater systems.

Advantages: Provide excellent throttling capability and reliable sealing. Their design allows for easy maintenance and the ability to handle high-pressure applications.

Limitations: Exhibit a higher pressure drop compared to other valves due to the tortuous flow path. They are generally larger and heavier, which may be a consideration in space-constrained installations.

(Click here to know more types of industrial valves globe valves >>)



4. Butterfly Valves

Mechanism: Butterfly valves consist of a rotating disc mounted on a rod. A quarter-turn of the handle rotates the disc perpendicular or parallel to the flow, regulating fluid passage.

Applications: Suitable for large-scale systems, including water distribution, wastewater treatment, and HVAC applications. Their compact design makes them ideal for installations with limited space.

Advantages: Lightweight, cost-effective, and capable of handling large flow volumes. They offer quick operation and have a smaller footprint compared to other valve types.

Limitations: Less effective in applications requiring a complete seal, especially in high-pressure scenarios. The disc remains in the flow path when open, causing a pressure drop.

(Click here to know more about butterfly valves >>)



5. Check Valves

Mechanism: Check valves are unidirectional valves that allow fluid to flow in one direction and prevent backflow. They operate automatically, typically using a disc, ball, or swing mechanism that closes upon reverse flow.

Applications: Often used in pump discharge lines, water and wastewater systems, and process applications to prevent reverse flow and protect equipment.

Advantages: Protect systems from potential damage due to reverse flow, operate automatically without manual intervention, and have a simple design with minimal maintenance requirements.

Limitations: Limited to applications with stable and consistent flow conditions. In systems with pulsating flow, they may experience premature wear or noise issues.

(Click here to know more types of industrial valves check valves >>)

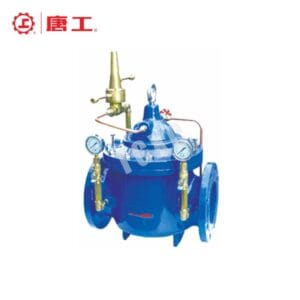

6. Pressure Relief Valves

Mechanism: Pressure relief valves automatically release pressure from a system when it exceeds a predetermined setpoint, safeguarding equipment and personnel from overpressure conditions.

Applications: Utilized in boilers, pressure vessels, pipelines, and other pressurized systems to prevent overpressure scenarios.

Advantages: Essential for safety, preventing explosions or equipment damage due to excessive pressure. They provide automatic protection and can be set to specific pressure thresholds.

Limitations: Require regular testing and maintenance to ensure reliability. Improper sizing or selection can lead to inadequate protection or nuisance operations.

(Click here to know Safety Valve vs Relief Valve>>)



7. Diaphragm Valves

Mechanism: Diaphragm valves use a flexible diaphragm that moves up and down to control flow. The diaphragm acts as a barrier between the fluid and the moving parts, preventing contamination.

Applications: Often used for corrosive or viscous fluids in chemical processing, pharmaceutical manufacturing, and water treatment applications.

Advantages: Suitable for handling abrasive or corrosive materials, as the fluid does not contact internal components. They provide a tight seal and are easy to clean, making them ideal for sanitary applications.

Limitations: Limited to lower pressure applications and may not be suitable for high-temperature fluids. The diaphragm may require periodic replacement due to wear.



8. Needle Valves

Mechanism: Needle valves feature a slender, tapered point (the needle) that fits into a matching seat, allowing for precise control of flow rates. The fine-threaded stem enables gradual and accurate adjustments.

Applications: Common in instrumentation, calibration, and applications requiring precise flow control, such as in gas chromatography and fuel metering.

Advantages: Allow for fine flow control, suitable for delicate operations where precise adjustments are necessary. Their design facilitates leak-tight shut-off.

Limitations: Not suitable for high-flow or rapid on/off control due to the fine adjustments required. They may have a higher pressure drop compared to other valves.

(Click here to know more about needle valves >>)



9. Plug Valves

Mechanism: Plug valves utilize a cylindrical or conical plug with a through hole that aligns with the flow path when open. A quarter-turn rotates the plug, opening or closing the valve.

Applications: Common in chemical industries for isolation and flow diversion, as well as in applications requiring quick operation.

Advantages: Simple design, easy to maintain, and versatile for multiple applications. They provide a tight seal and can handle slurries and viscous fluids.

Limitations: Limited throttling ability and may require significant force to operate, especially in larger sizes or high-pressure applications.

(Click here to know Plug Valve vs Ball Valve>>)



10. Pinch Valves

Mechanism: Pinch valves regulate fluid flow by compressing a flexible elastomeric sleeve, effectively “pinching” it to obstruct flow. This design ensures that the fluid contacts only the sleeve, isolating it from other valve components.

Applications: Ideal for handling slurries, granular materials, and abrasive or corrosive fluids. Commonly used in industries such as mining, wastewater treatment, and chemical processing, where contamination and wear are concerns.

Advantages: The absence of internal obstructions allows for smooth flow of fluids containing solids, reducing the risk of clogging. The design minimizes maintenance needs, as the sleeve is the primary wear component and can be easily replaced.

Limitations: Pinch valves are generally limited to lower pressure applications due to the material strength of the sleeve. Over time, the sleeve may degrade, especially when exposed to harsh chemicals or extreme temperatures, necessitating periodic replacement.



Conclusion

Understanding the different types of industrial valves and their functions can significantly aid in selecting the right valve for a specific application. Each valve type has unique advantages and limitations, making it suitable for particular uses across various industries. Whether you are looking for precise flow control or an effective shut-off mechanism, choosing the appropriate valve can improve system performance, reduce costs, and ensure operational safety.
