Actuated valves are pivotal components in modern industrial systems—enabling automated control of fluid flow through electric, pneumatic, or hydraulic mechanisms. Unlike manual valves, these systems operate remotely using control signals to open, close, or modulate flow, enabling precision, efficiency, and integration into digital control architectures. This article explains how actuated valves work, their practical advantages over manual options, and why they’re critical in industrial automation.

What Are Actuated Valves?

An actuated valve consists of two main elements: the valve body (e.g., ball, butterfly, globe, gate) and an integrated actuator—a device that drives valve motion based on power from electricity, compressed air, or hydraulic fluid. Once activated by a control signal, the actuator initiates opening, closing, or modulation of the valve, enabling precise flow control and remote operation. Actuated valves may also include position feedback, torque limiting, and fail‑safe behavior for enhanced operational reliability.

Why Actuated Valves Matter in Industrial Applications

In industrial contexts such as oil & gas, power generation, wastewater, chemical processing, and mining, actuated valves are indispensable. They:

• Enable real-time automation—allowing valves to be controlled by digital systems without manual intervention.

• Support fail-safe operation—spring-return or backup systems ensure valves move to predefined positions during power or air supply loss.

• Offer rapid response and high reliability, especially important in emergency shutdowns and safety-critical control loops.

Benefits Over Manual Valves

Additional considerations:

• Maintenance: Actuated valves may require more periodic checks and diagnostics, but they avoid wear caused by manual operation and reduce human error.

• Safety: Remote actuation keeps operators away from hazardous zones, and fail-safe configurations reduce risk during system anomalies.

How Actuated Valves Work

Basic Operating Principles

Control Signal Reception
A control system—such as a DCS, PLC, or fieldbus network—sends a signal to the actuator. Common industrial signals include pneumatic (0.2–1.0 bar or 3–15 psi) or electrical (4–20 mA current loop, 0–10 V or smart protocols like HART, Fieldbus, or Profibus).

Actuator Response Mechanism

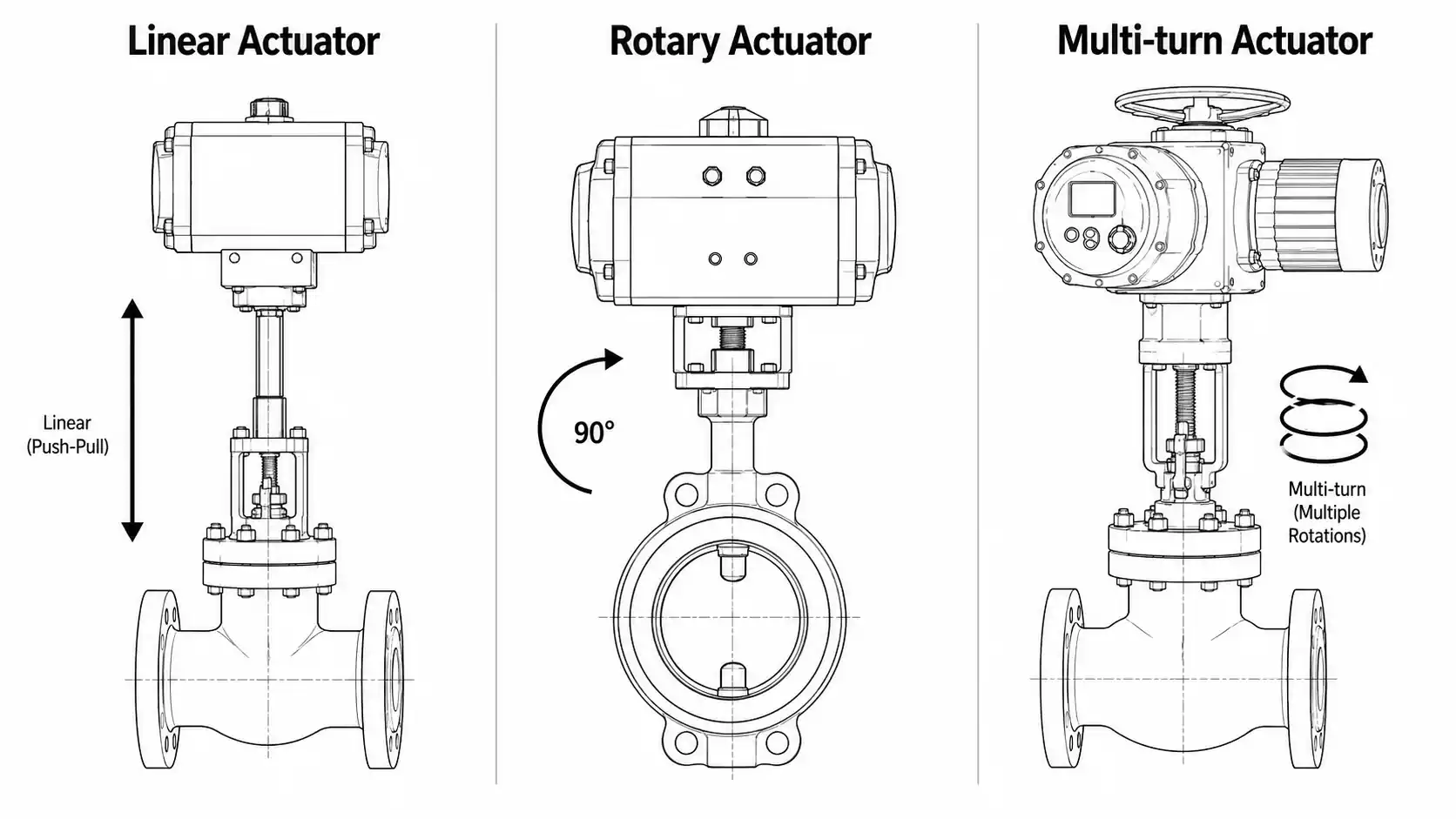

Upon receiving the signal, the actuator—whether pneumatic, electric, or hydraulic—translates energy into mechanical motion. Pneumatic actuators apply air pressure to push a diaphragm or piston; electric actuators use motors and gearing; hydraulic types use pressurized fluid to move the valve stem or shaft.

Valve Position Control
Simple on/off signals result in fully open or closed positions. In modulating control systems, positioners and feedback loops adjust the valve gradually to achieve and maintain the precise position dictated by the signal. Position feedback continues until equilibrium is reached, typically using closed-loop control algorithms embedded in digital controllers.

Key Components

Valve Body and Trim
The valve body contains the flow-passage elements—such as the plug, ball, disc, seat, stem, and internal trim components—which come into direct contact with the process fluid. Trim materials vary depending on pressure, temperature, and corrosion resistance needs.

Actuator Unit
The actuator converts the incoming control signal into motion. Electric actuators typically include motors, gearing, torque and limit sensors; pneumatic actuators consist of diaphragm or piston chambers and springs for fail-safe functionality; hydraulic actuators use fluid pressure. Many actuators include built-in fail-open or fail-close mechanisms depending on safety requirements.

Control System Interface
The interface includes wiring or pneumatic tubing connecting the actuator and control system, plus optional electronic positioners. Smart digital positioners can auto-calibrate, deliver diagnostics, and allow two-way communication to improve control accuracy and enable remote monitoring.

Position Feedback Mechanisms
Feedback ensures precise valve travel. Electric actuators may use limit switches for end positions, and analog or digital position sensors such as potentiometers, LVDTs, RVDTs, or encoders for modulating control. The feedback signal is sent back to the controller as part of the closed-loop system.

Control Methods

On/Off Control
Actuated valves operate in discrete states—fully open or fully closed—based on binary control signals. This method is ideal for applications requiring simple isolation or emergency shutdown, rather than flow modulation.

Modulating Control
Modulating control enables partial opening based on analog or digital signal range. Combined with feedback, actuators adjust the valve position continuously to maintain desired flow, pressure, or temperature. PID controllers or proportional control algorithms manage this operation through refined control loops.

Remote Operation Capabilities
Actuated systems integrate with digital control networks, making real-time remote operation and monitoring feasible. This minimizes manual intervention in hazardous or distant locations and supports automated sequences, diagnostics, and safety interlocks via modern communication protocols (e.g., HART, Fieldbus, Profibus).

Common Types of Actuated Valves

Electric Actuated Valves

How Electric Actuators Work
These actuators use electric motors—typically AC or DC—to generate torque, often via worm gearing for self-locking and precise movement. Integrated sensors like limit switches, torque sensors, and encoder/LVDT systems monitor valve position and ensure accurate control.

Advantages and Applications
Electric actuators offer high precision, silent operation, and straightforward integration with control systems. They’re ideal for power plants, water treatment, HVAC systems, and manufacturing that prioritize repeatable and energy‑efficient automation.

Power Requirements and Control Options
These actuators require reliable electrical supply (AC/DC). Controls range from basic on/off to advanced smart signals—4–20 mA loops, HART, Foundation Fieldbus, or Profibus—often paired with microprocessor-based positioners enabling PID control and diagnostics.

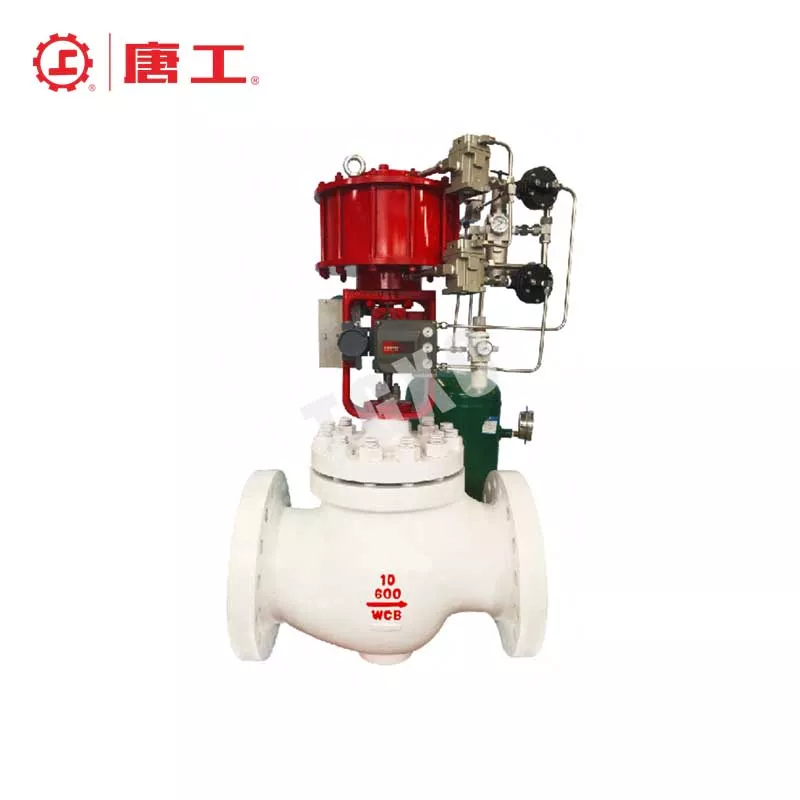

Pneumatic Actuated Valves

Air‑Powered Operation
Pneumatic actuators rely on compressed air acting on a piston, diaphragm, or vane to generate linear or rotary motion. They’re efficient and deliver high force with minimal mechanical complexity.

Spring Return vs. Double Acting

• Spring Return (Single-Acting): Uses a spring to default the valve open or closed when air is lost.

• Double-Acting: Uses air on both sides of the actuator to open or close—allowing higher precision and holding force under control.

Fail‑Safe Positions
Spring-return setups ensure that valves move to a predefined “safe” position when air pressure is lost, providing reliability in safety-critical applications.

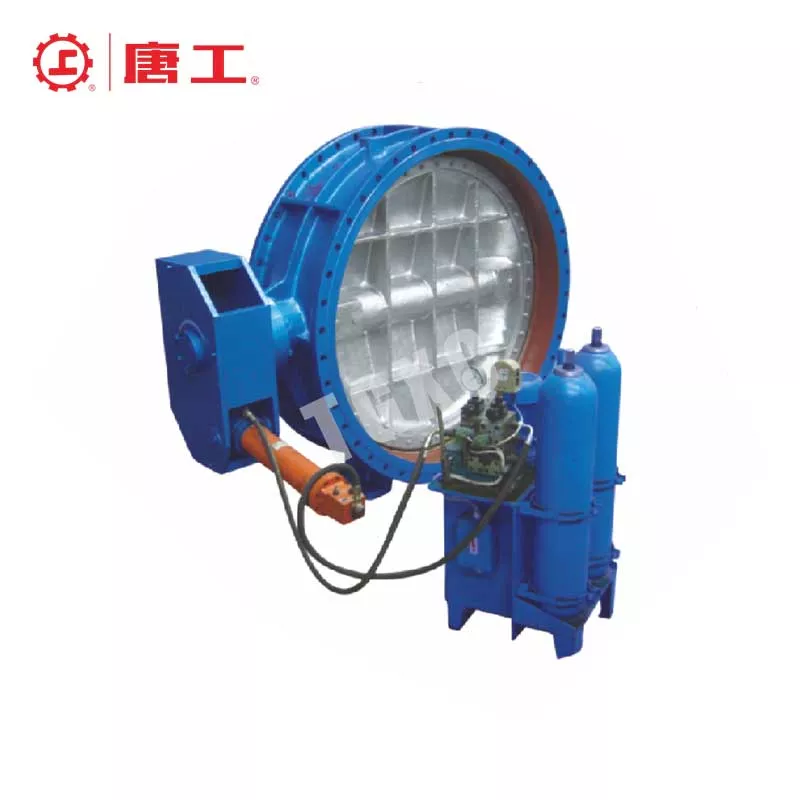

Hydraulic Actuated Valves

High‑Force Applications
Hydraulic actuators use pressurized fluid to move piston or vane mechanisms, delivering high torques suitable for large valves or high-pressure systems where pneumatic or electric options may struggle.

Precision Control Benefits
They offer smooth, consistent motion and excellent control over movement—especially useful in applications needing slow, load-bearing modulation with minimal overshoot.

Typical Use Cases
Common in heavy industries—oil & gas, marine, mining—where valves must operate under harsh environments, high pressure, high temperature, or safety-critical conditions using hydraulic power availability.

Valve Types by Design

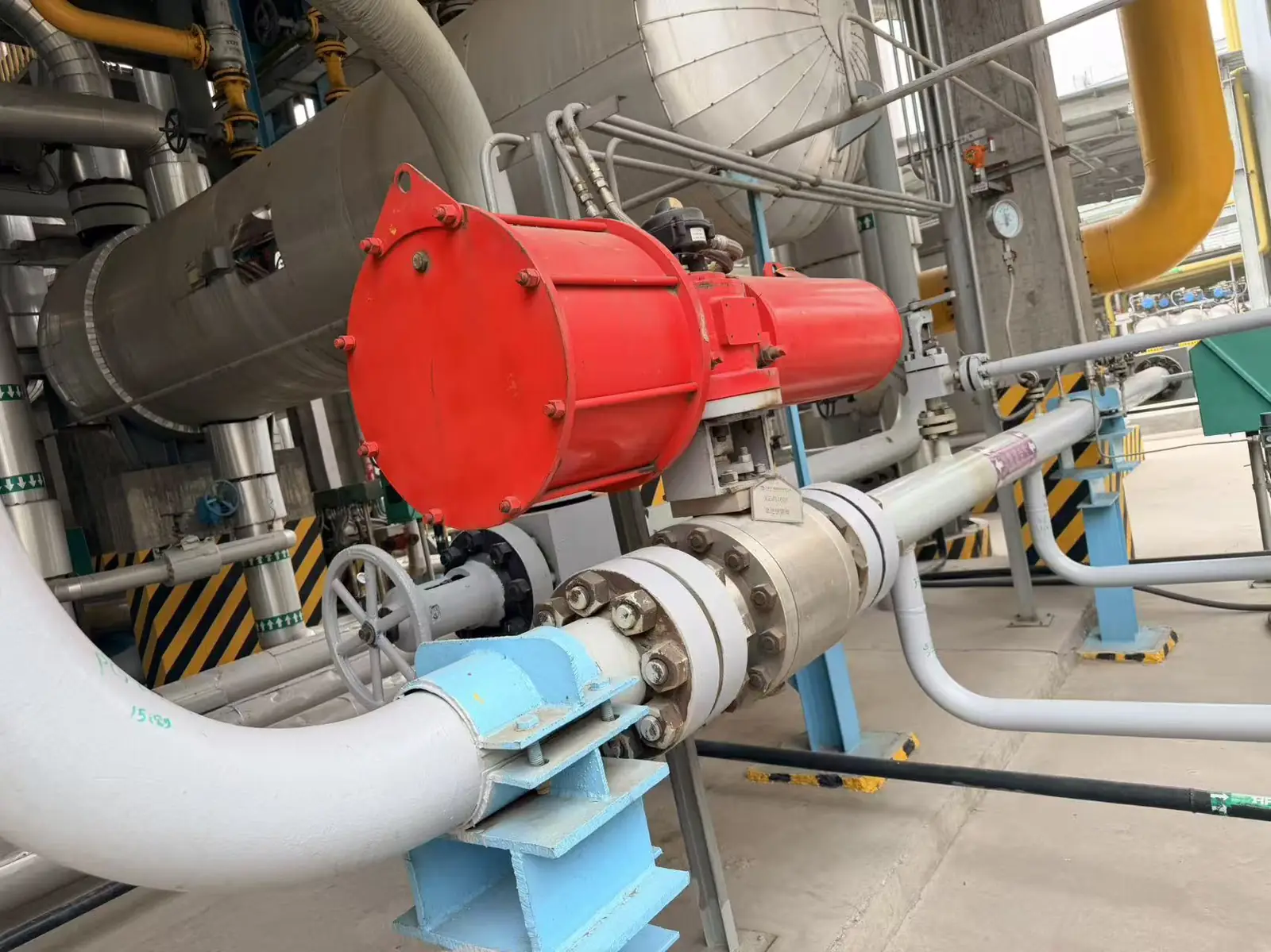

Actuated Ball Valves

Quarter‑Turn Operation
Actuated ball valves use a 90° rotation of a hollow, perforated ball within the valve body to open or close flow. This quarter‑turn motion enables fast, reliable switching with minimal travel distance.

Sealing Advantages
Soft‑seated designs (e.g. PTFE) offer near bubble-tight shut‑off. Ball valves also retain sealing integrity after long idle periods and multiple cycles, making them ideal for tight isolation duties.

Size and Pressure Ranges
Available in compact formats for small pipelines up to large industrial sizes, actuated ball valves support pressure ratings up to 1000 bar and temperatures to ~750 ℉ (~400 °C), depending on construction materials.

Actuated Butterfly Valves

Space‑Saving Design
Butterfly valves feature a disc that rotates within the flow stream, offering a slim face‑to‑face profile and lightweight assembly. This compactness makes them favorable for large‑diameter systems and constrained installations.

Flow Control Characteristics
Though primarily quarter‑turn on/off devices, butterfly valves also support throttling. Advanced double‑offset or triple‑offset designs improve seal integrity and reduce friction and seat wear.

Installation Benefits
Butterfly valves are quick to install, require less structural support due to lighter weight, and often present lower upfront costs than other large‑bore valve types.

Actuated Globe Valves

Linear Motion Control
Globe valves use vertical motion of a disc or plug against a fixed seat to control flow. This linear travel enables precise modulation and start/stop behavior.

Throttling Applications
Globe valves excel in regulating flow rates with fine control. Their lift-to-flow relationship allows accurate flow adjustment—often paired with actuators for precise industrial control.

Pressure Drop Considerations
The internal tortuous flow path of globe valves induces higher pressure drops and turbulence compared to straight‑through types—an important design trade‑off for accuracy over efficiency.

Actuated Gate Valves

Full Bore Flow
Gate valves provide unrestricted, full-bore flow when fully open, delivering minimal flow resistance and low pressure drop—ideal for high-volume pipelines.

On/Off Service Applications
Optimized for binary operation (fully open or fully closed), gate valves are commonly used in systems requiring complete isolation rather than flow modulation.

Maintenance Requirements
Actuated gate valves often feature rising or non-rising stem designs. However, their multi-turn mechanism makes operation slower and more susceptible to stem seal wear. Vibration and water hammer also may impact longevity in partially open states.

Applications and Industries

Oil and Gas Industry

• Pipeline Control
  Actuated valves—especially ball and butterfly types—are integral in pipelines, LNG plants, and offshore platforms to regulate crude oil, gas, and refined product flows. Their automation allows remote and precise operation via SCADA or DCS systems, minimizing manual work in hazardous zones.
• Refinery Applications
  Ball valves are widely used for tight shut-off in high-pressure services, while butterfly valves manage large-diameter flows in cooling, venting, or processing lines. They help maintain safety and operational efficiency across refining units.
• Safety and Emergency Shutdown
  Emergency shutdown valves (ESDVs) or shutdown valves (SDVs) are used as final elements in Safety Instrumented Systems (SIS). These actuated valves rapidly block hazardous fluid flow upon detection of unsafe conditions like pressure spikes or leaks, using pneumatic, hydraulic, or electric actuators—typically with spring-return fail-safe design.

Water Treatment

• Process Control
  In modern water and wastewater treatment facilities, actuated valves provide automated control over intake, filtration, and discharge flows. This enables real-time adjustments to maintain optimal treatment performance.
• Chemical Dosing
  Precise dosing of disinfectants, pH adjustment agents, or sludge treatment chemicals often relies on ball valves coupled with high-precision process control actuators. These support modulation to ensure accurate and consistent chemical injection.
• Flow Management
  Butterfly and ball valves control both bulk and fine flows—such as regulating high-volume filtrate discharge or isolating distribution pipelines—enhancing energy efficiency and operational flexibility.

Manufacturing and Processing

• HVAC Systems
  Actuated valves regulate heating, cooling, and air handling systems in buildings and plants. Electric actuators paired with ball or butterfly valves help manage temperature, pressure, and flow automatically for HVAC optimization.
• Food and Beverage
  Food-processing environments demand stringent hygiene and precise flow control. Actuated ball and butterfly valves, often made from stainless steel and equipped with clean-in-place (CIP) capabilities, ensure accurate dosing and product safety.
• Chemical Processing
  Chemical plants rely on actuated valves for controlling flow in reactors, storage tanks, and transfer skids. Automated systems maintain consistency, prevent contamination, and enable safe staging of reactive fluids or temperature/pressure control.

Selection Considerations

Technical Requirements

• Pressure and Temperature Ratings
  Choose valves and actuators rated to exceed your system’s maximum pressure and temperature. Verify body, trim, and seal materials match the operating conditions—e.g. stainless steel, alloy, PTFE, or thermoplastics depending on fluid compatibility and mechanical demands.
• Flow Characteristics
  Ensure the chosen valve supports adequate flow coefficient (Cv) and rangeability for precise control. Oversized valves can reduce throttling accuracy due to increased friction and valve gain variance, while undersizing causes undue pressure drop and operational instability.
• Response Time Requirements
  Identify the necessary actuator speed and stroke timing. Fast response is critical in emergency shutdowns or surge conditions. Positioners and boosters can improve response speed for modulating control—but use cautiously to avoid instability or oscillation.

Environmental Factors

• Hazardous Area Classifications
  For explosive or flammable atmospheres, choose actuators with proper certifications (e.g., ATEX, IECEx, NEMA VII, FM). Pneumatic ones are inherently explosion-resistant and preferred where electric power poses ignition risks. Electric actuators may require intrinsically safe or explosion-proof enclosures if no air supply is available.
• Corrosion Resistance
  In saline, coastal, chemical, or washdown environments, corrosion is a top risk. Select actuators and valve bodies with high-corrosion coatings and materials to meet ISO 12944 standards (C4–C5) and pass ASTM B117 salt spray tests to ensure long life. –40% of actuator failures trace to corrosion.
• Operating Conditions
  Consider ambient temperature, UV exposure, humidity, and mechanical stress. Electric actuators typically are rated IP66–IP68 and designed for –60 °C to +100 °C, but proper lubrication and enclosure selection are vital. In high-dust or high-moisture zones, rugged, sealed construction is essential.

Control System Integration

• Communication Protocols
  Ensure compatibility with your digital control infrastructure. Supported protocols may include HART, Foundation Fieldbus, Profibus, or 4–20 mA signaling. Smart actuators with digital positioners offer two‑way communication, auto‑calibration, fault diagnostics, and remote control capability.
• Power Supply Requirements
  Select based on available supply and reliability. Electric actuators typically need 110 VAC or 24 VDC power; pneumatic actuators require clean, dry compressed air (typically 40‑120 psi). If electrical redundancy is needed, consider pneumatic or hybrid solutions.
• Maintenance Access
  Choose actuators and valve assemblies that allow easy servicing without major disassembly. Include positioners, limit switches, torque sensors, and modular components to facilitate diagnostics and preventive upkeep. Accessibility and documentation significantly reduce downtime and life cycle cost.

Installation and Maintenance

Installation Best Practices

Proper Mounting

• Confirm valve and actuator match specifications—size, pressure, materials, connection type.

• Install valves in horizontal run with spindle vertical for optimal lifespan. Ensure flanges are square and pipework properly supported to avoid stress distortions. Use upstream strainers to prevent debris damage.

• Align actuator to the valve stem precisely. Torque mounting bolts in a diagonal pattern. Verify stem‑nut engagement (min 1.5× stem diameter) and travel stops once installed.

Electrical/Pneumatic Connections

• For pneumatic actuators, use clean, dry air with proper tubing support and minimal length to avoid delays or leaks.

• For electric actuators, ensure correct power phase to prevent rotation reversal. Seal conduit entries to prevent moisture ingress. Set limit switches and torque settings per the actuator manual.

Commissioning Procedures

• Run manual stroke tests to confirm full travel without binding.

• Conduct hydrotests and leak checks in line with design parameters before live service.

• Calibrate positioners: adjust signal range, limit stops, feedback and deadband. Record baseline signature curves for future diagnostics.

Maintenance Requirements

Routine Inspection

• Conduct visual inspections regularly: check for leaks, corrosion, wear on seals, packing glands, and actuator housing. Clean debris and lubricate moving parts as needed.

• Cycle the valve periodically to confirm responsiveness and smooth full‑range travel.

Actuator Servicing

• Follow manufacturer schedules for lubrication, filter changes (pneumatic lines), and seal replacements.

• Inspect and adjust stem alignment and actuator mounting to avoid excessive loads. Re-torque hardware if needed. Verify gearbox and coupling integrity.

Troubleshooting Common Issues
