When it comes to controlling the flow of fluids in residential or industrial systems, choosing the right valve is essential for efficient operation and safety. Two common types of valves often used are angle valves and ball valves. Each has unique characteristics, applications, and advantages, making it crucial to understand their differences before making a decision. This article explores the differences between angle valve vs ball valve to help you determine which type suits your needs.

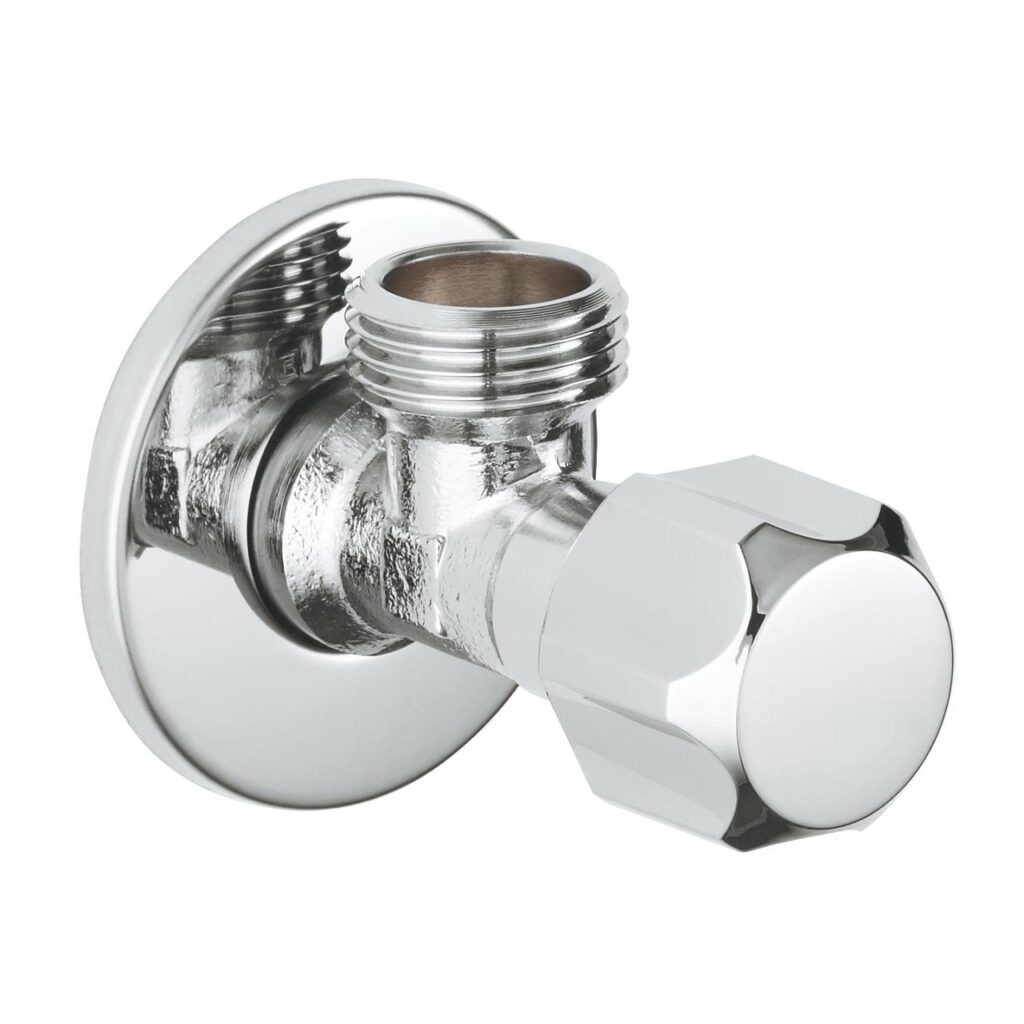

Understanding Angle Valves
An angle valve is a type of valve that changes the direction of flow by 90 degrees. It is often used where piping needs to be redirected without additional fittings. Angle valves are typically found in residential plumbing systems, such as under sinks or toilets, as they provide a convenient way to control water flow at a point of use.
Key Characteristics of Angle Valves:
- Structure: Designed to redirect flow, with an inlet and outlet oriented at a right angle.
- Operation: Usually controlled by a knob that opens or closes the valve, allowing for partial flow control.
- Application: Common in situations where flow needs to be managed in a tight space without complex piping.
- Advantages: Angle valves are compact, easy to install, and ideal for applications where the piping direction must change.
(Get the ultimate insights on Angle Globe Valves – click here>>)
Understanding Ball Valves
A ball valve is a type of valve that uses a rotating ball with a hole (called a bore) to control the flow of fluids. When the ball’s bore aligns with the flow path, the valve is open; when turned perpendicular, the valve is closed. Ball valves are widely used in both residential and industrial settings for their reliability and ease of operation.
Key Characteristics of Ball Valves:
- Structure: Features a spherical ball inside the valve body that rotates to either block or allow flow.
- Operation: Operated by a lever handle, which provides a quick on/off function, making it easy to use.
- Application: Common in industrial processes, water systems, and gas lines where a tight shut-off is necessary.
- Advantages: Ball valves offer excellent sealing properties, are highly durable, and are ideal for applications where full-flow or zero-flow is required.
(Learn more about our range of Ball Valves – click here>> )
Comparative Analysis: Angle Valve vs Ball Valve
1. Structural Design and Configuration
Angle valves and ball valves are integral components in fluid control systems, each exhibiting distinct structural designs tailored to specific operational requirements.
Angle Valves are characterized by their unique 90-degree configuration, facilitating a change in flow direction. This design comprises an inlet and outlet port positioned perpendicularly, allowing the valve to serve dual functions: controlling fluid flow and altering its direction. The internal mechanism typically involves a movable disc or plug that, when actuated, modulates the flow rate or completely halts it. This configuration is particularly advantageous in piping systems where space constraints necessitate a compact design, as it eliminates the need for additional elbow fittings.
Ball Valves feature a spherical disc—the ball—with a central bore that aligns with the pipeline when in the open position, permitting unobstructed flow. The ball is housed within a valve body and is actuated via a stem connected to an external handle or actuator. A quarter-turn of the handle rotates the ball, aligning or misaligning the bore with the pipeline, thereby controlling fluid passage. This straightforward mechanism ensures minimal pressure drop and provides a reliable seal when closed. Ball valves are renowned for their durability and are suitable for applications requiring rapid shut-off capabilities.
2. Operational Mechanism
Angle valves and ball valves employ distinct operational mechanisms to regulate fluid flow, each offering unique advantages tailored to specific applications.
Angle Valves utilize a linear motion mechanism to control fluid passage. The valve comprises a movable disc or plug that, when actuated, moves perpendicularly to the flow path, either obstructing or permitting fluid movement. This design allows for precise modulation of flow rates, making angle valves suitable for applications requiring fine control. Additionally, the 90-degree configuration facilitates a change in flow direction, which is advantageous in piping systems where space constraints necessitate such an arrangement.
Ball Valves operate using a rotary motion mechanism. Central to this design is a spherical ball with a bore through its center. When the valve handle is turned 90 degrees, the ball rotates, aligning or misaligning the bore with the pipeline, thereby controlling fluid flow. This quarter-turn operation enables rapid opening and closing, providing an effective seal when closed and minimal resistance when open. The simplicity of this mechanism contributes to the valve’s durability and reliability, even after numerous cycles.
3. Flow Control and Regulation
The efficacy of fluid control systems hinges significantly on the valve’s ability to modulate flow with precision and reliability. Angle valves and ball valves, while both serving as control devices, exhibit distinct characteristics in flow regulation.
Angle Valves are engineered to provide precise flow control, making them suitable for applications requiring fine adjustments. The linear motion of the valve’s disc or plug allows for incremental modulation of flow rates, facilitating accurate regulation. This capability is particularly advantageous in systems where maintaining specific flow parameters is critical.
Ball Valves are renowned for their rapid operation and minimal pressure drop when fully open. The quarter-turn mechanism enables swift transition between open and closed states, offering quick shut-off capabilities. However, standard ball valves are less adept at precise throttling due to their design, which can result in less linear flow characteristics during partial opening. To address this limitation, characterized ball valves, such as V-port or segmented ball valves, have been developed. These variants incorporate specialized ball designs with V-shaped notches or segments, enhancing their ability to provide more linear and predictable flow control, thereby improving their suitability for applications requiring both rapid operation and precise flow modulation.
4. Pressure and Temperature Handling
The selection of appropriate valves in fluid control systems necessitates a thorough understanding of their pressure and temperature handling capabilities. Angle valves and ball valves, while both integral to such systems, exhibit distinct performance characteristics under varying operational conditions.
Angle Valves are engineered to manage moderate pressure and temperature ranges. Their design facilitates precise flow control, making them suitable for applications where fine regulation is paramount. However, their capacity to withstand extreme pressures and temperatures is generally limited compared to other valve types. This limitation is attributed to their structural configuration and the materials employed in their construction, which are optimized for control rather than high-pressure resilience.
Ball Valves are renowned for their robustness and ability to operate effectively under high-pressure and high-temperature conditions. The spherical closure element provides a tight seal, minimizing leakage risks even in demanding environments. The pressure-temperature ratings of ball valves are contingent upon factors such as body material, seat material, and design specifications. For instance, ball valves constructed from stainless steel with reinforced PTFE seats can handle pressures up to 10,000 psi and temperatures up to 482°F (250°C). These attributes render ball valves suitable for applications in industries such as oil and gas, chemical processing, and power generation, where exposure to extreme operational conditions is common.
5. Installation and Space Requirements
The spatial configuration and installation considerations of valves are pivotal in determining their suitability for specific applications. Angle valves and ball valves, each with distinct structural designs, present unique advantages and constraints concerning space utilization and installation procedures.
Angle Valves are engineered with a 90-degree configuration, allowing them to change the direction of fluid flow. This design is particularly advantageous in installations where space is constrained, as it eliminates the need for additional elbow fittings to redirect flow. Consequently, angle valves are commonly employed in plumbing systems beneath sinks or behind toilets, where compactness is essential. Their design facilitates straightforward installation in confined spaces, making them a preferred choice for residential plumbing applications.
Ball Valves feature a straight-through design, necessitating alignment with the pipeline. While this configuration ensures minimal pressure drop and efficient flow when fully open, it requires more linear space for installation compared to angle valves. The installation of ball valves demands careful consideration of the available space to accommodate the valve body and the operational handle, which typically requires a 90-degree turn for full operation. This spatial requirement can pose challenges in cramped environments, potentially necessitating additional modifications to the piping system to ensure proper installation and operation.
6. Maintenance and Durability
The longevity and upkeep of valves are critical factors influencing their selection for various applications. Angle valves and ball valves, while both serving pivotal roles in fluid control systems, exhibit distinct characteristics in terms of maintenance requirements and durability.
Angle Valves are generally durable but can be prone to wear and tear over time, especially if frequently used. However, they can be replaced easily if needed.
Ball Valves are known for their durability and long lifespan. They require minimal maintenance and are less likely to leak or fail over time.
7. Cost Considerations
When selecting between angle valves and ball valves, cost considerations encompass both initial investment and long-term expenses related to maintenance and replacement.
Angle Valves typically present a lower upfront cost due to their simpler design and construction. This cost-effectiveness makes them a popular choice for residential plumbing applications where budget constraints are a factor. However, it’s important to note that angle valves may require more frequent maintenance or replacement, especially in systems subjected to high usage or demanding conditions. Over time, these additional maintenance activities can accumulate, potentially offsetting the initial savings.
Ball Valves generally involve a higher initial expenditure, attributed to their robust construction and more complex design. Despite the steeper upfront cost, ball valves are renowned for their durability and reliability, often resulting in a longer operational lifespan with minimal maintenance requirements. This longevity can lead to cost savings over time, particularly in industrial or high-demand settings where valve failure could result in significant operational disruptions and associated costs.
8. Typical Applications and Use Cases
The selection between angle valves and ball valves is largely determined by their respective design features and operational capabilities, which make them suitable for specific applications across various industries.
Angle Valves are predominantly utilized in residential plumbing systems. Their 90-degree configuration allows for efficient flow direction changes, making them ideal for installations under sinks, behind toilets, and in other confined spaces where altering the flow path is necessary. Additionally, angle valves serve as localized shut-off points, enabling maintenance or repairs without disrupting the entire system. Beyond residential use, angle valves find applications in industrial settings where space constraints and directional flow control are critical considerations.
Ball Valves are favored in industrial and commercial environments that demand robust performance and reliable shut-off capabilities. Their design facilitates quick operation and minimal pressure drop, making them suitable for high-pressure and high-temperature applications. Common industries employing ball valves include oil and gas, chemical processing, water treatment, and power generation. In these sectors, ball valves are integral to controlling the flow of various fluids, ensuring system integrity, and maintaining operational safety.
Which Valve Should You Choose: Angle Valve vs Ball Valve

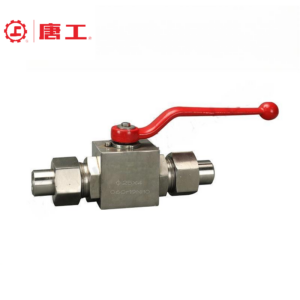

Hydraulic Welded Ball Valve
Selecting between angle valves and ball valves necessitates a comprehensive evaluation of the specific requirements of your application. Key factors to consider include spatial constraints, desired flow control precision, pressure and temperature conditions, maintenance expectations, and budgetary considerations.
Angle Valves are particularly advantageous in scenarios where space is limited, such as under sinks or behind toilets, due to their 90-degree configuration that facilitates directional flow changes without additional fittings. They offer precise flow regulation, making them suitable for applications requiring fine adjustments. However, angle valves may require more frequent maintenance and may not be ideal for high-pressure or high-temperature environments.
In contrast, Ball Valves are renowned for their durability and ability to handle high-pressure and high-temperature conditions, making them suitable for industrial applications. Their quarter-turn operation allows for rapid opening and closing, providing reliable shut-off capabilities. While ball valves may have a higher initial cost, their longevity and minimal maintenance requirements can result in cost savings over time.
Conclusion
Both angle valves and ball valves serve important roles in fluid control systems, but they excel in different areas. Angle valves are best for residential and small-scale plumbing applications where directional change and flow regulation are needed. Ball valves, on the other hand, are ideal for industrial settings and applications demanding high durability and a reliable shut-off.
By understanding these differences, you can make an informed decision that ensures both efficiency and reliability in your fluid control systems. Whether for home use or industrial processes, selecting the right valve can significantly impact system performance and maintenance needs. Contact us today for expert guidance and to explore our wide range of high-quality valves that fit your specific applications.
