Selecting the right valve standard is crucial for ensuring reliability, safety, and efficiency. API 600 and API 602 are two important gate valve standards in the industry. This article will help readers understand what API 600 and API 602 are, their differences and similarities. It will also explain which situations each standard is best suited for. By the end, engineers and procurement specialists will have a clear understanding of which specification is suitable for their particular needs, depending on the application, size, and pressure requirements.

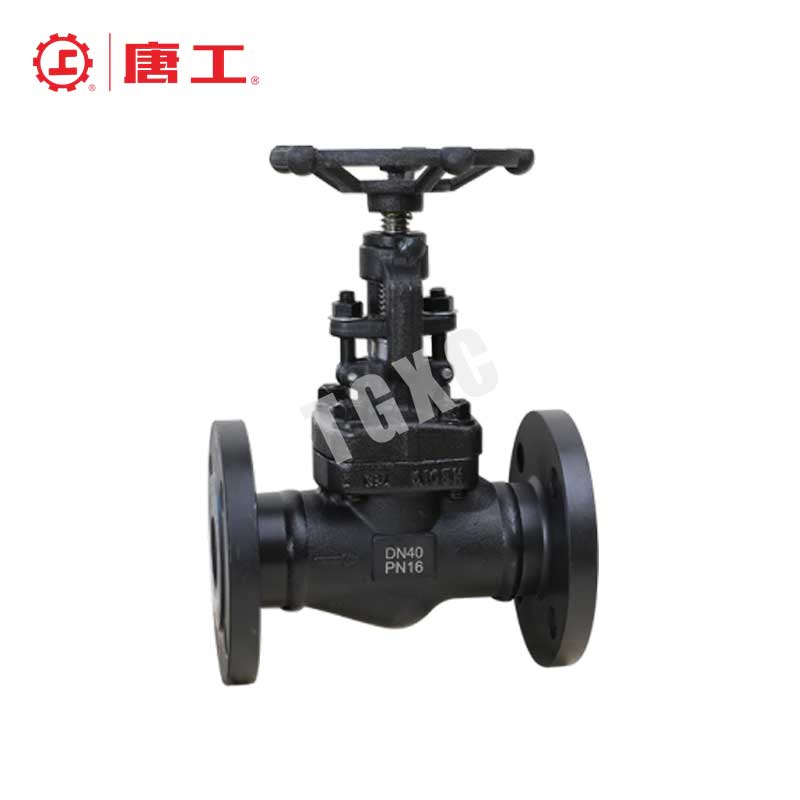

Forged Steel Valve
Understanding API 600 vs API 602
API 600 and API 602 are both standards developed by the American Petroleum Institute (API) for gate valves used in the oil and gas, petrochemical, and power industries. However, they are designed for different types of valves and serve distinct purposes:
- API 600: This standard governs larger gate valves that are typically used in high-pressure and high-temperature applications. These valves are often used in larger pipeline systems where durability and performance under extreme conditions are vital.

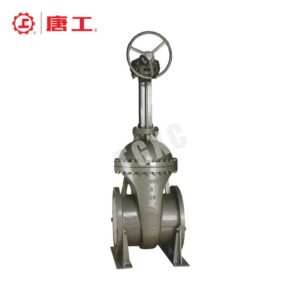

Cast Steel Gate Valve
- API 602: In contrast, API 602 covers smaller forged steel gate valves, which are often used in moderate conditions and tight spaces. These valves are commonly found in applications where space is limited, such as refinery units and other compact industrial setups.

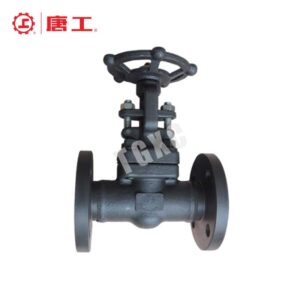

Forged Steel Flanged Gate Valve
To understand these standards better, let’s dive into the key features and differences between API 600 and API 602.
Key Differences Between API 600 vs API 602
To simplify the comparison, the following table provides a quick overview of the main differences between API 600 and API 602:
| Feature | API 600 | API 602 |
|---|---|---|
| Valve Size | Typically larger (2″ to 60″) | Smaller (1/4″ to 2″) |
| Material | Cast steel | Forged steel |
| Pressure Class | ANSI 150 to 2500 | ANSI 150 to 800 |
| Temperature Range | Suitable for high-temperature | Suitable for moderate-temperature |
| Applications | Large pipelines, high-pressure systems | Tight spaces, compact industrial setups |
| Manufacturing Method | Cast construction | Forged construction |
1. Valve Size and Application
API 600 valves are designed for larger diameters, typically ranging from 2 inches to 60 inches in diameter. This makes them suitable for large-scale pipeline applications where high capacity is required. On the other hand, API 602 valves are much smaller, generally between 1/4 inch and 2 inches. They are ideal for situations where space is a constraint, such as in refinery units and auxiliary systems.
2. Material and Manufacturing
API 600 valves are primarily made of cast steel, which allows for larger valve sizes to be produced economically. Conversely, API 602 valves are made from forged steel, which offers better strength and durability in smaller sizes. Forged steel construction ensures that the valves can withstand the operational stresses of compact systems.
3. Pressure and Temperature Ratings
API 600 gate valves are designed to handle a broad range of pressure classes (ANSI 150 to 2500) and are suitable for high-temperature environments, such as steam lines and hydrocarbon processing. This makes them well-suited for applications involving steam, hydrocarbons, and other high-temperature fluids. API 602 valves, with pressure classes ranging from ANSI 150 to 800, are used in moderate-temperature applications where extreme heat is not a concern.
Best-Use Scenarios for API 600 vs API 602
Choosing between API 600 and API 602 depends largely on the specific requirements of your application:
- High-Temperature Environments: If you need a valve for a high-temperature application, such as steam or high-pressure oil and gas pipelines, API 600 is the better choice. Its cast steel construction and ability to handle higher pressure classes make it ideal for such demanding conditions.
- Compact Spaces and Moderate Conditions: For applications in compact spaces where moderate temperature and pressure are involved, such as auxiliary piping systems in refineries, API 602 valves are more appropriate. Their smaller size and forged construction provide the durability and reliability needed for these environments.
Material Requirements and Longevity
The choice of material plays a crucial role in the performance and longevity of valves. API 600 valves, made from cast steel, are designed to endure the challenges of larger, high-pressure systems but may be more prone to casting defects compared to forged steel. On the other hand, API 602 valves are made from forged steel, which is inherently stronger and has fewer impurities, providing better resilience over time, especially in smaller sizes.
In terms of maintenance, API 602 valves generally require less maintenance due to their robust forged construction, which reduces the likelihood of defects and failures. API 600 valves, while highly effective in large-scale applications, may require more frequent inspection and maintenance due to their larger size and complexity.
Cost Implications of API 600 vs API 602 Valves
When comparing API 600 and API 602 valves, several cost-related factors emerge that can significantly impact procurement and operational expenses. API 600 valves, being larger and designed for more robust applications in higher-pressure systems, tend to be more expensive due to their larger size, heavy-duty construction, and stringent testing requirements. These valves are typically used in oil and gas pipelines, refineries, and petrochemical plants where high-pressure and high-temperature conditions are prevalent. As a result, they require more expensive materials and more intensive manufacturing processes, which directly translates to higher upfront costs.
In contrast, API 602 valves are smaller and more compact, designed primarily for use in smaller-scale operations or in systems where space constraints are significant. These valves are less costly because they are typically constructed from fewer materials and have less complex designs compared to the API 600. Their smaller size also means that they require less energy to manufacture, and they are often employed in less demanding applications, which makes them a more cost-effective solution for many industrial processes.
The operational cost implications further differ between the two. While API 600 valves, due to their larger size, may incur higher maintenance and operational costs over their lifespan, API 602 valves are easier to maintain, given their simpler design and more compact nature. The cost of repairs and replacements for API 602 valves is often lower, making them more economical for industries with less stringent flow control needs. Thus, while API 600 valves might be a necessary investment for certain high-pressure systems, API 602 valves provide a more economical choice for applications where space, size, and cost are more critical factors.
Applications in Different Industries
- Oil and Gas: API 600 valves are often used in mainline pipelines and high-pressure oil transport. API 602 valves are more suitable for secondary processes or in areas where compact valve sizes are necessary.
- Power Generation: In power plants, where steam lines operate at high temperatures, API 600 valves are the preferred choice. API 602 valves are used in ancillary systems within the plant.
- Petrochemical: Refineries often require both types of valves—API 600 for mainline operations and API 602 for tight, congested areas within processing units.
FAQs
1. What are the differences in sealing mechanisms between API 600 and API 602 valves?
API 600 valves typically use metal-to-metal seating, often made of stainless steel, for tight sealing, suitable for high-pressure and high-temperature conditions. API 602 valves often use resilient seating, such as elastomer, which is effective in lower-pressure systems and provides good leak prevention for smaller applications.
2. How do testing procedures differ between API 600 and API 602 valves?
API 600 valves undergo extensive testing throughout the manufacturing process, including hydrostatic and seat leakage tests to ensure their durability in extreme conditions. API 602 valves, while also rigorously tested, focus more on compact designs and include additional non-destructive testing (NDT) techniques to ensure reliability under high-pressure conditions.
3. Are API 600 and API 602 valves fire-safe?
Yes, both API 600 and API 602 valves adhere to fire-safe standards. API 600 valves comply with API 607, which ensures they can withstand high temperatures. API 602 valves meet similar requirements, often under API 608, making them suitable for fire-sensitive applications.
4. How do the pressure ratings of API 600 and API 602 valves compare?
API 600 valves are designed for higher pressures, up to 2500 psi, while API 602 valves are typically suitable for moderate pressures, around 1500 psi. The pressure rating differences reflect their intended applications, with API 600 valves being used in more demanding environments.
Conclusion
Both API 600 and API 602 play significant roles in valve manufacturing, each suited to specific applications and environments. API 600 is best for large-scale, high-temperature, and high-pressure applications, while API 602 is more appropriate for smaller, forged valves in moderate conditions and confined spaces.
Understanding these differences can help industry professionals make an informed decision when selecting the right valve standard for their needs. Whether you are an engineer, procurement specialist, or maintenance professional, knowing when to use each standard ensures optimal performance, reliability, and safety in your systems. Contact us today! Our experts are here to guide you through your valve selection process and provide the best solutions for your needs.
