API 608 and API 6D are two critical valve standards that are widely used in the oil and gas, chemical, and pipeline industries. While both standards serve as important guidelines for ensuring valve safety and reliability, they cater to different types of valves and applications. In this article, we will provide an in-depth comparison between API 608 vs API 6D, explaining their scope, differences, and the contexts where each is most suitable. Whether you are an industrial engineer, procurement specialist, maintenance technician, or a student, this guide will help you better understand these two standards and make informed decisions regarding valve selection.
Understanding API 608 vs API 6D
API 608 Standard Overview
API 608 is a valve standard developed by the American Petroleum Institute (API) that specifies the requirements for metal ball valves, specifically floating and trunnion-mounted types, used in industrial pipeline systems. The standard covers valves that are primarily intended for use in upstream and downstream applications, including chemical processing, refining, and other similar operations. API 608 is recognized for its focus on quarter-turn valves, particularly ball valves, which are suitable for on/off applications.
API 6D Standard Overview
API 6D, on the other hand, is a more comprehensive standard that applies to various types of valves used in pipeline systems, such as gate valves, plug valves, check valves, and ball valves. API 6D is designed for pipeline transportation systems and applies specifically to the equipment used in the petroleum and natural gas industries. This standard covers a wide range of considerations, including valve pressure ratings, design criteria, inspection, and testing requirements.
Key Differences Between API 608 vs API 6D
To understand the distinctions between API 608 and API 6D, it is helpful to consider several key areas:
Scope and Application:
API 608: This standard specifies requirements for metal ball valves with flanged, threaded, or welded ends, primarily used in process piping systems. These valves are typically employed in applications requiring frequent operation, such as controlling the flow of various media in industrial processes.
API 6D: This standard covers pipeline and piping valves, including gate, plug, ball, and check valves, designed for the transmission and distribution of oil and gas. API 6D valves are suitable for long-distance pipelines and are engineered to handle high pressures and temperatures, ensuring the safe and efficient transport of hydrocarbons.
Design and Construction:

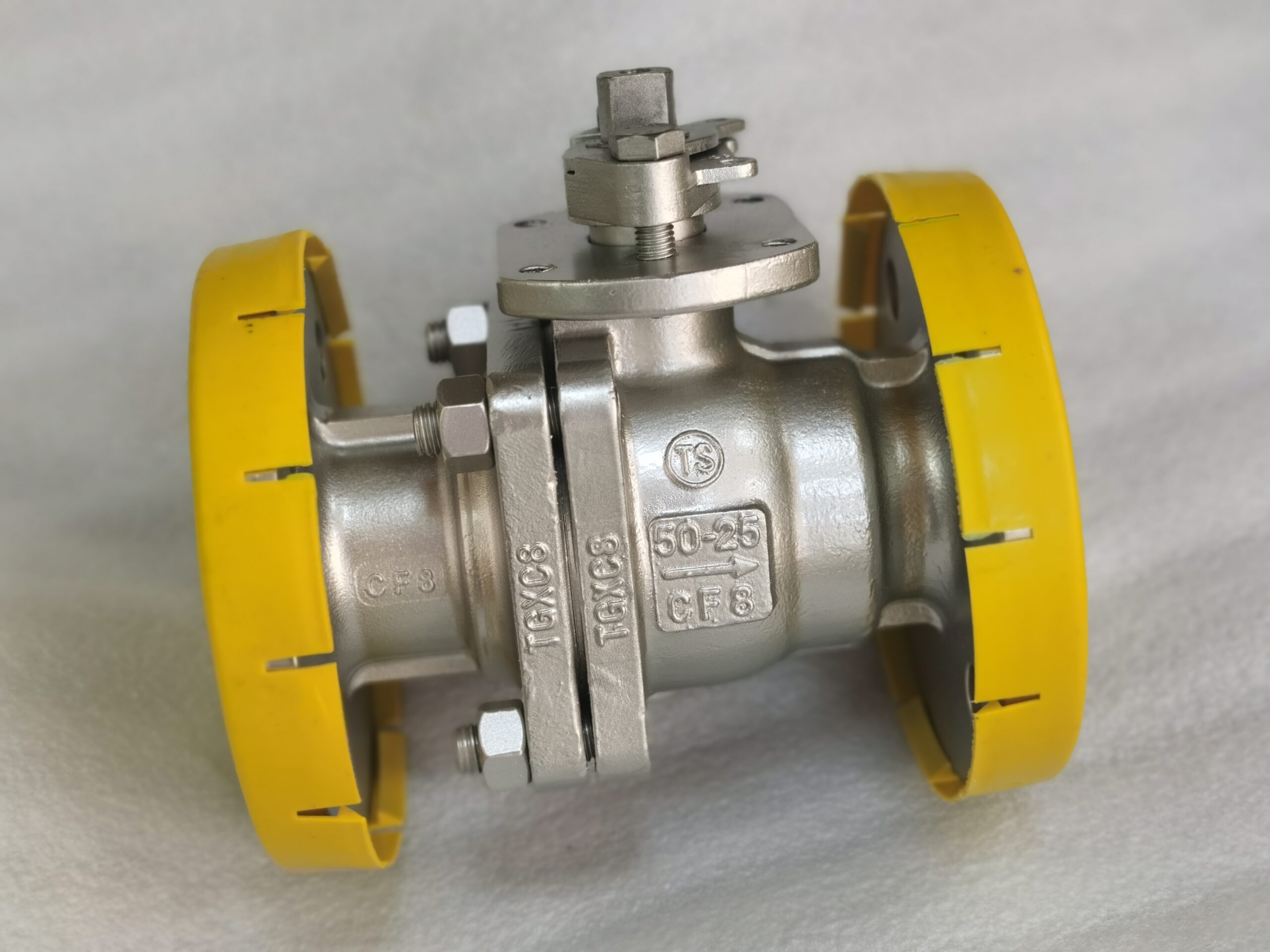

API 608 Valves: Typically feature a floating ball design, where the ball is not fixed but held in place by the compression of two elastomeric seats. This design is effective for smaller valve sizes and lower pressure applications, providing reliable sealing with straightforward construction.
API 6D Valves: Often utilize a trunnion-mounted ball design, where the ball is anchored by trunnions (support shafts) at the top and bottom. This configuration is advantageous for larger valve sizes and higher pressure applications, as it reduces the operating torque and enhances sealing performance under varying pressure conditions.
Pressure and Temperature Ratings:
API 608: Valves under this standard are typically rated for lower pressure classes, such as Class 150, 300, and 600. The pressure-temperature ratings are determined based on the materials used and are suitable for moderate pressure and temperature conditions commonly found in process piping systems.
API 6D: Valves conforming to this standard are designed for higher pressure classes, including Class 150, 300, 600, 900, 1500, and 2500. These valves are engineered to withstand the rigorous demands of pipeline applications, accommodating higher pressures and temperatures.
Testing and Quality Assurance:
API 608: Emphasizes testing procedures suitable for process piping valves, including pressure testing to verify the integrity and performance of the valve under specified conditions. The standard outlines requirements for materials, design, and testing to ensure valves meet the necessary safety and operational criteria.
API 6D: Mandates more rigorous testing protocols, reflecting the critical nature of pipeline applications. This includes comprehensive pressure testing, fire testing, and evaluations for fugitive emissions to ensure valves can withstand the demanding conditions of pipeline service. The standard also specifies quality control measures to maintain consistency and reliability in valve performance.
Summary of Key Differences
To summarize, here are the key differences between API 608 and API 6D:
| Feature | API 608 | API 6D |
|---|---|---|
| Valve Types | Ball Valves | Gate, Plug, Check, Ball Valves |
| Application Scope | Industrial Process Systems | Pipeline Transportation Systems |
| Pressure & Temperature | Moderate | High |
| Industry Use Cases | Refineries, Petrochemical Plants | Oil and Gas Pipelines |
| Testing Requirements | On/Off Testing | Comprehensive Pipeline Testing |
Conclusion
Understanding the differences between API 608 and API 6D standards can help you make the right choice when it comes to valve selection for your project. Both standards play a significant role in maintaining safety and reliability in industrial and pipeline operations. Choosing the right standard depends on the type of application, the specific operational needs, and the types of valves required.
For assistance with selecting valves that comply with API 608 or API 6D, contact us directly. Tang Gong Valve Group is here to help.
