Water and Wastewater Treatment
Swing check valves, non-slam check valves and slow close check valves for raw water, clean water, wastewater, sewage pump stations, filtration systems and distribution pipelines.
All Check Valves
Loading products
MacoTango Check Valve Manufacturer
MacoTango Valve supplies industrial check valves, non-return valves and one-way valves engineered to prevent reverse flow, protect pumps and compressors, maintain pipeline pressure and reduce water hammer risk. Choose from swing check valves, lift check valves, dual plate wafer check valves, axial flow check valves, non-slam check valves, slow close check valves, flanged check valves and threaded check valves for water treatment, wastewater, HVAC, chemical processing, power generation, oil & gas, steam and general industrial pipelines.
Send us your valve size, pressure class, working temperature, media, flow direction, installation position, end connection, body and trim material, seat material, cracking pressure, flow rate and required standards. Our engineers will help match swing, lift, dual plate, axial flow, non-slam or slow close check valve configurations for reliable non-return protection in your project.
Find the right check valve, non-return valve or one-way valve for your pipeline system. Compare swing check valves, lift check valves, non-slam axial flow check valves, slow close check valves, threaded check valves, flanged check valves and large diameter check valves for backflow prevention, pump protection, water hammer control and reliable reverse-flow shutoff in water, wastewater, HVAC, steam, chemical, power, oil & gas and general industrial service.
Use this section to confirm whether the check valve series matches your pipeline, media, pressure drop and installation requirements before requesting a quote. MacoTango can help compare swing check valves, lift check valves, non-slam check valves, and threaded or flanged check valves according to your flow direction, cracking pressure, reverse-flow risk and water hammer control needs.
| Parameter | Common Options |
|---|---|
| Valve Types | Swing check valves, lift check valves, piston check valves, dual plate wafer check valves, axial flow check valves, nozzle check valves, non-slam check valves, slow close check valves, ball check valves, foot valves and spring-loaded inline check valves. |
| Body Styles | Full opening swing type, guided lift or piston type, compact wafer dual plate type, spring-assisted axial flow type, threaded spring type and pump discharge slow closing structures according to flow rate, pressure drop, pipe layout and maintenance access. |
| Body Materials | Cast iron, ductile iron, carbon steel, WCB, WCC, low temperature steel, stainless steel 304/316, CF8, CF8M, bronze, brass and project-specific alloy materials according to pressure, temperature, corrosion risk and site environment. |
| Disc, Plate and Trim Materials | Carbon steel, stainless steel, 13Cr, SS304, SS316, bronze, ductile iron, alloy steel and corrosion-resistant trim options depending on valve model, medium, velocity, sealing requirement and service condition. |
| Seat and Sealing | Metal-to-metal seat, resilient seat, soft seat, EPDM, NBR, PTFE, FKM, stainless steel hardfaced seat and bubble-tight shutoff options according to leakage class, temperature, media compatibility and backflow prevention requirements. |
| End Connections | Flanged, wafer, threaded, NPT, BSP, socket weld, butt weld, clamp and project-specific connection options according to ANSI/ASME, EN, DIN, JIS, GB or customer pipeline standards. |
| Installation and Flow Direction | Horizontal installation, vertical upward flow, vertical downward flow for selected spring-assisted designs, pump discharge installation and flow-arrow orientation checks. Valve selection should consider pipe orientation, turbulence, nearby elbows, flow velocity and available straight pipe length. |
| Opening and Closing Performance | Low cracking pressure, spring-assisted closure, non-slam closure, short-stroke axial movement, lever and weight, dashpot, hydraulic slow closing and controlled closing speed options for reverse-flow protection, pump protection and water hammer reduction. |
| Standards | Manufactured to selected international or project standards such as API 594, API 598, API 6D, ASME B16.34, ASME B16.5, ASME B16.10, ASME B16.25, MSS SP-61, EN 12266, ISO 5208, DIN, JIS, GB and CE requirements, depending on valve model and order specification. |
| Testing and Inspection | Shell pressure testing, seat leakage testing, backflow sealing inspection, cracking pressure verification, flow direction check, functional opening and closing inspection, visual inspection, material inspection and optional NDT or third-party inspection according to project requirements. |
| Applications | Water treatment, wastewater, pump stations, HVAC, boiler feedwater, steam and condensate lines, chemical processing, oil and gas pipelines, compressor discharge, power generation, cooling water systems, industrial utilities and general non-return pipeline protection. |
| Documentation | Technical drawings, datasheets, pressure-temperature ratings, material certificates, inspection and test plans, hydrostatic test reports, leakage test reports, certificates, installation manuals and packing documents can be supplied for project approval when required. |
For accurate check valve selection, please send your pipe size, pressure rating, working temperature, medium, flow direction, horizontal or vertical installation position, required cracking pressure, flow rate, end connection, body and trim material, seat material, applicable standard and required certificates.
Check valve selection should start from flow conditions and reverse-flow risk, not only pipe size. Media, flow rate, pressure drop, cracking pressure, installation direction, valve type, body and trim materials, end connection and required standards all affect the final check valve configuration.
Start with the medium, flow direction and reason for backflow prevention. Clean water, wastewater, steam, condensate, gas, oil, chemical liquid and slurry service may require different check valve structures, body materials and seat designs. For pump discharge, vertical lines or systems with frequent start-stop cycles, also review reverse-flow speed, water hammer risk and whether a non-slam or spring-assisted check valve is required.
Explore Product
Confirm pipe size, DN or NPS, pressure class, working temperature, flow rate, fluid density, viscosity and allowable pressure drop before selecting a check valve. Oversized check valves may chatter or fail to open fully at low flow, while undersized valves can create excessive pressure loss. For stable operation, the valve should match the actual flow range as well as the pipeline rating.
Explore Product
Match the check valve type to the application and installation position. Swing check valves are commonly used for steady flow and larger pipelines. Lift or piston check valves suit higher pressure and faster closing service. Dual plate wafer check valves provide compact installation between flanges, while axial flow, nozzle and non-slam check valves are often reviewed for pump protection, fast closure and reduced slam in critical systems.
Explore Product
Review cracking pressure, closing speed and reverse-flow conditions when water hammer, check valve slam or pump damage is a concern. Spring-assisted, axial flow and non-slam check valves can close before significant reverse flow develops, while slow close designs, lever and weight or dashpot options may be used on selected pump discharge systems. The best choice depends on flow velocity, pump shutdown behavior and pipeline layout.
Explore Product
Confirm body material, disc or trim material, seat material, end connection and inspection requirements before quotation. Check valves can be supplied with flanged, wafer, threaded, socket weld, butt weld or project-specific connections. For industrial projects, also confirm API 594, API 598, API 6D, ASME, EN, DIN, JIS or GB standards, certificates, drawings, test reports and installation documents.
Explore Product
An industrial check valve, also called a non-return valve or one-way valve, opens automatically when forward flow creates enough pressure to lift or swing the disc, plate, piston or poppet away from the seat. When flow slows, stops or reverses, back pressure, gravity or a spring-assisted closing mechanism returns the closure member to the seat and blocks reverse flow. Check valves are widely used for backflow prevention, pump protection, compressor discharge, water hammer reduction and pipeline pressure protection in water, wastewater, HVAC, steam, chemical, power generation, oil and gas and general industrial systems.
Automatic One-Way Operation: A check valve does not need a handwheel or actuator. It opens by forward flow and closes automatically when reverse flow or back pressure occurs.
Cracking Pressure and Opening: Forward pressure must overcome the valve weight, spring force or disc resistance. This opening point is often called cracking pressure.
Reverse Flow Shutoff: When flow reverses, the disc, plate, piston or poppet returns to the seat to prevent backflow through pumps, compressors and process pipelines.
Check Valve Type Matching: Swing, lift, dual plate wafer, axial flow, non-slam, slow close, threaded and flanged check valves are selected according to flow rate, pressure drop, installation direction and media.
Water Hammer Control: Short-stroke, spring-assisted and non-slam check valves can close before significant reverse velocity develops, helping reduce check valve slam, surge pressure and pipeline shock.
Check valves allow flow in one direction and close automatically to help prevent reverse flow, contamination risk and unwanted pipeline drainage.
Properly selected check valves protect pumps, compressors and rotating equipment from reverse rotation, back pressure and damaging reverse-flow conditions.
Spring-assisted axial flow, nozzle and silent check valve designs can support fast closure, lower slam risk and reduced water hammer in pump discharge systems.
Swing check valves, lift check valves, dual plate wafer check valves, axial flow check valves, slow close check valves and threaded check valves can be matched to different systems.
Check valve selection can be adjusted for horizontal pipelines, vertical upward flow, pump discharge lines and compact spaces where wafer or inline designs are preferred.
Cast iron, ductile iron, carbon steel, stainless steel, brass, bronze, metal seated and resilient seated options can be reviewed for water, steam, oil, gas and chemical media.
Correct sizing helps reduce chatter, disc wear, excessive pressure loss and unstable operation, especially where flow rate changes or low-flow operation may occur.
Drawings, datasheets, material certificates, inspection records, pressure test reports and technical files can support check valve approval and purchasing work.
Check valves are selected when buyers need automatic backflow prevention, pump protection, reverse-flow shutoff and water hammer control in pipeline systems. MacoTango supports check valve application matching by media, flow direction, pressure rating, cracking pressure, installation position, end connection, seat material and required project standards.
Swing check valves, non-slam check valves and slow close check valves for raw water, clean water, wastewater, sewage pump stations, filtration systems and distribution pipelines.
Check valves for chilled water, condenser water, heating water, booster pumps, cooling towers and building utility loops where reverse circulation must be controlled.
Stainless steel, lift, spring-loaded and corrosion-resistant check valve options for chemical transfer, acids, alkalis, solvents, metering pumps and process lines.
Industrial check valves for boiler feedwater, condensate return, cooling water, steam service, auxiliary systems and pump discharge lines in power plant applications.
Flanged, high pressure and API project check valves for oil, gas, fuel, compressor discharge, refined product lines, compressed air, nitrogen and utility systems.
Non-slam axial flow check valves, slow close check valves and swing check valves for pump start-stop cycles, surge reduction, reverse-flow control and pipeline protection.
MacoTango Valve supports industrial check valve projects with quality control, material traceability, dimensional inspection, hydrostatic shell testing, seat and closure leakage testing, backflow sealing checks, cracking pressure review and pre-shipment documentation according to customer and project requirements.

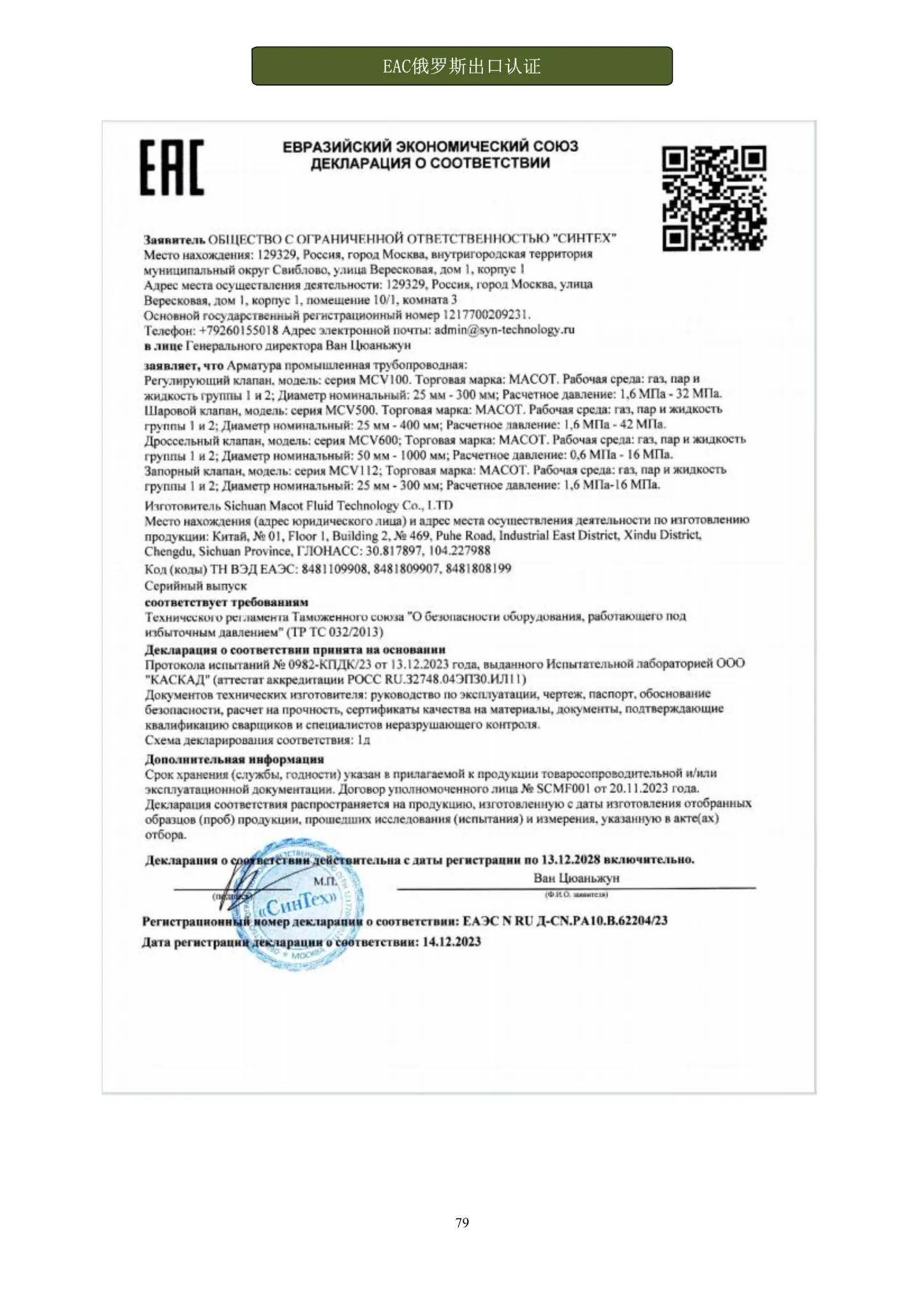

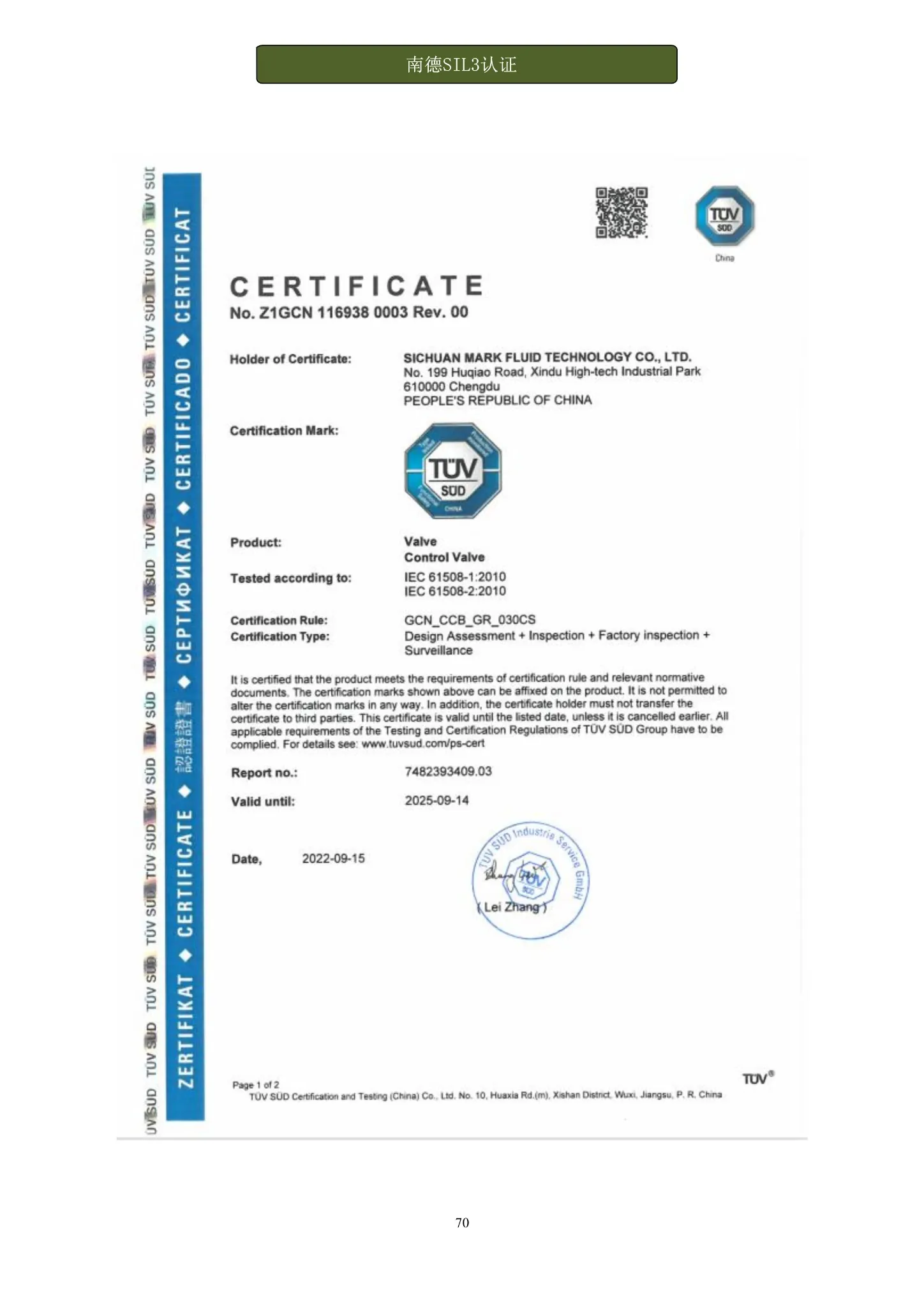

ISO 9001, ISO 14001 and CE certified manufacturer, with certificate copies, company qualification files and project compliance documents available for review when required.
Check valve configurations can be selected according to API 594, API 598, API 6D, ASME B16.34, ASME B16.5, ASME B16.10, MSS SP-61, ISO 5208, EN 12266, DIN, JIS and project specifications.
Shell pressure testing, seat leakage testing, closure testing, flow direction checks, visual inspection, dimensional inspection and functional inspection can be arranged before shipment.
General arrangement drawings, datasheets, pressure-temperature ratings, ITP files, material certificates, EN 10204 3.1 or 3.2 documents, test reports and approval files can support project purchasing work.
Export support for customers in more than 20 countries, including document coordination, marking confirmation, packaging support, inspection photos and project communication.
Contact our team for drawings, certificates, pressure test records, seat leakage reports, material documents, inspection photos, packing details and technical files for your check valve order.
Tell us your pipeline conditions and project requirements. Our team will help you compare suitable check valve types, non-return valve structures, body and trim materials, seat options, cracking pressure, installation direction, end connections and testing standards before quotation.
Quick answers for industrial buyers comparing check valve types, non-return valve performance, cracking pressure, installation direction, water hammer control and quotation requirements.
A check valve is used to allow flow in one direction and prevent reverse flow in a pipeline. It is also called a non-return valve or one-way valve, and is commonly used for pump protection, backflow prevention, pressure retention, compressor discharge and pipeline safety.

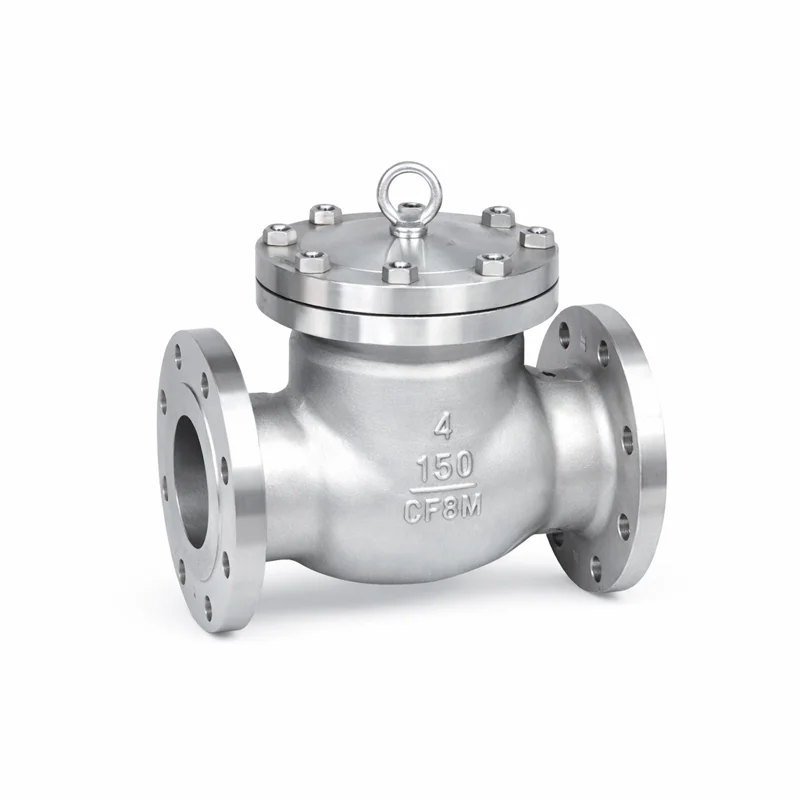

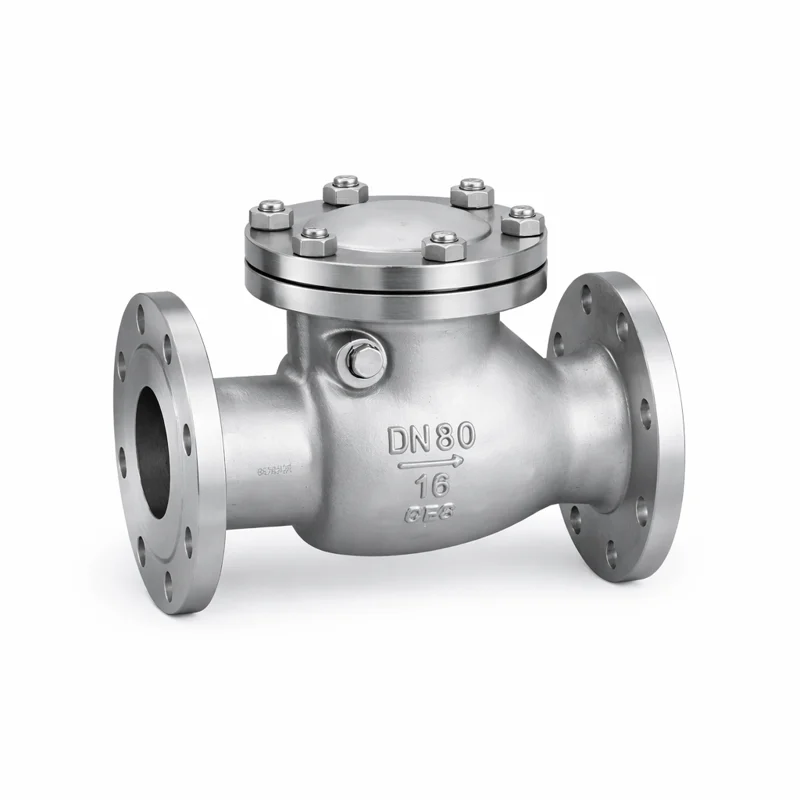

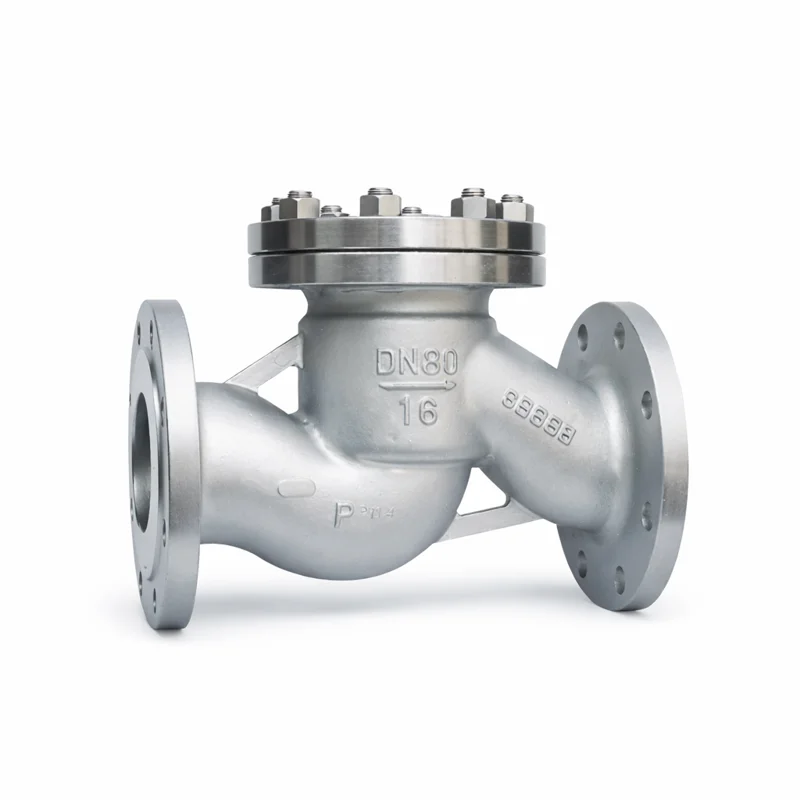

A swing check valve uses a hinged disc and is often selected for steady flow, lower pressure drop and larger pipelines. A lift check valve uses a guided disc or piston that lifts from the seat, making it suitable for higher pressure service, faster closure and some vertical installation requirements.
A non-slam check valve is recommended when reverse-flow speed, pump shutdown or fast system changes may cause check valve slam and water hammer. Spring-assisted axial flow, nozzle and silent check valve designs can close before significant reverse velocity develops.
Cracking pressure is the minimum upstream pressure needed to start opening the check valve. It depends on valve design, spring force, disc weight, installation orientation and flow direction. The correct cracking pressure helps the valve open reliably without creating unnecessary pressure loss.
Some check valves can be installed vertically, but the allowed direction depends on valve type and design. Many swing check valves are mainly used in horizontal lines or vertical upward flow, while spring-loaded and axial flow check valves may offer more installation flexibility. Always confirm the flow arrow and installation orientation before ordering.
Water hammer can happen when reverse flow is suddenly stopped by a closing valve. Non-slam, spring-assisted and short-stroke check valves help reduce this risk by closing quickly and smoothly before reverse velocity becomes high. Slow close designs may also be reviewed for selected pump station systems.
Please provide check valve type, pipe size, pressure rating, working temperature, media, flow direction, installation position, flow rate, pressure drop, cracking pressure if required, body and trim material, seat material, end connection, quantity and any required API, ASME, ISO, EN, DIN, JIS, test report or certificate requirements.
