Material:Stainless Steel, Forged Steel
Size Range:1/8″ to 4″
Connection Options:Threaded, Socket Weld, Butt Weld
Working Pressure:Up to 6000 psi
Working Temperature:-29°C to 450°C
Sealing Options:PTFE, Graphite, Metal-to-Metal
Manufacturing Method:Forged, Machined, Heat Treated
Applicable Medium:Air, Oil, Water, Gas, Steam, Chemical Fluids
Manufacturing Standard:ASME B16.11, MSS-SP-83, API 602

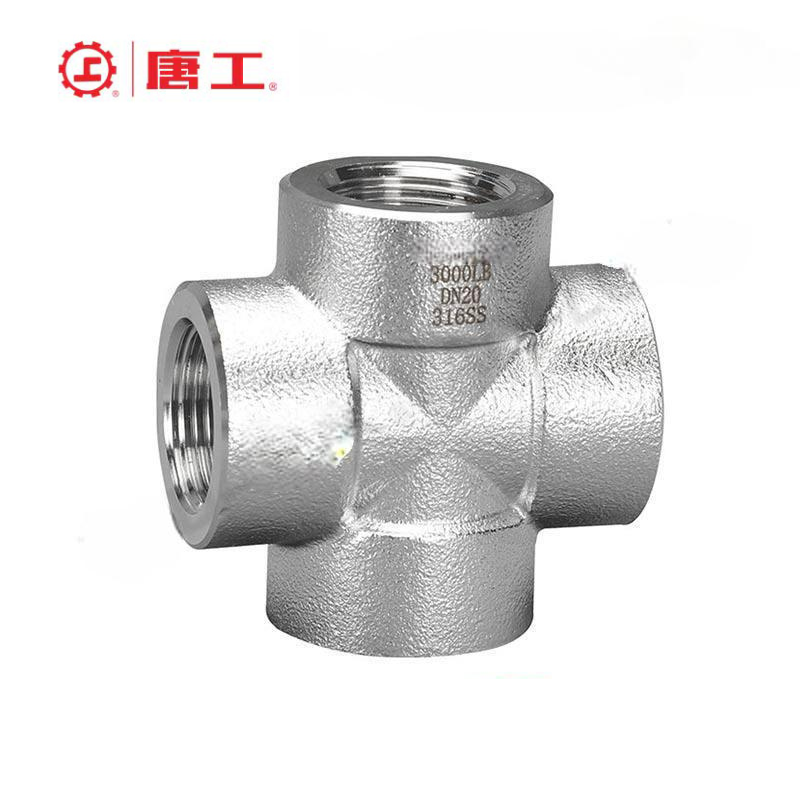

Our range of pipe fittings includes unions, elbows, tees, and crosses. Examples include Hex Union, Female Threaded Elbow, and Socket Weld Cross. These fittings are designed for use in various piping systems, providing secure and reliable connections for different media. These fittings are designed for use in various piping systems, providing secure and reliable connections for different mediums. Made from high-quality materials such as stainless steel, carbon steel, alloy steel, and brass, these fittings are durable, resistant to corrosion, and suitable for a wide range of industrial applications.
High Durability: Designed to ensure long-lasting performance and reliability in various industrial applications.
Corrosion Resistance: Suitable for use with a wide range of corrosive and non-corrosive mediums.
Precision Machining: Provides precise threading and a secure fit for leak-free connections.
Versatile Application: Available in various sizes, connection types, and pressure ratings to meet diverse industrial needs.
Heat Resistance: Withstands high temperatures, making it suitable for use in steam and hot fluid applications.
Structural Length Standard:
According to ASME B16.11 and MSS-SP-83
Connection Forms Standards:
Threaded according to ANSI/ASME B1.20.1, Socket Weld per ASME B16.11
Available Sizes (Caliber):
1/8″-4″
Pressure-Temperature Rating:
Class 2000, 3000, 6000, 9000 as per ASME B16.11
Pressure Range:
Up to 6000 psi depending on size and material
Temperature Range:
-29°C to 450°C depending on material and sealing options
Industries:
Specific Applications:
Installation Instructions:
