Material: Stainless Steel (SS304, SS316)
Size: 1/4″ to 1″
Connection: Female Thread, NPT, BSPT, BSPP (G)
Working Pressure: 3000 PSI to 10000 PSI
Working Temperature: -53°C to +540°C (-63.4°F to +1004°F)
Sealing: PTFE, VITON, PEEK, Graphite
Manufacturing Method: Forging
Applicable Medium: Oil, Gas, Water
Manufacturing Standard: ANSI, ASME, GB, JIS, DIN, customizable as per customer’s drawing

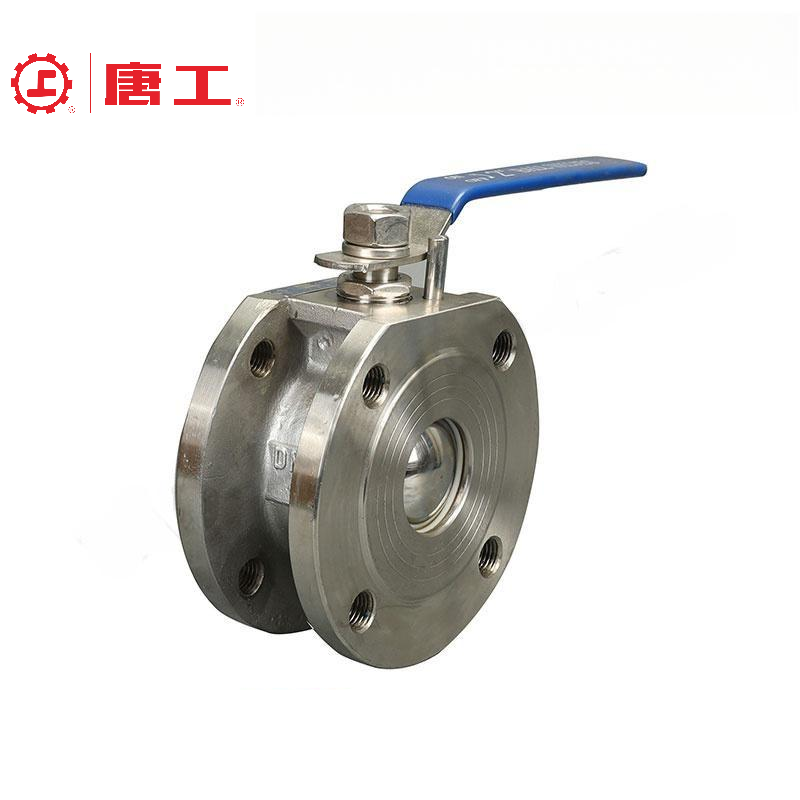

Ball valves are designed for efficient on/off control of fluid flow in a wide range of industrial applications. These valves feature a spherical disc to control the flow and are known for their excellent sealing capabilities and ease of operation. Constructed with high-quality materials such as stainless steel, ball valves are ideal for demanding environments and can handle high-pressure and high-temperature conditions.
On/Off Control: Ball valves provide efficient and reliable shut-off capabilities with minimal pressure drop.
Full Bore Design: Allows for maximum flow and minimal turbulence when the valve is fully open, reducing energy losses.
High-Pressure Capability: Can handle pressures from 3000 PSI to 10000 PSI, making it suitable for high-pressure applications.
Corrosion Resistant: Constructed with stainless steel (SS304, SS316) for excellent resistance to corrosion in harsh environments.
Leakage Prevention: Equipped with high-quality sealing materials such as PTFE, VITON, PEEK, and Graphite to ensure zero leakage under extreme conditions.
Easy Operation: The quarter-turn operation allows for quick and easy control of fluid flow.
Structural Length Standard: GB/T 12221, ASME B16.10 (Defines face-to-face and end-to-end dimensions for flanged, threaded, and welded connections)
Connection Forms Standards: Threaded Connections (BSP, NPT, BSPT, BSPP)
Available Sizes (Caliber): 1/4″ ~ 1″ (DN6 ~ DN25), custom sizes available upon request
Pressure-Temperature Rating: GB/T 12224, ASME B16.34
Pressure Range: 3000 PSI to 10000 PSI (206.7 bar to 689 bar)
Temperature Range: -53°C to +540°C (-63.4°F to +1004°F)
