Design and manufacturing:GB/T 12238, API 609, ASME B16.34
The structural length:GB/T 12221, ASME B16.10
Connection forms: HG/T 20592-20605, GB/T 9112-9124, ASME B16.5
Inspection and test:API 598, GB/T 13927
Caliber:1/2″ ~ 120″ (DN50 ~ DN300)
Pressure temporature level: GB/T 12224, ASME B16.34
Drive mode:Manual, worm gear, pneumatic, electric, hydraulic etc
Pressure: PN0.25 MPa ~ PN4.0 MPa o Class 125 ~ Class 600
Operating Mechanism (Drive Mode)
• Manual: Worm gear-operated valves for large diameter or high-pressure systems.

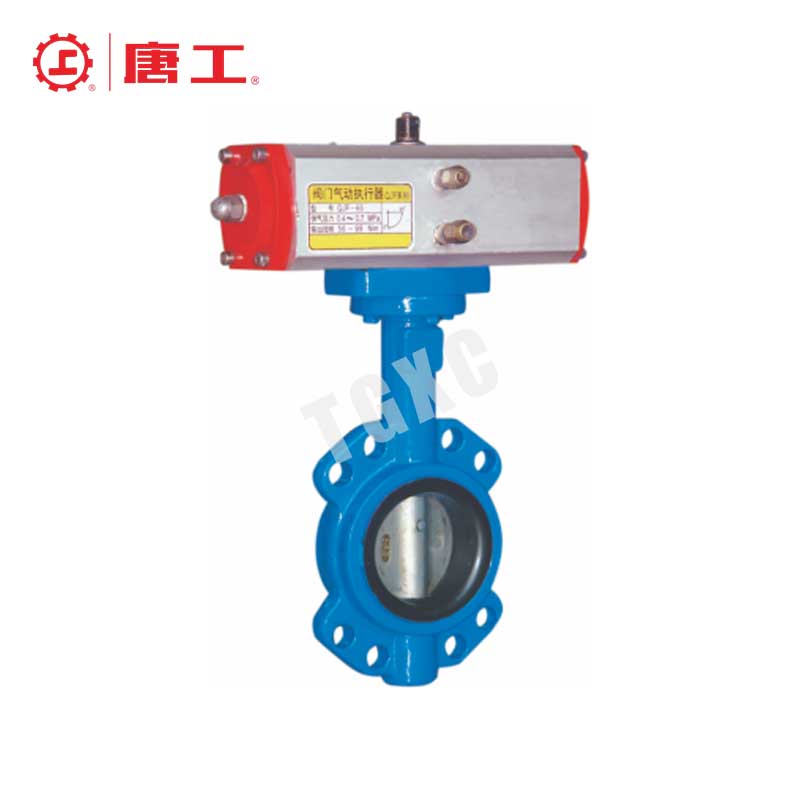

• Pneumatic Actuation: Quick and precise automated operation for systems requiring remote control (e.g., TG091, TG104).
• Electric Actuation: Precise and reliable operation for automated systems, ideal for remote and feedback-controlled environments (e.g., TG084, TG090).
• Hydraulic Actuation: Used for heavy-duty, large diameter, or critical applications requiring smooth and powerful operation (e.g., TG085, TG097).
Materials
• Body Material Options:
o Carbon Steel, Stainless Steel (304, 316, 316L)
o Cast Iron, Ductile Iron
o Alloy Steel, Bronze (for special applications)
• Disc Materials:
o Stainless Steel, Alloy Steel, Cast Iron (based on the application)
• Seat Materials:
o Soft Seals: EPDM, NBR, PTFE for low and medium-pressure applications
o Metal Seals: Stainless Steel, Inconel for high-temperature and high-pressure applications
Certifications
• Compliance: API, ISO 9001, CE, PED certifications for pressure-containing equipment.
• Optional Explosion-Proof Certification: Available for valves operating in hazardous environments, particularly those with electric or pneumatic actuators.
• Quick Shut-Off Valves: Electro-hydraulic or hydraulic actuated valves (e.g., TG085, TG086) are designed for quick shut-off applications requiring precise control in emergency situations.
• Soft and Hard Sealing Options: Soft-sealing butterfly valves provide leak-tight performance in general applications, while hard-sealing valves are ideal for high-temperature, high-pressure systems.
• Multi-Blade and Multi-Layer Designs: Used in specialized industrial applications such as HVAC, these designs allow for more complex flow control.
• Ventilation Systems: Large diameter and ventilation butterfly valves (TG081, TG084) provide efficient control in air flow systems with minimal resistance.
Design and Manufacturing Standards
• Design and Manufacturing: GB/T 12238, API 609, ASME B16.34 (Covers the design, safety, and performance of butterfly valves)
• Valve Type: Butterfly Valves (Including worm gear, pneumatic, electric, hydraulic, and multi-blade configurations)
Structural Length
• •Standard: GB/T 12221, ASME B16.10 (Defines face-to-face and end-to-end dimensions for flanged, wafer, and welded connections)
Connection Forms
• Standards:
o Flanged Connections: HG/T 20592-20605, GB/T 9112-9124, ASME B16.5
o Wafer and Lug Connections: ASME B16.5, API 609
o Butt-Weld Connections: ASME B16.25, API 598
Inspection and Test Standards
• Standard: GB/T 13927, API 598 (Covers pressure, sealing, and functional performance of butterfly valves)
Available Sizes (Caliber)
• Range: 1/2″ ~ 120″ (DN50 ~ DN300)
Pressure-Temperature Rating
• Standard: GB/T 12224, ASME B16.34
• Pressure Range:
o PN0.25 MPa ~ PN4.0 MPa
o Class 125 ~ Class 600
• Temperature Range:
o -40°C to +450°C (-40°F to +842°F) depending on body and seat materials
Industries:
o Oil & Gas
o Petrochemical Processing
o Power Generation (Steam, Thermal, Nuclear)
o Water Treatment and Distribution
o HVAC and Ventilation Systems
o Chemical Processing
o Industrial Manufacturing
o Fire Protection Systems
o Pump and Pipeline Systems
Specific Applications:
o Automated valve control in industrial processes (electric, pneumatic, hydraulic)
o Ventilation control in large-scale HVAC systems (TG081 Large Diameter Ventilation Butterfly Valve)
o Emergency shut-off systems using hydraulic actuation (TG085, TG086 Quick Shut-Off Valves)
o Flow control in high-pressure pipelines (hard-sealing valves for durability in tough environments)
