Check valves play a crucial role in industrial systems by allowing fluid to flow in one direction and preventing reverse flow, which can cause equipment damage, system inefficiencies, and safety risks. Two common types—axial flow and swing check valves—offer distinct advantages depending on the application. Axial flow check valves, with their spring-assisted design, provide fast closure, reduced water hammer, low flow resistance, and quiet operation, making them ideal for high-pressure and high-flow systems. Swing check valves, relying on a hinged disc and gravity-based operation, are better suited for low to medium-pressure systems due to their simplicity and lower cost. Understanding the differences between axial flow vs swing check valve is essential for optimizing system performance and reliability. This article explores the key features, advantages, and ideal applications of axial flow and swing check valves to help you make an informed choice.

What is an Axial Flow Check Valve?

An axial flow check valve is a type of non-return valve designed to allow fluid to flow in one direction while preventing reverse flow. Its streamlined, in-line design ensures efficient fluid dynamics, minimizing pressure loss and turbulence within piping systems.

Working Mechanism

The valve operates on a spring-assisted mechanism. During forward flow, fluid pressure pushes the disc open, allowing passage. If flow reverses, the spring promptly closes the disc, preventing backflow and mitigating water hammer effects. ​

Core Design Features

• Spring-Assisted Disc: The internal spring ensures rapid response to flow changes, promoting non-slam operation and reducing potential system shocks.

• Axial Movement: The disc moves parallel to the flow direction, maintaining a streamlined path that minimizes flow resistance and supports efficient operation.

What is a Swing Check Valve?

A swing check valve is a type of check valve that permits fluid flow in one direction and prevents backflow in the opposite direction. It achieves this through a disc that swings on a hinge or shaft, opening to allow forward flow and closing when the flow stops or reverses. This automatic operation ensures unidirectional flow without manual intervention. ​

Traditional Design

The traditional design of a swing check valve includes a valve body, a disc, and a hinge mechanism. The disc is connected to the hinge, allowing it to swing freely. When fluid flows in the desired direction, the pressure pushes the disc open. If the flow reverses, gravity and reverse pressure cause the disc to swing back onto the seat, effectively sealing the valve to prevent backflow. ​

Operation Mechanism

In operation, swing check valves rely on the dynamic movement of the disc:​

• Forward Flow: Fluid pressure pushes the disc away from the seat, allowing flow through the valve.​

• Reverse Flow: A decrease or reversal in flow causes the disc to return to its seat, blocking backflow.​

This mechanism is gravity-dependent, meaning the valve’s orientation can affect its performance. Proper installation is crucial to ensure reliable operation and to prevent issues such as water hammer, which can occur if the disc closes abruptly due to rapid flow reversal.

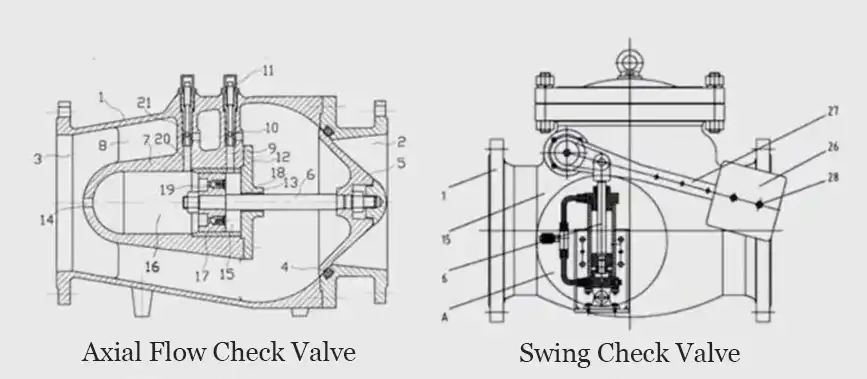

Axial Flow vs Swing Check Valve: A Detailed Comparison

Closing Speed and Water Hammer Prevention

Axial flow check valves are engineered for rapid closure, often within 0.2 seconds, due to their spring-assisted mechanism. This swift action minimizes the risk of water hammer—a surge of pressure caused by sudden fluid stoppage—making them ideal for high-pressure systems. ​

In contrast, swing check valves rely on gravity and fluid backflow to close their hinged discs, resulting in slower response times. This delayed closure can lead to significant water hammer effects, potentially damaging pipelines and associated equipment. ​

Size Range and Flow Capacity

Axial flow check valves are designed to accommodate larger pipelines, with sizes reaching up to DN2000. This scalability makes them suitable for large-diameter, high-flow applications, offering flexibility in system design. ​

Swing check valves typically have size limitations, commonly up to DN600. This restriction can pose challenges in systems requiring higher flow capacities, limiting their applicability in large-scale industrial settings. ​

Flow Resistance and Energy Efficiency

The streamlined design of axial flow check valves ensures minimal flow resistance, reducing pressure loss and enhancing energy efficiency. Their in-line configuration allows for smoother fluid dynamics, contributing to overall system performance. ​

Conversely, swing check valves have a hinged disc that can obstruct fluid flow, leading to increased turbulence and higher pressure drops. This design inherently results in reduced energy efficiency compared to axial flow counterparts. ​

Noise Levels During Operation

Axial flow check valves operate quietly, with noise levels typically below 50 dB. This quiet operation is beneficial in environments where noise reduction is critical, such as residential areas or indoor facilities. ​

In contrast, swing check valves can produce higher noise levels due to the abrupt closure of the disc, especially under rapid flow reversal conditions. This noise can be disruptive in settings where maintaining a low acoustic profile is essential. ​

In summary, axial flow check valves offer advantages in rapid closure, size scalability, energy efficiency, and quiet operation, making them suitable for high-demand applications. Swing check valves, while simpler and cost-effective, may present limitations in these areas, affecting their performance in specific industrial contexts.

Application Scenarios: Which Valve Suits Your Needs?

Ideal Uses for Axial Flow Check Valves

Axial flow check valves are engineered for applications requiring rapid response and reliable backflow prevention. Their design makes them particularly suitable for:​

• High-Pressure Systems: The swift closure mechanism of axial flow check valves minimizes water hammer effects, protecting equipment in high-pressure environments. ​

• Water Treatment Plants: Their efficient flow characteristics and quick response times make them ideal for maintaining unidirectional flow in water treatment processes. ​

• HVAC Systems: In heating, ventilation, and air conditioning systems, axial flow check valves ensure consistent flow direction, contributing to system efficiency and reliability. ​

• Noise-Sensitive Environments: Their non-slam operation results in quieter performance, making them suitable for settings where noise reduction is essential. ​

Where Swing Check Valves Shine

Swing check valves are favored in scenarios where simplicity and cost-effectiveness are prioritized. They are commonly used in:​

• Water and Wastewater Systems: Their simple construction and low-pressure drop make them effective in preventing backflow in water supply and wastewater treatment applications. ​

• Pumping Systems: Swing check valves protect pumps from reverse flow, which can cause damage or reduced efficiency. ​

• HVAC Systems: They maintain the proper flow direction of refrigerant, water, or air, ensuring efficient heating and cooling.

FAQs About Axial Flow vs Swing Check Valve

1.Can axial flow valves replace swing check valves in existing systems?

Yes, axial flow valves can often replace swing check valves in existing systems. They offer advantages such as reduced water hammer, non-slam operation, and suitability for both horizontal and vertical installations. However, compatibility depends on specific system requirements, so consulting with a valve specialist is recommended. ​

2.How does spring assistance improve axial flow valve performance?

Spring assistance in axial flow valves ensures rapid and controlled closure, minimizing reverse flow and water hammer effects. The spring mechanism allows the valve to respond promptly to changes in flow direction, enhancing system reliability and reducing maintenance needs. ​

3.Are swing check valves obsolete in modern industries?

Swing check valves are not obsolete but are less favored in applications where rapid closure and water hammer prevention are critical. They remain suitable for low to medium-pressure systems with steady flow conditions. However, industries increasingly prefer axial flow valves for their enhanced performance and reliability. ​

4.Which valve type offers better durability in corrosive environments?

Durability in corrosive environments depends on the materials used rather than the valve type. Both axial flow and swing check valves can be constructed from corrosion-resistant materials like stainless steel or specialized alloys to withstand harsh conditions.

Conclusion

Choosing between axial flow vs swing check valves depends on your system’s specific requirements. Axial flow check valves offer advantages in high-pressure and high-flow applications due to their rapid closure, low flow resistance, and quiet operation, making them ideal for critical industrial systems. Swing check valves, on the other hand, are simpler and more cost-effective, working well in low to medium-pressure systems where flow consistency matters more than rapid response. Understanding these differences is key to improving system efficiency and longevity. For complex or specialized systems, consulting with valve experts can help identify the best solution tailored to your operational needs.
