A standard ball valve can restrict flow, but that does not automatically make it a suitable control valve. It may be adequate for rough manual throttling, while repeatable modulation normally requires a purpose-designed ball control valve selected for the operating duty.
The distinction depends on how valve capacity changes with shaft rotation and after installation, as well as whether the actuator and positioner can hold the commanded position. These checks separate a partly closed isolation valve from an engineered ball-control-valve assembly.
Why a standard ball valve is difficult to control
A conventional ball valve is designed to leave an almost unobstructed flow path when fully open. That geometry keeps pressure loss low, but it does not make flow change in direct proportion to shaft rotation.
A round bore concentrates control into a narrow travel band
As the ball rotates, the round bore overlaps the valve passage in a changing shape. The exposed flow area may change slowly through one part of the travel and much faster through another. A valve described as 50% open therefore does not necessarily pass 50% of its maximum flow.
The relationship also varies with the bore size, seat geometry and internal construction. There is no universal opening angle that gives every standard ball valve a stable or repeatable throttling range. A manual handle may hold a rough restriction, but small movements can still cause larger flow changes than the operator expects.
Valve angle is not the same as installed flow

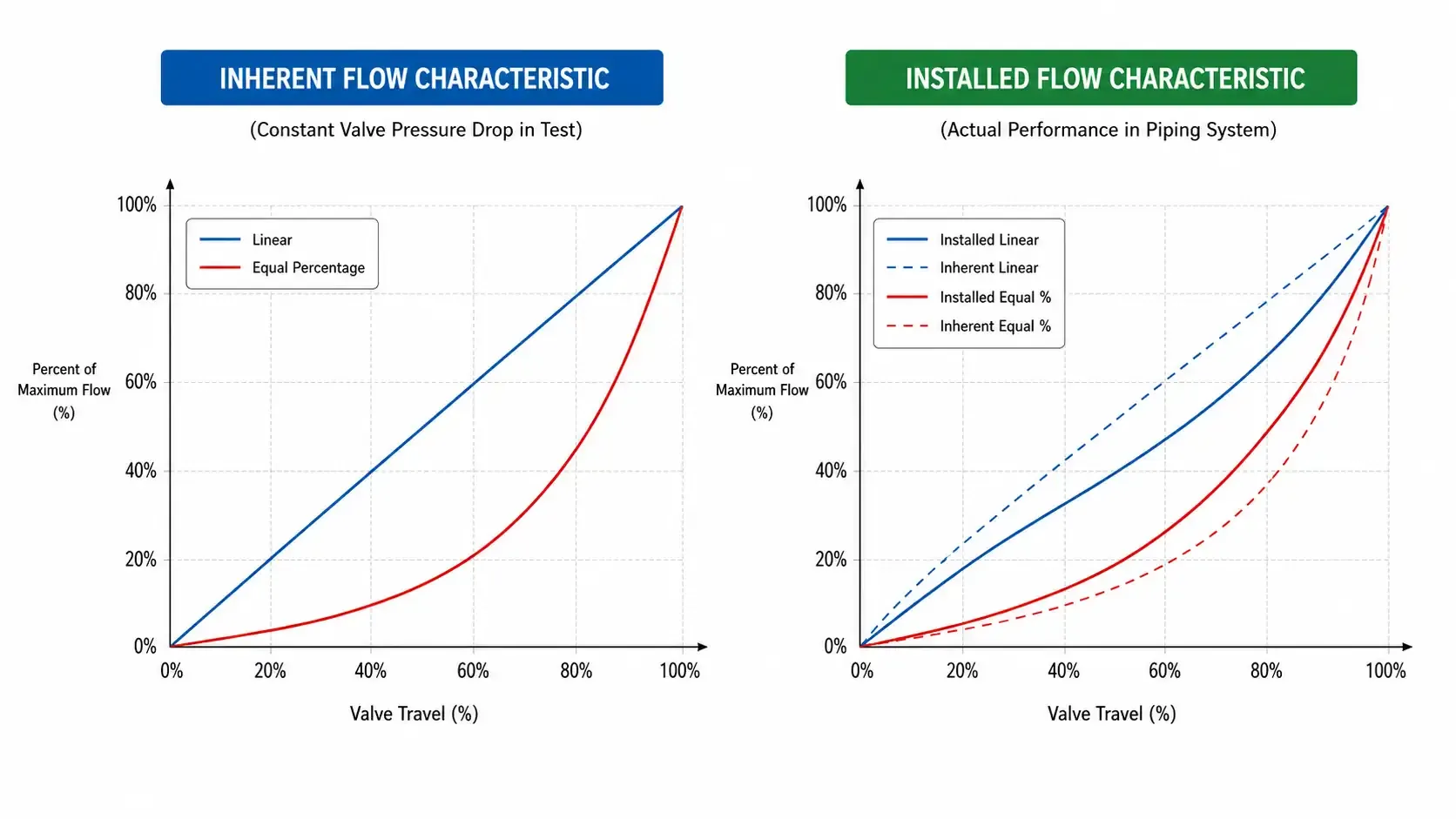

A valve’s inherent flow characteristic is measured while the pressure drop across the valve remains constant. That condition rarely exists in an operating piping system. As the ball opens and system flow increases, more pressure is consumed by the pipework, fittings and equipment, so the pressure drop available across the valve changes.
The resulting installed flow characteristic can differ substantially from the valve’s inherent characteristic. The same change in shaft angle may produce a large flow response at one operating point and a much smaller response at another. This changing response makes a standard ball valve harder to regulate smoothly, even when an actuator can position it accurately.
Partial opening can increase wear and instability risk
At a partly closed position, the fluid is forced through a restricted and uneven opening. Local velocity can rise around the edge of the ball, while pressure may fall sharply downstream. Depending on the medium and pressure drop, this condition can contribute to noise, vibration, cavitation or erosion.
Sustained throttling may also direct high-velocity flow towards sealing surfaces that were selected mainly for isolation duty. The outcome depends on the valve design and operating conditions, so partial opening alone does not prove that damage will occur. However, these risks must be checked before treating an isolation ball valve as a control valve.
A experimental study of one ball valve evaluated flow coefficient, torque, vibration and cavitation across its travel. The case does not establish a universal operating range, but it shows why control suitability must be assessed for the specific valve and system.
How a V-port or characterised ball valve changes the result
A control ball valve changes the geometry of the effective flow opening. Depending on the construction, this may be achieved with a V-shaped notch, a segmented ball or a characterised element positioned next to the ball.
A shaped opening changes capacity more progressively
When a V-port begins to open, only a small section of the notch is exposed. Further shaft rotation increases the effective flow area in a more controlled manner. The actuator can therefore use more of its available travel for modulation instead of concentrating the useful response within a small angular range.
The shaped opening can retain the compact rotary movement and relatively high capacity associated with ball valves. Selected designs may also suit viscous or fibre-bearing media, but this depends on the port, seat and service conditions. The V shape alone does not establish solids handling, shut-off performance or resistance to erosion.

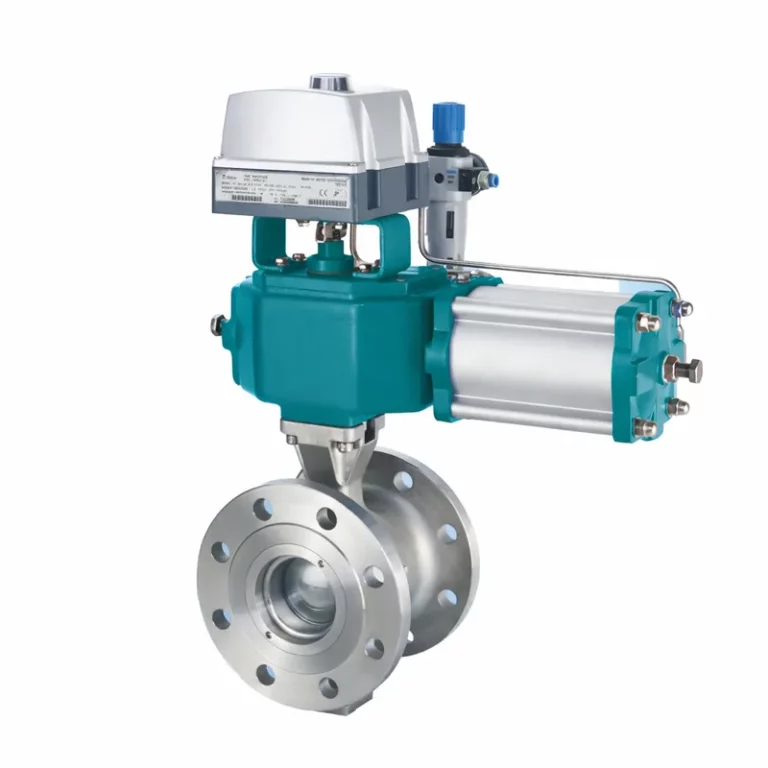

These construction differences can be seen in MacoTango V-port ball valve configurations, where the shaped ball forms the modulating element rather than relying on a standard round bore.
The actual flow curve belongs to the specific design
V-port does not describe one universal flow characteristic. The notch profile, ball segment, seat geometry and internal passage determine how valve capacity changes with shaft position. Different designs may be characterised as linear, equal-percentage or modified, but the label must be supported by the manufacturer’s capacity-versus-travel data.
A characterised ball valve may use a shaped disc or insert to alter the opening exposed during rotation. Its purpose is similar to that of a V-port: to produce a more usable inherent flow characteristic. Neither construction guarantees a particular accuracy, rangeability or low-flow response without model-specific data and the conditions under which those values were established.
Sizing, actuator and positioner decide the installed result
A control ball valve cannot be selected from pipe diameter alone. The valve body may have the correct connection size while its capacity is too high, its actuator cannot hold position under load, or its signal chain provides only open and closed commands.
Cv and pressure drop must cover the operating range
Cv is a flow coefficient used to express valve capacity under defined conditions. The required Cv changes with flow rate, fluid properties and the difference between upstream pressure, P1, and downstream pressure, P2. A control valve must therefore be assessed across the expected operating range rather than at one maximum-flow condition.
The manufacturer’s inherent flow characteristic describes capacity versus valve travel at a constant pressure drop. After installation, the pressure drop across the valve changes with the resistance of the rest of the piping system. As explained in Valmet’s installed-performance guidance, this produces an installed characteristic that may differ from the published inherent curve.
An oversized control ball valve may spend normal operation close to its seat, where a small shaft movement can produce a large change in flow. This high installed gain can make the loop sensitive and encourage hunting. An undersized valve may be unable to pass the required peak flow without consuming excessive pressure drop.
IEC 60534-2-1 provides equations for sizing control valves for compressible and incompressible flow. A numerical selection still requires the applicable service conditions and model-specific coefficients. The MacoTango Valve Cv calculator can support an initial liquid, gas or steam capacity check.

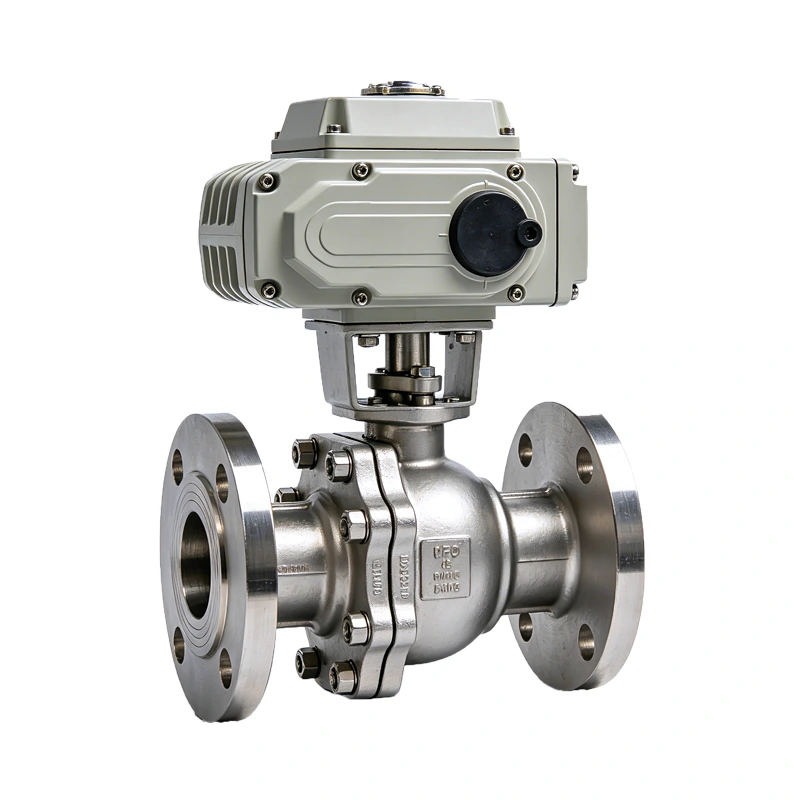

The actuator must position the ball under load
The torque required to rotate a ball is not constant. Seat friction, differential pressure, temperature and process deposits can change the load through the operating cycle. The actuator must start the ball moving, drive it through intermediate positions and hold the commanded position without losing the required failure action.
An actuator selected only from a nominal torque figure may lack adequate margin at the operating condition that creates the highest resistance. Its sizing also has to reflect the available pneumatic supply or electrical output and the required stroking behaviour. The control valve actuator guide explains how these drive choices affect the complete valve assembly.
A positioner closes the command-to-travel loop
A modulating actuator must convert the controller signal into a repeatable shaft position. A positioner compares the requested position with actual valve travel and adjusts the actuator to reduce the error. This feedback function may be provided by a separate positioner or integrated into an electric actuator.
The positioner can compensate for some friction, deadband and variations in actuator load. It cannot correct an oversized valve, unsuitable port geometry or unstable process conditions. Repeatable ball-valve control depends on the valve, actuator, position feedback and piping system working as one assembly.
When to choose a ball control valve and when not to
If the valve must modulate continuously, a standard round-port ball should not be treated as the default control element. It remains suitable when the main function is isolation and any intermediate position provides only occasional rough restriction.
A purpose-designed ball control valve can be attractive when the application benefits from high capacity, compact rotary actuation and shut-off in the same assembly. Low-flow sensitivity, high pressure drop, cavitation, noise or demanding installed gain may justify reviewing a globe control valve with suitable trim. Neither body style is a universal winner.
| Valve option | Intended duty | Control behaviour | Practical strength | Main caution |
|---|---|---|---|---|
| Standard round-port ball valve | Isolation and occasional rough restriction | Capacity is not proportional to shaft angle | Low resistance when open and compact shut-off | Not the default choice for repeatable continuous modulation |
| V-port or characterised ball valve | Modulating control of suitable liquids and gases, including selected viscous or fibre-bearing duties | Shaped opening provides a more usable capacity-versus-travel relationship | High capacity with compact rotary actuation | Characteristic, torque and media suitability remain model-specific |
| Globe control valve | Continuous modulation where purpose-designed throttling trim is required | Linear stem movement and a broad choice of control trims | Useful trim options for low-flow and higher pressure-drop duties | Open pressure loss, actuator demand and severe-service trim still require checking |
The choice should follow the control duty rather than the familiar appearance of the valve. The MacoTango Valve Selection resources provide further comparisons where the required body style remains uncertain.
Can a ball valve control water pressure?
Partially closing a manual ball valve creates resistance and reduces downstream pressure while water is flowing. It does not regulate that pressure at a fixed value. When demand changes, the flow and pressure drop across the restriction also change, so the downstream pressure can rise or fall without any movement of the handle.
Stable downstream pressure requires a feedback mechanism. A self-operated pressure-reducing valve can sense downstream pressure directly, while an automated loop may use a pressure transmitter, controller, positioner and modulating valve. A correctly sized V-port ball valve can act as the final control element in such a loop, but a fixed standard ball valve remains only an adjustable restriction.
A ball control valve must combine suitable port geometry, verified capacity, adequate actuator torque and position feedback. Where that rotary solution matches the duty, the MacoTango V-port ball valve selection guide explains how these design choices affect the final valve configuration.
