Ball Valve Handles 101

A ball valve handle is the manual control that opens or closes the valve. When the handle is turned, it rotates the stem, which in turn rotates the internal ball with a bore through it. Aligning the bore with the pipeline allows fluid to pass, while turning the handle 90° blocks the flow completely. This simple quarter-turn mechanism is one reason ball valves are widely used in industrial and plumbing systems.

However, although the design is straightforward, the handle and its connection to the valve stem are exposed to frequent use, environmental conditions, and mechanical stress. Over time, this can lead to wear or failure, making the valve difficult or impossible to operate.

Common reasons ball valve handles fail include:

• Corrosion or rust affecting the stem or handle components, especially in humid or chemically aggressive environments.

• Excessive operating force, often caused by debris, sediment, or internal valve blockage that makes the valve hard to turn.

• Loose handle nuts or worn connections, which cause the handle to spin without turning the valve stem.

• Mechanical damage, such as bending or breakage due to impact or improper use.

• Temperature or pressure beyond design limits, which can weaken materials and lead to handle deformation or breakage.

• Material degradation, particularly in plastic handles exposed to sunlight, chemicals, or extreme temperatures.

Understanding these failure causes helps operators identify problems early and decide whether a simple handle replacement or a full valve inspection is required.

Ball Valve Handle Types

Ball valve handles come in several designs, each suited to different operating conditions. The handle style affects how easily the valve can be turned, how much torque an operator can apply, and whether the valve can be secured or operated in tight spaces. Choosing the right handle is therefore not just about convenience. It also affects safety, maintenance, and long-term reliability of the system. Below are the most common ball valve handle types and where they work best.

Lever handle (standard / extended / lockable)

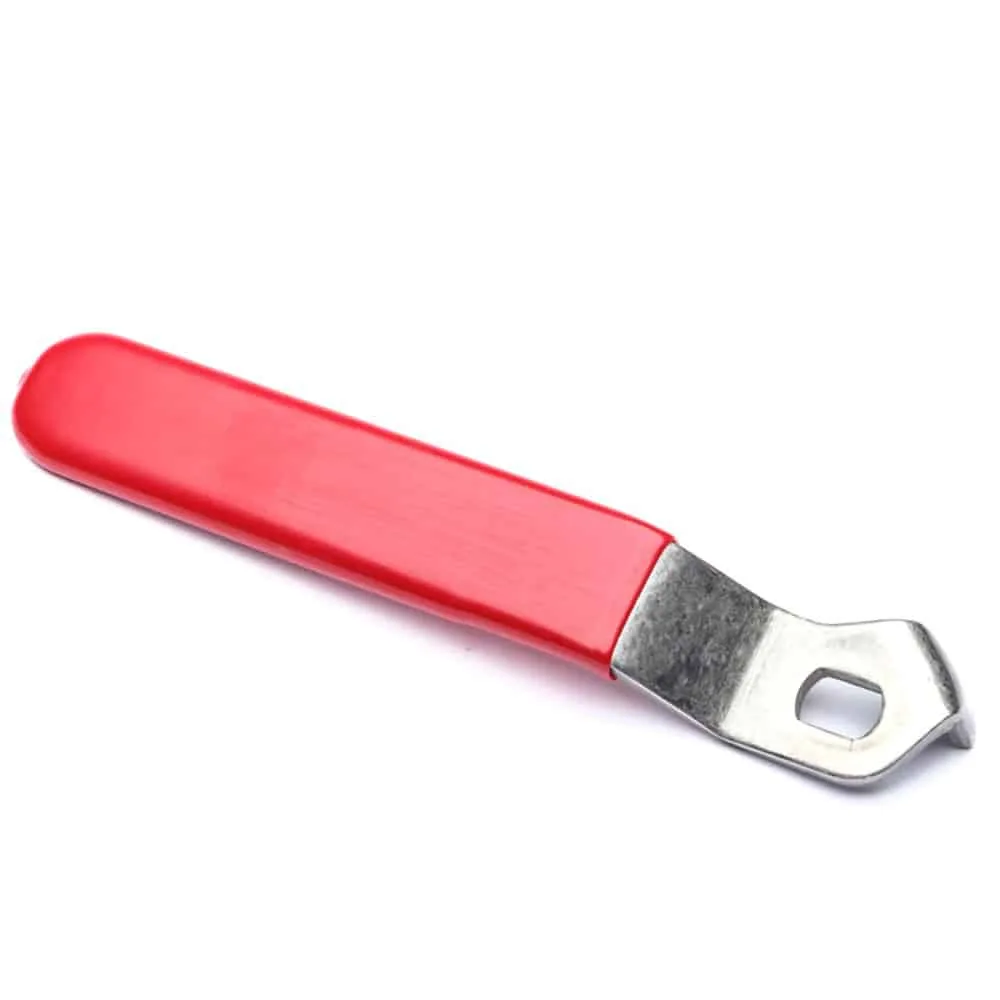

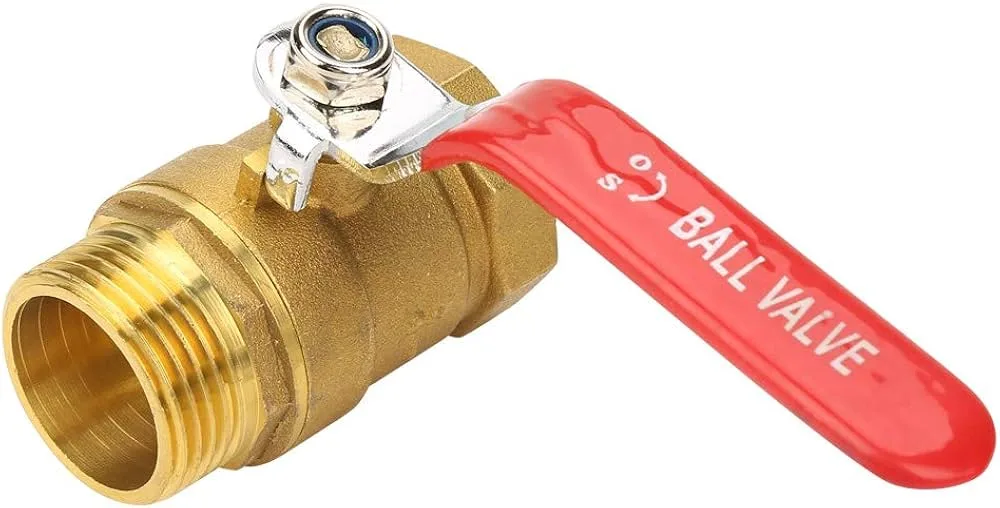

The lever handle is the most common ball valve handle design. It connects directly to the valve stem, allowing operators to open or close the valve with a simple quarter-turn motion. This direct connection provides quick response and clear visual indication of whether the valve is open or closed.

Standard lever handles are widely used on small to medium ball valves where fast shut-off is required. Variations include extended levers, which provide more leverage or allow operation in insulated pipelines, and lockable levers, which accept a padlock for safety procedures such as lockout–tagout.

Best use: general industrial pipelines, water systems, HVAC, and applications requiring quick on/off operation.

Butterfly handle

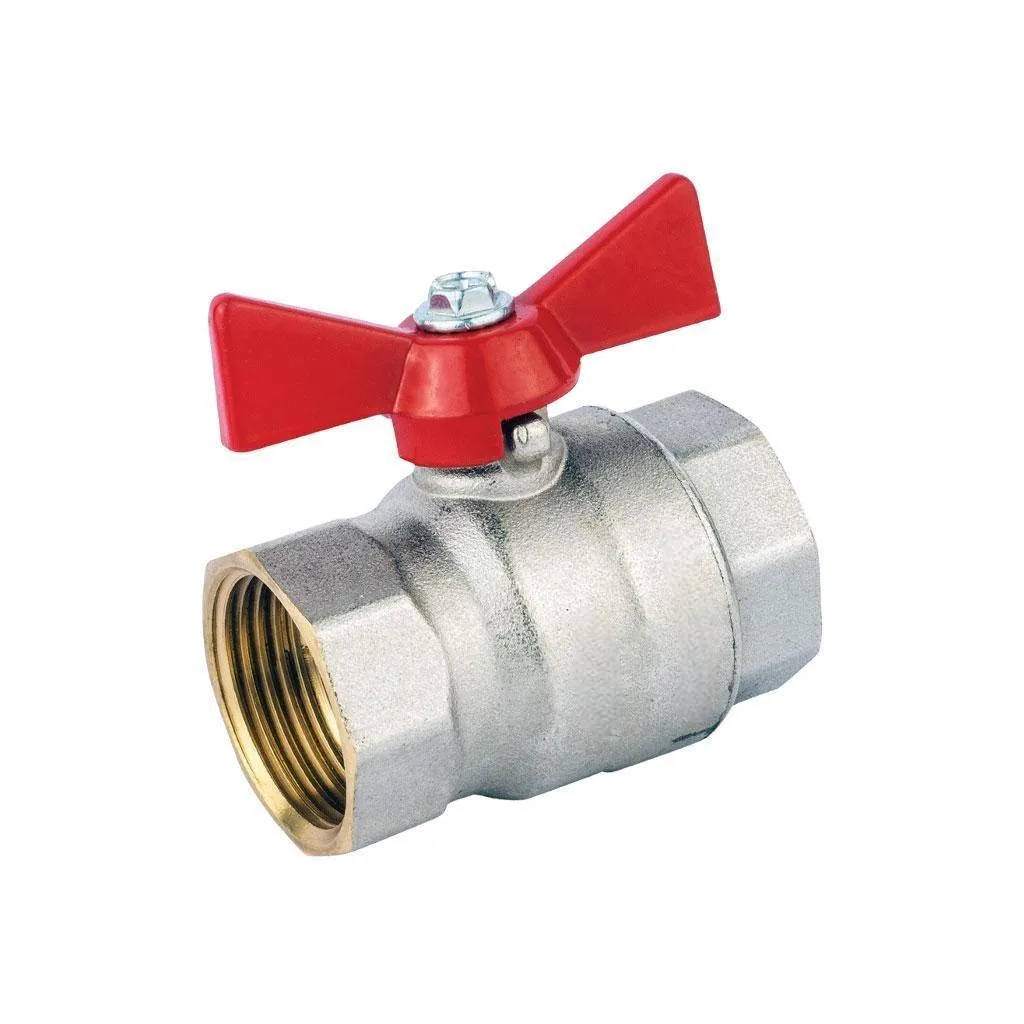

Butterfly handles are compact handles shaped somewhat like wings around the stem. Because they require less turning clearance than long levers, they are particularly useful where installation space is limited.

They still operate the valve with a 90-degree rotation, but their shorter grip means they are usually used on smaller valves where less torque is required.

Best use: tight installation spaces such as equipment panels, cabinets, plumbing fixtures, or compact machinery.

T-handle

A T-handle has a short bar shaped like the letter “T”. This design allows the operator to apply force with both sides of the grip while keeping the handle compact.

Compared with a lever handle, the T-handle offers a better grip and more controlled turning in restricted areas. It is commonly used in industrial valves where durability and operator control are important.

Best use: small industrial valves, high-pressure lines, or installations where a secure grip is needed but space is limited.

Handwheel / gear-operated (when torque is high)

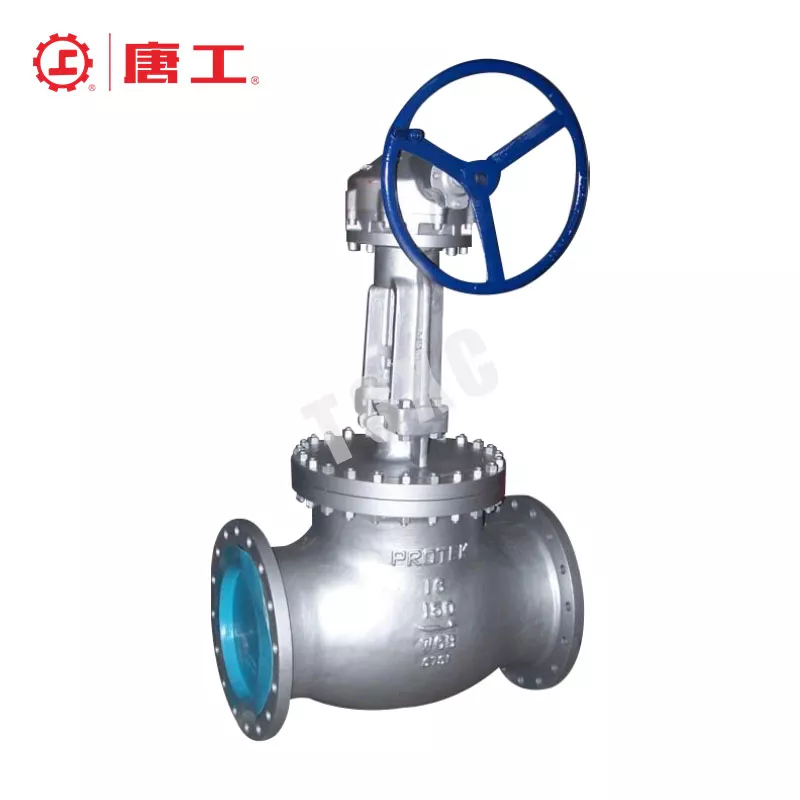

When valves become larger or operate under high pressure, manual force alone may not be enough to turn them easily. In these cases, manufacturers use a handwheel or gear-operated mechanism.

A gearbox multiplies the torque applied by the operator, allowing large valves to be opened or closed with much less effort. The trade-off is that the operation becomes slower but more controlled.

Best use: large-diameter valves, high-pressure pipelines, or systems where precise and controlled operation is more important than speed.

Screw-slot / tool-operated (compact / tamper-resistant)

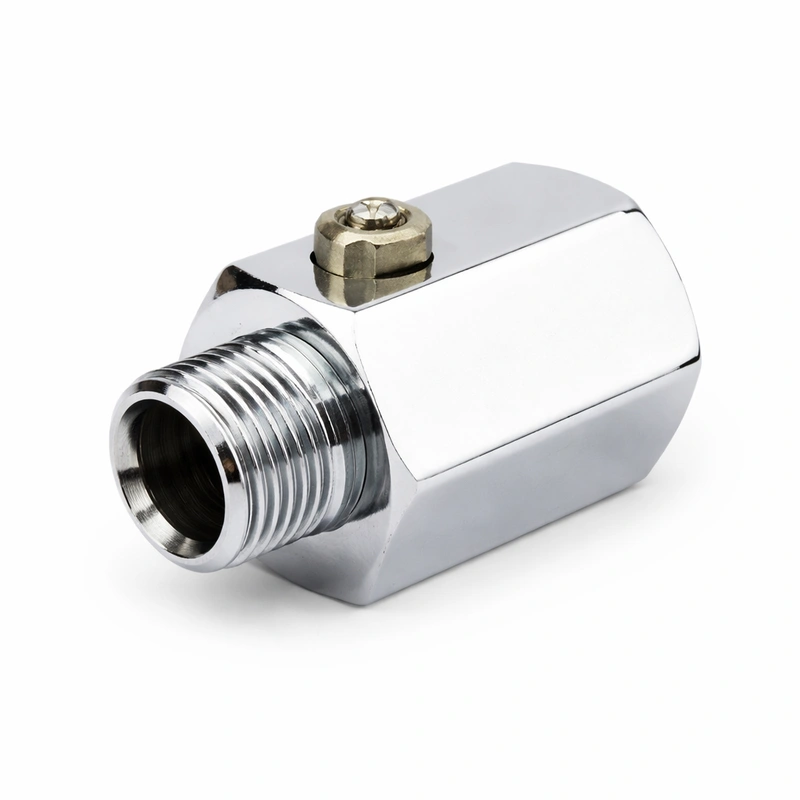

Some ball valves use a screw-slot or tool-operated stem instead of a traditional handle. The valve is turned using a screwdriver, spanner, or specialised tool.

Because there is no permanent handle attached, this design reduces the risk of accidental operation or tampering. It also allows the valve to fit into extremely tight spaces where a handle would not be practical.

Best use: compact equipment, service valves, maintenance points, and systems where unauthorised operation must be prevented.

How to Choose the Right Handle

Selecting the right ball valve handle is not only about the handle style. It must also match the valve stem, the installation environment, and how the valve will be used in daily operation. A poorly matched handle can make the valve difficult to operate, increase wear, or even create safety risks. By looking at a few practical factors during selection, you can ensure the handle fits the valve correctly and performs reliably over time.

Stem and attachment compatibility

The first step is confirming that the handle fits the valve stem connection. Most ball valves use a square or flat stem profile, and the handle must match this shape and size to transmit torque properly. If the fit is incorrect, the handle may slip, spin freely, or wear out quickly.

Always check the stem dimensions, mounting hole pattern, and fastening method (such as nut, bolt, or push-fit). When replacing a handle, it is usually safest to follow the valve manufacturer’s specifications to ensure full compatibility.

Space constraints around the valve

Installation space often determines which handle design will work best. Long lever handles require sufficient clearance to rotate a full 90 degrees, while compact handles such as butterfly or T-handles can operate in tighter areas.

If the valve is installed near walls, inside equipment panels, or between closely spaced pipes, a shorter or more compact handle can prevent interference and make operation easier.

Safety locking requirements

In many industrial systems, preventing accidental or unauthorised operation is essential. In these cases, a lockable handle allows the valve to be secured with a padlock during maintenance or safety procedures. This is commonly used in lockout–tagout (LOTO) practices to ensure equipment remains safely isolated.

Choosing a handle with a locking feature can be particularly important in shared facilities, hazardous environments, or systems that undergo regular safety inspections.

Environment and corrosion exposure

The operating environment also influences handle selection. Outdoor installations, chemical plants, or marine environments may expose handles to moisture, salt, or aggressive chemicals. In such conditions, corrosion-resistant materials such as stainless steel or coated metal handles provide better durability.

Selecting the right material helps prevent rust, structural weakening, and premature replacement.

Operating frequency and required torque

Finally, consider how often the valve will be used and how much torque is required to operate it. Valves that are opened and closed frequently benefit from simple lever handles, which allow quick quarter-turn operation. In contrast, larger valves or high-pressure systems may require gear-assisted handles or handwheels to generate sufficient torque.

Matching the handle design to the operating conditions reduces operator effort and improves long-term reliability.

In practice, the best handle is one that balances mechanical compatibility, installation space, safety needs, environmental durability, and ease of operation. When these factors are considered together, the valve becomes easier to use and far less likely to fail prematurely.

How to Replace a Ball Valve Handle

Replacing a ball valve handle is usually a simple maintenance task, provided the valve itself is still in good condition. Most handles are secured with a nut, bolt, or screw on top of the valve stem, which means they can be removed and replaced without dismantling the entire valve. The key is to work carefully, ensure the system is depressurised, and align the new handle correctly so the valve opens and closes smoothly.

1. Identify the handle type

Start by identifying the type and size of the existing handle. Ball valve handles vary in design, such as lever, butterfly, or T-handle. Check how the handle is attached to the stem and whether it uses a retaining nut, screw, or push-fit connection.

Matching the replacement handle to the valve stem shape and dimensions is essential. An incompatible handle may not transmit torque properly and could slip during operation.

2. Isolate and depressurise the system

Before removing the handle, shut off the fluid supply and release any pressure in the pipeline. This step prevents accidental discharge and makes the valve safe to work on.

In industrial systems, it is good practice to follow site safety procedures such as isolation tags or lockout measures before starting maintenance.

3. Remove the old handle

Locate the retaining nut, bolt, or screw that secures the handle to the valve stem. Use the appropriate tool, usually a wrench or screwdriver, to loosen and remove it.

Once the fastener is removed, gently lift the handle off the stem. If the handle is stuck due to corrosion or debris, applying a small amount of penetrating oil can help loosen it.

4. Install and align the new handle

Place the replacement handle onto the valve stem, ensuring it aligns correctly with the stem slot or flat surface. Proper alignment ensures the handle accurately reflects the valve position.

After positioning the handle, reinstall the nut or screw and tighten it securely. Avoid overtightening, as this may damage the stem threads or restrict smooth operation.

5. Test the valve operation

Once the new handle is installed, rotate it between the open and closed positions to confirm the valve moves smoothly. The handle should align with the pipe when the valve is open and sit perpendicular when closed.

Finally, restore the system pressure and check that the valve operates normally without slipping, stiffness, or misalignment. If everything works correctly, the replacement is complete.

Troubleshooting + Maintenance

Even a well-designed ball valve handle can develop problems over time. Most issues are minor and can be fixed quickly with basic inspection and maintenance. The key is to recognise early warning signs and address them before they lead to leaks or valve failure. Below are a few common handle-related issues and practical steps to deal with them.

Handle slips or becomes misaligned

If the handle turns but the valve does not respond properly, the connection between the handle and the stem may be loose or worn. This usually happens when the fastening nut loosens or the stem interface begins to wear.

Start by tightening the handle nut or bolt and checking that the handle sits correctly on the stem. If the handle continues to slip, remove it and inspect the stem flats or keyway for wear. In many cases, replacing the handle or fastener restores proper operation.

Valve feels stiff or difficult to turn

A ball valve that becomes stiff often indicates internal friction, corrosion, or debris inside the valve body. Over time, rust particles, scale, or process residue can accumulate around the ball or stem, increasing resistance.

Try operating the valve slowly several times to loosen the internal parts. Applying a suitable lubricant to the stem area can also help restore smooth movement. However, avoid forcing the handle, as excessive torque can bend the stem or break the handle.

Signs of a possible stem leak

If moisture or fluid appears around the handle area, the issue may come from the stem packing or O-ring seal. These components prevent fluid from escaping along the valve stem during operation.

A small leak can sometimes be fixed by gently tightening the packing nut behind the handle. If the leak continues, the packing or seal may need to be replaced. Visible leaks, unusual sounds, or difficulty turning the valve may also indicate stem damage or misalignment.

When to replace the entire valve

Not every problem can be solved by replacing the handle alone. If the valve remains stuck, continues leaking after seal replacement, or shows internal wear such as damaged seats or corrosion, replacing the entire valve is usually the safest option.

In general, a full replacement is recommended when:

• The valve body or stem is heavily corroded

• Internal seats or sealing surfaces are damaged

• The valve repeatedly sticks even after cleaning or lubrication

• The valve has exceeded its service life in a demanding application

Regular inspection and proper operation go a long way in preventing these issues. A simple check of the handle, stem, and seals during routine maintenance can help keep ball valves working smoothly for many years.

Conclusion

Ball valve handles may seem simple, but the right design makes a real difference in safety, usability, and long-term reliability. Choosing a handle that fits the valve stem, suits the installation space, and matches the operating conditions helps ensure smooth and dependable valve control. Just as importantly, regular inspection and timely replacement of worn handles can prevent larger valve problems and unplanned downtime. By understanding the different handle types and how they function, operators and maintenance teams can keep ball valves working efficiently across a wide range of industrial and piping systems.
