Ball valve handles play a significant role in the operation and efficiency of valve systems, providing the user with control over fluid flow. This article aims to explore the different types of ball valve handles, such as lever handles, T-handles, butterfly handles, and lockable handles, and their applications. We will cover their characteristics, uses, and how they fit into various applications, offering readers insight into selecting the most suitable handle for their specific needs.

What is a Ball Valve Handle?

A ball valve handle is a lever or mechanism used to manually control the position of the internal ball within a ball valve, regulating the flow of fluid. By rotating the handle, the user manipulates a spherical disc—the ball—within the valve body to start or stop fluid flow. This mechanism allows for quick and reliable shut-off, making ball valves a preferred choice in various applications. The design and material of the handle are essential for ensuring durability, ease of operation, and suitability for specific environments.

Types of Ball Valve Handles

Ball valve handles come in different types, each with unique characteristics and applications. Understanding these types helps in choosing the right handle for a specific situation.

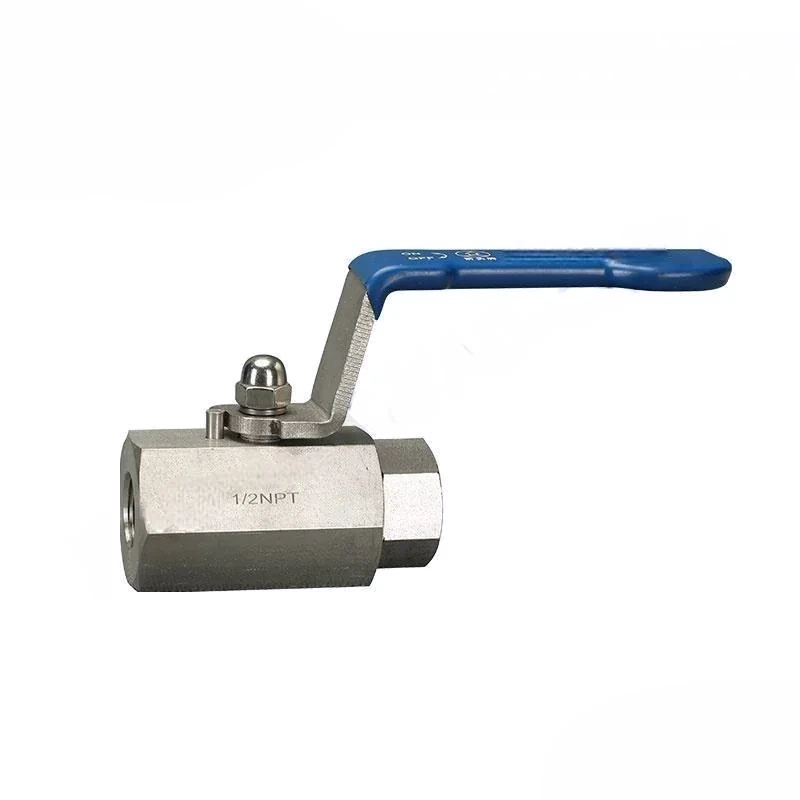

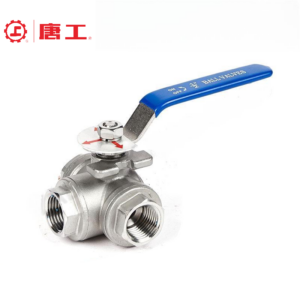

Lever Handles:

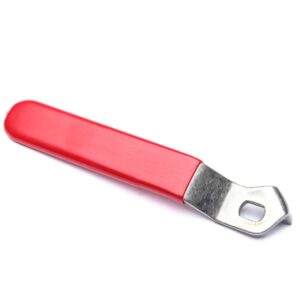

Lever handles are a prevalent choice for operating ball valves due to their straightforward design and ease of use. Typically, these handles consist of a straight lever affixed directly to the valve stem, enabling rapid operation with a simple 90-degree turn. This quarter-turn mechanism allows for swift opening and closing of the valve, making lever handles particularly advantageous in applications where quick actuation is essential.

One of the primary benefits of lever handles is their intuitive operation, which requires minimal effort. The handle’s position serves as a clear visual indicator of the valve’s status: when aligned parallel to the pipeline, the valve is open; when perpendicular, it is closed. This feature enhances operational safety by reducing the likelihood of misinterpretation.

However, lever handles are not without limitations. Their design necessitates sufficient clearance around the valve to accommodate the handle’s movement, which can be a constraint in confined spaces. Additionally, lever handles are more susceptible to accidental operation, especially in high-traffic areas, due to their exposed position. In such environments, protective measures or alternative handle types may be more appropriate to prevent unintended valve actuation.

T-Handles:

source:Oventrop

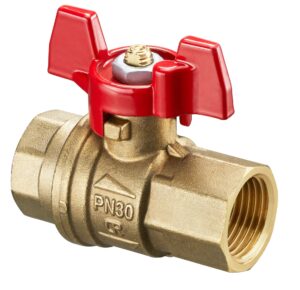

T-handles, characterized by their T-shaped design, are utilized in ball valve operations to provide enhanced grip and torque. This configuration allows operators to apply greater force with minimal effort, facilitating the manipulation of valves that may require higher torque due to size, pressure, or infrequent use.

The ergonomic design of T-handles offers a comfortable grip, reducing operator fatigue during repetitive tasks. This feature is particularly beneficial in industrial settings where manual valve adjustments are frequent. Additionally, the T-handle’s shape allows for operation in confined spaces where traditional lever handles may be impractical due to spatial constraints.

However, the increased torque capability of T-handles necessitates caution to prevent over-tightening, which can lead to damage of valve components or compromise the integrity of the sealing surfaces. Proper training and adherence to operational guidelines are essential to ensure safe and effective use of T-handles in ball valve applications.

Butterfly Handles:

source:KAS

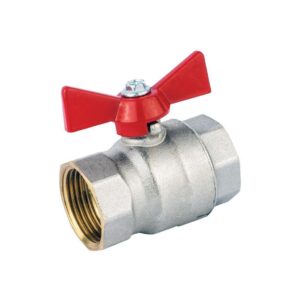

Butterfly handles, also known as wing handles, are compact control mechanisms designed for ball valves, particularly in applications where space constraints are a concern. Their distinctive design features two lateral extensions resembling wings, which facilitate manual operation by allowing the user to grip and rotate the handle with ease.

The primary advantage of butterfly handles lies in their minimal spatial requirements. Unlike traditional lever handles that necessitate a broader arc for operation, butterfly handles can be actuated within a confined radius, making them ideal for installations in tight or crowded environments. This compactness does not compromise functionality; a simple 90-degree turn of the handle effectively transitions the valve between open and closed states.

However, the reduced size of butterfly handles may present challenges in scenarios requiring higher torque. The shorter leverage arm means that greater manual force is needed to operate the valve, which can be a limitation when dealing with high-pressure systems or valves that have become stiff due to infrequent use or sediment buildup. In such cases, operators must ensure that the handle’s design aligns with the operational demands to maintain efficiency and safety.

Lockable Handles:

Lockable handles are specialized mechanisms integrated into ball valves to enhance security and safety by preventing unauthorized or accidental operation. These handles feature a locking device, such as a padlock or built-in lock, that secures the valve in a designated position—either open or closed—thereby controlling access to the valve’s operation.

The primary advantage of lockable handles lies in their ability to mitigate risks associated with unintended valve actuation. In industrial settings, where the inadvertent opening or closing of a valve can lead to hazardous situations or process disruptions, lockable handles serve as a critical control measure. By restricting valve operation to authorized personnel, these handles help maintain system integrity and protect both equipment and personnel.

Additionally, lockable handles are instrumental in maintenance and safety protocols. During equipment servicing or system shutdowns, locking the valve in the closed position ensures that no fluid flow occurs, safeguarding maintenance personnel from potential hazards. This practice aligns with lockout/tagout procedures, which are standard safety measures in many industries to prevent accidental energy release.

However, the implementation of lockable handles requires careful consideration of operational needs and potential challenges. The added security features may introduce complexities in emergency situations where rapid valve operation is necessary. Therefore, it is essential to balance security requirements with the need for accessibility, ensuring that lockable handles are used appropriately within the system’s operational context.

Ball Valve Handle Types Materials

The selection of materials for ball valve handles is a critical aspect that influences their durability, corrosion resistance, and suitability for specific applications. Common materials used in the construction of ball valve handles include:

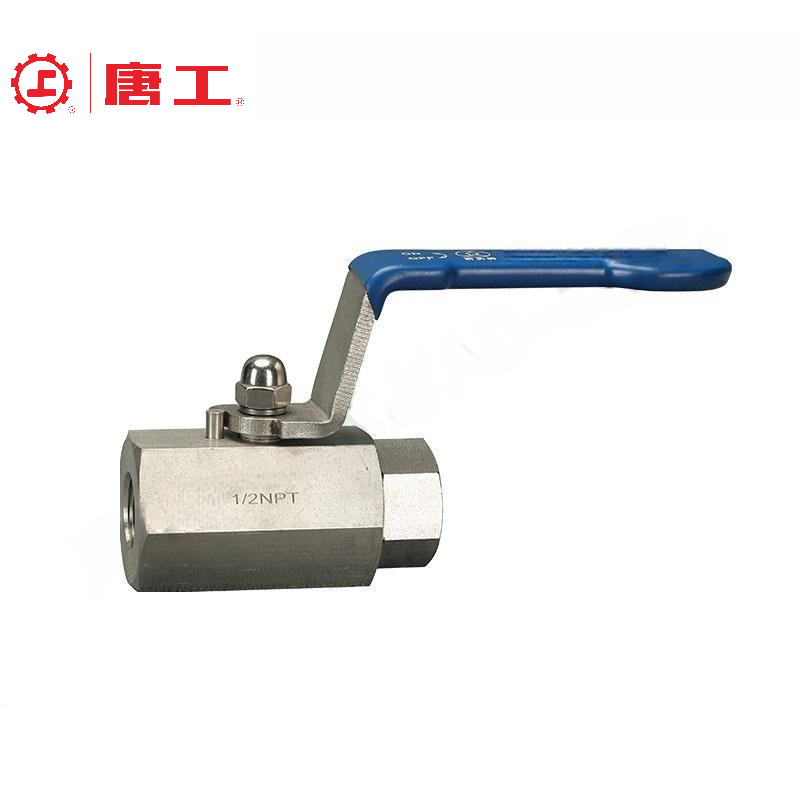

Stainless Steel:

Renowned for its exceptional corrosion resistance and strength, stainless steel is ideal for applications involving harsh chemicals or environments prone to corrosion.

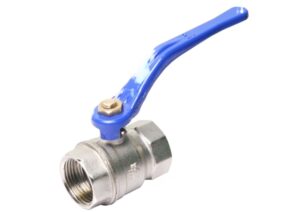

Aluminum:

Valued for its lightweight nature and resistance to corrosion, aluminum handles are suitable for applications where ease of operation is essential.

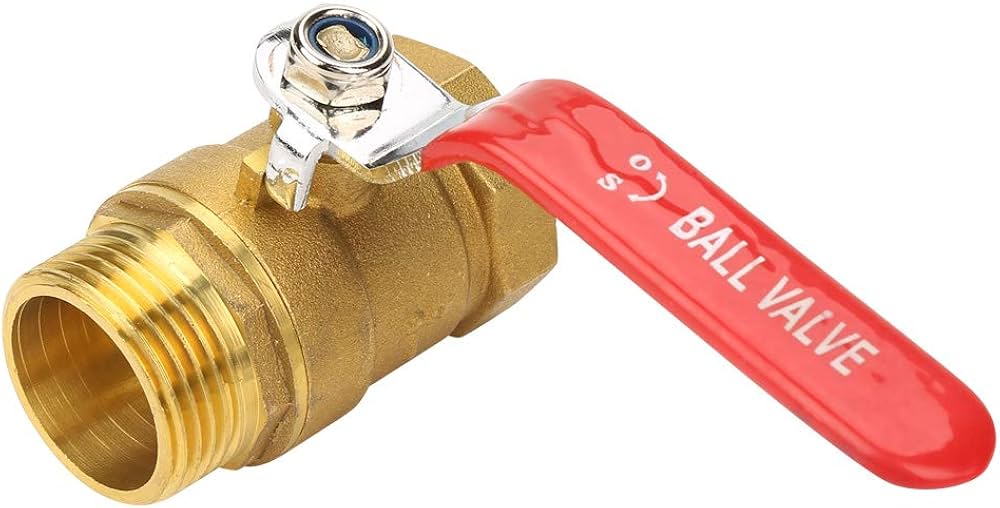

Brass:

Known for its durability and resistance to corrosion, brass handles are commonly used in residential and commercial plumbing systems.

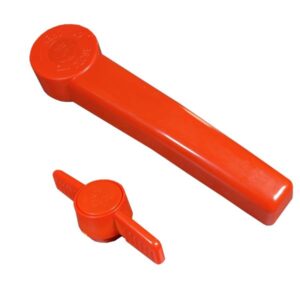

Plastic:

Materials such as PVC or polypropylene are employed for their lightweight properties and resistance to certain chemicals, making them appropriate for specific low-pressure applications.

Factors to Consider When Choosing a Ball Valve Handle

Selecting the right ball valve handle is crucial for ensuring ease of use and safe operation. Here are some factors to consider:

• Ergonomics: The comfort and ease of use of a handle can significantly impact the efficiency of operation. Choose a handle that requires minimal force and offers a comfortable grip, especially for frequently operated valves.
• Operating Environment: The material of the handle should match the operating conditions. For corrosive environments, stainless steel handles are preferred for their durability. In non-critical applications, plastic handles might suffice.
• Safety Features: In industrial and high-risk environments, lockable handles are recommended to prevent accidental or unauthorized operation. This is particularly important in systems handling hazardous materials.
• Space Availability: The available space around the valve is an important consideration. Lever handles require more room to operate compared to T-handles or butterfly handles, which are better suited for confined spaces.

Conclusion

Ball valve handles are an essential component of valve systems, impacting both the ease of operation and safety. By understanding the different types of ball valve handles—lever, T-handles, butterfly, and lockable handles—you can make informed decisions about which handle is best suited for your specific needs. Factors such as ergonomics, operating environment, safety, and space should guide the selection process, ensuring optimal performance and safety in your application.

Choosing the right ball valve handle can enhance operational efficiency, improve safety, and ensure long-term reliability, making it a vital consideration for engineers, technicians, and procurement specialists alike.
