When choosing the right ball valve for your fluid control system, two materials often come into consideration: brass and PVC. Both of these materials have unique properties that make them suitable for specific applications. However, understanding the strengths and limitations of each is crucial to making an informed decision. In this article, we will explore the key differences between brass vs PVC ball valves, helping you select the right option for your system based on performance, cost, and application requirements.
1. Material Composition and Design

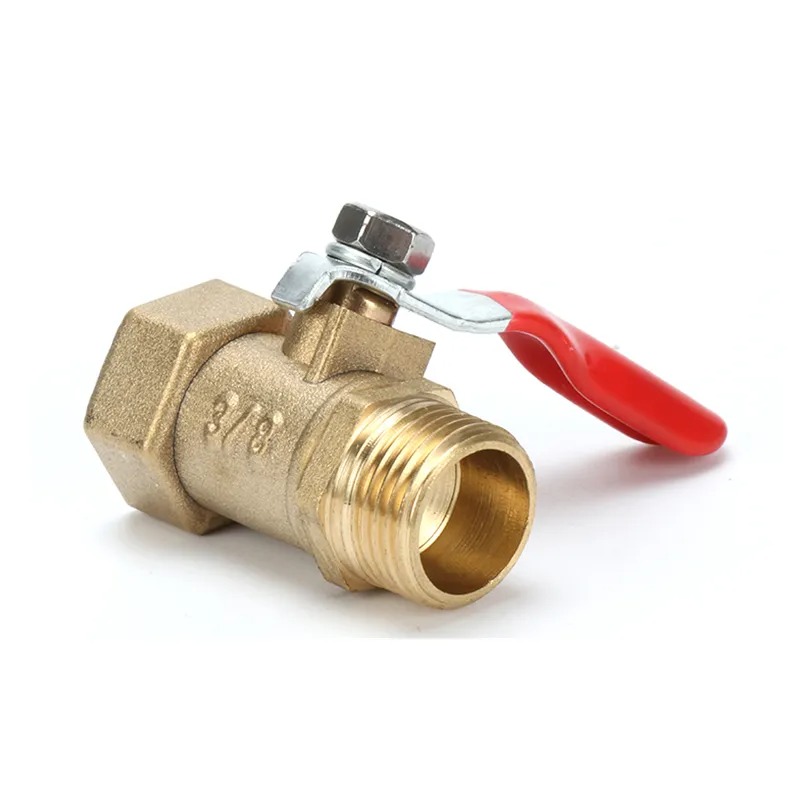

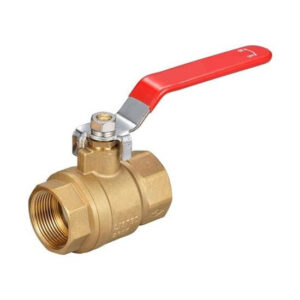

Brass Ball Valves
Brass is an alloy primarily composed of copper and zinc, known for its excellent strength, durability, and machinability. Brass ball valves feature a spherical valve element with a central hole. The ball rotates when the handle is turned, controlling the flow of the fluid through the valve. Due to the metal’s ability to withstand high temperatures and pressures, brass ball valves are typically used in industrial and commercial applications where such conditions are common.
PVC Ball Valves
Polyvinyl chloride (PVC) is a widely used thermoplastic polymer that offers excellent resistance to corrosion, making it ideal for fluid systems where chemical exposure is a concern. PVC ball valves, like brass valves, use a rotating ball with a central hole, but they are lighter and more affordable than brass alternatives. PVC valves are best suited for environments where the fluid temperatures and pressures are relatively low.
Comparing Brass vs PVC Ball Valves
| Feature | Brass Ball Valves | PVC Ball Valves |
| Material Composition | Alloy of copper and zinc | Thermoplastic polymer (Polyvinyl chloride) |
| Corrosion Resistance | Good resistance to corrosion in most environments; susceptible to rust in high humidity or salty environments | Excellent resistance to most chemicals and corrosive substances |
| Temperature Resistance | High resistance; can withstand temperatures up to 400°F (204°C) | Limited; typically operates up to 140°F (60°C) |
| Pressure Rating | Suitable for high-pressure systems (up to 6000 psi or more, depending on valve size) | Suitable for low to medium pressure systems (typically up to 300 psi) |
| Durability | Highly durable and long-lasting; resists wear and tear in demanding conditions | Less durable under high stress; can crack under impact or extreme temperatures |
| Flow Control | Excellent flow control due to a tight seal; ideal for throttling | Ideal for on/off applications, but not recommended for throttling |
| Chemical Compatibility | Can be affected by certain acids or strong chemicals | Superior for chemical processing and water treatment applications |
| Weight | Heavy, requires robust installation methods | Lightweight, easy to handle and install |
| Cost | Higher initial cost due to material and manufacturing complexity | More cost-effective, making it a budget-friendly option for non-critical applications |
| Maintenance | Generally requires less maintenance due to robust construction | Requires periodic replacement, especially under stress conditions, but minimal maintenance needs |
Advantages of Brass and PVC Ball Valves
Advantages of Brass Ball Valves:
- High Pressure and Temperature Resistance: Brass ball valves can endure extreme conditions, making them ideal for applications such as steam control, hydraulic systems, and high-pressure fluid transport.
- Durability: The toughness of brass allows these valves to withstand wear and tear over time, making them highly durable for industrial systems that require long-lasting performance.
- Versatility: Brass valves are compatible with a variety of fluids, including steam, air, and oil, which makes them suitable for a wide range of industries such as oil & gas, automotive, and HVAC.
- Ease of Maintenance: Brass ball valves are easy to inspect and repair, making them a preferred choice for systems requiring minimal downtime.
Advantages of PVC Ball Valves:
- Cost-Effective: PVC is less expensive than brass, making it an economical choice for applications that do not require the robust characteristics of brass valves.
- Corrosion Resistance: PVC’s resistance to corrosion makes it an excellent choice for handling chemicals, acids, and other aggressive fluids in chemical processing, water treatment, and irrigation systems.
- Lightweight: PVC valves are significantly lighter than brass, which makes them easier to install, especially in systems where weight is a consideration.
- Low Maintenance: Due to their corrosion resistance, PVC valves often require less maintenance than their brass counterparts, reducing operational costs in systems with low to medium flow.
Disadvantages of Brass and PVC Ball Valves
Disadvantages of Brass Ball Valves:
- Higher Cost: Brass is more expensive than PVC, both in terms of initial installation and long-term maintenance costs. This can be a limiting factor for projects with a tight budget.
- Weight: Brass valves are heavier than PVC, which can be a disadvantage in installations where weight is a critical factor, such as in mobile systems or systems with limited structural support.
- Corrosion in Certain Environments: While brass is generally corrosion-resistant, it can still be prone to galvanic corrosion when used in contact with dissimilar metals, especially in saltwater environments.
Disadvantages of PVC Ball Valves:
- Limited Temperature and Pressure Tolerance: PVC valves cannot withstand high temperatures or extreme pressures as effectively as brass valves. They are typically used in applications with fluid temperatures up to 140°F (60°C).
- Brittleness: Under extreme temperatures, such as freezing conditions, PVC can become brittle and prone to cracking, especially in systems exposed to sudden temperature changes.
- Chemical Limitations: Although PVC is resistant to many chemicals, it can degrade when exposed to certain aggressive chemicals, including solvents and oils, making it unsuitable for certain industrial applications.
Ideal Applications:
Applications for Brass Ball Valves:
- Industrial Systems: Brass valves are commonly used in industrial fluid systems that involve high pressure and temperature, such as steam control in boilers and hydraulic systems.
- Oil and Gas Industry: In oil & gas operations, where high-pressure handling and reliability are crucial, brass ball valves are often used to control the flow of crude oil, natural gas, and other hydrocarbons.
- Plumbing and HVAC Systems: Brass ball valves are commonly found in residential and commercial plumbing, as well as heating and cooling systems, due to their durability and reliability under high-pressure conditions.
Applications for PVC Ball Valves:
- Water Treatment: PVC ball valves are widely used in water treatment plants where they handle a range of water treatment chemicals and corrosive substances like chlorine and fluoride.
- Agricultural Irrigation: PVC ball valves are ideal for irrigation systems where water flow control is required, especially in environments where chemical resistance is necessary but high temperatures and pressures are not.
- Chemical Processing: For handling mild chemicals, acids, and bases, PVC valves provide a cost-effective, corrosion-resistant solution without the need for expensive brass materials.
Key Considerations
When selecting between brass vs PVC ball valves, it is essential to evaluate:
- Pressure and Temperature Requirements: Brass valves are suitable for high-pressure and high-temperature systems, while PVC valves are best suited for low to medium-pressure environments.
- Chemical Compatibility: If the fluid being controlled is highly corrosive, PVC may be the better choice. However, if the application requires a valve that can withstand higher temperatures or pressures, brass would be more appropriate.
- Cost: While PVC valves are more cost-effective initially, brass valves may offer a better long-term investment due to their durability and reliability in high-demand environments.
- Maintenance Needs: If ease of maintenance and longevity are critical, brass may be the better option, as it is more durable and easier to repair over time.
Conclusion
Both brass and PVC ball valves offer unique benefits, making them suited to different applications. Brass ball valves are the best choice for high-pressure, high-temperature, and industrial environments, providing durability, versatility, and long-term reliability. On the other hand, PVC ball valves offer an affordable, lightweight, and corrosion-resistant solution for applications in water treatment, agriculture, and chemical processing where moderate pressure and temperature conditions are present.
