Butterfly valves are essential components in fluid control systems, valued for their efficient flow regulation and compact design across industries such as water treatment, chemical processing, and HVAC. These valves operate by rotating a disc within the body to modulate fluid flow, while the selection of the appropriate end connection type is crucial for ensuring proper installation, optimal performance, and long-term reliability. End connections serve as the critical interface between the valve and the piping system, addressing operational challenges such as high pressures, thermal expansion, and compliance with industry standards. This article explores the various end connection types available for butterfly valves, examining their advantages, limitations, and practical applications to guide professionals and newcomers in making informed valve selection decisions.



What Is a Butterfly Valve?

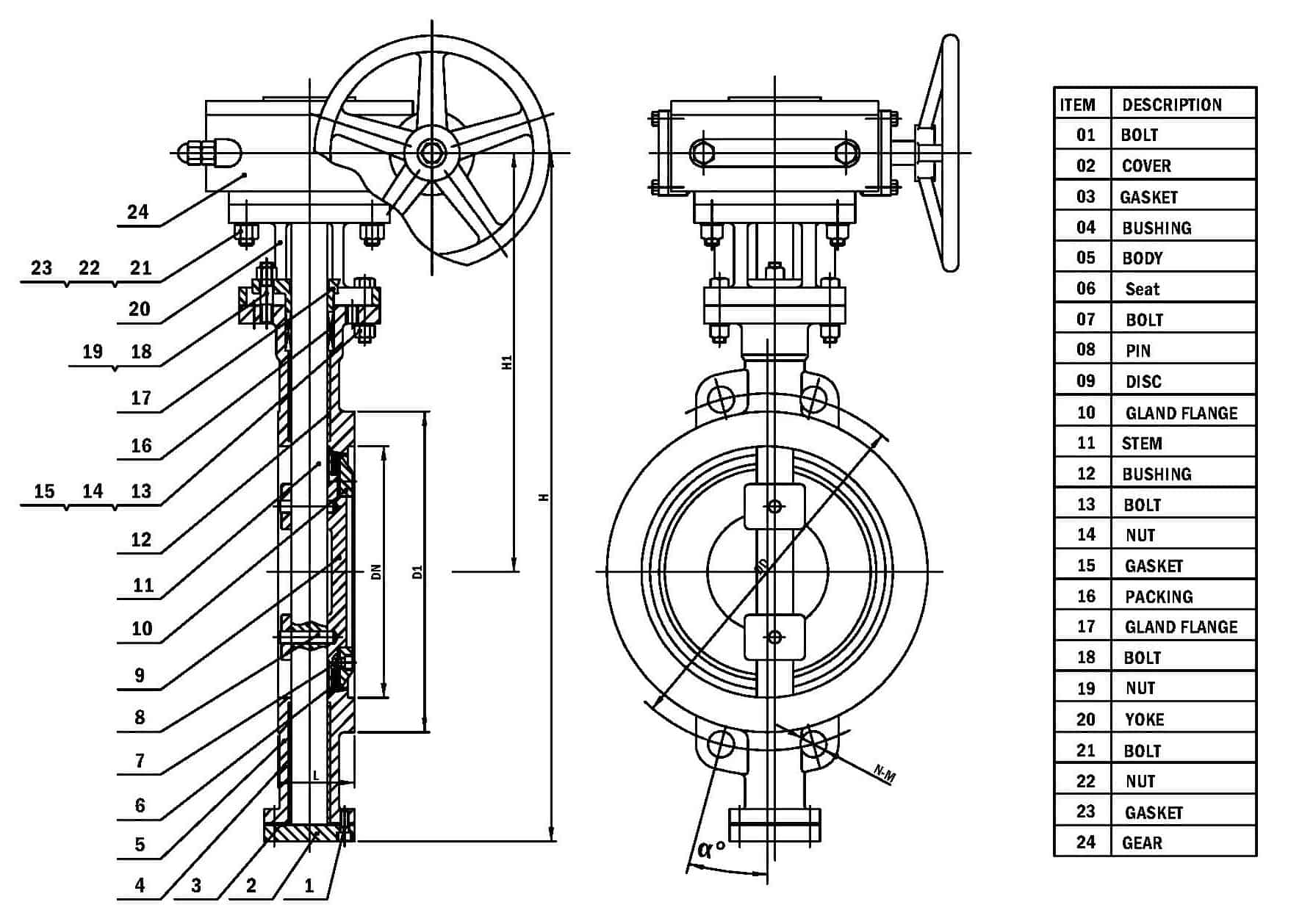

A butterfly valve is a type of quarter-turn valve that is primarily used to regulate or isolate the flow of fluids in a piping system. The valve consists of a circular disc that pivots around an axis, allowing it to either completely block or allow the flow of fluid. When the valve handle or actuator is turned, the disc rotates, and the opening or closing of the valve is achieved. The simplicity of its design makes it a cost-effective and reliable solution, particularly in systems where space and weight constraints are critical.



Definition and Function of End Connections

End connections refer to the interfaces that link a valve to the surrounding piping system. These connections are critical for ensuring a secure, leak-proof attachment of the valve within the pipeline. They provide the mechanical means by which the valve is integrated into a fluid system, and they are designed to match the specific requirements of the system, such as pressure, temperature, and fluid type. The choice of end connection type is influenced by several factors, including the material compatibility, ease of installation, and operational demands.

The primary function of end connections is to create a reliable seal and ensure that the valve can withstand the pressures and stresses of the fluid system. Additionally, they should facilitate ease of maintenance, allowing the valve to be serviced, removed, or replaced without disrupting the entire piping system. Depending on the application, the design of the end connection may also need to allow for thermal expansion, vibration dampening, or alignment with system standards.



Common Butterfly Valve End Connection Types

Wafer Type Connection

i. Description and Design Characteristics

A wafer-style butterfly valve is designed to be installed between two flanges in the piping system, effectively “sandwiched” in place. The valve body is flat, with bolt holes that align with the flange holes, allowing the valve to be bolted directly between the flanges. Wafer valves are typically lightweight, compact, and designed for easy installation, particularly in systems with limited space.

The wafer connection relies on the compression of the valve body between the two flanges to create a tight seal. This connection type is often used in systems that do not require disconnection or removal of the valve frequently.

ii. Advantages and Limitations

Advantages:

• Space-efficient: Ideal for installations with space constraints due to its compact design.
• Cost-effective: Less expensive compared to flanged and lug-style valves because it uses fewer components.
• Lightweight: Easier to handle and install than other valve types, making it convenient for large-scale installations.

Limitations:

• Limited to lower pressure systems: Wafer-style valves are generally not suitable for very high-pressure applications, as the sealing depends on the flanges.
• Requires support from flanges: It cannot be used independently, as the valve must be bolted between two flanges for installation.

iii. Typical Applications

Wafer-type butterfly valves are often used in applications where space and weight are critical factors. They are commonly found in:

• HVAC systems: For controlling airflow in heating and cooling applications.
• Water treatment plants: Used for controlling water flow, especially in areas with limited space for valve installations.
• Industrial piping systems: Where cost-effectiveness and ease of installation are key priorities.



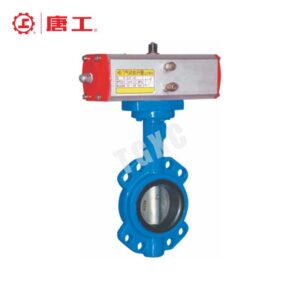

Lug Type Connection

i. Description and Design Characteristics

Lug-style butterfly valves are similar to wafer valves but with an important distinction: they feature threaded holes (lugs) in the valve body that allow them to be bolted to the pipe flanges. These lugs provide extra versatility by enabling the valve to be installed and removed independently, without disturbing the surrounding piping.

Lug-style valves can be installed by bolting each side of the valve to the flanges, which makes them ideal for systems where the valve may need to be isolated or replaced without affecting the rest of the piping.

ii. Advantages and Limitations

Advantages:

• Easy removal and maintenance: Unlike wafer valves, lug-type valves can be removed without impacting the adjacent piping, making them ideal for maintenance.
• Versatile and flexible: Can be installed in various configurations and removed without disturbing the pipeline.
• Cost-effective: While a bit more expensive than wafer valves, lug-type valves are still relatively affordable compared to flanged valves.

Limitations:

• Not as compact as wafer valves: They require slightly more space due to the lugs on the valve body.
• Limited pressure capacity: Lug valves, like wafer valves, are not recommended for extremely high-pressure systems.

iii. Typical Applications

Lug-type butterfly valves are ideal for applications that require regular maintenance or valve replacement. They are commonly used in:

• Water and wastewater treatment: Where valves need to be replaced or serviced frequently.
• Piping systems requiring isolation: For use in systems where valves are isolated for maintenance without shutting down the entire line.
• Chemical processing: In cases where disconnection and maintenance are needed without disrupting the entire process.

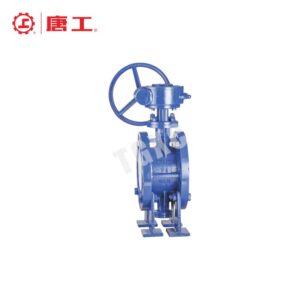

Flanged End Connection

i. Description and Design Characteristics

Flanged butterfly valves have flanges welded to both ends of the valve body. These flanges are designed to be bolted directly to matching flanges in the piping system. Flanged connections offer a more secure, permanent installation than wafer or lug-style connections, ensuring a robust seal and high pressure tolerance.

Flanged valves are available in a variety of materials and sizes, offering a high degree of flexibility for different industrial applications. The connection provides a strong and secure hold on the valve, making it ideal for high-pressure environments.

ii. Advantages and Limitations

Advantages:

• Strong, secure seal: Provides a reliable and durable seal, suitable for high-pressure and high-temperature applications.
• Widely used: Because they comply with many industry standards, flanged valves are often used across various sectors.
• Adaptable: Can be easily adapted to various piping configurations and sizes.

Limitations:

• Requires more space: Flanged connections typically take up more room than wafer or lug connections, making them less ideal for space-constrained installations.
• Installation complexity: Flanged valves require careful alignment of the valve and piping to ensure a proper seal, which can increase installation time.

iii. Typical Applications

Flanged butterfly valves are frequently used in systems that handle high pressure or require robust sealing. They are commonly found in:

• Oil and gas pipelines: Where high pressure and leakage prevention are crucial.
• Power plants: In cooling systems and other high-pressure applications.
• Industrial water systems: For applications requiring strong, reliable connections.



Other or Custom Connection Types

i. Overview of Specialized Solutions

In addition to the common wafer, lug, and flanged connections, there are several custom or specialized connection types used to meet specific needs in industries requiring particular performance criteria. These solutions are designed for unique conditions such as very high pressures, extreme temperatures, or specialized fluids. Examples include welded connections, threaded connections, and custom flanged options.

Welded connections, for example, are often used in high-pressure pipelines where the risk of leakage must be minimized. Threaded connections are commonly used in smaller applications or where disconnection is not anticipated.

ii. Industry-Specific Examples

• Welded Butterfly Valves: Used in petrochemical, power generation, and other heavy industrial systems where permanent, leak-proof connections are necessary.
• Threaded Butterfly Valves: Frequently used in residential plumbing and small-scale industrial applications where ease of installation is key, but extreme pressure is not a concern.
• Custom Flange Connections: Designed for unique systems such as cryogenic or high-temperature applications, these valves are made to match specialized piping standards and ensure a secure seal under extreme conditions.



These specialized connection types offer flexibility and customization options that can help meet the diverse demands of modern industrial processes.



Comparison Table: End Connection Types at a Glance

Below is a comparative overview of common butterfly valve end connection types, highlighting key features such as pressure rating, installation ease, cost, maintenance requirements, and typical applications.

Connection Type	Pressure Rating	Installation Ease	Cost	Maintenance	Typical Applications
Wafer	Medium to High	Easy	Low	Low	Water treatment, HVAC systems, industrial piping
Lug	Medium to High	Moderate	Moderate	Moderate	Water and wastewater treatment, chemical processing
Flanged	High	Moderate to Difficult	High	Moderate	Oil and gas pipelines, power plants, industrial water systems
Butt-Welded	Very High	Difficult	High	High	High-pressure and high-temperature applications, petrochemical industries

Notes:

• Wafer: Ideal for space-constrained installations due to its compact design. Not suitable for dead-end service.
• Lug: Allows for dead-end service, providing flexibility in system design. Heavier than wafer valves.
• Flanged: Provides a robust and secure connection, suitable for high-pressure systems. Requires more space and precise alignment during installation.
• Butt-Welded: Offers a permanent, leak-proof connection ideal for high-pressure and high-temperature applications. Installation is more complex and requires welding expertise.



FAQs

Q1:Can I retrofit a wafer valve into a lug system?

Retrofitting a wafer valve into a lug system is not straightforward due to design differences. Wafer valves lack the threaded inserts (lugs) present in lug valves, which are essential for bolting the valve directly to the piping system. Attempting such a retrofit may compromise the valve’s integrity and sealing performance. It’s advisable to use a valve specifically designed for the intended connection type to ensure optimal performance and safety.

Q2:Are flanged valves suitable for HVAC systems?

Yes, flanged butterfly valves are suitable for HVAC systems. They provide robust sealing capabilities and are designed to meet the needs of HVAC and commercial applications requiring zero leakage. Their large Cv values offer an economical control valve solution for larger flow applications used in ANSI flanged piping systems.

Q3:What is dead-end service, and which butterfly valve end connection is suitable for it?

Dead-end service refers to a situation where one side of the valve is exposed to atmospheric pressure, and the other side is pressurized. Lug-type butterfly valves are suitable for dead-end service because they can maintain a reliable body connection even without a downstream flange. This allows for maintenance or isolation of one side of the pipeline without affecting the other side.

Q4:Are there any industry standards for butterfly valve end connections?

Yes, there are industry standards that govern the design and dimensions of butterfly valve end connections. For instance, the ASME B16.5 standard provides specifications for pipe flanges and flanged fittings, including those used for butterfly valves. Adhering to these standards ensures compatibility and reliability in piping systems.



Conclusion

In summary, selecting the appropriate butterfly valve end connection—be it wafer, lug, flanged, or butt-welded—depends on factors such as system pressure, temperature, pipe material, size, maintenance needs, and budget constraints. Wafer valves are cost-effective and space-saving, suitable for lower-pressure applications, while lug valves offer flexibility for dead-end service. Flanged valves provide robust sealing for high-pressure systems, and butt-welded valves are ideal for permanent installations in demanding environments. Assessing your specific application requirements will guide you in choosing the most suitable valve type. For further assistance or to explore our range of butterfly valves, please contact us today!
