Ball valves are critical in industrial systems for controlling the flow of liquids and gases, thanks to their simple structure and reliable sealing. But when it comes to choosing the right type, not all ball valves perform the same. The differences between C-Type, V-Type, and Eccentric ball valves—especially in flow capacity, control precision, and media compatibility—can significantly impact system performance. This article on C-Type vs V-Type vs Eccentric Ball Valves breaks down the key design features, ideal use cases, and pros and cons of each type to help you select the most efficient and cost-effective solution for your application.

Understanding Ball Valve Basics

Ball valves are essential components in fluid control systems, offering efficient on/off functionality through a simple quarter-turn mechanism. By rotating a spherical ball with a central bore 90 degrees, these valves either permit or obstruct flow, providing quick and reliable shut-off capabilities. Their straightforward design ensures minimal pressure drop when fully open, making them ideal for applications requiring rapid flow control and tight sealing.​

The design of the valve core significantly influences both efficiency and durability. Variations such as C-Type, V-Type, and Eccentric configurations alter flow characteristics and sealing performance. For instance, a V-Type ball valve incorporates a V-shaped notch, allowing for more precise flow regulation, which is beneficial in processes requiring accurate control. Conversely, Eccentric ball valves are designed to handle abrasive or high-viscosity media, reducing wear and extending service life. Selecting the appropriate valve core design is crucial for optimizing system performance and ensuring longevity in demanding industrial environments.



C-Type Ball Valves: High Flow for Clean Media

Design & Structure

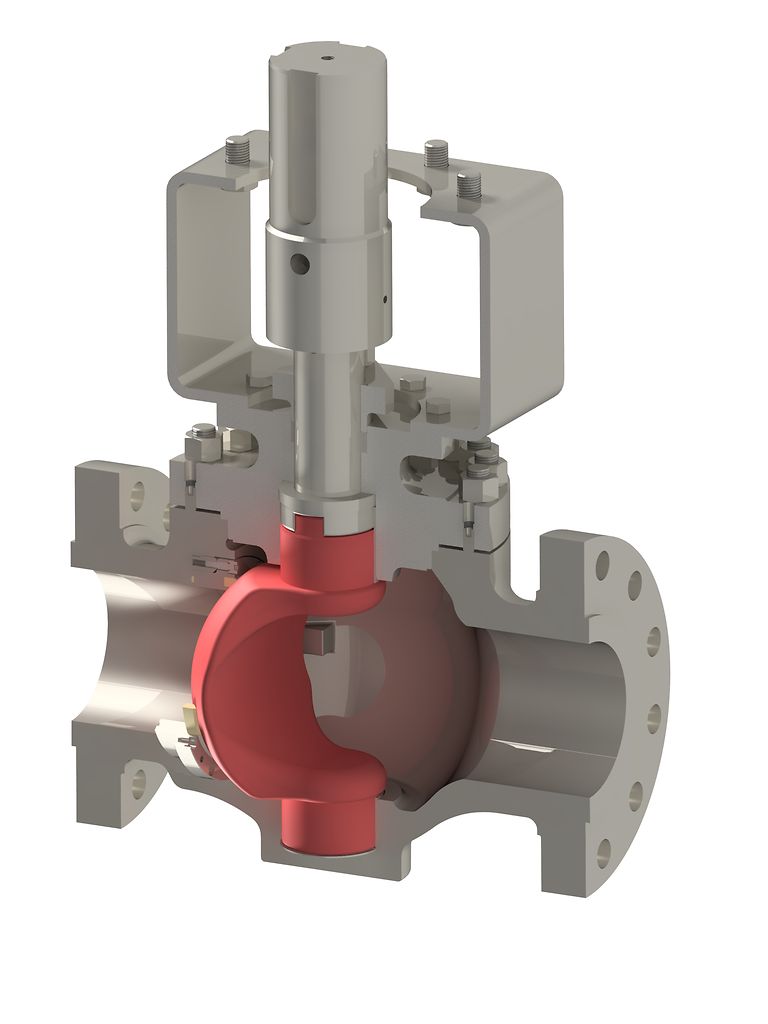

C-Type ball valves feature a distinctive C-shaped ball opening, engineered to provide a large flow path. This design minimizes flow resistance, resulting in a low-pressure drop across the valve. The robust construction of C-Type valves ensures durability and reliable performance in demanding industrial environments. The unique C-shaped ball is offset on two planes, allowing a double eccentric motion that achieves sealing by cam effect against a fixed seat.

Key Applications

C-Type ball valves are particularly suitable for applications involving clean liquids and gases, such as natural gas and chemical processing. Their design makes them ideal for handling mild slurries with minimal solid content, where maintaining a high flow rate with minimal pressure loss is crucial.​

Pros & Cons

Pros:

• High flow capacity due to the large, unobstructed flow path.

• Low-pressure drop enhances system efficiency.

• Robust construction offers durability and resistance to erosion.​

Cons:

• Limited precision in flow control, making them less suitable for applications requiring fine modulation.

• Not recommended for viscous or particle-heavy media, as solids can become trapped between the seat and the ball, potentially affecting sealing performance.

​

V-Type Ball Valves: Precision Control for Demanding Systems

Design & Structure

V-Type ball valves feature a V-shaped notch in the ball, enabling precise modulation of flow. This design provides a linear or equal percentage flow characteristic, allowing for accurate control over a wide range of flow rates. The V-notch also imparts a shearing action as the valve opens and closes, which helps prevent clogging in applications involving fluids with particulates or fibers.

These valves are available with metal seats, making them suitable for high-pressure and high-temperature applications. The robust construction ensures durability and reliable performance in demanding industrial environments .​

Key Applications

V-Type ball valves are ideal for processes requiring precise flow control, such as:​

• Steam regulation systems

• Pulp and paper processing

• Fine chemical manufacturing

• Applications involving fluids with moderate particulates​

Pros & Cons

Pros:

• Provides accurate flow modulation with linear or equal percentage characteristics

• Metal seat options allow for use in high-pressure and high-temperature environments

• Shearing action reduces the risk of clogging in fluids with particulates​

Cons:

• Generally more expensive than standard ball valves

• Less suitable for applications involving heavy abrasion or highly viscous media



Eccentric Ball Valves: Durability in Harsh Conditions

Design & Structure

Eccentric ball valves, also known as eccentric half-ball valves, feature a unique design where the ball is offset from the valve’s centerline. This eccentricity ensures that during operation, the ball moves away from the seat, reducing friction and wear. As the valve closes, the ball cams into the seat, providing a tight seal. This cam-action mechanism not only minimizes wear but also offers a self-cleaning effect, as the ball’s movement can dislodge debris from the seat surface. Such a design is particularly beneficial in applications involving abrasive or high-viscosity media. ​

Key Applications

Eccentric ball valves are ideally suited for challenging industrial environments where media can be abrasive, viscous, or contain solids. Typical applications include:​

• Sewage treatment plants, where the valves handle sludge and wastewater.​

• Asphalt processing, dealing with high-temperature, viscous materials.​

• Mineral slurry transport in mining operations, managing abrasive mixtures.​

• Coal processing facilities, where the valves control flows containing solid particles.​

Pros & Cons

Pros:

• Exceptional wear resistance due to reduced friction during operation.​

• Self-cleaning action minimizes clogging, ensuring consistent performance.​

• Suitable for high-viscosity and abrasive media, extending valve lifespan.​

Cons:

• More complex design can lead to higher manufacturing and maintenance costs.​

• May be unnecessary for applications involving clean, non-abrasive fluids, where simpler valve types suffice.



Side-by-Side Comparison: C-Type vs V-Type vs Eccentric Ball Valves

The following table provides a concise comparison: C-Type vs V-Type vs Eccentric Ball Valves, focusing on key performance attributes to assist in selecting the appropriate valve for specific industrial applications.​



Selection Guide: C-Type vs V-Type vs Eccentric Ball Valves

Selecting the appropriate ball valve—C-Type, V-Type, or Eccentric—requires careful consideration of several factors to ensure optimal performance and longevity in your specific application. Below is a guide to assist in making an informed decision.

1. Fluid Characteristics

• Clean Fluids (Liquids/Gases): Ideal for C-Type valves due to their large flow paths and minimal pressure drop.​

• Viscous or Particulate-Laden Fluids: Eccentric valves are better suited as their design minimizes clogging and handles abrasive materials effectively.​

• Fluids Requiring Precise Control: V-Type valves offer superior modulation capabilities, making them suitable for applications needing accurate flow regulation.​

2. Flow Control Requirements

• On/Off Control: C-Type valves provide efficient shut-off capabilities with high flow rates.​

• Throttling or Modulating Control: V-Type valves are designed for precise flow adjustments, offering linear or equal percentage flow characteristics.​

• Handling Abrasive or Slurry Media: Eccentric valves are robust and designed to withstand harsh conditions, making them ideal for such applications.​

3. Operating Pressure and Temperature

• Standard Conditions: C-Type valves are suitable for moderate pressure and temperature scenarios.​

• High Pressure/Temperature: V-Type valves, especially those with metal seats, are designed to handle elevated pressures and temperatures.​

• Extreme Conditions with Abrasive Media: Eccentric valves are built to endure challenging environments with high pressures, temperatures, and abrasive materials.​

4. Budget and Maintenance Considerations

• Cost-Effective Solutions: C-Type valves are generally more affordable and require less maintenance, making them suitable for applications with budget constraints.​

• Higher Initial Investment with Precision Control: V-Type valves may have a higher upfront cost but offer precise control, potentially reducing operational costs over time.​

• Long-Term Durability in Harsh Conditions: Eccentric valves, while more expensive initially, provide longevity and reduced downtime in abrasive environments, leading to cost savings in the long run.​

Valve Selection Recommendations

• For Clean Fluids with High Flow Requirements: Opt for C-Type valves.​

• For Applications Requiring Precise Flow Control: Choose V-Type valves.​

• For Handling Abrasive or Viscous Media: Select Eccentric valves.​

• For Budget-Conscious Projects with Standard Conditions: C-Type valves are suitable.​

• For High-Performance Needs in Challenging Environments: Eccentric valves offer durability and reliability.



​

FAQs

1.Can V-Type valves handle high solids?
Yes, V-Type (V-port) ball valves are engineered to manage fluids containing moderate levels of solids, fibers, or slurries. Their V-shaped notch provides a shearing action that helps prevent clogging, making them suitable for applications like pulp processing and chemical slurries. However, for fluids with very high solid content or highly abrasive particles, alternative valve types may be more appropriate. ​

2.When should eccentric ball valves be avoided?
Eccentric ball valves are designed for challenging conditions involving viscous or abrasive media. They might not be the best choice for clean fluid systems where simpler valve designs can suffice. Additionally, their complex design can lead to higher costs and maintenance requirements, which may not be justified in less demanding applications. ​

3.Are C-Type valves suitable for throttling?
C-Type ball valves are primarily designed for on/off control with high flow capacity and low pressure drop. They are not ideal for precise throttling applications, as their design does not allow for fine flow adjustments. For applications requiring accurate flow control, V-Type ball valves are a more suitable option.



Conclusion

C-Type, V-Type, and Eccentric ball valves each serve distinct roles in industrial systems: C-Type valves offer high flow capacity for clean media, V-Type valves provide precise control for applications like steam and fine chemicals, and Eccentric valves are built for abrasive or viscous fluids. Choosing the right valve isn’t just about fit—it directly affects efficiency, reliability, and maintenance costs. Understanding each type’s strengths and limitations is key to optimizing your system’s performance. If you’re unsure which valve suits your needs best, contact our technical team for expert guidance and customized solutions.
