Cage-guided describes how the valve plug is supported inside the body. It does not by itself confirm that the plug is pressure-balanced, or that the trim can control cavitation, aerodynamic noise or a severe pressure drop.
These capabilities depend on the complete trim configuration. Balancing passages and seals affect actuator force and shut-off behaviour; cage port geometry affects the inherent flow characteristic; specialised multi-hole or multi-stage arrangements manage pressure reduction differently from a standard cage.
A cage-guided design can be a reasonable starting point when plug stability, capacity or differential-pressure duty needs closer control. It can also be unsuitable for fluids carrying solids, deposits or crystallising material that may obstruct tight internal passages. Final selection must consider the medium, minimum, normal and maximum flow, corresponding inlet and outlet pressures, temperature, leakage requirement, actuator thrust and maintenance access.
What Is a Cage-Guided Control Valve?
A cage-guided control valve is typically a globe-style, linear-motion valve in which a cylindrical cage surrounds and guides the plug. The actuator moves the stem and plug axially, while the seat ring provides the closure interface at the bottom of the trim.
Depending on the construction, the cage may locate or retain the seat ring and contain the openings through which the process fluid passes. Its close guiding surface helps maintain plug alignment and reduces reliance on the stem alone to resist lateral flow forces.
Cage-guided identifies the guiding arrangement, not the complete trim specification. The plug may be balanced or unbalanced, while leakage class, flow characteristic, low-noise treatment and anti-cavitation capability must be confirmed separately.
For specification purposes, the cage, plug and seat ring form the main valve trim, while the stem and actuator provide the motion required to position the plug. This relationship between the body, trim and actuator is covered in the broader control valve basics.
How the Cage and Plug Regulate Flow
As the stem lifts the plug away from the seat, the plug edge uncovers a larger portion of the cage openings. The available flow area increases with plug travel, allowing the actuator to regulate flow by repositioning the plug. The exact flow path and direction depend on the body and trim construction.
Plug guidance and side-load support
The cage provides radial support around the plug throughout its travel. This guiding arrangement helps keep the plug aligned with the seat when uneven fluid forces act across the trim, particularly during throttling.
Guidance does not eliminate vibration or wear under every operating condition. Clearance, pressure drop, flow direction, plug geometry and fluid velocity still affect trim stability and must be considered during valve selection.
Cage windows and inherent flow characteristic
The shape and distribution of the cage openings determine how rated flow capacity changes with plug travel. Linear cages produce approximately equal capacity changes for equal travel increments. Equal-percentage cages produce progressively larger capacity changes as the valve opens, while quick-opening cages provide a large increase during the early part of travel.
These are inherent flow characteristics measured under defined pressure conditions. The installed characteristic can differ because the pressure drop available to the valve usually changes as system flow changes. Valve travel should therefore be evaluated against the process pressure profile rather than selected from the cage description alone.
Cage-Guided, Balanced and Multi-Stage Are Different Decisions
A cage can guide the plug whether the plug is balanced or unbalanced, and either arrangement can use single-stage or multi-stage throttling. These terms describe separate parts of the valve design and should be specified independently.
| Term | What it describes | Engineering effect | Buyer check |
|---|---|---|---|
| Cage-guided | Plug guidance architecture | Provides radial support and may establish the flow characteristic | Guiding clearance, flow direction and cage geometry |
| Balanced plug | Pressure-force management across the plug | Reduces static unbalanced force under specified conditions | Balance seal, temperature, shut-off requirement and actuator thrust |
| Standard characterised cage | Single-stage throttling openings | Controls capacity and inherent flow characteristic | Required Cv or Kv, characteristic and operating range |
| Multi-hole cage | Many smaller flow passages, often within one stage | Divides the flow into smaller jets | Verified noise, velocity and cavitation performance |
| Multi-stage trim | Sequential pressure-reducing restrictions | Distributes pressure reduction across two or more stages | Stage count, pressure profile, medium and calculated limits |
A balanced plug commonly uses internal passages to expose selected plug areas to similar pressures. This can reduce the actuator force required to move or hold the plug, but the result depends on the effective areas, pressure direction and seal arrangement. Balance seals also introduce friction and another potential internal leakage path, so balanced trim does not automatically provide the tightest shut-off.
A multi-hole cage may distribute flow through many small passages while retaining a single throttling stage. Multi-stage trim passes the fluid through successive restrictions, reducing pressure in controlled steps. Neither configuration should be specified as low-noise or anti-cavitation trim without calculations for the actual medium, pressure ratio, temperature and flow rate.
Where Cage-Guided Control Valves Fit and Where They Do Not
Fluid cleanliness is often the first selection boundary. Close guiding clearances and defined cage passages suit many clean liquid, gas and steam services, but the same features can become vulnerable when the medium carries solids or forms deposits.
Conditions that favour cage-guided trim
Cage-guided trim may be considered where valve size, flow velocity or differential pressure creates lateral forces that could disturb plug alignment. Radial support from the cage can improve trim stability, although the allowable pressure drop still depends on the complete valve, trim and actuator design.
The cage can also provide a defined inherent flow characteristic without changing the basic globe-valve body. This is useful when the application requires a specific relationship between valve travel and rated capacity, provided the selected characteristic is checked against the installed system response.

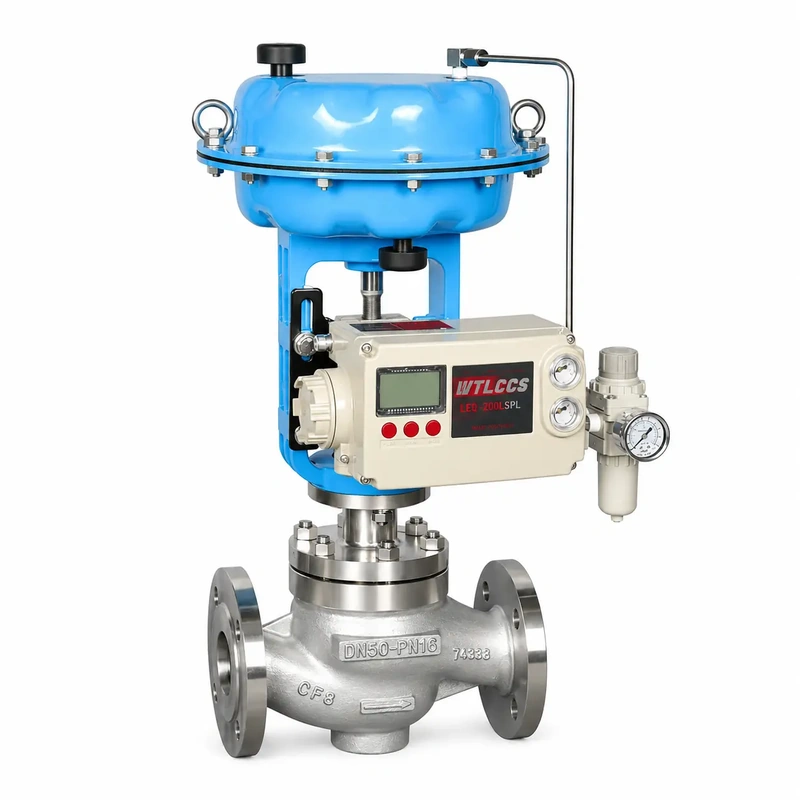

Special porous, multi-hole or multi-stage cages may be designed for particular noise or cavitation duties. MacoTango’s porous cage control valve is one pressure-balanced product configuration. Its published materials and operating limits apply to that product rather than to cage-guided valves as a category.
Solids, deposits, thermal growth and seal-friction cautions
Suspended solids, fibres and abrasive particles can obstruct cage openings or damage the port edges and guiding surfaces. Crystallising, polymerising or sticky fluids may also accumulate within close clearances, increasing the risk of restricted travel or a stuck plug.
Temperature changes affect the expansion of the cage, plug, body and seat ring. Materials and guide clearances must allow movement across start-up, normal operation and shutdown conditions. A valve that moves freely when cold may behave differently after the trim reaches process temperature.
Balanced configurations add seals or piston-ring arrangements that can introduce friction, wear and an internal leakage path. Their effects on control response, shut-off performance and maintenance intervals depend on seal material, temperature, pressure direction and cycling frequency. Inspection access and replacement of the cage, plug, seat ring and balance seals should therefore be reviewed before the valve is specified.
How to Specify a Cage-Guided Control Valve
Nominal size and pressure class are insufficient for selecting cage-guided trim. The supplier needs operating cases that show how flow, pressure, temperature and fluid properties change across the expected process range.
| Specification input | Why it matters | What to provide |
|---|---|---|
| Operating cases | Establishes required capacity and valve opening | Minimum, normal and maximum flow with corresponding inlet and outlet pressures |
| Fluid data | Affects sizing, choking, cavitation and material selection | Phase, composition, density or specific gravity, viscosity and relevant gas or steam properties |
| Liquid pressure data | Supports flashing and cavitation assessment | Vapour pressure, critical pressure and operating temperature |
| Contaminants | Determines blockage, erosion and sticking risk | Particle size and concentration, fibres, deposits, crystallisation or polymerisation tendency |
| Control requirement | Defines capacity, range and response expectations | Required Cv or Kv, flow characteristic, acceptable travel range and control signal |
| Shut-off requirement | Affects seat design, balance seals and actuator force | Specified leakage class, differential pressure at closure and flow direction |
| Materials and temperature | Controls corrosion, erosion, expansion and seal compatibility | Design and operating temperatures, body and trim materials, hardfacing, packing and gasket requirements |
| Actuation and documents | Determines fail action, available force and verification records | Fail-open or fail-closed action, air supply, accessories, project standards, certificates and inspection requirements |
Capacity should be calculated for each operating case under installed conditions. IEC 60534-2-1 provides control-valve sizing equations for compressible and incompressible fluid flow. Its incompressible-flow equations are not intended for non-Newtonian fluids, slurries or liquid-solid conveyance systems, so those services require a different engineering review.
Actuator sizing is a separate calculation. Available thrust must account for pressure forces, seat load, packing friction, guide friction, balance-seal friction and the required fail action. A balanced plug may reduce the static unbalanced force, but it does not remove the need to check every operating and shut-off case.
After the process data are defined, the required cage type, pressure balance, materials, leakage performance and actuation can be matched against the available industrial control valve range. Product dimensions or catalogue pressure classes should not replace sizing and trim verification.
Confirm the Trim Against the Operating Cases
Final selection requires confirmation of Cv or Kv, expected valve travel, pressure-drop limits, leakage performance, materials and actuator thrust for each operating and shut-off case. Cavitation, flashing, choking and aerodynamic noise must also be checked where the process conditions indicate a risk.
Prepare the minimum, normal and maximum flow rates with their corresponding inlet and outlet pressures, fluid properties, temperature, solids content, leakage requirement and fail action. You can then send the operating cases to MacoTango for a cage, plug, seat and actuator review.
