Vibration and noise in high-pressure pipeline systems are serious challenges that, if left unaddressed, can compromise equipment integrity, safety, and operational efficiency. Excessive vibration is a leading cause of leaks and fatigue failures, which can result in dangerous spills and costly repairs. Safety risks are also significant, as vibration-induced failures can lead to explosions, environmental damage, and even loss of life. Beyond safety, uncontrolled vibrations reduce operational efficiency by increasing maintenance costs, shortening equipment lifespan, and generating noise pollution that affects worker health and productivity. Proactively addressing these issues through improved system design, enhanced infrastructure, and regular maintenance is essential for ensuring reliable, safe, and efficient pipeline operations.

Understanding the Causes of Vibration and Noise

​Understanding the causes of vibration and noise in high-pressure pipeline systems is crucial for maintaining their integrity and ensuring safe operations.​

Fluid Dynamics and Turbulence

In high-pressure pipelines, fluid dynamics play a significant role in inducing vibrations. Pressure fluctuations and turbulent flow can generate vibrations within the system. High-velocity fluids, especially when passing through restrictions or around bends, can cause turbulent flow patterns, leading to vibrations that compromise pipeline stability. ​

Resonance Phenomena

Resonance occurs when the natural frequency of the pipeline matches the frequency of external excitations, such as flow-induced vibrations. This alignment can amplify vibrations, leading to structural fatigue and potential failure. For instance, flow-induced excitation (FIE) can create vortices that, when resonating with the pipeline’s natural frequency, result in significant vibrations.

Water Hammer Effect

Water hammer, or hydraulic shock, is a pressure surge that occurs when a fluid in motion is forced to stop or change direction suddenly, typically due to rapid valve closures. This sudden change causes a pressure wave to propagate through the pipeline, leading to vibrations and potential damage. Over time, repeated water hammer events can compromise pipeline integrity, leading to leaks or ruptures. ​

Mechanical Loosening

Continuous vibrations can lead to the loosening of mechanical components such as valves, bolts, and fittings. This loosening not only exacerbates vibration issues but also poses safety risks due to potential leaks or system failures. Ensuring that all mechanical components are securely fastened and regularly inspected is vital to prevent such issues.

Solutions to Mitigate Vibration and Noise

​Mitigating vibration and noise in high-pressure pipeline systems is essential for maintaining operational integrity and safety. Implementing targeted solutions can address these challenges effectively.​

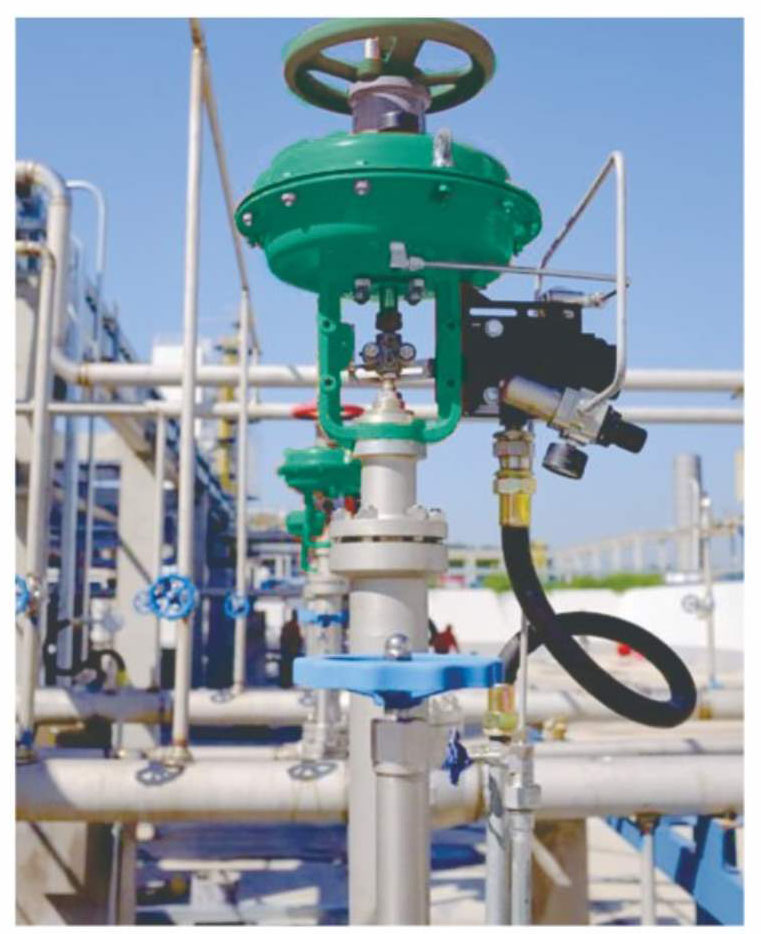

Optimizing Valve Design and Selection

Advanced valve designs, such as multi-stage pressure-reducing valves and multi-hole throttling valves, play a pivotal role in minimizing turbulence within pipeline systems. Multi-stage pressure-reducing valves facilitate a stepwise reduction in fluid pressure, thereby controlling flow characteristics and reducing the likelihood of turbulence-induced vibrations. Similarly, multi-hole throttling valves distribute pressure drops across multiple orifices, which diminishes the energy of the fluid stream and curtails turbulence. This gradual pressure reduction not only enhances system stability but also prolongs the lifespan of pipeline components by mitigating the forces that contribute to wear and tear.​

Vibration Absorption Techniques

Incorporating flexible joints and bellows compensators at strategic points in the pipeline—particularly near connections and bends—serves to absorb and dampen vibrations. Flexible rubber joints, for instance, are designed to absorb movements and vibrations, thereby reducing noise and extending the service life of the pipeline system. Bellows compensators, utilizing the elasticity of their corrugated structures, effectively absorb dimensional changes caused by thermal expansion and contraction, as well as mechanical vibrations. By isolating vibrations, these components prevent the transmission of oscillatory forces throughout the system, thereby maintaining structural integrity and reducing noise levels.​

Strengthening Pipeline Infrastructure

Reinforcing pipeline infrastructure is crucial in mitigating vibration-induced issues. Implementing robust supports at critical junctures—such as bends, valves, and junctions—ensures that the pipeline maintains its intended alignment and structural integrity. Proper anchoring and support systems prevent displacement and resonance phenomena, which can otherwise lead to mechanical failures. According to industry practices, the design of expansion joints and supports should account for thermal movements and vibrations to maintain the stability of the pipeline system. By addressing these structural considerations, the pipeline system can better withstand dynamic operational conditions without succumbing to detrimental vibrations.​

Addressing Water Hammer

Water hammer, characterized by sudden pressure surges resulting from rapid valve operations or abrupt changes in flow velocity, poses significant risks to pipeline integrity. To mitigate this phenomenon, several strategies can be employed:​

• Slow-Closing Valves: Utilizing valves that close at a controlled, reduced speed minimizes the abrupt cessation of fluid flow, thereby reducing the magnitude of pressure surges.​

• Surge Tanks: Installing surge tanks provides a buffer zone where excess pressure can be temporarily accommodated, thus dampening the impact of sudden pressure changes on the pipeline system.​

• Pressure Relief Systems: Implementing pressure relief valves allows for the controlled release of excess pressure, preventing the buildup of potentially damaging pressure levels within the pipeline.

Preventative Maintenance Best Practices

​Implementing preventative maintenance is crucial for minimizing vibration and noise in high-pressure pipeline systems. Key practices include:​

Regular Inspection Protocols

• Key Areas to Monitor: Regularly inspect valve connections, pipeline anchors, and supports for signs of wear, corrosion, or looseness. ​

• Detection Tools: Utilize vibration sensors and acoustic analysis tools to identify early signs of wear or irregularities. ​

Proactive System Adjustments

• Component Maintenance: Promptly tighten or replace worn valves, bolts, and fittings to maintain system integrity. ​

• Flow Management: Adjust fluid flow rates to minimize turbulence, thereby reducing vibration and noise. ​

Long-Term System Monitoring

• Predictive Maintenance: Implement IoT-based monitoring systems to continuously assess pipeline conditions and predict maintenance needs.

FAQ

1.How do I identify resonance in my pipeline system?

Resonance in pipelines can be identified by monitoring for excessive vibrations at specific frequencies, particularly during startup or shutdown phases. Conducting impact tests, where the system is struck with a hammer while using an FFT analyzer, can help detect natural frequencies and potential resonance issues. ​

2.What valve types are best for high-pressure noise reduction?

For high-pressure applications requiring noise reduction, globe valves with specialized noise-attenuating trims, such as Fisher Whisper Trim, are highly effective. These designs help control pressure drops and minimize noise generation. ​

3.How often should vibration-prone components be inspected?

Vibration-prone components, including valves and supports, should be inspected regularly to detect early signs of wear or looseness. Utilizing vibration sensors can aid in early detection and maintenance planning.

Conclusion

Addressing vibration and noise in high-pressure pipeline systems is crucial for maintaining operational efficiency, ensuring safety, and prolonging equipment lifespan. Proactively managing these issues through optimized valve design, effective vibration absorption techniques, reinforced infrastructure, and strategies to control water hammer can significantly reduce the risk of equipment failure, leaks, and costly downtime. Regular inspections, predictive maintenance, and the use of advanced monitoring systems further enhance system reliability and reduce long-term operational costs. By taking a comprehensive approach to mitigating vibration and noise, companies can improve safety, increase productivity, and extend the lifespan of critical infrastructure.
