A check valve for a well pump is a small but essential part of any home water system. It allows water to flow in only one direction—up from the well and into your home—while preventing it from draining back when the pump shuts off. This simple mechanism keeps your pump primed, maintains pressure, and protects the system from damage caused by backflow or water hammer. In this article, we’ll explain what a well pump check valve is, how it works, the different types available, and how to choose, install, and maintain the right one to keep your water supply reliable and efficient.
What is a Well Pump Check Valve and Why Is It Essential?
A check valve is, in essence, a one-way valve that allows water to flow in a single direction and prevents any backward flow. In a home well-pump system, it plays a surprisingly critical role.
Maintaining Prime
When your well-pump system is running, the check valve ensures the pump and pipes remain full of water even when the pump switches off. Without this, the system could lose its prime and the pump would have to start dry — which is inefficient and potentially damaging.
Preventing Backflow
One of the primary functions of the check valve is to stop water from flowing back down into the well when the pump shuts off. In other words: water moves up and out, but cannot go back in. This is vital to preserve system pressure and to keep things running smoothly.
Protecting the Pump
In a well system, the check valve also serves to protect the pump and associated components from damaging conditions. For instance:
-
It guards against “up-thrust”, where the pump impeller or shaft experiences excessive upward force if water drains back and the pump has to restart under sub-optimal conditions.
-
It helps reduce water hammer — the sudden surge or reversal of water that can cause pressure spikes and damage pipes, valves or the pump itself.
How Does a Well Pump Check Valve Work?
When you look inside a check valve used in a well-pump system, you’ll find a relatively simple mechanical design that achieves a crucial job: letting water flow one way, and stopping it coming back. Let’s walk through how this works in straightforward terms.
Valve Opening: Water Pressure Does the Work
As your pump runs and forces water into the discharge pipe, the pressure from the pump pushes against the inlet side of the valve. Inside the valve you might find a spring-loaded poppet or a flapper/hinged disc. For example:
-
In a spring-loaded design, the poppet (or ball) is held on its seat by a light spring. When the pump builds sufficient pressure, it lifts the poppet and allows water to flow through.
-
In a swing/flapper style, the incoming water lifts the flap or disc away from its seat, letting the flow pass.
So during pump operation: pump starts → water pressure builds → valve opens → water flows out towards your home or storage tank.
Valve Closing: Gravity, Back-Pressure and Spring Force
Once the pump stops, several forces act to shut the valve and prevent backward flow:
-
With the pump off, the pressure on the discharge side drops.
-
Gravity (in designs where the flap swings) or the spring (in spring-loaded models) helps the internal seal return to the closed position.
-
Any back-pressure (for instance, water in the pipe wanting to flow back toward the pump) pushes the poppet/disc onto its seat, sealing the valve closed.
In short: pump off → pressure drops or reverses → internal mechanism returns to seal → backward flow is blocked.
Why the Mechanism Matters in a Well System
Because in a well-pump environment the column of water can be very tall (especially for deep wells), if the check valve failed to close properly:
-
Water could flow back down into the well, losing prime and making the pump have to re-start from dry.
-
The sudden change in flow direction could cause a “water hammer” shock, stressing pipes and the pump.
-
The pump may face up-thrust (an upward force on the impeller) which can damage bearings or motor over time.
By operating cleanly—open on forward pressure, shut on drop/back-pressure—the check valve helps ensure your system stays efficient, reliable and protected.
Common Types of Check Valves Used in Well Systems
Here are three common types of check valves you’ll encounter in well-pump systems, along with how they work and when they’re best used.

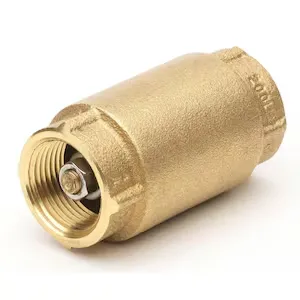

Spring-Loaded Check Valves
A spring-loaded check valve uses a spring to assist in closing the valve quite quickly when flow stops. The inlet pressure from the pump lifts the disc or poppet against the spring, allowing water to flow. Once flow stops or reverses, the spring forces the disc back onto the seat, preventing back-flow.
Because the spring helps the mechanism irrespective of gravity, this type works well in both vertical and horizontal orientations—making it very versatile for well-pump installations.
They are particularly reliable for protecting against water hammer and rapid reverse flow, which makes them a strong choice where the well-pump system may experience frequent stoppages.
Swing Check Valves
A swing check valve uses a flap or disc mounted on a hinge that swings open when forward flow pushes it, and swings back to cover the seat when flow reverses.
These valves are often used in horizontal pipe runs, where gravity assists the closing motion. However, they may not be ideal for deep-well or vertical installations because the closing action can be slower, increasing the risk of back-flow or water-hammer.
If you choose a swing check valve, it’s best placed where flow is steady, pipe runs are short, and the risk of hammer or reversal is minimal.
Foot Valves
A foot valve is a special kind of check valve mounted at the bottom of the suction line, typically submerged in the well or water source. It includes a built-in strainer or screen to block debris from entering the suction pipe and pump.
Its primary role is to maintain the water column in the suction line when the pump is off — ensuring the pump remains primed and ready. When the pump stops, the foot valve closes to prevent water draining back, which could break the prime.
In other words, if your system uses a suction line (rather than simply pushing water from beneath), a foot valve is a smart addition to preserve performance and avoid running dry.
Summary Table
| Valve Type | Best Use Case | Key Advantage |
|---|---|---|
| Spring-Loaded Check | Vertical or horizontal pipes, frequent stops | Fast closing, good for preventing water hammer |
| Swing Check | Horizontal pipe runs, simple flows | Simple mechanism, cost-effective |
| Foot Valve | Suction line inlet in well systems | Maintains prime + filters debris |
Strategic Placement: Where to Install Your Check Valves
Getting the placement of your check valves correct is just as important as choosing the right type. Here’s how to think about where to install them in a typical home well-pump system.
The Foot Valve: The First Line of Defence at the Bottom of the Drop Pipe
At the very lowest point of your suction line — inside the well, or just at the pump inlet for shallow systems — you’ll usually find a foot valve. This is a check valve fitted at the bottom of the drop pipe, often combined with a strainer to block debris.
It ensures that when the pump stops, water can’t simply drain back down into the well, which would force the pump to re-prime each time it starts. Thus, it acts as the first safeguard for system efficiency and longevity.
In-Line Check Valves: Managing the Water Load in Deep Wells
In deeper well installations, a single valve isn’t enough. Because of the weight of the water column and the potential for reverse flow, multiple in‐line check valves are recommended along the drop pipe. For example:
-
In many systems the next check valve is installed within about 7 metres (or 25 feet) above the lowest pumping level.
-
Beyond that, additional check valves are placed at regular intervals — often every 200 feet (≈ 61 metres) or so — up the riser pipe to mitigate the hydraulic shock when the pump stops.
These in-line valves serve to divide the long column of water into manageable “stages”, reducing the risk of backflow, upthrust and water hammer. They act like intermediate guards to protect the pump and pipe system.
The Final Check Valve: Just Before the Pressure Tank
Finally, near the surface where your system connects to the pressure tank and household plumbing, a final check valve is often installed. This sits just before the pressure tank to prevent the water stored in the tank and the pressure line from draining back into the well when the pump stops.
Its role is crucial: it ensures that pressure is maintained in the system and that the pump does not have to restart each time there’s a demand. In short, it preserves the readiness of the system and avoids unnecessary cycling.
How to Choose the Right Check Valve for Your Well
Selecting the correct check valve for your well system is more than just picking the first one you find. The right choice depends on material, sizing and connection type, and the valve’s pressure and temperature ratings. Let’s break these down.
Material Selection
-

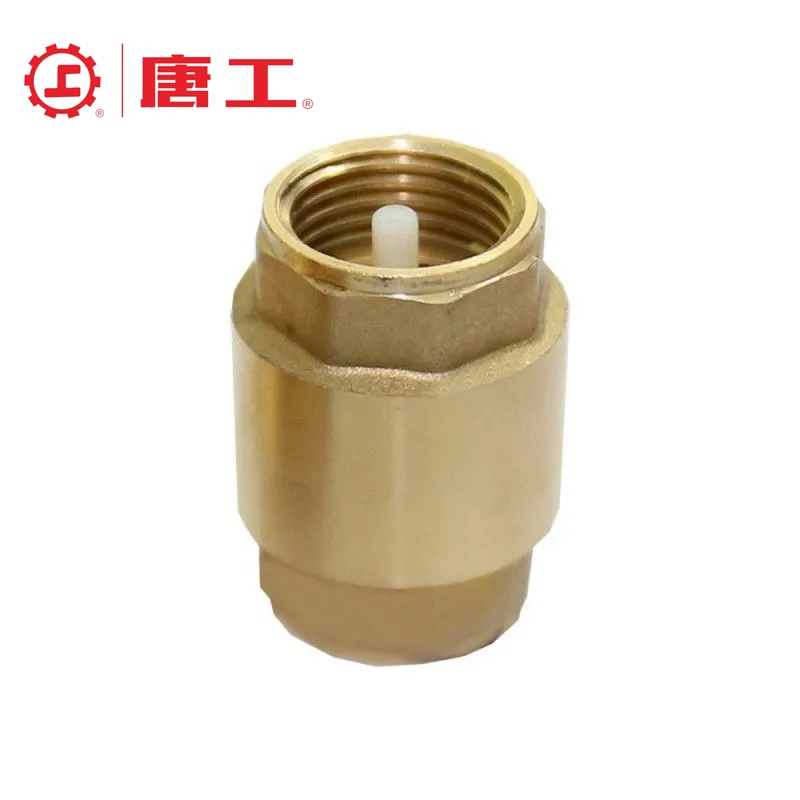

Brass: A common choice for residential well systems. It offers good corrosion resistance and solid durability.
-
Stainless Steel: If your water supply is aggressive (for example high in minerals or slightly saline), or if you need absolute longevity, stainless steel (such as 304 or 316 grades) is ideal.
-
PVC/Plastic: Lightweight and cost-effective, plastic valves (such as PVC) suit lower pressure systems and benign water conditions. Be aware: they won’t perform as strongly in high pressure or very hot water scenarios.
When choosing material, consider the water chemistry (mineral content, pH, salinity), the environment (buried, above ground, inside housing), and how easy it will be to maintain or replace this valve down the line.
Sizing and Connection Type
The valve must match your pipework. That means selecting the correct diameter (for example NPS/DN standard size) and connection style. Threaded, socket-insert, flanged or compression are common types.
If the valve is undersized relative to the flow or pipe diameter, you risk pressure-drop and inefficient performance. If it’s oversized or mismatched, you may run into sealing or installation issues. Always ensure the valve’s flow direction arrow aligns with your system’s flow, and that the connection style suits your installation context.
Pressure and Temperature Ratings
Last but certainly not least: make sure the valve is rated for the pressures and temperatures your system will see. For a well pump system, operating pressures might typically range around 30-60 psi, but depending on depth, pump output and tank setup you might exceed that.
Similarly, if the valve is installed in an area where the water can be warm, or where the ambient temperature fluctuates (e.g., above ground in winter), check the valve’s temperature tolerance. PVC may have lower temperature limits compared to brass or stainless steel.
Smooth Transitions Matter
When choosing your check valve, start with the material first (since this often limits your choices). Then make sure the size and connection type align with the existing pipework. Finally, check that the pressure and temperature ratings exceed what your system demands. If all three check boxes are marked, you’re setting up your well system for reliability rather than compromise.
Troubleshooting Common Check Valve Problems
When the check valve in your well-pump system begins to malfunction, the symptoms are often quite clear—yet easy to misinterpret. In this section, we’ll explore signs of a failing check valve, the common causes of failure, and simple diagnostic tests you or your technician can carry out to identify the problem.
Signs of a Failing Check Valve
Here are several red flags that suggest your check valve might be going bad:
-
The pump cycles on and off frequently—even when there’s no water being used. This may mean the valve isn’t holding pressure properly.
-
Noticeable loss of water pressure in the system. If water easily escapes back down the pipe the valve should be holding, you’ll feel a drop.
-
The pressure gauge drops to zero (or near zero) when the pump shuts off. In a correctly functioning system the check valve should maintain pressure, but a faulty one allows it to bleed off.
Recognising these signs early can save you time, money and serious repairs down the line.
Common Causes of Failure
Understanding why the check valve fails helps not only with fixes but with prevention. Here are the most frequent culprits:
-
Debris stuck in the valve: Sand, silt, or small rocks can lodge in the valve seat or mechanism, preventing a tight closure.
-
Wear and tear on the spring or seal: Over time the internal spring (in a spring-loaded valve) weakens, or the seal becomes worn, cracked or mis-aligned, allowing leakage.
-
Corrosion or mineral build-up: In wells with aggressive water chemistry (high mineral content, iron, etc.) the valve materials may corrode or stiffen from scale, making them sluggish or unable to seal.
When you see the symptoms above, check one or more of these causes—often one will be the root issue.
Simple Diagnostic Tests
You or a technician don’t always need complex tools to check the health of a check valve. Here are some basic tests you can perform:
-
Pressure hold test: After the pump has shut off, observe the system pressure gauge. If the pressure falls significantly (without usage), it strongly suggests the check valve isn’t sealing properly.
-
Visual / auditory check: Listen for unusual sounds like banging (water hammer) when the pump stops. Also inspect accessible portions of pipework for vibrations, leaks or damp spots near the valve. These may indicate a poorly closing valve.
-
Back-flow test: If possible, temporarily isolate the plumbing downstream of the pressure tank and monitor whether pressure drops only or whether water appears to flow back into the well. If it does, the check valve is likely failing. Note: this test may require a technician.
Installation and Maintenance Best Practices
Getting the installation and upkeep of your check valve right will significantly boost the reliability and lifespan of your well system. Here are some key pointers in plain, conversational terms.
Installation Basics: Orientation and Placement
First and foremost: follow the flow arrow printed on the valve body. Installing the valve backwards means it simply won’t function as intended. Industry-guidance emphasises that correct orientation is crucial.
Beyond orientation, ensure the valve is mounted in a good run of straight pipe. In practice this means leaving a bit of clear pipe length before and after the valve so that the flow remains smooth and turbulence is minimised. For example, some manufacturers suggest at least five times the pipe diameter upstream of the valve, and five to ten times downstream.
Make sure the valve is accessible for maintenance and inspection—don’t bury it in a place where you’ll struggle to reach if a problem crops up.
Long-Term Maintenance Tips
Once the valve is correctly installed, keeping it in good shape is largely about routine checks and preventing contaminant build-up. Here are a few practical suggestions:
-
Install a sediment filter or strainer upstream of the check valve (especially in well systems with sand, silt or iron content). This helps protect the valve’s internals from debris that can get caught in the seating surface.
-
Periodically inspect the valve for signs of leakage, corrosion or mineral deposits. If you spot scale forming around the valve seat or hinge area, it’s worth cleaning or replacing the valve before it fails.
-
After installation and during operation, monitor system performance (pump cycling, pressure retention, unusual noises) as early warning signs of valve wear or degradation.
-
During maintenance, ensure the system is de-pressurised before working on the valve to safeguard personal safety and avoid damage.
A Smooth Workflow = Better Reliability
By combining correct installation (flow direction, straight run, accessible location) with regular maintenance (filter upstream, inspections, clean-out of deposits), you’ll significantly reduce the risk of premature failure. That means fewer emergency call-outs, less downtime, and a system that runs more smoothly for longer.
Conclusion
A check valve for a well pump is a small but vital investment that protects your entire well water system. By preventing backflow, maintaining pressure, and keeping the pump primed, it ensures smooth, efficient operation and extends the lifespan of your equipment. Choosing a high-quality, properly installed check valve not only saves you from costly repairs but also guarantees a consistent and reliable water supply for your home or property. In short, a dependable well pump check valve is the key to keeping your water system safe, stable, and performing at its best.
