Check Valve Symbols: What They Are and How to Read Them

Check valve symbols are a small but critical part of any P&ID. They show where flow is allowed in one direction and blocked in the other, helping engineers understand how a system behaves at a glance. In industrial plants, even a simple symbol can affect safety, pump protection, and overall process flow. This guide breaks down what check valve symbols mean, how to read them, and how they differ across standards and valve types. Whether you are designing, maintaining, or reviewing a piping system, knowing these symbols helps you avoid errors and keep operations running smoothly.

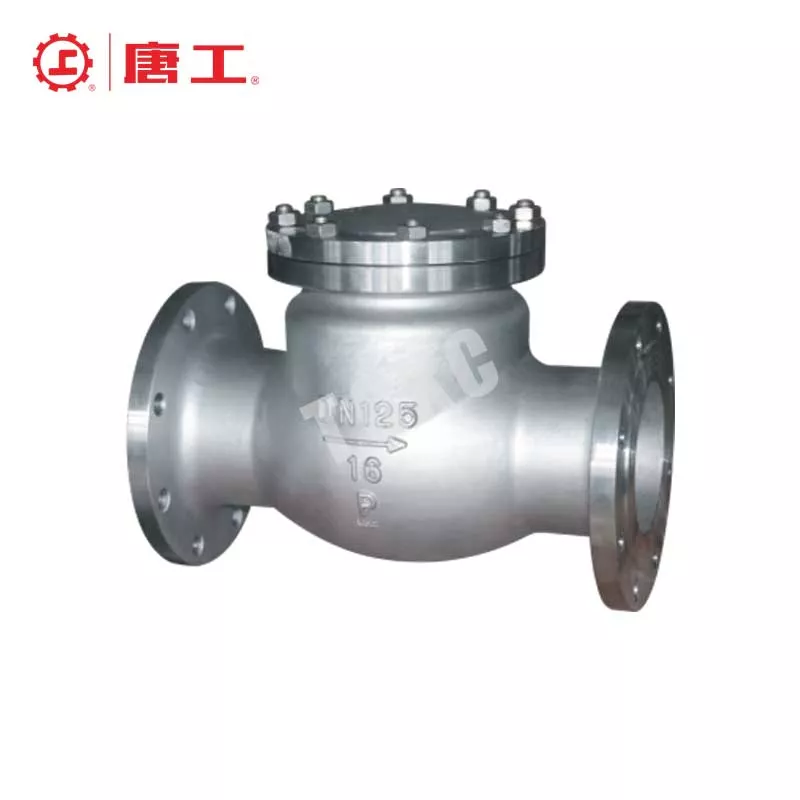

6 Swing Check Valve

What Is a Check Valve Symbol?

check-valve-symbol

A check valve symbol is a simple graphic used in P&ID drawings to show a valve that allows flow in one direction only. It represents a non-return valve, which opens with forward flow and closes automatically if the flow tries to reverse.

In most diagrams, the symbol includes a line for the pipe and a shape or arrow that shows the permitted flow direction. This makes it easy to spot the valve and understand its function without needing long text notes.

Why Symbols Matter in Piping Systems

Symbols act as a shared visual language across engineering teams, contractors, and operators. They help people read complex piping layouts quickly and avoid confusion during design, installation, or maintenance.

In industrial systems, misreading a valve symbol can lead to backflow, equipment damage, or safety risks. Clear, standard symbols ensure everyone understands how the system should work, even across different sites or countries.



Basic check valve symbol and common variants

check_valve_symbol

Standard ISO / ISA check valve symbol

The standard check valve symbol in P&IDs is simple but very specific. It usually shows a flow arrow or triangle pointing in the allowed direction, with a line or barrier indicating that reverse flow is blocked.

In ISO and ISA styles, this symbol tells you one key thing: flow goes one way only, and the valve works automatically. There’s no actuator or manual control shown, which signals a self-operating device used for backflow prevention.

Swing check valve symbol

A swing check valve symbol builds on the basic form but hints at a hinged disc. The angled line often looks like it can “pivot,” showing that the disc swings open with flow and closes by gravity or reverse pressure.

This type is widely used in water, steam, and low-viscosity systems. On a P&ID, it tells you the valve has low pressure drop but depends on flow direction and orientation to close properly.

Stop check valve symbol

stop-check-valve-symbol

A stop check valve symbol looks similar to a standard check valve but includes an added feature to show manual shut-off capability. This is often drawn as an extra line, stem, or actuator mark above or near the valve body.

This means the valve can work in two ways. It allows automatic one-way flow like a check valve, but it can also be closed manually like a stop valve, which is useful in steam and boiler systems.

Lift (piston) and ball check valve symbols

lift-check-valve-symbol

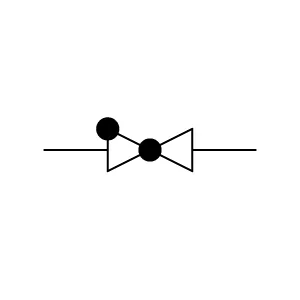

Lift check valve symbol

Lift check valve symbols usually show a more vertical internal element. This reflects the disc moving up and down with flow, similar to a globe valve action. It suggests tighter sealing but higher resistance.

Ball check valve symbols are easier to spot. They often include a small circle inside the line, representing the ball that rolls to block reverse flow. This simple shape helps you quickly link the symbol to the internal mechanism.

Spring-loaded and silent check valve symbols

Spring-loaded check valves add a small spring detail to the basic symbol. This shows that the valve closes quickly, even at low or reversing flow, without relying on gravity.

Silent (non-slam) designs use similar symbols but emphasise controlled closing. These are common near pumps, where fast closure reduces water hammer and protects equipment.

Vacuum Check Valvevacuum-check-valve-symbol

A vacuum check valve symbol is similar to a standard check valve but may include extra markings to show vacuum protection. It is often linked with systems that prevent back-siphoning or allow air entry when pressure drops.



How to Read Check Valve Symbols in P&IDs

Spot Flow Direction and Warnings

The first thing to look for is the arrow. In a P&ID, the arrow shows the allowed flow direction through the check valve. Fluid can move with the arrow, but it is blocked in the opposite direction.

You will often see a line or bar across the symbol. This marks the shut-off point that stops reverse flow. If there is a spring or extra marking, it can mean a spring-loaded or specialised valve, which may affect pressure and closing speed.

To read it quickly, focus on these cues:

  • Arrow direction = normal flow path
  • Bar or seat line = backflow stop point
  • Extra symbols (spring, disc) = valve type or behaviour



Once you spot these, you can understand how the valve protects the system from reverse flow.



Common Pairings with Pumps

Check valves are often placed near pumps in P&IDs. Their job is simple: stop fluid from flowing backwards when the pump shuts down. This protects the pump and keeps the system stable.

In most layouts, the check valve sits on the discharge side of the pump. This prevents backflow, water hammer, and damage to seals or impellers. When reading a diagram, look for a pump symbol followed by a check valve in the flow direction.

In industrial systems, this pairing is a standard design choice. It helps maintain pressure, avoids contamination, and ensures smooth restart of the process.



Common Symbol Combinations

Certain symbol pairings appear again and again in P&IDs:

  • Check valve + pump:
    This is one of the most common combinations. The check valve is usually placed immediately after the pump discharge to prevent backflow and reverse rotation.

  • Check valve + relief valve:
    In these setups, the check valve controls normal flow direction, while the relief valve protects the system from overpressure. Seeing them together signals a safety-critical section of the system.

  • Multiple check valves in series:
    This often indicates redundancy or staged pressure control, particularly in high-risk or high-value processes.

Recognising these patterns speeds up interpretation and helps you anticipate system behaviour.





Standards for Check Valve Symbols

Check valve symbols are not drawn at random. They follow recognised standards so engineers, operators, and contractors can read the same drawing without confusion. In industrial P&IDs, this consistency helps avoid installation errors and keeps systems safe and compliant.

Most projects stick to one standard across the entire drawing set. Mixing styles can lead to misreading flow direction or valve type, which may cause backflow issues or incorrect valve selection in real systems.

ISO vs. ASME vs. DIN Compared

The three main standards used in industry are ISO, ASME, and DIN. They all show the same core idea, a one-way valve, but the symbol details can look slightly different depending on the system.

Here is a simple way to compare them:

  • ISO (global use): Clean and simple design with a flow arrow and a flap or disc shape. Common in international and multi-region projects.
  • ASME (US standard): Similar layout but uses sharper, more angular shapes for the internal check element. Often seen in oil and gas or high-pressure systems.
  • DIN (European standard): More detailed symbols, sometimes adding a small circle or seat detail to show the valve mechanism.



Choose the Right Check Valve Symbol

Picking the right check valve symbol is not just about drawing. It shows how the valve will behave in the real system. A wrong symbol can lead to the wrong valve choice, which may cause backflow, noise, or early failure.

In P&IDs, the symbol reflects flow direction, valve type, and sometimes pressure conditions. Since check valves only allow one-way flow, the arrow and internal design in the symbol must match the actual process needs.

Match to Pressure and Flow Needs

Start by thinking about how the fluid moves in your system. Flow rate and pressure decide which type of check valve, and symbol, you should use. For example, high-pressure systems often need spring-loaded designs, while low-pressure lines may use swing types.

Here are a few quick factors to check before choosing:

  • Flow speed: fast flow may need a lift or piston type
  • Pressure level: higher pressure often needs spring-assisted valves
  • Orientation: vertical or horizontal piping affects valve choice
  • Risk of backflow: critical systems need faster closing designs



Match the symbol to these conditions so the drawing clearly reflects real operation. This helps both design and maintenance teams avoid confusion later.

Material Guide for Industrial Use

Material choice matters just as much as the symbol. The P&ID may not show full material details, but the symbol links to specs that define what the valve is made from.

Choose materials based on the fluid and environment. For example, stainless steel works well for corrosive fluids, while cast iron suits general water systems. In chemical or high-temperature lines, you may need alloys or special coatings.

Always check compatibility with the process fluid, pressure rating, and temperature range. A correct symbol paired with the right material ensures the valve performs safely and lasts longer in industrial use.



Install and Troubleshoot Check Valves

Quick Checklist for Setup

A correct installation is the first step to avoiding failure. Most issues like backflow or noise start with wrong orientation, poor sizing, or skipped testing.

Use this quick checklist before putting the system into service:

  • Check the flow arrow matches actual flow direction
  • Confirm valve size suits pipe and flow rate
  • Verify pressure and temperature ratings
  • Install in the correct position (horizontal or vertical as required)
  • Run a pressure and leak test after installation



Even small mistakes, like reversing the valve or oversizing it, can stop it sealing properly and lead to early wear.



Fix Backflow or Noise Issues

Backflow usually means the valve is not sealing fully. This can happen due to debris, worn internal parts, or incorrect installation direction. In many cases, cleaning the seat or replacing a damaged disc or spring solves the problem.

Noise, often called chattering, is another common issue. It usually points to unstable flow, low pressure, or a valve that is too large for the system.

To fix these problems, focus on the root cause:

  • Clean out debris and inspect sealing surfaces
  • Check for worn or loose internal components
  • Confirm correct valve sizing and flow conditions
  • Reinstall in the proper orientation if needed

If problems continue, it may be better to switch to a different valve type, such as a silent check valve, especially in systems prone to pressure surges or vibration.



Confusing Check Valves with Other Valve Types

Check valve symbols are sometimes mistaken for other valve types, especially in simplified or legacy P&IDs.

Common mix-ups include:

gate-valve-symbol

gate-valve-symbol

  • Gate or globe valves, which may appear similar at a glance but include manual actuators or handwheels

control-valve-symbol

control-valve-symbol

  • Control valves, which often have signal lines or actuator symbols attached

The key difference is intent. A check valve symbol shows automatic, one-directional behaviour with no operator input. If you don’t see an actuator, handle, or control signal, pause and confirm whether the symbol represents a check valve before assuming manual control.



Check Valve Symbols Across Industries

Check valve symbols may look consistent on paper, but their meaning becomes clearer when you see how they’re used across different industries. Each sector applies check valves to solve very specific problems, and the symbols reflect those priorities. Understanding this context helps you read P&IDs with greater accuracy and confidence.

Oil & Gas: Preventing Backflow in High-Pressure Systems

In oil and gas facilities, check valve symbols often appear in high-pressure, safety-critical locations. These systems deal with volatile fluids, extreme pressures, and long pipeline runs, so backflow prevention is essential.

Symbols here frequently represent:

  • Spring-loaded or dual-plate check valves for fast closing

  • Clearly marked flow direction to protect compressors and pumps

  • Close pairing with relief valves and isolation valves

When you see a check valve symbol in an oil and gas P&ID, it’s rarely optional. It’s usually there to protect equipment, prevent contamination, or reduce the risk of pressure reversal during shutdowns.

Water and Municipal Systems: Swing Check Valves in Action

Municipal water systems rely heavily on swing check valves, and their symbols reflect simplicity and reliability.

These symbols are commonly found:

  • Downstream of pumps in water distribution networks

  • At reservoir inlets and outlets

  • In flood prevention and backflow protection zones

Because these systems operate at relatively steady pressures, the symbols often show gravity-assisted designs with minimal additional annotations. The focus is on durability, low pressure drop, and ease of maintenance.

HVAC and Marine Systems: Specialised Symbol Requirements

HVAC and marine systems introduce their own constraints, such as space limitations, vibration, and variable flow conditions.

In HVAC P&IDs, check valve symbols are often used to:

  • Prevent reverse circulation in chilled or hot water loops

  • Maintain system balance during load changes

Marine systems add another layer, with symbols reflecting compact designs and orientation sensitivity due to vessel movement. In both cases, careful attention to symbol orientation and placement is essential for correct operation.

Wastewater and Sewage: Lift Check Valve Placement

Wastewater and sewage systems place check valves in some of the harshest operating conditions.

Symbols here commonly represent:

  • Lift or ball check valves that can handle solids and debris

  • Vertical installations in pump stations

  • Robust designs intended to minimise clogging

When reading these symbols, placement is as important as type. Their location in relation to pumps, sumps, and rising mains tells you how the system manages backflow and protects against flooding.



Conclusion

Check valve symbols may look simple, but they carry critical meaning in any P&ID. From the arrow showing flow direction to small design details for each valve type, these symbols help engineers understand how a system works and how to protect it from backflow. When used correctly and aligned with standards, they improve safety, reduce errors, and make troubleshooting much easier across industrial operations. MacoTango check valves are built to international standards, clearly aligned with recognised valve symbols, and trusted in demanding industrial applications worldwide. Choosing MacoTango Valve means your system design on paper is matched by reliable performance in the field.



Frequently Asked Questions

What is the symbol for a check valve in P&ID diagrams?
In Piping and Instrumentation Diagrams (P&ID), the check valve is usually represented by a valve symbol with an arrow indicating flow direction and a line or semicircle showing the one-way restriction. The arrow highlights that fluid can pass in one direction but is blocked in the reverse direction.
Why are check valve symbols important in engineering drawings?
Check valve symbols help engineers and technicians quickly identify one-way flow control devices within a piping system. Clear symbols ensure proper installation, reduce errors in design, and maintain compliance with international standards such as ISO, ANSI, or ASME.
Are there different types of check valve symbols?
Yes. The symbol can vary slightly depending on the valve type—such as swing check valves, lift check valves, or ball check valves. While the core arrow-and-line design is consistent, variations in the symbol indicate the specific mechanism used for preventing backflow.
Are “check valve symbol” and “non-return valve symbol” the same thing?

In most engineering contexts, yes. Check valve and non-return valve (NRV) are commonly used as interchangeable terms for a valve that allows one-way flow. Your drawing set may prefer one term (NRV is very common in the UK), but the function represented is the same.

Why does a check valve symbol look different in hydraulic schematics vs P&IDs?

Because they often follow different symbol standards and conventions.

  • P&IDs (process plants) commonly align with symbol sets like ISO 10628 for process diagrams and project-specific valve libraries.
  • Hydraulic/pneumatic schematics commonly use ISO 1219 conventions for fluid power symbols, so the check valve iconography can look more “circuit-like”.



Related Article: Understanding Valve Symbols in P&ID: Learn how to read and interpret valve symbols in P&ID diagrams to ensure accurate system design and safe engineering practices.
