Check valve types are not one-size-fits-all solutions—each design serves a specific purpose based on flow conditions, installation orientation, and system demands. In industrial piping, choosing the wrong check valve can result in serious issues like backflow, water hammer, and equipment failure. For example, if a pump shuts down and a swing valve closes too slowly, the resulting pressure surge can damage the entire system. Despite being small components, check valves play a critical role in maintaining operational safety and efficiency. Understanding the differences between check valve types—lift, swing, wafer, silent, non-slam, and others—is essential for selecting the right valve and avoiding costly system failures.

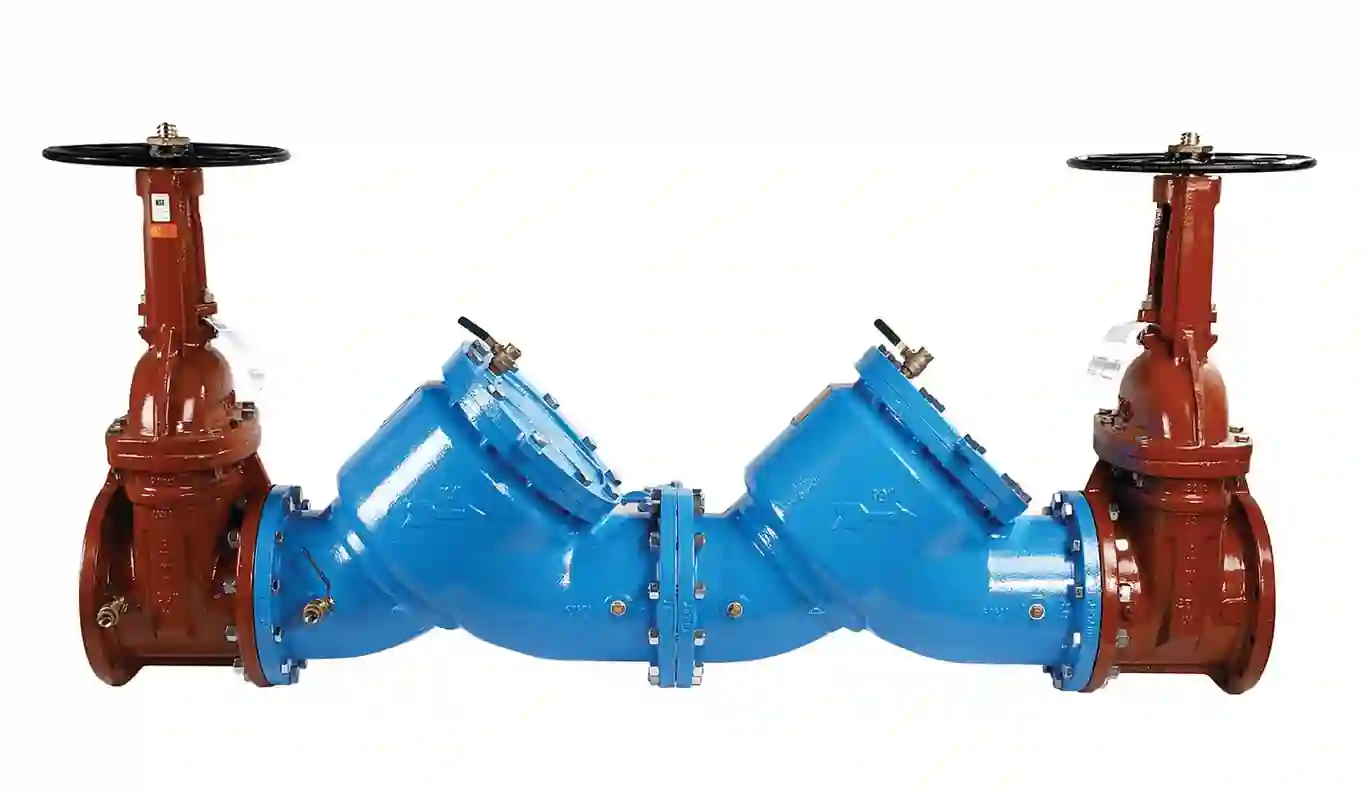

What is a Check Valve?

Basic Function:

A check valve is a mechanical device that allows fluid—liquid or gas—to flow in one direction only, preventing reverse flow within a piping system. It operates automatically, opening under forward flow pressure and closing when the flow ceases or reverses, thereby safeguarding equipment and maintaining system integrity.

These valves are essential in various applications, including water treatment plants, heating systems, and industrial processes, where backflow could lead to contamination or equipment damage.

Why Selection Matters:

Not all check valves are created equal; their performance characteristics can vary significantly based on design. Factors such as cracking pressure, flow resistance, and closing speed differ among types, affecting how well they prevent backflow and handle pressure surges.

For instance, swing check valves are suitable for low-velocity flows but may not close quickly enough to prevent water hammer in high-speed systems. In contrast, spring-loaded check valves offer faster response times, making them ideal for systems where rapid closure is necessary.



Common Check Valve Types: Structures & Applications

Lift (Piston) Check Valves

Structure: Lift check valves feature a vertically moving disc or piston that rests on a seat within the valve body. When fluid flows in the forward direction, the pressure lifts the disc off its seat, allowing flow. If the flow reverses, gravity and backpressure force the disc back onto the seat, preventing reverse flow.

Pros:

• Superior Sealing: The guided disc ensures precise alignment with the seat, providing effective sealing and minimizing leakage.

• Compact Design: Their straightforward construction makes them suitable for systems with space constraints.

Cons:

• Orientation Sensitivity: Lift check valves are typically designed for vertical installation with upward flow. Installing them in other orientations can compromise their sealing effectiveness.

• Higher Pressure Drop: Compared to other check valve types, lift check valves can introduce a higher pressure drop due to their flow path design.

Best For:

• Boiler Feed Systems: Their reliable sealing makes them ideal for preventing backflow in boiler applications.

• Small Vertical Pipelines: Suitable for systems where space is limited and vertical installation is feasible.



Swing Check Valves

Structure: Swing check valves utilize a hinged disc that swings open to permit forward flow and closes to prevent reverse flow. The disc is connected to the valve body by a hinge, allowing it to swing freely. When fluid flows in the forward direction, the pressure pushes the disc open. If the flow reverses, the disc swings back onto the seat, effectively sealing the valve and preventing backflow.

Pros:

• Ideal for Large Diameters: Swing check valves are well-suited for systems with large-diameter pipes due to their simple design and ability to handle high flow rates with minimal resistance.

• Low-Pressure Drop: The unobstructed flow path results in a low-pressure drop across the valve, making them energy-efficient for systems where maintaining pressure is crucial.

Cons:

• Slow Closure: The swinging motion of the disc can result in a slower closure time, which may not be suitable for applications requiring rapid shutoff to prevent backflow.

• Vulnerable to Water Hammer: The delayed closure can lead to water hammer—a sudden surge of pressure caused by the abrupt stop of fluid flow—which can damage the piping system.

Best For:

• Pump Discharge Lines: Swing check valves are commonly used in pump discharge lines to prevent backflow when the pump stops, especially in systems where the flow is relatively constant and the risk of water hammer is minimal.

• Horizontal Installations: They are typically installed in horizontal pipelines where gravity aids in the proper functioning of the valve. While vertical installations are possible, they are less common and require careful consideration of flow direction and valve orientation.

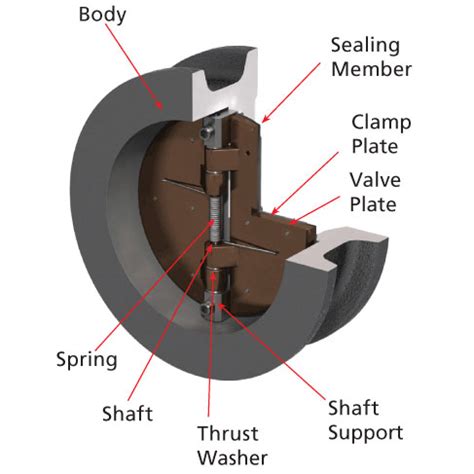

Dual-Plate (Wafer) Check Valves

Structure: Dual-plate check valves, also known as wafer check valves, feature two spring-loaded discs mounted on a central shaft. These discs open to allow forward flow and close swiftly when the flow reverses, preventing backflow. The wafer design enables installation between flanges, resulting in a compact and lightweight assembly.

Pros:

• Fast Closure: The spring-assisted mechanism ensures rapid disc closure upon flow reversal, minimizing the risk of water hammer and protecting downstream equipment.

• Space-Saving: The slim, wafer-style body is ideal for systems with limited installation space, offering a compact solution without compromising performance.

Cons:

• Moderate Sealing Performance: While effective for many applications, dual-plate check valves may not provide the same level of sealing as other types, such as lift or swing check valves, especially in systems requiring tight shutoff.

Best For:

• Tight Spaces: Ideal for installations where space constraints exist, such as in HVAC systems, marine applications, and compact industrial setups.

• Frequent Flow Reversals: Suitable for systems experiencing regular changes in flow direction, as the quick-closing discs effectively prevent backflow under such conditions.

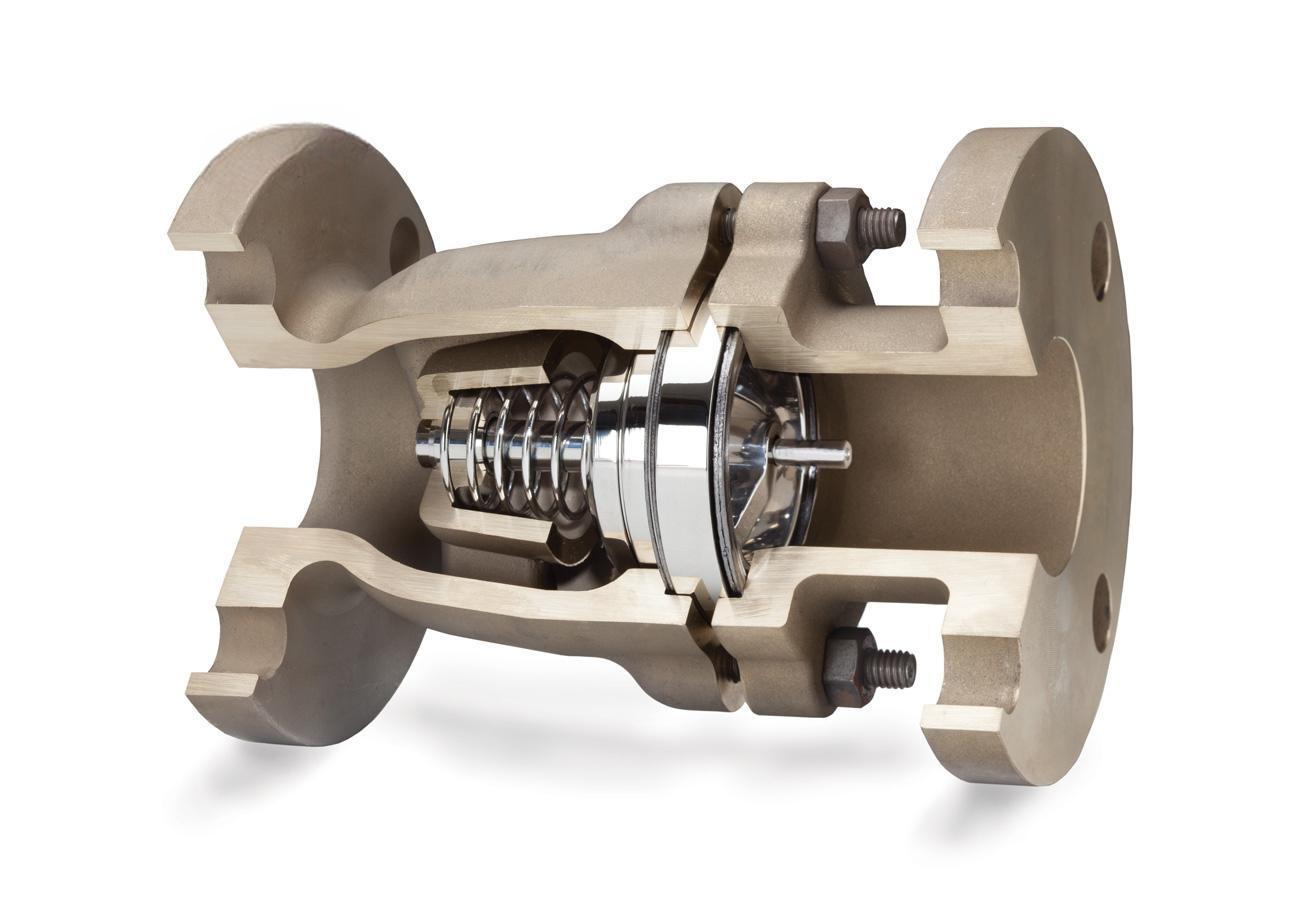

Silent (Spring-Assisted) Check Valves

Structure: Silent check valves, also known as spring-assisted or non-slam check valves, feature a center-guided disc held in place by a spring mechanism. This design ensures that the disc closes swiftly and smoothly as the forward flow ceases, preventing reverse flow and minimizing pressure surges. The spring-loaded mechanism allows the valve to close before flow reversal occurs, effectively eliminating water hammer and associated noise.

Pros:

• Minimizes Water Hammer: The rapid closure of the valve disc, assisted by the spring, prevents the sudden stoppage of fluid flow, thereby reducing or eliminating water hammer—a common issue in piping systems that can cause significant damage.

• Quiet Operation: The smooth and swift action of the valve disc ensures silent operation, making these valves ideal for noise-sensitive environments where the clanging of traditional check valves would be disruptive.

Cons:

• Higher Cost: Due to their complex design and specialized components, silent check valves are generally more expensive than standard check valves. However, their benefits often outweigh the initial investment, especially in systems where noise reduction and protection against water hammer are critical.

• Spring Wear Over Time: The spring mechanism is subject to wear and fatigue over prolonged use, which may necessitate periodic maintenance or replacement to ensure continued reliable operation.

Best For:

• HVAC Systems: Silent check valves are particularly suited for heating, ventilation, and air conditioning systems, where they help maintain system efficiency and prevent noise disturbances caused by fluid flow reversals.

• Noise-Sensitive Environments: In settings such as hospitals, residential buildings, and office spaces, the quiet operation of silent check valves makes them an excellent choice to avoid disruptive noises associated with traditional valve closures.

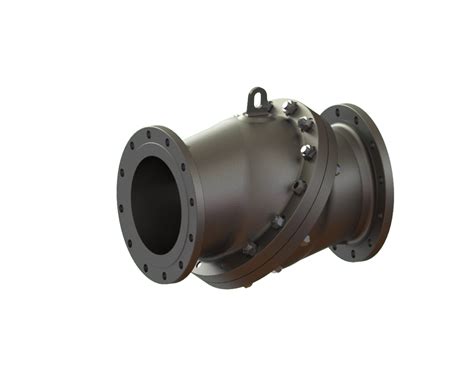

Tilting Disc Check Valves

Structure: Tilting disc check valves feature a disc mounted on a pivot, allowing it to tilt open with forward flow and close promptly when flow reverses. This design facilitates fluid flow over both sides of the disc, reducing turbulence and ensuring a swift response to flow changes.

Pros:

• Balanced Performance in High-Velocity Systems: The streamlined design and short disc stroke minimize pressure loss and water hammer, making them suitable for high-flow applications.

• Versatile Installation: Tilting disc check valves can be installed in both horizontal and vertical pipelines, offering flexibility in system design.

Cons:

• Complex Maintenance: The intricate design and components may require more detailed maintenance compared to simpler check valve types.

• Higher Cost: Due to their advanced design and materials, tilting disc check valves often come at a higher price point.

Best For:

• Oil & Gas Industry: Ideal for high-pressure and high-temperature applications, such as in oil and gas processing facilities.

• High-Flow Industrial Systems: Suitable for systems requiring efficient flow control and minimal pressure loss, including power generation and water treatment plants.



Non-Slam (Slow-Closing) Check Valves

Structure: Non-slam check valves are engineered with a spring-assisted, multi-stage closing mechanism. This design enables the valve to close smoothly and gradually as the forward flow decelerates, effectively preventing abrupt closure and minimizing pressure surges. The axial movement of the disc, guided by the spring, ensures a controlled shutoff before flow reversal occurs, thereby eliminating the risk of water hammer.

Pros:

• Eliminates Water Hammer: The gradual closure mechanism prevents the sudden stoppage of fluid flow, thereby eliminating water hammer—a common issue that can cause significant damage to piping systems.

• Protects Pumps: By preventing reverse flow and associated pressure surges, non-slam check valves safeguard pumps and other critical equipment from potential damage.

Cons:

• Higher Initial Cost: Due to their complex design and specialized components, non-slam check valves are generally more expensive than standard check valves. However, their benefits often outweigh the initial investment, especially in systems where protection against water hammer is critical.

Best For:

• Firefighting Systems: In fire protection applications, non-slam check valves ensure reliable operation by preventing backflow and water hammer, which can compromise system integrity.

• Long Pipelines: For extensive piping systems, especially those with high flow velocities, non-slam check valves provide smooth operation and protect against pressure surges.

• Variable Speed Pumps: In systems utilizing variable speed pumps, these valves accommodate fluctuating flow rates, ensuring consistent performance and preventing reverse flow.



How to Select the Right Check Valve

Critical Factors for Selection

Flow Conditions:

Understanding the system’s flow dynamics is paramount. High-velocity flows can cause significant pressure surges upon sudden stoppage, leading to water hammer. Systems with frequent flow reversals, such as those with variable speed pumps, require valves that can respond swiftly to prevent backflow. Selecting a valve that matches the system’s flow characteristics ensures optimal performance and longevity.

Fluid Properties:

The nature of the fluid being handled influences valve selection. Corrosive fluids necessitate valves made from resistant materials to prevent degradation. Temperature variations can alter fluid viscosity, affecting flow and valve operation. For instance, colder temperatures increase viscosity, requiring valves that can handle thicker fluids without compromising performance.

Installation Constraints:

Physical installation parameters play a crucial role. Some valves are designed for horizontal installation, while others can function vertically. Space limitations might dictate the use of compact valve designs, such as wafer-type valves. Additionally, accessibility for maintenance and inspection should be considered to ensure long-term operational efficiency.

Special Scenarios Requiring Non-Slam Valves

High-Rise Building Water Supply Systems

In tall structures, the vertical height can lead to significant pressure differentials. Non-slam check valves are essential in these settings to prevent water hammer, which can cause noise disturbances and potential damage to the plumbing infrastructure. Their rapid closure mechanism ensures smooth operation in such demanding environments.

Long-Distance Pipelines with Large Diameters

Extended pipelines, especially those with substantial diameters, are susceptible to pressure surges due to the volume of fluid in motion. Non-slam check valves mitigate these surges by closing gradually, preventing the sudden stoppage of flow that leads to water hammer. This protection is vital to maintain the integrity of expansive pipeline systems.

Systems with Frequent Start-Stop Operations (e.g., Fire Pumps)

Applications involving regular start-stop cycles, such as firefighting systems, demand valves that can handle rapid changes in flow without causing pressure shocks. Non-slam check valves, with their swift and smooth closing action, are ideal for these scenarios, ensuring the safety and reliability of critical emergency systems.



Common Mistakes in Check Valve Selection

1. Assuming All Check Valves Are Equal

A prevalent mistake is treating all check valves as interchangeable components. Each type—be it swing, lift, dual-plate, or non-slam—has distinct operational characteristics suited for specific applications. For instance, swing check valves are gravity-dependent and may not perform effectively in vertical installations, potentially leading to reverse flow issues . Selecting a valve without considering its design and suitability for the system’s orientation and flow conditions can compromise performance and safety.

2. Ignoring Water Hammer Risks in Dynamic Systems

Water hammer, a surge of pressure resulting from sudden fluid stoppage or change in direction, can cause significant damage to piping systems. This phenomenon is often exacerbated by the use of traditional swing check valves, which rely on flow reversal to close, leading to abrupt shutoff and pressure spikes . In dynamic systems with frequent flow changes, neglecting to address water hammer risks can result in equipment failure and costly repairs. Implementing non-slam check valves, which close more gradually, can mitigate these risks effectively.

3. Overlooking Maintenance Requirements (e.g., Spring Degradation)

While check valves are often perceived as low-maintenance, components like springs in spring-assisted valves are subject to wear over time. Factors such as debris accumulation, corrosion, and mechanical fatigue can impair valve function, leading to leakage or failure . Regular inspection and maintenance are crucial to ensure long-term reliability. Neglecting these aspects can compromise system integrity and lead to unexpected downtime.



FAQ

1. “Can I use a swing check valve for a vertical pipeline?”

Swing check valves are primarily designed for horizontal installations. While they can be installed in vertical pipelines with upward flow, their performance may be compromised due to gravity affecting the disc’s movement. In vertical applications, especially with upward flow, spring-assisted check valves are often preferred as they ensure reliable closure regardless of orientation.

2.“How do I know if my system needs a non-slam check valve?”

Non-slam check valves are ideal for systems where preventing water hammer is critical. If your system experiences rapid flow reversals, such as in high-rise building water supplies, long-distance pipelines, or systems with frequent start-stop operations like fire pumps, a non-slam check valve can mitigate pressure surges and protect equipment.

2.“What maintenance do spring-assisted check valves require?”

Spring-assisted check valves are generally low-maintenance but should be inspected periodically. Regular maintenance includes checking for debris that may obstruct the valve, ensuring the spring mechanism functions correctly, and verifying that the valve closes properly. Establishing a routine maintenance schedule, such as semi-annual inspections, can help identify potential issues early and ensure the valve operates efficiently.



Conclusion

Selecting the correct check valve type is essential for system safety, efficiency, and longevity—especially in industrial applications where pressure, flow direction, and installation layout vary. The wide range of check valve types—such as lift, swing, wafer, silent, tilting disc, and non-slam—each offer unique advantages and limitations depending on the environment they’re used in. Misunderstanding or overlooking these differences can lead to common failures like water hammer, backflow, or premature wear. To avoid costly mistakes, it’s crucial to match the valve design to your system’s exact needs, and for complex or high-risk setups, consult with valve experts to ensure you’re using the right check valve type for the job.
