When dealing with fluid systems, choosing the right valve is crucial to ensure efficiency and reliability. In this article, we will explore the differences between check valves and foot valves—two types of valves commonly used in various fluid systems, such as water supply, HVAC, and piping networks. Understanding these valves and their applications can help engineers, technicians, and maintenance professionals make informed decisions that best suit their needs.

What Are Check Valves?

Check valves are mechanical devices designed to allow fluid to flow in one direction and prevent backflow. Their primary purpose is to protect pumps, compressors, and other equipment from damage caused by reverse flow. They achieve this by utilizing a movable disc, ball, or flapper that closes automatically when fluid flow stops or reverses.

(Click here to know more information about Check Valve>>)

Working Principles of Check Valves

Check valves, also known as non-return valves, are integral components in fluid systems, designed to permit unidirectional flow and prevent reverse flow. Their operation is predicated on pressure differentials: when the upstream pressure surpasses the downstream pressure, the valve opens, allowing fluid passage. Conversely, if the downstream pressure exceeds the upstream pressure, the valve closes, effectively halting any potential backflow. This automatic response is facilitated by various internal mechanisms, such as discs, balls, or diaphragms, which are actuated by the fluid’s pressure dynamics.



What Are Foot Valves?

Foot valves are essentially a type of check valve that is installed at the inlet of a suction pipe, often found at the bottom of a pump. They are designed to keep the suction line primed, preventing the pump from losing its prime and ensuring efficient startup without needing manual intervention.

Working Principles of a Foot Valve

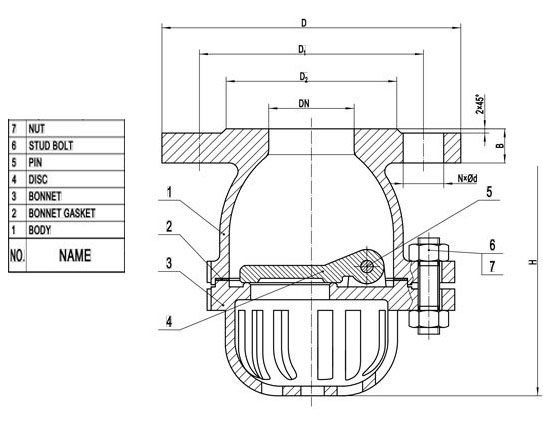

Foot Valve Structure Diagram

Basic Functionality: The foot valve is a type of check valve installed at the inlet of a pump suction line. It allows fluid to flow in one direction—from the source (e.g., a water tank or reservoir) into the pump—and prevents backflow.

Inflow Mechanism:

When the pump operates, it creates a suction force that lifts the disc (#4) off its seat, allowing fluid to pass through the strainer and into the pump system. The bonnet (#3) houses the moving components, ensuring that fluid flows smoothly.

Backflow Prevention:

When the pump stops, the pressure inside the pump and suction line decreases. The disc (#4) automatically closes due to gravity or spring force (if present) and prevents the fluid from draining back into the source.

Strainer Function:

The body (#1) includes an integral strainer that prevents debris or large particles from entering the valve and damaging the pump.

Sealing Mechanism:

The bonnet gasket (#2) provides a tight seal between the bonnet and body, ensuring no leakage under pressure.

Structural Durability:

Components like the nut (#7) and stud bolt (#6) secure the valve’s parts together, offering strength and durability for high-pressure applications.

Maintenance Accessibility:

The bonnet design allows for easy disassembly and maintenance, ensuring the valve’s longevity.



Key Differences Between Check Valve vs Foot Valve

Aspect	Check Valve	Foot Valve
Purpose	Allows one-way fluid flow and prevents reverse flow to protect equipment and maintain system integrity.	Prevents backflow and maintains pump prime by keeping the suction line filled with fluid.
Location	Installed at various points in a piping system (both suction and discharge lines).	Installed exclusively at the bottom of a suction line, submerged in the fluid source (e.g., tank or well).
Design	Comprises a valve body with two ports and an internal mechanism (disc, ball, or diaphragm).	Includes an integrated strainer or screen to filter debris, absent in standard check valves.
Applications	Used in water supply systems, industrial processes, and wastewater treatment to prevent reverse flow.	Specifically designed for pumps in systems requiring priming to avoid damage from running dry.
Maintenance	Requires periodic inspection for wear and potential clogging, depending on the fluid system’s condition.	Strainer must be cleaned regularly to ensure debris does not clog the valve or harm the pump.



Common Applications: Check Valve vs Foot Valve

Check Valves: These valves are employed to ensure unidirectional flow, thereby preventing backflow that could compromise system integrity or damage equipment. In industrial processes, check valves are vital in chemical and power plants, where they maintain proper flow direction in complex piping networks. In domestic settings, they are found in appliances like washing machines and dishwashers, preventing wastewater from contaminating clean water supplies. Additionally, check valves are crucial in pump systems, installed on both suction and discharge sides to avert reverse flow, which could lead to water hammer or pump damage.

Foot Valves: A specialized type of check valve, foot valves are installed at the inlet of a pump’s suction line, typically submerged in the fluid source. Their primary function is to maintain the pump’s prime by preventing the suction line from draining when the pump is inactive. This is particularly important in applications involving non-self-priming pumps, such as those used in wells, irrigation systems, and municipal water supply networks. The integrated strainer in foot valves also serves to filter out debris, protecting the pump from potential damage and ensuring efficient operation.



Maintenance and Troubleshooting Tips

Proper maintenance of check valves and foot valves is essential to ensure their optimal performance and longevity. Regular inspections and timely interventions can prevent common issues such as backflow, water hammer, and system inefficiencies.

Regular Inspection and Cleaning: Periodically examine valves for signs of wear, corrosion, or debris accumulation. For foot valves, ensure that the integrated strainer is free from obstructions to maintain unimpeded fluid flow. Accumulated debris can cause the valve to stick in an open or closed position, leading to system malfunctions.

Leakage Detection: Monitor for any signs of leakage around the valve body or at connection points. Leakage may indicate worn seals or gaskets that require replacement. In check valves, inspect the seating surfaces for wear or mineral deposits that could compromise sealing integrity.

Operational Testing: Regularly test valves to confirm proper operation. For check valves, observe the opening and closing response to ensure they function correctly under varying pressure conditions. In foot valves, verify that they maintain the pump’s prime by preventing backflow when the pump is not operating.

Addressing Water Hammer: Water hammer—a pressure surge resulting from sudden valve closure—can damage piping systems. To mitigate this, ensure that valves are appropriately sized for the system and consider installing dampening devices if necessary. In some cases, selecting a valve with a faster closing mechanism can reduce the likelihood of water hammer.

Preventing Valve Sticking: Valves may become stuck due to debris or corrosion. Regular cleaning and the use of corrosion-resistant materials can help prevent this issue. If a valve becomes stuck, it may require disassembly and thorough cleaning or replacement of damaged components.

Ensuring Proper Installation: Incorrect installation can lead to valve failure. Ensure that valves are installed in the correct orientation, with attention to flow direction indicators. For foot valves, install them at the appropriate depth to prevent the intake of sediment or debris from the bottom of the fluid source.

By adhering to these maintenance and troubleshooting guidelines, the reliability and efficiency of check valves and foot valves within fluid systems can be significantly enhanced.



Advantages and Limitations of Check Valve vs Foot Valve

Advantages of Check Valves:

• Backflow Prevention: Check valves are designed to allow fluid flow in one direction, effectively preventing reverse flow and protecting system components from potential damage.
• Versatility: They can be installed in various orientations and are suitable for a wide range of applications, including water supply systems, wastewater treatment, and industrial processes.
• Low Maintenance: With minimal moving parts, check valves typically require less maintenance compared to more complex valve types.



Limitations:

• Potential for Water Hammer: Rapid closure of check valves can lead to water hammer, a pressure surge that may cause system damage.
• Susceptibility to Wear: Over time, internal components may wear, leading to leakage or reduced performance, necessitating periodic inspection and maintenance.



Advantages of Foot Valves in Well Pump Systems:

• Prevention of Backflow: By inhibiting the reverse flow of water, foot valves protect the pump and associated piping from potential damage caused by backpressure.
• Maintenance of Pump Prime: Ensuring that the suction line remains filled with water eliminates the need for manual priming, thereby enhancing operational efficiency and reducing wear on the pump.
• Debris Filtration: The strainer component of foot valves prevents the ingress of debris, which can lead to mechanical failures or reduced pump performance.



Limitations:

• Accessibility Challenges: Since foot valves are typically submerged at the bottom of wells or reservoirs, accessing them for maintenance or replacement can be challenging and labor-intensive.
• Clogging Risk: The strainer can become clogged with debris over time, reducing flow efficiency and requiring regular cleaning to maintain optimal performance.



Which Valve Should You Choose?

The choice between check valve vs foot valve largely depends on the specific needs of your system:

• Check Valves are suitable for systems that need to prevent reverse flow without additional filtration or when the valve needs to be installed anywhere along the flow line.
• Foot Valves are ideal for pumping applications where maintaining prime is essential, especially when fluid is being drawn from a tank or reservoir.



If your system involves a pump that needs to remain primed to avoid dry running, then a foot valve is the way to go. On the other hand, if you are simply preventing backflow without the need to maintain priming, a standard check valve will suffice.



Conclusion

Both check valves and foot valves are crucial components in fluid systems, each serving a unique purpose. Check valves are versatile and widely used to prevent backflow in various parts of a piping system, while foot valves are specifically designed to maintain pump prime and protect against debris. Choosing the right valve depends on your specific needs: if you need to prevent reverse flow throughout the system, a check valve is ideal; if maintaining pump prime is critical, especially in suction applications, a foot valve is the better choice. Understanding these key differences ensures that your fluid system remains efficient and reliable, preventing potential issues like pump failure, water hammer, or system contamination. Get expert guidance from Tanggong Valve Group on choosing the ideal valve for your system. Contact us today to make the right choice with confidence!
