Check valves and gate valves are two fundamental components in piping systems, each serving unique roles that are essential for the effective operation of many industrial applications. Understanding when and why to use each type of valve can be a challenge for customers, engineers, and industry professionals alike. In this article, we will explore the differences between check valve vs gate valve, their distinct advantages, and the specific circumstances in which each should be used. By the end, you will be able to make more informed decisions for your piping systems.

What is a Check Valve?

A check valve, also known as a non-return valve, is a type of valve that allows fluid to flow in one direction only. It prevents backflow, making it essential for protecting equipment from potential damage and ensuring the efficient operation of systems. Check valves are commonly used in situations where maintaining flow direction is critical, such as in water pumps, fuel systems, and chemical processing applications.



Key Features of Check Valves

• Automatic Operation: Check valves do not require manual intervention. The flow of fluid itself controls the opening and closing of the valve.
• Backflow Prevention: These valves are specifically designed to prevent reverse flow, which can be crucial for preventing contamination or equipment damage.
• Minimal Pressure Drop: Check valves are designed to offer minimal resistance to flow, resulting in a low-pressure drop across the system.



Types of Check Valves

Check valves, also known as non-return valves, are used to prevent the reversal of flow in a piping system. They operate automatically, utilizing the flow of the material through the system to open or close the valve. The most common types of check valves include swing, lift (piston or ball), butterfly, stop, tilting-disk, and non-slam check valves.

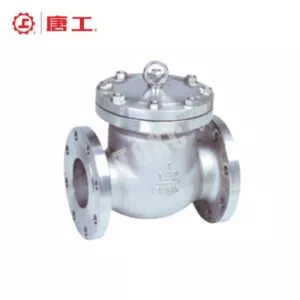

1.Swing Check Valves:

Swing check valves are one of the most commonly used types of check valves. The design includes a disk that swings away from the valve seat to allow flow in the forward direction and returns to the seat when flow stops, effectively preventing backflow. They are characterized by low turbulence and pressure drop. They are particularly recommended for lines with low velocity flows. However, they are less effective with pulsating flows, as the continual movement could damage seating elements.

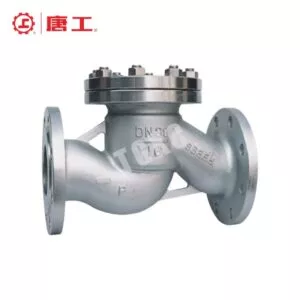

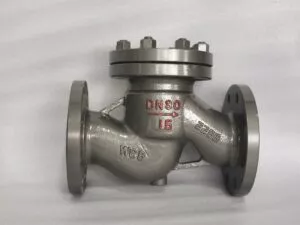

2.Lift Check Valves:

Lift check valves are similar to globe valves in their design, with the disk usually in the form of a piston or a ball. These valves are ideal for high-pressure systems where the flow velocity is high. They are suitable for both horizontal and vertical installations with upward flow. The piston or ball rises within guides from the seat when flow occurs, and gravity, combined with back pressure, forces it back onto the seat when flow stops or reverses.

3.Tilting-Disk Check Valves:

Tilting-Disk Check(Kenta)

These valves are similar to swing check valves but have a more advanced disk design that allows the disk to “float” within the flow, minimizing turbulence and ensuring effective shutoff. They are advantageous in that they can be installed in both horizontal and vertical lines, and they are known for having a relatively low-pressure drop.

4.Non-Slam Check Valves:

Non-Slam Check Valve（guesto）

These valves are specifically designed to avoid the water hammer effect, a common issue in pipeline systems when flow reverses. They come in two primary variants: metallic seated non-slam check valves, which are used for high-pressure and high-temperature applications, and soft-seated non-slam check valves, which are more suitable for medium and low-pressure systems. The latter are favored for their resistance to corrosion, especially in chemical or pharmaceutical applications.



Applications:

Each type of check valve has its specific application, largely determined by the characteristics of the fluid flow and operational conditions. For example, swing check valves are often used in systems with gate valves due to their low-pressure drop, while lift check valves are ideal for high-pressure applications and are often used in conjunction with globe valves. Non-slam check valves are especially useful in preventing water hammers, which makes them appropriate for use in boiler systems or chemical plants.

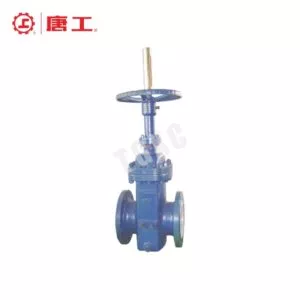

What is a Gate Valve?

A gate valve is a type of shut-off valve that controls fluid flow by lifting or lowering a gate. Unlike check valves, gate valves are used to either fully stop or fully allow the flow of fluid. They are widely utilized in piping systems where a straight flow of fluid with minimal restriction is needed, such as in oil and gas, water distribution, and steam applications.

Key Features of Gate Valves

• Linear Motion: Gate valves operate by moving a gate up and down, which makes them suitable for either fully open or fully closed positions.
• Low Flow Resistance: When fully open, gate valves provide minimal obstruction to flow, leading to low pressure loss across the valve.
• Not Ideal for Flow Regulation: Gate valves are not designed for throttling or flow control. Using them in partially open positions can lead to vibration and wear over time.



Types of Gate Valves

Gate valves are generally classified based on their gate design, body and bonnet connections, and stem movement. The three main types of gate valves include solid wedge, flexible wedge, and split wedge (or parallel disk) designs. Each type has unique characteristics that make it suitable for specific operating conditions:

1.Solid Wedge Gate Valve:

This is the most common type, known for its simplicity and reliability. The solid one-piece gate provides a robust seal and is suitable for moderate pressure-temperature environments. However, it is more susceptible to thermal locking when used at high temperatures due to expansion, which can lead to the valve getting stuck between seats, especially if alignment changes occur due to external forces like pipe loads.

2.Flexible Wedge Gate Valve:

Featuring a two-piece gate, the flexible wedge can accommodate slight seat deflection, which helps improve sealing capabilities in fluctuating conditions of temperature and pressure. This flexibility makes it less prone to thermal locking, enhancing its performance in systems with varying operating conditions, such as chemical processes.

3.Split Wedge or Parallel Disk Gate Valve:

Comprising two independent gate segments, this design provides improved alignment and sealing capabilities, especially under high-pressure and high-temperature conditions. It helps reduce the risk of leakage and is often employed in power generation and other demanding industries.



Stem Movement Types:

Gate valves are also classified by stem movement into rising stem and non-rising stem gate valves:

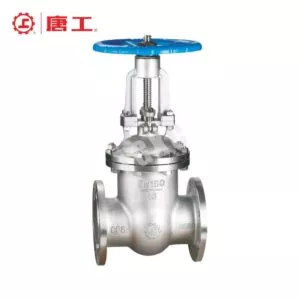

1.Rising Stem Gate Valves:

(OS & Y type) have a stem that moves upwards while opening, providing a visual indication of the valve’s position. The stem threads are external, which keeps them away from the flow medium, reducing the risk of corrosion and wear. However, this design requires more space for installation due to the stem movement.

2.Non-Rising Stem Gate Valves:

feature a stem that remains stationary, making them ideal for applications where vertical space is limited. The stem’s internal threading means it is in direct contact with the flow medium, which can increase wear. This type is commonly used in tight spaces such as underground or submersible installations.



Body and Bonnet Connections:

The type of body and bonnet connection significantly influences the valve’s performance and maintenance requirements:

• Screwed Bonnet is suitable for low-pressure applications where frequent maintenance is required.
• Bolted Bonnet offers a more secure seal for higher pressure and temperature conditions, suitable for a variety of industrial uses.
• Welded Bonnet provides a leak-proof connection, ideal for corrosive environments and high-pressure applications.
• Pressure Seal Bonnet is specifically designed for high-pressure systems, offering superior sealing through a pressure-seal mechanism.



Industrial Applications:

Gate valves find extensive use in various industries:

• Oil and Gas: For controlling the flow of crude oil and natural gas.
• Water Treatment: Used in both municipal and industrial plants for managing water, sewage, and chemicals.
• Power Generation: Critical in managing steam and cooling water flow.
• Chemical Processing: Handles corrosive and hazardous fluids effectively due to different material options.



A Comparison: Check Valve vs Gate Valve

Attribute	Check Valve	Gate Valve
Function	Automatically prevents reverse flow of the fluid.	Used to start or stop the flow, generally fully open or closed.
Operation	Opens and closes based on flow pressure; no external actuation.	Operated manually or with an actuator, requiring linear motion.
Flow Control	Not suitable for throttling; designed to allow one-way flow only.	Not ideal for throttling; primarily used for fully open or closed applications.
Components	Consists of a valve body, disk (piston, ball, or hinged), and seat.	Contains a body, bonnet, gate (wedge or disc), and seat rings.
Installation	Suitable for both horizontal and vertical positions depending on type.	Typically installed where a tight shutoff and minimal flow restriction are required.
Flow Characteristics	Full, unobstructed flow with minimal pressure drop for swing types.	Straight-line flow with minimal resistance when fully open, due to the full bore opening.
Advantages	– Prevents backflow without external power.	– Minimal pressure loss when fully open. – Can handle bidirectional flow.
Disadvantages	– Limited to unidirectional flow. – Not effective in pulsating flow systems.	– Cannot be quickly opened or closed. – Not suitable for throttling applications. – Sensitive to vibrations in the open position.
Applications	Commonly used in non-return applications like boilers, chemical industries, and water systems.	Suitable for isolation applications, including oil and gas pipelines, water systems, and general industrial use.

Making the Right Choice: Check Valve vs Gate Valve

In deciding between check valve vs gate valve, it is crucial to understand the application’s flow requirements. Gate valves are best for applications where full-flow or complete shutoff is required without throttling, such as in main supply lines or storage tank isolation. Check valves, in contrast, are used where backflow prevention is necessary, especially downstream of pumps or other equipment prone to back-pressure issues. Additionally, for applications involving high pressure or the need for precise regulation of backflow, lift check valves or piston check valves may be the optimal choice.



Conclusion

Check valves and gate valves are designed to serve different purposes in piping systems. While check valves prevent backflow, gate valves are ideal for shutting off the flow completely. Understanding these distinctions helps ensure that you choose the right valve for your particular application, enhancing the efficiency and safety of your operations.

If you need expert advice on valve selection or have specific requirements for your project, feel free to reach out to us. Our team is here to help guide you in selecting the best solution for your piping needs.
