If you’ve ever searched for a check valve and ended up seeing “one-way valve” used instead, you’re not alone. The two terms are often mixed together, sometimes correctly and sometimes not, which can make selection confusing, especially when you’re dealing with real systems, real pressures and real consequences if something goes wrong. This guide cuts through the noise. It explains what these valves actually do, where the differences matter in practice, and how buyers, engineers and maintenance teams typically see the terms used in specifications and supplier catalogues. The aim is simple: help you choose the right valve with confidence, without overcomplicating things.
What is a check valve?
A check valve is a simple mechanical device that lets a fluid – usually a liquid or gas – flow in one direction only and stops it from flowing backwards. Think of it like a one-way street for water or air: the medium can go forward through the system, but it can’t return the way it came. This is important because backflow can damage equipment, contaminate clean systems, or reduce efficiency. Check valves don’t need anyone to operate them manually – they work automatically using the pressure of the fluid itself to open and close.
In practical terms, a check valve usually has two ports (one for inlet, one for outlet) and an internal part such as a disc, ball or flap that moves in response to the flow. When the flow is in the intended direction, pressure pushes the part aside so the fluid can pass. If flow tries to go the other way, the part closes against its seat and blocks that return flow.
What is a one-way valve?
A one-way valve is essentially another term for a valve that allows flow in only one direction and prevents it in the opposite direction. In many contexts, “one-way valve” and “check valve” mean the same thing and are used interchangeably. The idea is simply that the fluid or gas can go forward but can’t come back.
That said, in some technical or industrial discussions “one-way valve” can be used more broadly to describe any valve designed for unidirectional flow, including devices with extra control features. But for most everyday and engineering purposes, a one-way valve is a check valve – an automatic, passive device that stops backflow without manual operation.
Key Differences: Check Valve vs One-Way Valve
When you’re choosing between valves that look similar, understanding how they actually function and what buyers will see on a datasheet helps you make smarter decisions. Here, we break down the difference between devices built mainly to stop backflow and those designed for broader pressure-holding or control purposes.
Function: Backflow Prevention vs Pressure Holding or Control
At a basic level, both check valves and one-way valves stop fluid from reversing direction — that is, they help prevent backflow. This is their shared core function and why they’re often referred to interchangeably. A check valve will automatically close if flow tries to go the wrong way, protecting equipment like pumps or compressors from reverse pressure damage.
However, the term one-way valve can sometimes be used more broadly. In some industrial applications, it describes valves that not only prevent backflow but also help hold system pressure or manage flow characteristics under specific conditions. For example, certain hydraulically controlled one-way valves can be opened deliberately against reverse pressure to maintain pressure in a line, something a simple check valve cannot do.
In contrast, devices like backflow preventers (distinct from basic check valves) are engineered to meet strict safety and contamination standards in systems such as potable water supply. Those assemblies may include multiple check elements plus relief or test features to offer greater protection against backflow hazards.
Operating Behaviour: Automatic Opening and Closing
A defining characteristic of check valves is their automatic response to pressure changes. They have no manual handle or actuator — instead, they use the fluid’s own pressure and internal mechanics to operate. When the pressure upstream exceeds a threshold known as the cracking pressure, the valve opens and allows flow. As soon as flow slows or reverses, internal components like a disc, ball or flap drop back into place to seal off the path and stop backflow.
This automatic action makes check valves inherently reactive: they respond to changes rather than control them actively. Some one-way valves designed for specialised systems may incorporate elements that let operators control when and how they open under reverse conditions — effectively combining backflow prevention with pressure management — but this is not typical for a standard check valve.
The simplicity of this mechanism is also why check valves can sometimes suffer from phenomena like water hammer if they close too abruptly, a behaviour that might be damped in valves with springs or other design features.
Typical Construction Cues
When browsing valve catalogues or datasheets, there are several cues that help distinguish simple backflow prevention devices from valves with control-oriented features:
Cracking Pressure: Many datasheets list a cracking pressure value for check valves — the minimum upstream pressure needed before the valve opens.
Internal Mechanism Type: Descriptions like ball check, swing check or wafer check refer to how the valve seals and operates automatically.
Spring-Assisted or Gravity-Assisted Closure: Some designs include spring or gravity return features to influence closing speed and prevent issues like water hammer.
Pressure Control Features: If the datasheet mentions external controls, override options, or pressure-holding modes (e.g. hydraulically controlled operation), this suggests a more complex one-way valve system, not just a simple check valve.
Standards and Certifications: Backflow preventer assemblies often carry additional certifications or standards compliance information related to potable water safety — something basic check valves typically don’t have.
Comparison Table: Check Valve vs. One-Way Valve
| Feature | Check Valve | One-Way Valve |
|---|---|---|
| Primary Terminology | A specific, commonly used technical name for an automatic non-return valve. | A broader, more general term for any valve that permits unidirectional flow. |
| Core Function | To automatically prevent backflow by relying on fluid dynamics (pressure, gravity, spring). | To allow flow in one direction only— some models may include active control or locking features. |
| Control Mechanism | Operates automatically, without manual/actuated controls, simply driven by the system’s pressure or flow. | The term may sometimes cover valves with external controls (hydraulic/pneumatic) or pressure‐holding functions. |
| Common Usage | The preferred technical term in engineering documentation and specifications. | Often used in general language, marketing, or where the directionality of flow is emphasised rather than the mechanical detail. |
In short: if you are drafting a specification or evaluating a valve for a project, it is best to review the supplier’s definition rather than rely on blanket assumptions. Although in most cases a one-way valve and a check valve will perform the same essential function, the term “one-way valve” can sometimes imply additional control features or usage context beyond the standard automatic check valve.
How Check Valves Work: The Automatic Mechanism
Understanding how a check valve functions means looking at two key states: when the valve is open and when it is closed. Let’s walk through each state in turn, so the mechanism becomes clear.
Open State
In the open state, fluid flows in the direction intended by the system—let’s call this the “forward” direction. As the fluid approaches the valve, if the upstream (inlet) pressure rises sufficiently above the downstream (outlet) pressure, and surpasses the valve’s cracking pressure, the internal moving component (this may be a disc, ball, flap or piston) moves off its seat.
This movement opens a flow path, allowing the fluid (liquid or gas) to pass through the valve body. The valve thus permits the forward flow without manual intervention—as the mechanism is driven purely by the fluid pressure.
Closed State
Switching to the closed state: once the forward flow slows, stops, or begins to reverse, the pressure differential changes. When the pressure falls below the required threshold (or reverse/back-pressure builds), the internal moving component returns to its seat. Often gravity or a spring assists this movement.
When the element seats properly, the valve stops the reverse flow—this protects upstream equipment, prevents contamination, and maintains process integrity.
Smooth Transition Between States
In practice, the check valve continuously monitors the balance of pressures in the pipeline: when forward pressure dominates and exceeds cracking pressure, the valve opens; when that pressure drops or back-pressure arises, the valve closes and remains sealed until the next forward flow event. This automatic mechanism makes check valves reliable for preventing unwanted reverse flow without manual input or external actuation.
Common Types of Check Valves and Their Applications
In industrial systems, choosing the right style of check valve can make a big difference in efficiency, maintenance and suitability. Here are several of the most common types, with their construction features and typical applications.

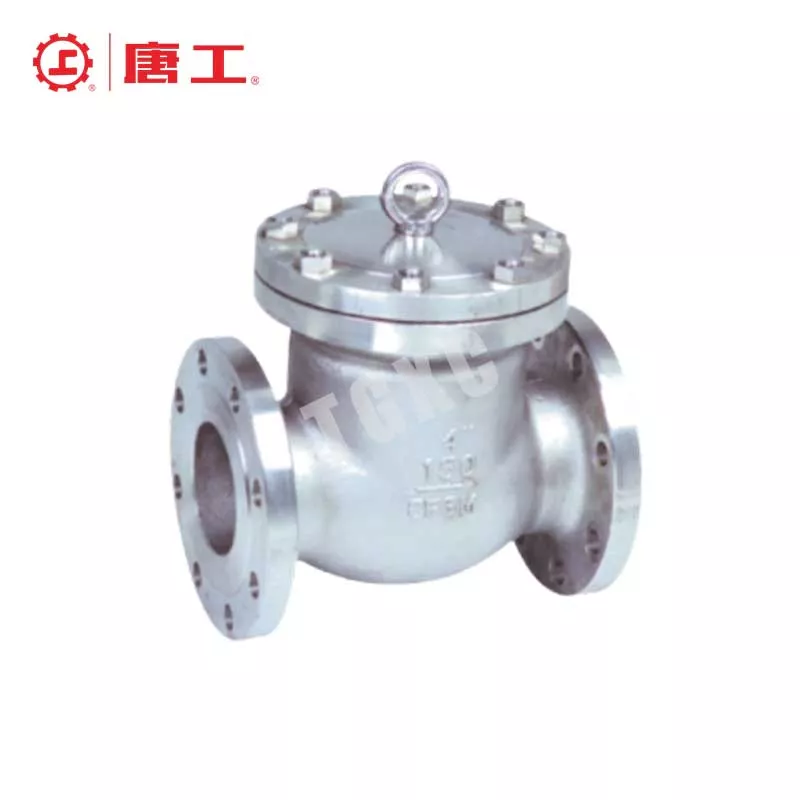

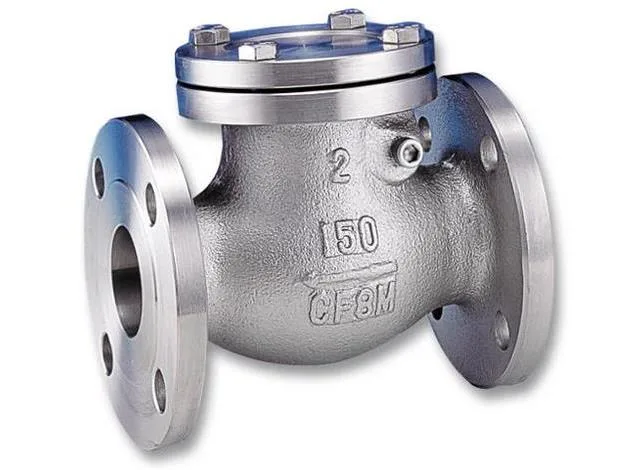

Swing Check Valve
A swing check valve uses a hinged disc or flapper that swings open when fluid flows in the forward direction and swings shut when flow reverses. This design is especially suited to horizontal flow lines, where gravity aids the closing motion. It is often chosen in water distribution, wastewater and low-pressure systems because of its relatively low pressure drop. However, one limitation is its slower closure compared to other types, which may make it less ideal in applications where preventing water-hammer is critical.
Lift Check Valve
A lift check valve uses a piston, disc or ball arrangement that is lifted off its seat by the forward flow of fluid; when flow reverses or drops, the element reseats under gravity or backpressure. This type is preferred in gas or steam applications, high-head systems or vertical piping where a rapid response is helpful. Lift checks tend to handle higher pressure differentials well but may introduce more resistance when open.

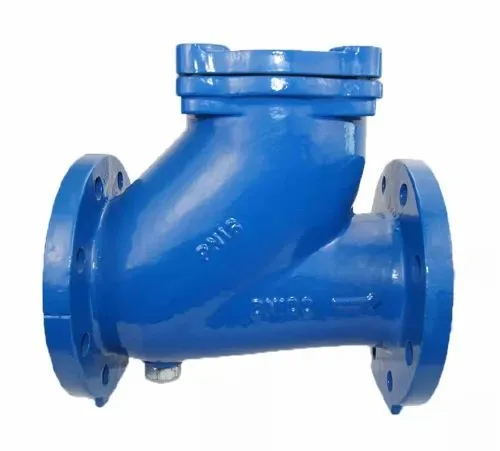

Ball Check Valve
The ball check valve incorporates a simple spring-loaded (or gravity) ball that moves away from its seat on forward flow and returns when flow stops or reverses. Its compact size and straightforward construction make it suitable for small-scale fluid or pneumatic systems — for example pumps, small lines, instrumentation. That said, in high velocity or large systems the ball can slam and cause wear.

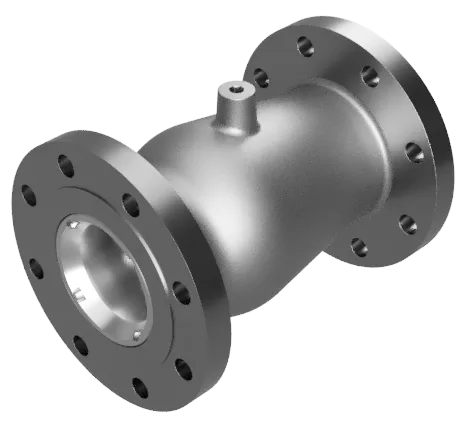

Inline (or Nozzle) Check Valve
The inline or nozzle type check valve places a spring-loaded disc inside a tubular or nozzle-like body. This design is faster-acting and more compact, helping to reduce shock or water-hammer in pump discharge lines. Often installed where space is limited or where high cycle frequency demands very fast closing action.

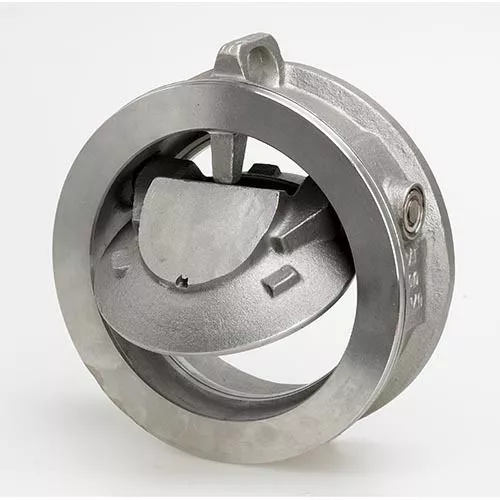

Tilting Disc Check Valve
A tilting disc check valve uses a disc that pivots or “tilts” out of the way on forward flow and returns quickly to the seat when flow reverses or drops. It offers a relatively low pressure drop, quick response and is well suited for large diameter applications, high-velocity flows or where pulsating flow may occur. Because of its design, it can perform more reliably in demanding industrial setups.
Wafer Check Valve
The wafer check valve is a very compact, thin design — intended to fit between flanges and save space. Its short face-to-face dimension and reduced weight make it popular where installation space is limited or cost is a concern. It may be of swing or spring-assisted design but packaged in the wafer form-factor.
Key Industries and Applications
The functionality of check valves — ensuring unidirectional flow and preventing backflow — means they’re critical components across a wide range of sectors. Below are some of the key industries where they play a pivotal role.
Water and Wastewater Treatment
In both clean-water supply and wastewater systems, check valves are used to prevent contaminated water or sewage from flowing back into the clean supply or upstream equipment. For example, in water distribution networks they’re installed to protect against backflow and safeguard pumps and piping. Because these systems may handle solids, variable flows or pressure surges (e.g., water-hammer), correct valve selection is particularly important.
HVAC Systems
In heating, ventilation and air-conditioning (HVAC) systems, check valves ensure that coolants or water in circulation loops flow in the intended direction. This avoids reverse flow which could compromise temperature control, system efficiency or component lifespan. For large commercial buildings, the risk of reverse flow or pressure drops means the right valve type can contribute significantly to reliable operation.
Oil & Gas and Chemical Processing
These industries are among the most demanding in which check valves are used. In pipelines, compressors, and processing plants they are essential for preventing back-flow of hydrocarbons, gases or aggressive fluids — a failure here can lead to major safety, environmental or production issues. In chemical processing, preventing unwanted mixing or reverse flow is vital when dealing with corrosive or potentially hazardous media.
Pneumatic Systems
In systems using compressed air or other gasses (for example, in manufacturing automation), check valves prevent compressed air from returning to the compressor or from flowing into inactive sections of the system. This helps maintain pressure integrity and protects equipment. As such, they’re used in air-tool circuits, multi-source air supplies, vacuum or control circuits where reverse flow would be disruptive.
Pumping Stations
Pumps are vulnerable to damage if flow reverses — for instance, in a shutdown or a sudden drop in supply pressure. Check valves installed on the discharge side of a pump prevent reverse rotation, loss of prime or damage caused by back-flow. They also help to prevent water hammer and maintain the operational readiness of the pump when restarted.
How to Choose between Check Valve and One-Way Valve
Choosing between a check valve and a one-way valve (terms often used interchangeably) isn’t about finding a universally better device, but about picking the right solution for your system’s specific conditions. Several practical factors come into play, from the type of fluid you’re managing to the pressures and installation limitations you have.
Match the Valve to the Fluid and Conditions
Start by thinking about what medium is flowing through your pipework. Water, steam, oil, gas and slurries all behave very differently:
Water and Steam: These are common in industrial and building services systems. Materials and sealing need to resist corrosion and, in the case of steam, high temperatures.
Oil and Gas: Often at higher pressures and requiring compatibility with hydrocarbons. Valve materials and ratings must reflect this.
Slurry or Particulate-laden Fluids: These can erode internal parts or obstruct moving components, so consider valves designed to cope with solids or include strainers.
Valve manufacturers normally publish data on the temperatures and pressures their products can handle. Pick one that matches or exceeds your system conditions rather than guessing or assuming a general type will do.
Flow Direction and Installation Constraints
Valves are directional. The arrow on the body must point in the direction you want the fluid to move, otherwise it won’t work properly. That’s especially true for check/one-way valves where incorrect orientation could allow backflow.
Installation position matters too. Some valves are designed for horizontal pipelines, others for vertical upward flow. For example, in vertical applications a swing check valve depends on gravity to work correctly; installed upside down it can hang open and fail to prevent backflow.
Space in your system and the ease of access for future maintenance also influence choice. Compact “wafer-style” valves save room between flanges where space is tight, while larger swing or lift types may need more clearance.
Cracking Pressure and Pressure Drop
Two related performance concepts are cracking pressure and pressure drop:
Cracking pressure is the minimum upstream pressure needed to open the valve and allow flow. Make sure the valve’s cracking pressure is lower than your system minimum operating pressure, or it may never open when needed.
Pressure drop is how much resistance the valve adds when fluid flows through it. Bigger pressure drops can reduce efficiency, so for pumping systems you’ll often prefer designs with lower resistance.
Ask the supplier for data on both parameters, and ensure they fit your system’s operating range rather than assuming any check valve will suit all conditions.
Consider Risk Factors and Maintenance
Finally, think about what can go wrong in your system:
Water Hammer: This is a pressure surge caused when flow stops suddenly (such as when a valve shuts). It can damage piping and equipment. Valves with quick closure or “non-slam” designs reduce this effect.
Debris and Contamination: Solid particles or corrosion products can jam moving parts. Where this is a risk, choose valves with integrated strainers or easy access for cleaning.
Maintenance Access: If a valve is hard to reach, a simpler design that seldom needs servicing might be worth a slightly higher initial cost. Conversely, easily serviceable valves are better where frequent inspection is expected.
Conclusion
In conclusion, while the terms “check valve” and “one-way valve” are often used interchangeably, “check valve” is the precise engineering term for automatic valves that prevent reverse flow in piping systems. These valves are essential across industries — from water treatment and HVAC to oil, gas, and chemical processing — ensuring system safety, efficiency, and long-term reliability. Selecting the right check valve depends on factors such as fluid type, pressure, temperature, and installation space. Choosing wisely not only prevents costly downtime but also protects equipment and maintains operational integrity.
