In industrial piping, the shift from traditional threading and flanging to faster, more efficient alternatives has made Clamp Connection vs Grooved Connection a key comparison for system designers and engineers. Though both use clamping mechanisms and may look similar, they serve very different needs—clamp (sanitary) connections are ideal for clean, small-diameter systems in hygiene-critical industries like food and pharma, while grooved connections are built for speed, strength, and flexibility in large-scale installations such as HVAC, fire protection, and industrial water systems. Understanding the differences in pressure tolerance, pipe size compatibility, maintenance needs, and environmental suitability is essential to choosing the right connection method for optimal performance.

Deep Dive: Sanitary Clamp Connections

Core Design & Components: Simplicity for Cleanliness

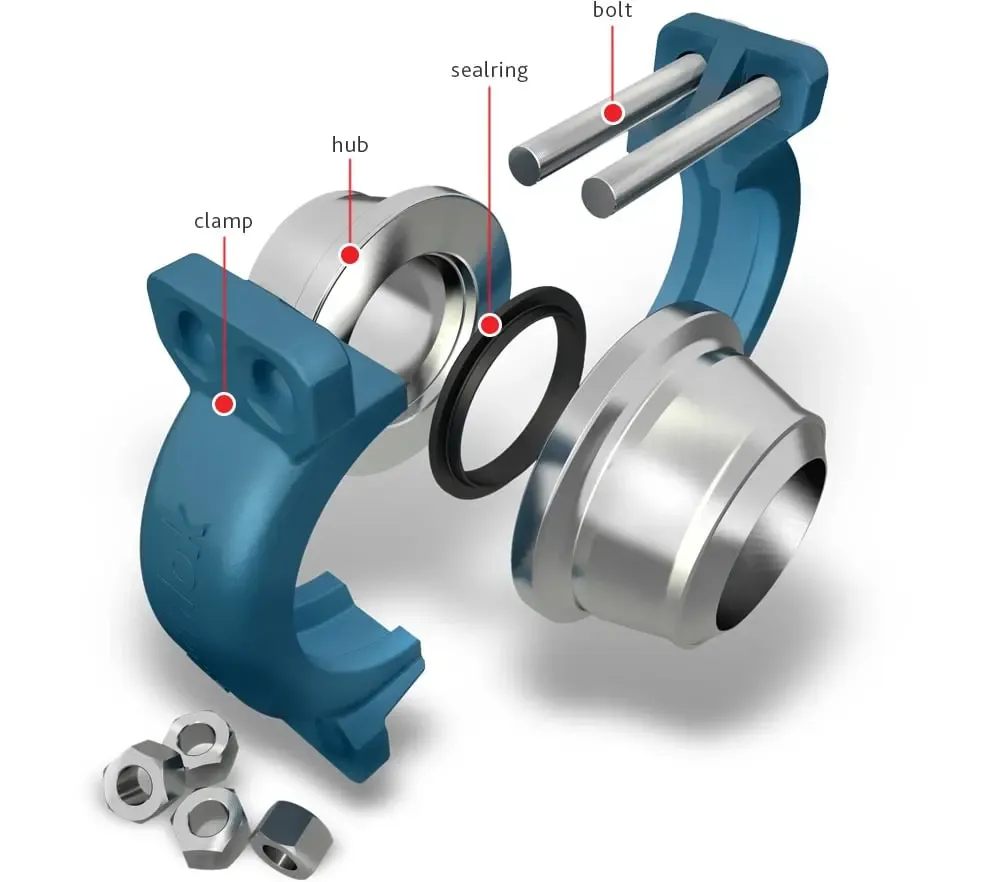

Sanitary clamp connections, commonly known as Tri-Clamp or hygienic clamps, are engineered for rapid assembly and disassembly, emphasizing cleanliness. The fundamental components include:

• Two ferrules: Flanged pipe ends designed for precise alignment.

• A gasket: Positioned between the ferrules to ensure a leak-proof seal.

• A clamp: Secures the ferrules and gasket together, typically tightened by hand.

This design minimizes crevices and dead spaces, reducing the risk of bacterial accumulation and facilitating easy cleaning. The smooth, crevice-free surfaces are ideal for processes requiring stringent hygiene standards.

The Driving Force: Hygiene Above All Else

Sanitary clamp connections are predominantly used in industries where cleanliness is paramount, including:

• Food & Beverage

• Dairy

• Pharmaceutical

• Biotechnology

• Cosmetics

Their design allows for quick disassembly, enabling efficient Clean-in-Place (CIP) and Steam-in-Place (SIP) procedures. This ensures minimal downtime and maintains the sterility of the processing environment.

Where Sanitary Clamps Shine: Ideal Applications

Sanitary clamp connections are best suited for:

• Processes requiring frequent cleaning or inspection

• Systems demanding sterile or ultra-clean conditions

• Small to medium pipe diameters

Their ease of use and hygienic design make them the preferred choice for applications where contamination control is critical.

Understanding the Limits: Pressure, Temperature & Size

While sanitary clamps offer numerous advantages, they have limitations:

• Pressure Range: Generally suitable for low-pressure applications, typically up to 1 MPa (150 PSI).

• Temperature Constraints: Not ideal for sustained high-temperature operations, as excessive heat can compromise gasket integrity.

• Size Limitations: Primarily designed for smaller bore pipes, with standard sizes ranging from ½” to 12”.

Deep Dive: Grooved Connections

Core Design & Components: Strength Meets Speed

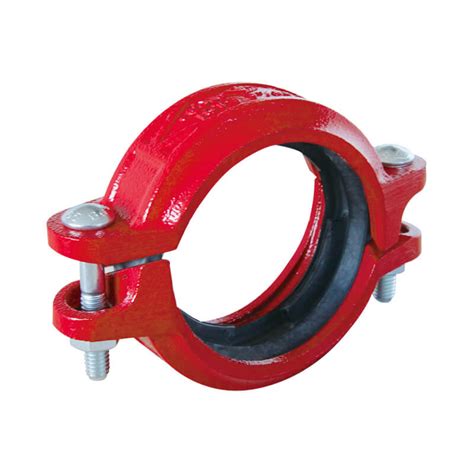

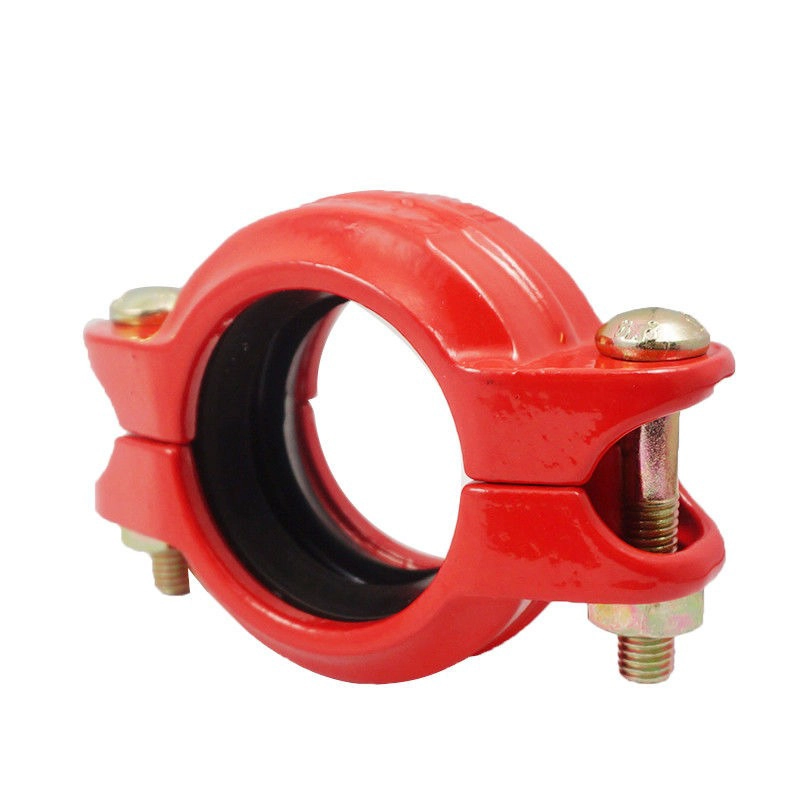

Grooved connections, also known as mechanical pipe couplings, are engineered for rapid assembly and reliable performance. The system comprises four primary components:

• Grooved Pipe Ends: A groove is either roll-formed or machined near the end of each pipe segment.

• Elastomeric Gasket: A resilient, C-shaped gasket wraps around the pipe ends, ensuring a leak-tight seal.

• Coupling Housing: Two ductile iron housing segments encase the gasket and engage the pipe grooves.

• Nuts and Bolts: These secure the housing segments together, maintaining the integrity of the joint.

This design allows for a secure, self-restrained joint that is both flexible and robust, facilitating quick installation and easy maintenance.

The Driving Force: Speed and Flexibility in Demanding Environments

Grooved connections are favored in industries where rapid installation and adaptability are crucial. Key sectors include:

• Fire Protection Systems: Sprinkler installations benefit from the quick assembly and reliability of grooved couplings.

• HVAC: Heating, ventilation, and air conditioning systems utilize grooved joints for their ease of installation and maintenance.

• Industrial Cooling and Process Water: These systems require connections that can handle thermal expansion and contraction.

• Mining and Power Generation: Environments with heavy vibration and movement benefit from the flexibility of grooved joints.

Advantages of grooved connections include:

• Rapid Installation and Modification: No welding or threading is required, reducing labor time and costs.

• Vibration Dampening: The flexible nature of the joint absorbs system vibrations, protecting equipment.

• No Hot Work: Eliminates the need for welding, enhancing safety, especially in hazardous environments.

Where Grooved Couplings Excel: Ideal Applications

Grooved couplings are particularly advantageous in:

• Large Diameter Piping Systems: Their design accommodates the needs of substantial pipelines.

• Tight Spaces or Retrofit Projects: The ease of assembly makes them ideal for confined or existing installations.

• Time-Critical Installations: Quick assembly reduces downtime during maintenance or emergency repairs.

• Systems Requiring Moderate Vibration Isolation: The flexibility of the joint helps in absorbing operational vibrations.

Understanding the Limits: Environment & Pressure

While grooved connections offer numerous benefits, they have specific limitations:

• Pressure Range: Typically suitable for moderate pressures, with ratings up to 2.5 MPa (approximately 360 PSI), depending on the pipe size and coupling specifications.

• Environmental Constraints: Not recommended for environments with severe corrosion, extreme temperatures, or applications involving constant high-cycle movements.

Head-to-Head Comparison: Clamp Connection vs Grooved Connection

Quick Reference Comparison Table

Key Selection Criteria Explained

Hygiene Requirement: Sanitary clamp connections are essential in industries where cleanliness is paramount. Their design minimizes crevices, reducing the risk of bacterial contamination and making them suitable for applications requiring strict hygiene standards.

Pipe Diameter: Clamp connections are typically used for small to medium pipe sizes (½″ to 12″), making them ideal for compact systems. In contrast, grooved connections accommodate a broader range, from 1″ to 24″, and are better suited for large-diameter piping systems.

Operating Pressure/Temperature: Clamp connections are generally rated up to 1 MPa (150 PSI) and are not ideal for high-temperature applications. Grooved connections can handle higher pressures, up to 2.5 MPa (360 PSI), and their temperature suitability varies depending on the gasket material used.

Installation & Maintenance Speed: Clamp connections offer very fast installation and disassembly, often without the need for tools, making them suitable for systems requiring frequent maintenance. Grooved connections also allow for rapid installation without welding, which is advantageous in large-scale projects.

Project Environment: In environments where corrosion resistance is critical, sanitary clamps made from stainless steel are preferred. Grooved connections, depending on the material and coatings used, can offer good corrosion resistance and are effective in systems where vibration isolation is necessary.

Total Cost of Ownership: While clamp connections may have a higher initial component cost, their ease of maintenance can reduce long-term expenses. Grooved connections are cost-effective for large installations due to lower material and labor costs, and their design facilitates easier system modifications and expansions.

Making the Right Choice: Application is Key

While both sanitary clamp connection and grooved connection utilize a clamping mechanism, they are engineered to meet distinct operational requirements. Understanding the specific needs of your application is crucial in selecting the appropriate connection type.

Choose Sanitary Clamp If:

• Hygiene is Critical: Ideal for industries like food and beverage, pharmaceuticals, and biotechnology, where maintaining a sterile environment is paramount.

• Frequent Cleaning is Required: Designed for easy disassembly, facilitating regular cleaning and sterilization processes.

• Small to Medium Pipe Sizes: Best suited for systems with pipe diameters typically ranging from ½″ to 12″.

Choose Grooved Connection If:

• Large Pipe Systems: Suitable for large-diameter piping systems, often ranging from 1″ to 24″.

• Speed-Critical Installations: Offers rapid assembly without the need for welding, making it ideal for projects with tight schedules.

• Applications in Fire Protection and HVAC: Commonly used in fire sprinkler systems, HVAC, and industrial cooling systems due to their reliability and ease of maintenance.

• Moderate Pressure Requirements: Capable of handling pressures typically up to 2.5 MPa (360 PSI), depending on the coupling specifications.

Conclusion

Sanitary clamp connection and grooved connection may both rely on a clamping mechanism, but they serve distinctly different roles—clamps offer unmatched cleanability for hygienic, small-diameter systems, while grooved connections deliver speed, strength, and flexibility for large-scale industrial piping. Choosing the right solution hinges on fully understanding your system’s pressure requirements, hygiene standards, pipe size, and maintenance expectations. Consult our valve experts to select the perfect connection system for your specific application and maximize system efficiency and reliability.
