Control Valve Actuator Types and Selection Guide

A control valve actuator can move the stem or shaft correctly on the bench and still be wrong for the shutoff pressure, packing friction, or torque required in service.

The actuator is the part of the control valve assembly that converts air pressure, electric power, or hydraulic pressure into valve movement. It has to match the valve body, plug, ball, disc, seat load, control signal, fail position, and available site utilities. A pneumatic actuator may suit fast modulating service with instrument air, while an electric actuator may be better where air supply is unavailable or slow positioning is acceptable.

This guide explains how to compare pneumatic, electric, and hydraulic actuator types, when to use linear or rotary motion, how spring-return and double-acting designs affect fail-open or fail-closed action, and why force or torque sizing should be checked before ordering a control valve actuator.

What Is a Control Valve Actuator?

A control valve actuator is the power unit that moves the valve stem or shaft after the controller, positioner, or control system sends a command.

In a globe control valve, the actuator usually produces linear thrust to move the stem and plug against pressure force, seat load, and packing friction. In a butterfly valve, ball valve, or eccentric rotary control valve, the actuator produces torque to turn the shaft and disc or ball. This is why actuator selection cannot be separated from the valve type. A body and trim may be correctly selected, but the valve will not control well if the actuator cannot move it smoothly under the real pressure drop.

The actuator also decides how the valve behaves when air, power, or signal is lost. A spring-return pneumatic actuator can drive the valve to a defined fail-open or fail-closed position. A double-acting actuator needs pressure or power in both directions, so the fail action must be handled by the actuator package, air circuit, solenoid valve, or control system design.

Main Control Valve Actuator Types

Most process control valves use pneumatic, electric, or hydraulic actuation, and each type changes the valve package in a different way.

Pneumatic actuators

A pneumatic control valve actuator uses compressed air to create stem thrust or rotary torque. It is common on modulating control valves because instrument air is clean, fast, and suitable for many hazardous plant areas when the accessories are correctly specified. Pneumatic actuators are often paired with a positioner, air filter regulator, solenoid valve, limit switch, and volume booster when the loop needs faster or more accurate response.

Electric actuators

An electric actuator control valve package uses a motor, gearing, limit switches, torque protection, and control electronics to move the valve. It is useful where instrument air is not available, where remote electrical control is preferred, or where the valve does not need very fast stroking. The buyer should check duty cycle, enclosure rating, local power supply, fail-safe requirement, and whether the actuator is suitable for modulating service rather than simple open-close operation.

Hydraulic and electro-hydraulic actuators

Hydraulic actuation is used when the valve needs high force or high torque in a compact package. It can suit large valves, high shutoff differential pressure, or severe service where a smaller pneumatic or electric unit would not provide enough output. The trade-off is a more complex power unit, hydraulic fluid management, and maintenance of seals, hoses, and control components.

For MacoTango control valve packages, actuator choice should be checked together with valve body style, trim, pressure class, seat leakage requirement, and the control signal expected by the site. The available control valve series gives the product direction before actuator sizing is confirmed.

Pneumatic Actuators: Diaphragm, Piston and Rotary Designs

A pneumatic actuator must provide enough thrust or torque at the available instrument-air pressure, not at an ideal catalogue condition.

Spring-and-diaphragm actuators

A spring-and-diaphragm actuator is common on linear globe control valves. Air pressure acts on the diaphragm to move the stem in one direction, while the spring returns the valve when air pressure is reduced or lost. This design is simple, predictable, and well suited to modulating control when the required thrust is within its range.

The spring also makes fail action easier to define. Depending on the valve body and actuator arrangement, the valve can be built for air-to-open or air-to-close service. The buyer should still check shutoff differential pressure, packing friction, and required seat load, because a weak actuator may move during no-load testing but fail to close tightly in service.

Piston actuators

A pneumatic piston actuator can generate higher force than many diaphragm designs at the same air pressure. It is often used where the valve needs a longer stroke, higher thrust, or double-acting movement. The trade-off is that piston seals, guide surfaces, and air supply quality have more influence on long-term response.

For modulating control, the piston actuator and positioner should be matched carefully. Too much friction, backlash, or deadband can make a control valve respond late to small signal changes, even when the actuator has enough force on paper.

Pneumatic rotary actuators

A pneumatic rotary actuator turns a shaft instead of pushing a stem. Rack-and-pinion and scotch-yoke designs are widely used on butterfly valves, ball valves, plug valves, and eccentric rotary control valves. The important sizing value is torque, especially near the position where the disc, ball, or plug has the highest seating or breakaway resistance.

A pneumatic rotary actuator may be spring-return for fail-open or fail-closed action, or double-acting when air drives the valve in both directions. For throttling service, check that the actuator, positioner, shaft connection, and valve trim can hold stable intermediate positions. A package that works well for open-close isolation may not be accurate enough for continuous control.

Electric Actuator Control Valve Applications

An electric actuator control valve is usually selected when the site has no stable instrument-air supply, when electrical wiring is easier than air piping, or when the valve only needs slow and steady movement.

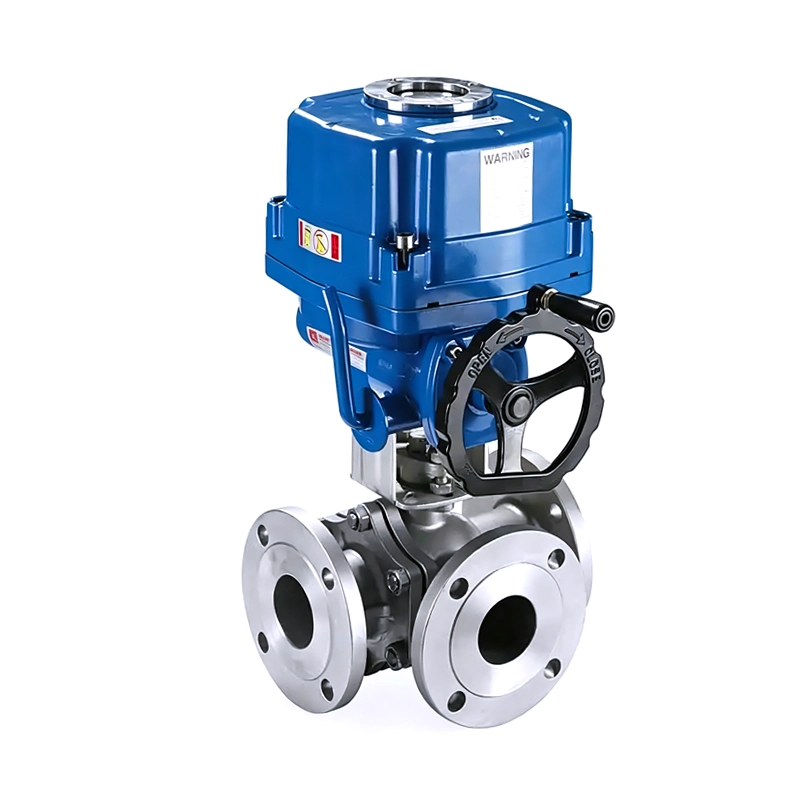

Electric valve actuators are common on part-turn ball valves and butterfly valves, and they can also be used on linear or multi-turn valve designs when the actuator is built for that motion. The package normally includes a motor, gearbox, limit switches, torque protection, local manual operation, and signal options such as open-close control, 4-20 mA modulation, or digital communication. For a control valve, the buyer should confirm that the actuator is rated for modulating duty, not only occasional open-close operation.

Electric actuation can reduce dependence on compressed air, but it changes the fail-safe discussion. A standard electric actuator will often stay in its last position when power is lost. If the process requires fail-open or fail-closed action, the package may need a spring-return electric actuator, battery backup, capacitor return, or a separate safety design approved by the project specification.

The main checks are power supply, enclosure rating, hazardous-area requirement, duty cycle, output torque or thrust, stroke time, manual override, and control signal. For outdoor pipelines, chemical service, water treatment, or remote stations, these details can matter more than the actuator brand name.

How a Control Valve Actuator Works in the Control Loop

In a process control loop, the sensor measures flow, pressure, temperature, or level. The controller compares that value with the set point, then sends a signal to the actuator or valve positioner.

The actuator changes that signal into movement. On a linear control valve, it pushes or pulls the stem. On a rotary control valve, it turns the shaft through part of a circle, usually for a ball, butterfly, or plug valve.

For simple on-off service, the actuator only needs to open or close the valve. For modulating control, the actuator must hold the valve at many positions between open and closed. This is where a positioner is often used, because it helps the valve follow the control signal more closely.

A complete automated valve package may include the valve body, actuator, positioner, solenoid valve, limit switch, air filter regulator, handwheel, and feedback device. MacoTango also explains this wider package in its guide to actuated valves.

Main Control Valve Actuator Types

The main control valve actuator types are pneumatic, electric, hydraulic or electro-hydraulic, manual, and self-actuated designs. The right choice depends on site utilities, valve size, pressure drop, fail-safe need, control accuracy, and maintenance access.

Pneumatic actuators are common in process plants because instrument air is often available and the movement can be fast and simple. For more detail on air-operated designs, see MacoTango’s guide to pneumatic actuators.

Electric actuators are useful where compressed air is not available, where remote operation is needed, or where slower but precise movement is acceptable. Hydraulic and electro-hydraulic actuators are used when the valve needs high force or high torque. MacoTango also compares hydraulic and electric actuators for industrial valve automation.

Use this table as a first filter only. The final actuator should be checked against the valve type, required thrust or torque, shutoff pressure, control signal, fail position, cycle frequency, and site environment.

Linear vs Rotary Actuator Selection

Linear actuators push or pull a stem, while rotary actuators turn a shaft through a defined angle.

Linear Actuator

A linear actuator is normally used on globe control valves, diaphragm control valves, and other sliding-stem designs. It must provide enough thrust to move the plug against fluid pressure, seat load, packing friction, and any additional force created by special trim or high shutoff pressure. If the actuator is undersized, the valve may hunt around the set point, fail to reach the commanded position, or fail to close against the real pressure differential.

Rotary-Electric-Actuator

A rotary actuator is normally used on butterfly valves, ball valves, plug valves, and eccentric rotary control valves. It must provide enough torque through the full travel range, not only at the fully open position. Breakaway torque, seating torque, shaft friction, packing load, and pressure drop across the disc or ball should all be checked before the actuator is selected.

The valve body decides the motion first. The actuator type is then selected to match that motion, the available power source, the required fail position, and the control accuracy expected by the loop. A pneumatic rotary actuator can be a good fit for a modulating butterfly valve, but a high-shutoff globe valve usually needs a linear actuator sized by stem thrust rather than shaft torque.

Spring-Return, Double-Acting and Fail Position

Fail position is the valve position required when air pressure, electric power, or control signal is lost.

A spring-return actuator uses air or power to move the valve in one direction and a spring to return it in the other direction. This makes fail-open or fail-closed action easier to define. For example, a steam or fuel line may need fail-closed action to stop flow, while some cooling or relief-related services may need fail-open action to protect equipment. The correct choice should come from the process safety requirement, not from actuator availability.

A double-acting actuator uses air or power in both directions. It can produce strong movement, but it does not automatically move to a safe position when the supply is lost unless the package includes the right air circuit, solenoid valve, accumulator, lock-up device, or control logic. If the project requires a defined emergency action, the actuator package must be reviewed as a complete assembly.

The fail action should also match the valve body orientation. A globe valve can be arranged as air-to-open or air-to-close depending on actuator mounting and plug action. A rotary valve needs the actuator rotation direction, shaft position, and disc or ball position checked together. For control valve packages using a solenoid valve, MacoTango’s guide to SOV function in control valves gives the next useful detail.

Pneumatic Actuator Sizing: Force, Torque and Shutoff Load

Pneumatic actuator sizing should be checked against the hardest valve movement, usually shutoff differential pressure or breakaway torque, not only the normal regulating position.

For a globe control valve, the actuator must provide enough stem thrust to overcome pressure unbalance on the plug, seat load, packing friction, and any extra force created by special trim or high-temperature packing. The Emerson Control Valve Handbook describes actuator sizing as matching the force required to stroke the valve with an actuator that can supply that force. In practical selection, this means checking the valve at the maximum pressure condition the actuator may see, not only at the usual flow condition.

For a rotary control valve, the same idea becomes torque. A butterfly valve, ball valve, plug valve, or eccentric rotary valve may need its highest torque near seating, unseating, or a high-pressure throttling position. The actuator should have enough output torque at the available air pressure, including any safety factor required by the project or valve manufacturer.

Air supply pressure matters. A pneumatic actuator sized at 0.5 MPa instrument air may not behave the same way if the site air pressure drops during operation. Spring-return actuators also use part of the available force to compress or overcome the spring, so fail-open and fail-closed designs should be checked separately. If the valve must close tightly during an emergency shutdown, the actuator package must be sized for that final seat load, not only for smooth travel.

Positioners, I/P Signals and Feedback

A positioner compares the control signal with the real valve position and changes actuator pressure until the stem or shaft reaches the commanded position.

On a pneumatic control valve, the controller may send a 4-20 mA signal to an electro-pneumatic positioner or I/P converter. The device converts the electrical signal into a pneumatic output that drives the actuator. A basic I/P transducer can convert current to air pressure, while a positioner adds position feedback and correction. This is important when packing friction, pressure unbalance, actuator spring force, or linkage backlash would otherwise make the valve stop before the required position.

Smart positioners add diagnostics, calibration functions, feedback signals, and digital communication. They can help maintenance teams see travel deviation, response delay, air supply problems, or excessive friction before the valve becomes unstable in the loop. The positioner cannot fix a wrongly sized actuator or a valve body selected for the wrong pressure drop, but it can improve positioning accuracy when the mechanical package is sound.

The actuator, positioner, air set, tubing, solenoid valve, and feedback switch should be treated as one control package. If one part is too slow, too small, or badly matched, the loop may respond late even though each component looks acceptable on its own datasheet.

Common Selection Mistakes

Many control valve actuator problems start when the actuator is chosen after the valve body, instead of being checked as part of the complete control valve package.

One common mistake is using valve size as the main actuator reference. DN size or NPS size does not tell the full load on the stem or shaft. A small globe valve with high shutoff differential pressure can need more actuator thrust than a larger valve in low-pressure service. A rotary valve can also need more torque at seating than the buyer expects from the normal flow condition.

Another mistake is treating open-close actuation and modulating control as the same duty. A ball valve that only opens or closes a few times per day may work with a simple actuator package. A modulating control valve may move constantly in small increments, so deadband, backlash, positioner response, air volume, duty cycle, and heat from frequent motor operation become part of the selection.

Fail action is also easy to oversimplify. Writing “fail closed” on a datasheet is not enough unless the actuator, spring direction, air circuit, solenoid valve, valve orientation, and available supply pressure all support that action. For electric actuators, the buyer should check whether the valve fails to a defined position or simply stays where it was when power was lost.

The safest approach is to confirm actuator type, available power source, required thrust or torque, control signal, fail position, enclosure or hazardous-area requirement, and valve duty before the package is released for production. These checks reduce the chance of a valve that installs correctly but cannot control or shut off under real operating conditions.

Confirm the Actuator Before the Valve Package Is Released

The actuator should be confirmed after the valve body, trim, seat leakage requirement, pressure drop, and fail action are clear.

For a new control valve package, check the required stem thrust or shaft torque against the available air pressure, power supply, control signal, duty cycle, and emergency position. For a replacement valve, compare the existing actuator nameplate with the real service condition, especially if the valve has been slow to respond, unable to close tightly, or unstable during small control changes.

MacoTango can review the valve type, working pressure, medium, temperature, actuator preference, and control signal before recommending a pneumatic, electric, or hydraulic actuator package. You can use the contact our engineers to discuss the service conditions that affect actuator sizing and fail position.
