A control valve can meet the required Cv and still leave the outlet velocity too high for the body, trim, or downstream pipe.
This risk appears most often in high pressure-drop liquid service, flashing service, wet steam, gas noise cases, and lines where the selected valve body is smaller than the pipe. The valve may pass the calculated flow, but the outlet stream can still create erosion, vibration, cavitation noise, or damage around reducers and downstream pipework.
Control valve outlet velocity should therefore be checked after the basic sizing result, together with medium state, pressure recovery, outlet area, downstream pipe size, and trim design. A single velocity limit is only a screening value; the final decision changes between clean liquid, dirty liquid, slurry, steam, wet steam, and compressible gas.
What Control Valve Outlet Velocity Means
Control valve outlet velocity is the average flow speed at the valve outlet or immediately downstream of the valve body. It is not the same as the very high local velocity through the seat, cage window, or vena contracta inside the trim.
The distinction matters because each velocity point points to a different risk. High internal trim velocity can drive cavitation, flashing, trim erosion, or aerodynamic noise. High outlet velocity is more closely tied to body outlet size, reducers, downstream pipe vibration, noise leaving the valve, and erosion where the flow expands into the pipe.
In normal control valve sizing and calculation, outlet velocity is checked after flow rate, pressure drop, fluid state, and valve size are known. It is a screening signal: if the number is high, the next question is whether the selected body, trim, and downstream pipe can handle that service condition.
How Outlet Velocity Is Estimated During Sizing
For a first screen, control valve outlet velocity is calculated from volumetric flow rate divided by the valve outlet flow area.
Outlet velocity = actual volumetric flow rate ÷ outlet flow area
The units must match. If flow is in m³/s and area is in m², velocity is in m/s. If flow is in ft³/s and area is in ft², velocity is in ft/s. For liquid service, the calculation usually starts from the actual liquid flow through the selected valve body. For gas and steam, the flow volume changes with pressure, temperature, density, and expansion, so standard flow units must be converted before the outlet velocity check has meaning.
The outlet area is also not always the same as the pipe area. A control valve may have a reduced body, enlarged body, outlet reducer, special trim, or end connection that changes the flow area seen by the discharge stream. This is why outlet velocity should be checked after the preliminary valve flow coefficient Cv calculation, not before the valve style and body size are selected.
A low calculated velocity does not prove the valve is safe for the service. A high calculated velocity also does not automatically mean the valve is wrong. It means the sizing review should look at pressure drop, downstream pressure, vapour pressure, reducer geometry, noise, erosion risk, and whether a different body size or trim design is needed.
Velocity Limits Are Medium-Specific
A clean liquid velocity that is acceptable for a short control valve outlet may be too aggressive for slurry, wet steam, flashing service, or a small downstream reducer. Outlet velocity limits are therefore screening values. They help decide whether the sizing case needs a deeper noise, erosion, cavitation, or body-size review.
| Medium | How to treat outlet velocity | Sizing risk to check |
|---|---|---|
| Clean liquid | Often kept much lower than gas or steam; around 10 m/s is already a useful review point in many sizing references. | Cavitation, flashing, reducer loss, pipe vibration, and outlet erosion. |
| Dirty liquid or slurry | Use a lower project limit because suspended solids increase trim and body erosion. | Abrasive wear, seat damage, cage erosion, and downstream elbow wear. |
| Dry saturated steam | High outlet velocity, especially near 0.3 Mach or about 150 m/s, can indicate a noise or undersized-body problem. | Aerodynamic noise, vibration, and body outlet sizing. |
| Wet steam | Use a much lower outlet velocity than dry steam because condensate droplets create erosion risk. | Wet-steam erosion, noise, and trim/body wear. |
| Gas or superheated steam | Check Mach number, pressure ratio, density change, and choked-flow behaviour rather than using liquid-style limits. | Aerodynamic noise, sonic choking, vibration, and downstream acoustic fatigue. |
Use the table as a first filter, not as an acceptance standard. If the service is near a velocity limit, the next check is the full sizing case: pressure drop, downstream pressure, vapour pressure for liquids, Mach number for compressible flow, and the actual valve body and trim design.
When High Outlet Velocity Becomes A Control Valve Risk
High outlet velocity becomes a control valve risk when pressure recovery, phase change, or gas expansion turns the discharge stream into a source of noise, erosion, or vibration.
In liquid service, the highest local velocity is usually inside the restriction, near the seat, cage window, or vena contracta. If the pressure at that point falls below the liquid vapour pressure, vapour bubbles form. If those bubbles collapse as pressure recovers, cavitation can damage the trim and nearby body surfaces. If the downstream pressure stays below vapour pressure, flashing continues through the outlet and the liquid-vapour mixture can erode the valve outlet and downstream pipe.
For gas and steam service, the risk is different. A high pressure drop can push the flow towards sonic velocity at the controlling restriction, and further pressure drop may not increase flow in the same way. ISA choked flow explanation links this behaviour to gas velocity, liquid vapour formation, and the different damage mechanisms that can appear around the valve.
The outlet velocity number should therefore be read together with pressure drop, downstream pressure, vapour pressure, fluid state, trim style, and reducer geometry. If noise, vibration, flashing, or cavitation is already expected in the sizing case, a normal-looking Cv value is not enough to approve the selected valve.
What To Check Before Increasing Valve Size
A larger valve body can lower outlet velocity, but it can also reduce controllability if the required Cv then sits too low in the travel range.
Check the downstream pipe before changing the valve. If the pipe, reducer, or first elbow is much smaller than the selected valve outlet, the high-velocity zone may only move downstream. In that case, the real problem may be reducer loss, pipe vibration, or erosion after the valve rather than the nominal valve size alone.
The pressure case also needs review. For liquid service, compare downstream pressure with vapour pressure and check whether pressure recovery can create cavitation or flashing. For gas and steam, check pressure ratio, density change, noise prediction, and whether the flow is approaching a choked condition. A body-size change without a trim review may leave the main damage mechanism unchanged.

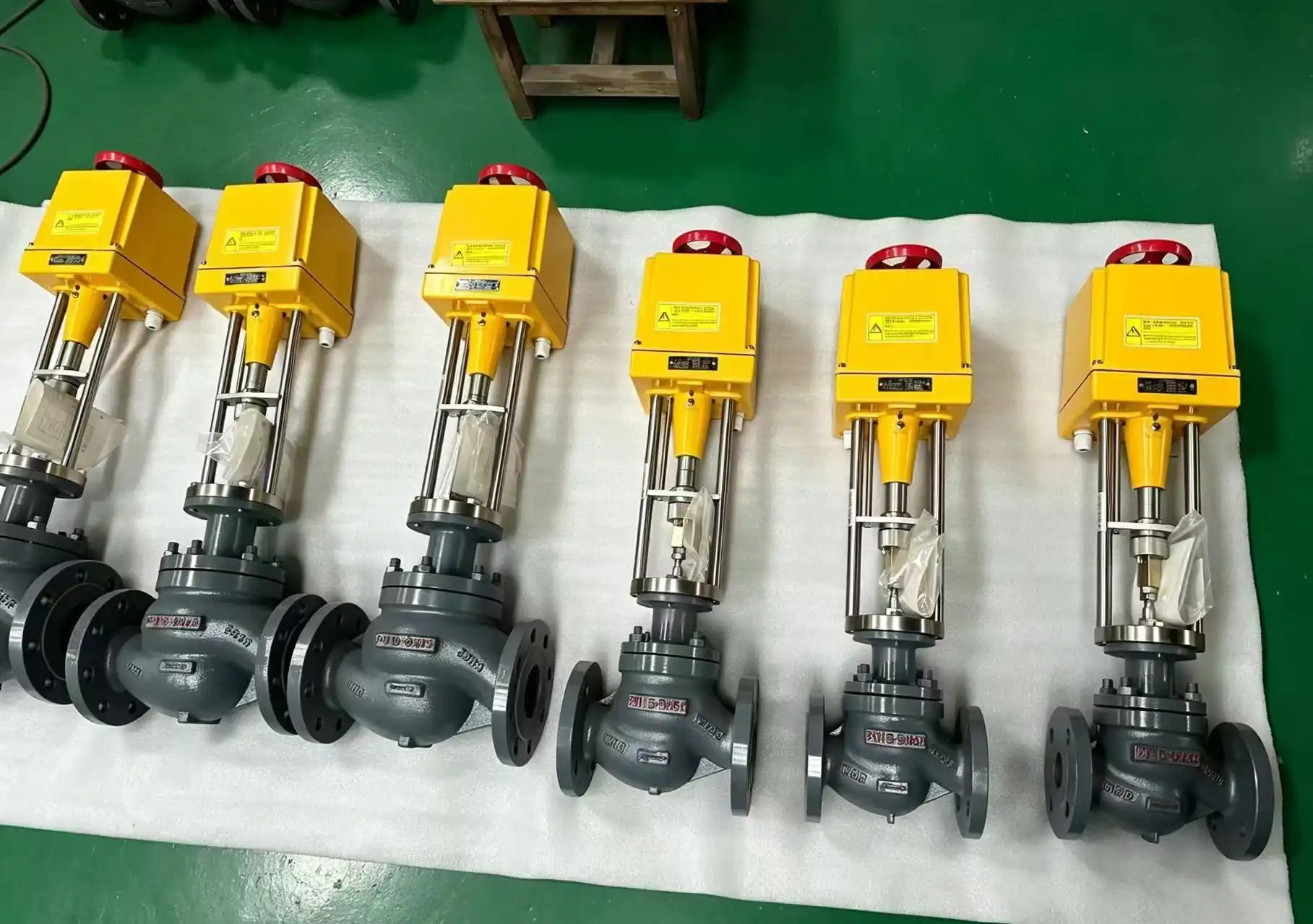

Trim style, outlet connection, and body pattern should be reviewed together with the selected control valve series. A straight-through globe body, angle body, enlarged outlet, multi-stage cage, or low-noise trim can each change the velocity and pressure-recovery behaviour in a different way. The right correction depends on whether the sizing risk is body outlet velocity, internal trim velocity, phase change, or downstream piping stress.
How Valve Design Can Reduce Outlet Velocity, Cavitation And Noise
When high velocity is driven by pressure drop rather than pipe size alone, the trim design becomes part of the correction.
A larger valve body or enlarged outlet can reduce the average outlet velocity by giving the flow more discharge area. This may help in steam, gas, and high-flow liquid service, but it should be checked against controllable travel range. An oversized body that lowers velocity but works too close to the seat at normal flow can create a different control problem.
For cavitating liquid service, a multi-stage cage or anti-cavitation trim reduces the pressure drop in smaller steps, so vapour bubbles are controlled more carefully inside the valve. For gas and steam noise, low-noise trim splits the flow into smaller jets and changes the acoustic behaviour before the flow reaches the outlet. These designs do not simply “slow the valve down”; they change where velocity, pressure recovery, and energy dissipation occur.
Body pattern can also matter. An angle body may help in erosive flashing service because the flow path can move the high-velocity mixture away from vulnerable body areas. Harder trim materials, wear-resistant surfaces, and a reviewed downstream pipe layout may still be needed if the medium contains solids, droplets, or a liquid-vapour mixture.
MacoTango can review high pressure drop, outlet velocity, cavitation, flashing, and gas noise together when selecting a high pressure drop control valve review path for severe-service conditions.
Final Outlet Velocity Check Before Valve Selection
Before selecting the final control valve body, review control valve outlet velocity together with pressure drop, medium state, downstream pipe size, reducer layout, and trim design.
If the service includes flashing liquid, cavitation risk, wet steam, high gas noise, slurry, or a large pressure drop across a small valve body, the outlet velocity number should trigger a deeper sizing review. The correction may be a larger outlet, a different body pattern, anti-cavitation trim, low-noise trim, revised downstream piping, or a combination of these choices.
For high pressure drop or severe-service control valve applications, MacoTango can review the control valve sizing conditions against the medium, Cv, outlet velocity, cavitation, flashing, noise, and trim requirements before the valve is finalised.
