Control valve rangeability is the ratio of the maximum controllable flow to the minimum controllable flow under stated test conditions. Both endpoints must remain within the defined performance boundary; passing flow at a valve position does not by itself make that flow controllable.
A catalogue rangeability ratio describes valve behaviour within its test boundary, not a guaranteed operating span after installation. Changing pressure drop, valve sizing, trim characteristics, and actuator and positioner response can narrow the usable range, which must be assessed separately from process turndown.
What Is Control Valve Rangeability?
Control valve rangeability covers the operating span between the highest and lowest flows that the valve can regulate within a stated performance boundary. Inherent rangeability is normally determined with the pressure drop across the valve held constant, which isolates the behaviour of the valve and trim from changes in the piping system.
For the same fluid under constant pressure drop, this span may also be expressed using the maximum and minimum controllable valve flow coefficient (Cv). The minimum endpoint is the lowest point at which the required flow response remains controllable, rather than the smallest flow that can physically pass through the trim.
Closed-valve seat leakage is not minimum controllable flow. Leakage describes shut-off performance when the valve is commanded closed, while minimum controllable flow requires a stable, repeatable response to changes in the control signal.
How Do You Calculate Control Valve Rangeability?
R = Qmax, controllable / Qmin, controllable = maximum controllable flow / minimum controllable flow
Both flow values must use the same units and refer to the same test or operating boundary. The units cancel, so rangeability is reported as a ratio rather than as a flow rate.
For a hypothetical valve with a maximum controllable flow of 100 m³/h and a minimum controllable flow of 2 m³/h, the calculation is 100 / 2 = 50. Its rangeability under the assumed conditions is therefore 50:1, and the minimum controllable flow equals 2% of the stated maximum.
This result does not prove that the valve will control 2 m³/h after installation. The minimum installed flow must be checked using the pressure drop, selected valve size, travel position and response of the complete valve assembly at that operating case.

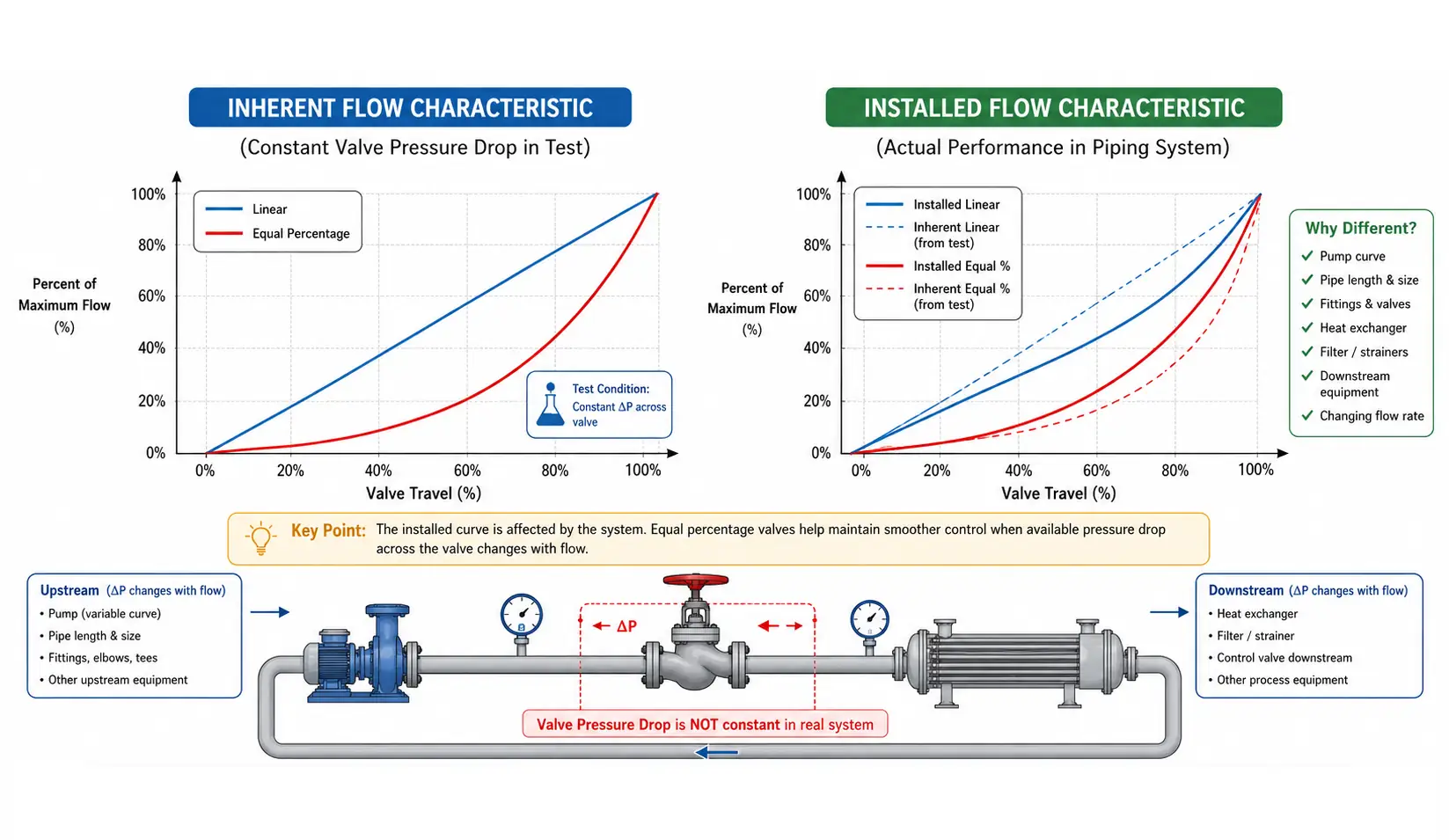

Inherent vs Installed Rangeability
Inherent rangeability is based on the valve’s Cv-to-travel behaviour while the pressure drop across the valve is held constant. In an installed piping system, the available valve pressure drop changes with flow and system resistance, so valve travel no longer produces the same flow relationship measured under the test condition.
A catalogue rangeability ratio cannot therefore be transferred directly to the installed process. The selected trim may retain its inherent Cv span, while changing pressure drop alters the installed flow curve and the size of each flow change produced by valve movement.
The selected linear or equal-percentage characteristic also affects how the inherent curve is reshaped in service. Suitability depends on the required flow response across the actual minimum, normal and maximum operating cases, rather than on the characteristic name alone.
Installed rangeability must be checked by matching each flow case with its upstream and downstream pressures, calculating the required Cv and locating that Cv on the selected trim curve. Without these matched operating data and a check of the complete valve assembly, the published ratio supports only the stated inherent test boundary.
Rangeability vs Turndown Ratio
Rangeability and turndown ratio both compare a maximum flow with a minimum flow, but manufacturers and technical documents do not use the terms consistently. Some treat them as interchangeable, while others separate valve test capability from the usable flow span of the installed process.
Here, rangeability refers to the valve’s inherent or catalogue capability under defined test conditions. Turndown refers to the ratio between the maximum and minimum controllable flows required or achieved in the installed application.
Installed turndown can be lower than catalogue rangeability because the process may use less than the valve’s maximum available Cv, while changing pressure drop or assembly response raises the minimum controllable flow. A published 50:1 rangeability therefore does not automatically provide 50:1 turndown in service.
When comparing specifications, confirm which maximum and minimum values form the ratio and whether they describe a valve-body test, the complete valve assembly or actual process operating cases. The ratio has little selection value when its endpoints and test boundary are not defined.
What Limits the Usable Range of a Control Valve?
The usable range ends where a change in control signal no longer produces a stable, repeatable flow response. This boundary may occur before the trim reaches its published minimum Cv because the valve body, actuator, positioner and installed pressure conditions operate as one system.
Trim geometry and flow characteristic
Trim geometry determines how Cv changes with valve travel. Near the lower end of travel, small differences in plug position, seat geometry or rotary control angle may represent a significant portion of the available flow area. The manufacturer’s Cv-to-travel curve is therefore more useful than the valve type alone when estimating the controllable lower limit.
The specified flow characteristic also applies only over its defined control range. Mechanical travel outside that range may still be available, but the resulting flow change may no longer follow the published characteristic closely enough for the application.
Valve sizing and changing pressure drop
An oversized valve can place minimum and normal flow close to the seat or at a low rotary control angle. In that region, friction, trim geometry and small position errors can occupy a larger share of the required movement, reducing the usable low-flow range even when the catalogue ratio appears adequate.
Correct control valve sizing must consider the pressure available across the valve at minimum, normal and maximum flow. Using one design pressure drop for every case can place the calculated operating points at misleading positions on the selected trim curve.
Actuator, positioner, deadband and friction
The actuator and positioner must convert a small signal change into a repeatable stem or shaft movement. Deadband can delay the response after a signal reversal, backlash can create lost motion, and packing or seat friction can cause the valve to stick before moving abruptly.
A positioner may correct position error, but it cannot make every mechanical assembly respond with unlimited resolution. Stem-position feedback alone is also insufficient evidence of low-flow control; controllability must be confirmed from the resulting flow response under the relevant operating conditions.
Seat leakage is not minimum controllable flow
Seat leakage is measured with the valve in its closed condition and describes shut-off performance. Minimum controllable flow is an off-seat operating point at which changes in the control signal still produce stable and repeatable changes in flow.
A leakage class or shut-off test cannot establish rangeability. When the required minimum flow approaches the leakage magnitude or lies below the assembly’s repeatable control response, a separate trim, valve size or control arrangement may be required.
Does Valve Type Alone Determine Rangeability?
No. Body type narrows the likely flow behaviour, but it does not establish one universal rangeability ratio. The result depends on the exact trim geometry, valve size, seat design, available travel, actuator and positioner response, and the manufacturer’s test definition.
A globe valve with purpose-designed modulating trim may maintain a defined Cv-to-travel relationship over a broad operating span, but the result still depends on the selected plug, cage and seat configuration. A full-port ball valve should not be treated as equivalent to a characterised V-port or segmented rotary control valve, because their flow areas and Cv curves develop differently with rotation.
Butterfly-valve performance also varies with disc profile, seat geometry, size and control angle. Rotation near certain positions can produce a large Cv change from a small movement, which may restrict the useful control range for a particular application. Compare the exact model, trim option, Cv-to-travel curve and test boundary when selecting among control valve families.
How to Verify Rangeability Before Valve Selection
The required minimum flow and its corresponding pressure conditions determine whether a catalogue ratio is useful. Verification must follow the same selected valve and trim through every operating case.
- Define the required flow span. Record the minimum, normal and maximum flows that the valve must regulate. Keep shut-off leakage separate from the minimum controllable operating flow.
- Match each flow with its pressures. Use the corresponding upstream and downstream pressures at every operating point. Applying one design pressure drop to all three cases can misrepresent the required Cv and valve travel.
- Calculate the required Cv at each point. Use consistent fluid properties and units with the MacoTango Cv calculator. The control valve sizing guide explains the operating data needed for a preliminary calculation.
- Map the results to the selected trim. Obtain the model-specific Cv-to-travel curve, flow characteristic and stated rangeability test boundary. Locate every operating point on that curve and check whether the selected travel span remains suitable for modulation.
- Confirm the response of the complete assembly. Check the selected actuator and positioner configuration for repeatable movement, deadband, friction and response near the required minimum flow. Low-flow controllability is established by repeatable flow changes, not by stem or shaft movement alone.
Before using a published rangeability ratio for valve selection, calculate the preliminary Cv for the minimum, normal and maximum flow cases with their corresponding upstream and downstream pressures. Use the MacoTango Cv calculator, then compare all three results with the exact trim curve and the response evidence for the selected valve assembly.
If the minimum-flow point falls outside the repeatable control region, revise the valve size, trim or control arrangement before ordering. Catalogue rangeability cannot replace this project-specific verification.
