Chemical & Petrochemical Control Valves for Corrosive and Difficult Process Duties
A chemical name is not enough to select a control valve. Concentration,
temperature, phase, contaminants, solids, pressure drop and cleaning
conditions can change the required body, lining, trim, seat, packing
and actuator configuration.
MacoTango helps engineers and industrial buyers compare the complete
valve package against the expected exposure and failure mechanism. The
aim is to make the proposed configuration, its assumptions and the
evidence behind it clear enough for technical review.
Review the selection logic, product directions and evidence that should support a chemical-service valve recommendation.
Chemical & Petrochemical Control Valve Problems—and How We Address Them

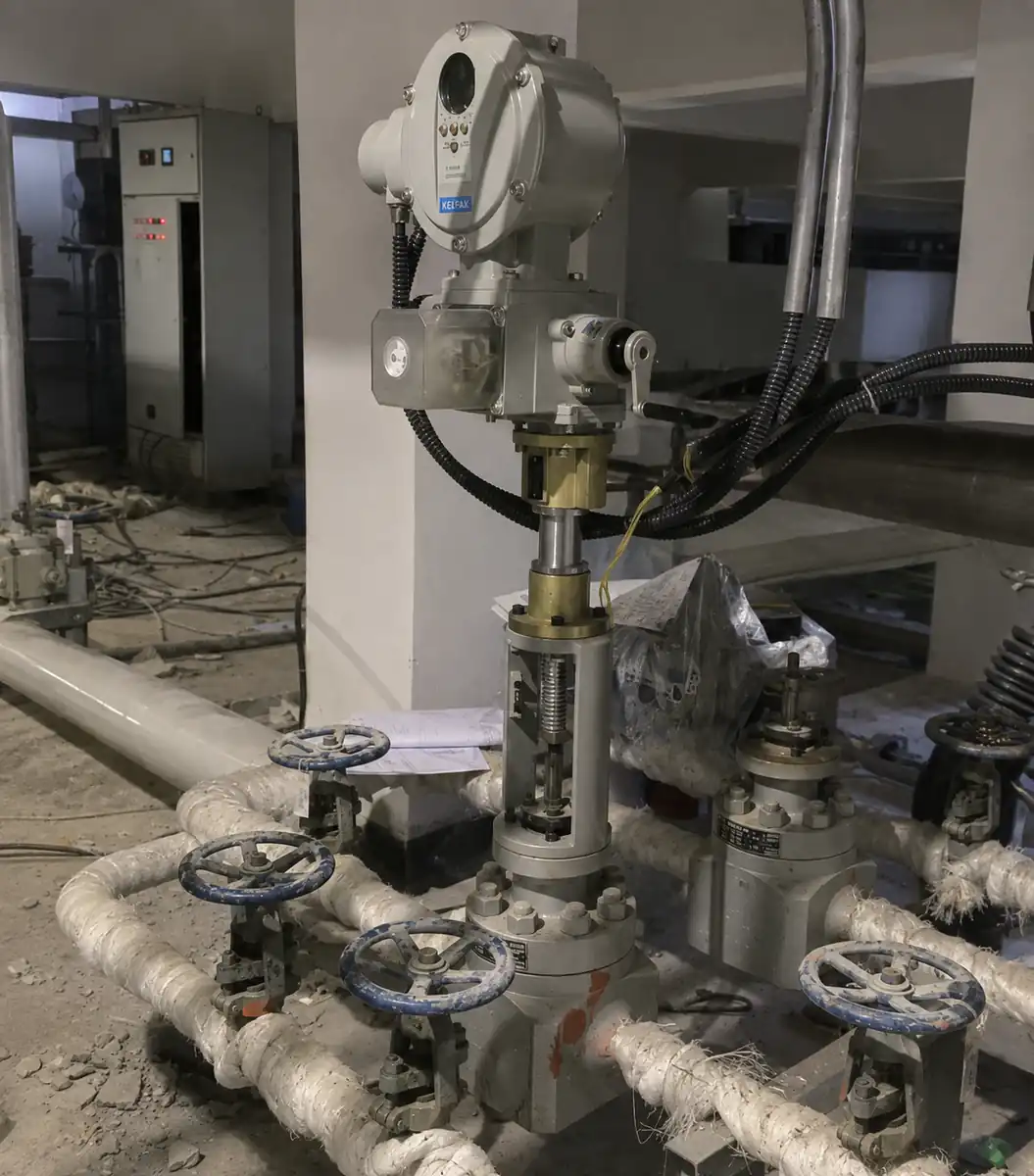

Chemical and petrochemical control valves can fail even when nominal size, pressure class and body material appear correct. We review the complete operating envelope, then select the body, trim, seat, wetted materials, packing or bellows, actuator and positioner as one control-valve assembly.
Corrosive Media: A Chemical Name Is Not a Material Specification
“Acid,” “caustic,” “solvent” or “hydrocarbon” is not enough to select a chemical control valve. Corrosion behaviour can change with concentration, temperature, water content, chlorides, dissolved gases, contaminants, aeration, velocity and cleaning chemicals. The body may survive while the stem, plug, seat, hardfacing, bellows, packing, gasket or fasteners fail.
Selection response: We request the full fluid composition, concentration range, trace contaminants, solids, water phase, operating and design temperature, inlet and outlet pressure, cleaning media and expected velocity. We then compare the complete wetted bill of materials and sealing system, including whether a lined construction or corrosion-resistant alloy is the more reliable direction. See the chemical and corrosive service control valve selection guide.
Chemical & Corrosive Service Control Valve Selection Guide
Toxic or Volatile Media: Seat Leakage and Stem Emissions Are Different Risks
Closure leakage travels through the closed seat, while fugitive emissions can escape through the stem seal, bonnet joint, gaskets or other pressure-boundary joints. A tight seat-leakage class does not prove low stem emissions, and excessive packing loading can introduce stiction, deadband and erratic positioning.
Selection response: We separate seat leakage, body-joint leakage and stem emissions in the specification. The review covers fluid toxicity and volatility, operating cycles, stem travel, packing material and loading, bellows limits, backup packing, actuator thrust margin and the requested emission test procedure. Use the control valve specification checklist to define the evidence required with the quotation.
Control Valve Stem Leakage Guide
Crystallizing, Polymerizing or Viscous Media: The Worst Case May Be Shutdown and Restart
A valve can regulate successfully while the process is hot and still fail after a short shutdown. Cold spots around the body, bonnet, seat or small trim passages can increase viscosity, precipitate crystals or promote polymerization. Deposits can raise stem friction, block the flow path, prevent shutoff or increase breakaway thrust beyond the actuator margin.
Selection response: We check viscosity and phase behaviour at minimum, normal, maximum and shutdown temperature. Jacket heating is considered when body-temperature control can prevent cooling or solidification, while dead zones, minimum passage size, flushing, drainage, flow direction, packing friction, thermal expansion and restart thrust are reviewed as part of the valve package. The broader chemical-industry control valve guide explains why construction must follow the actual duty.
Chemical-Industry Control Valve Guide
Low-Flow Dosing and Reactor Feed: Maximum Capacity Can Hide Poor Control
Catalyst, inhibitor, neutralizing-agent, additive and reactor-feed valves often have a low normal flow but a much higher cleaning, batch-transfer or start-up requirement. A valve sized only for the maximum case may spend normal operation near the seat, where friction and deadband consume a large percentage of useful movement and repeatability suffers.
Selection response: Required Cv is checked for minimum, normal, maximum, start-up and cleaning cases using the pressure drop available across the valve at each condition. We compare Cv versus travel, installed characteristic, minimum controllable opening, seat leakage, packing friction and actuator resolution. A purpose-sized low-capacity trim is preferred when it keeps normal operation away from the first few percent of travel; see installed rangeability and turndown.
Control Valve Sizing Guide
High Pressure Drop: Liquids and Gases Do Not Fail in the Same Way
In liquid service, the key distinction is whether vapor bubbles collapse after pressure recovery or remain downstream as persistent flashing. In gas or vapor service, a high pressure ratio can cause choked flow, aerodynamic noise, high outlet velocity and vibration. Passing the design flow therefore does not prove that the valve is mechanically or acoustically suitable.
Selection response: Liquid sizing uses vapor pressure, critical-pressure effects and FL, while gas choking uses composition, molecular weight or density, specific-heat ratio, compressibility and xT. Staged pressure reduction is considered for clean fluids only when its minimum passages are compatible with process cleanliness. Persistent flashing is treated as an erosion-management problem; review flashing and cavitation in control valves.
High-Pressure Control Valve Selection Guide
Catalyst, Fibres or Suspended Solids: A Severe-Service Trim Can Become the Blockage
Particles create two different risks: erosion at the throttling edge and outlet region, and blockage when solids bridge, settle or collect in narrow passages. A multi-hole or multi-stage trim that performs well in a clean cavitating liquid may be the wrong choice when catalyst fines, scale, crystals, fibres or polymer fragments are present.
Selection response: We request particle type, hardness, size distribution, maximum particle size, concentration, settling tendency and whether the solids are continuous or transient. The comparison includes minimum internal passage, seat-edge velocity, flow direction, body geometry, Cv-versus-travel or Cv-versus-angle, actuator margin and maintenance access. Angle-body and V-port rotary constructions are application-dependent starting points, not universal “non-clogging” solutions.
Single-Seat, Cage-Guided & Multi-Stage Trim GuideChemical & Petrochemical Operating Scenarios and Recommended Control Valve Families
The product families below are engineering starting points, not automatic selections. Final valve size, pressure class, trim, complete wetted materials, lining, seat, packing or bellows, flow direction, actuator, positioner and accessories must be confirmed from the process datasheet and every credible operating case.
Engineering starting point: Match the chemical or petrochemical operating scenario and dominant failure mechanism first, then verify the complete valve and actuator package against the actual process data before technical approval.
Clean Corrosive Modulating Service
Use this direction when: A clean, strongly corrosive liquid or gas is within the pressure and temperature envelope of a fluoropolymer-lined construction and the duty requires modulating control rather than isolation only.
Selection response: Start with a PTFE-lined globe control valve when isolating the metal body from the process is preferable to an exposed metal flow path, then verify liner limits and the continuity of the complete lined wetted path.
- Verify before selection: Fluid composition and concentration range, contaminants, water phase, operating and cleaning temperature, pressure and vacuum conditions, permeation risk, velocity, solids, liner material and thickness, required Cv and travel, stem sealing, shutoff leakage and actuator thrust.
PTFE-Lined Globe Control Valve
For compatible clean corrosive media where a continuous fluoropolymer-lined wetted path is preferred for modulating control.
Stem-Leakage-Controlled Modulating Service
Use this direction when: External leakage along a sliding stem is a dominant process or environmental risk and the complete sealing system must be qualified for toxic, volatile or hazardous media.
Selection response: Evaluate a bellows-sealed globe control valve as a conditional sealing option when the bellows, backup packing and actuator can be qualified for the specified medium, pressure, temperature, stroke and cycle life.
- Verify before selection: Body, trim, bellows, stem, gasket and backup-packing compatibility; pressure and temperature range; thermal cycles; valve stroke; expected cycle life; vacuum or external-pressure limits; leak detection; packing friction; shutoff differential pressure; actuator thrust; seat leakage and the exact fugitive-emission qualification.
Bellows-Sealed Globe Control Valve
A conditional sealing direction for hazardous media when bellows limits, backup packing and emission requirements are fully defined.
Temperature-Sensitive Process Control
Use this direction when: The process must remain above or below a defined temperature to prevent excessive viscosity, crystallization, polymerization or solidification around the throttling area.
Selection response: Start with a jacketed control valve when external heating or cooling around the valve body is part of a documented process-temperature strategy, while keeping flushing, drainage and restart procedures separate from the jacket function.
- Verify before selection: Viscosity and phase behaviour through heat-up, operation, turndown, shutdown and restart; heating or cooling medium; jacket design pressure and connections; heat-transfer coverage; dead pockets; drainage and venting; flushing or purge provisions; minimum passage; packing; thermal expansion; breakaway thrust and maintenance access.
Jacketed Control Valve
For temperature-sensitive chemical service where valve-body heating or cooling is part of the process strategy.
Catalyst, Additive, Inhibitor or Neutralizing-Agent Dosing
Use this direction when: A small line and genuinely low required Cv make a purpose-sized low-capacity valve preferable to forcing a larger valve to regulate almost closed during normal production.
Selection response: Start with a small-bore single-seated globe control valve and confirm that minimum, normal, maximum, start-up and flushing cases all remain within a practical installed travel range.
- Verify before selection: Flow and corresponding inlet/outlet pressure for every case, Cv-versus-travel data, installed characteristic, minimum stable opening, required rangeability, orifice and passage size, fluid cleanliness, cavitation at low flow, seat leakage, packing friction, positioner resolution and actuator thrust.
Small-Bore Single-Seated Globe Control Valve
For catalyst, additive, inhibitor and neutralizing-agent dosing where verified low-flow controllability is required.
Reactor Feed, Column Flow, Vessel Pressure or Level Control
Use this direction when: Clean liquid, gas or vapor requires stable throttling and defined shutoff at a low-to-moderate pressure drop without a special severe-service trim requirement.
Selection response: Start with a top-guided single-seat globe control valve. When unbalanced plug force at maximum shutoff differential pressure would require an unnecessarily large actuator, compare a balanced single-seat cage-guided globe design.
- Verify before selection: Required Cv and travel at all operating points, inherent and installed characteristic, pressure-drop profile, process gain near normal operation, shutoff differential pressure, permissible leakage, balance-seal compatibility, packing friction, fail action, available actuator power and actuator margin.

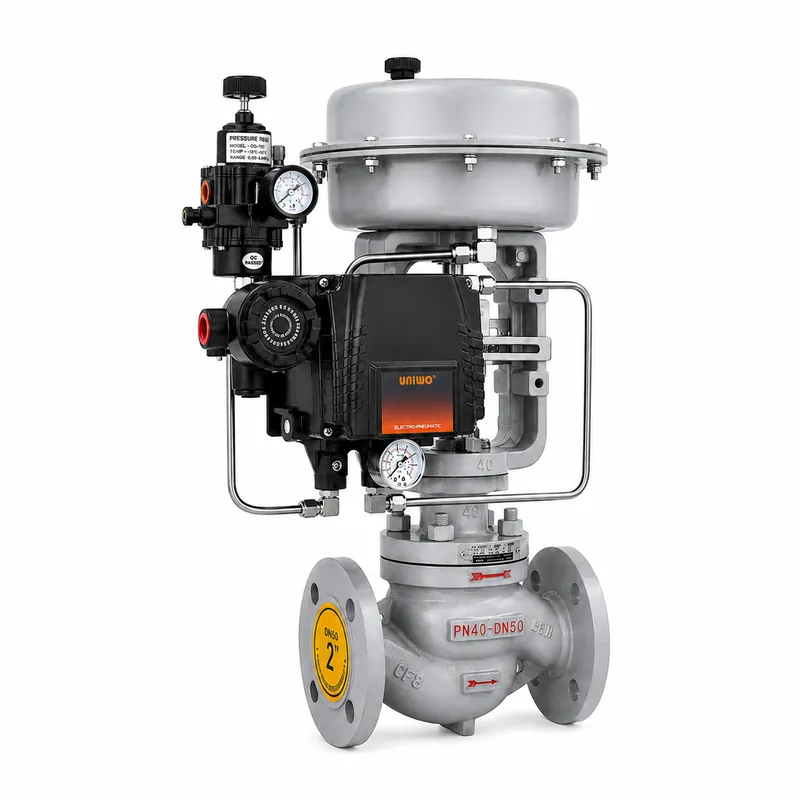

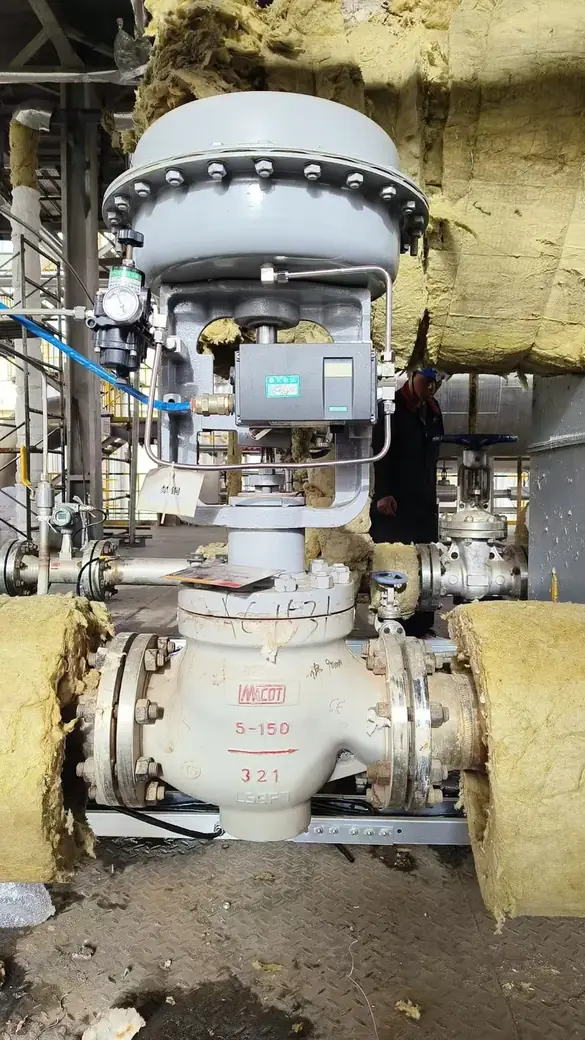

Top-Guided Single-Seat Globe Control Valve
A straightforward starting point for clean reactor feed, column flow, vessel pressure and level-control duties.

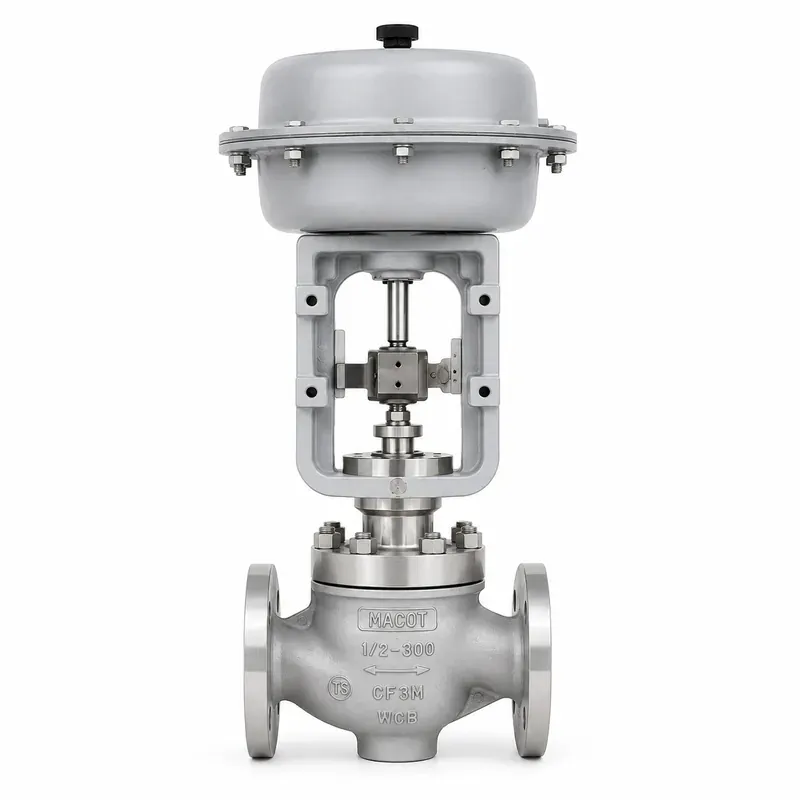

Balanced Single-Seat Cage-Guided Globe Control Valve
For clean process duties where plug force makes actuator load a key selection constraint.
High-Pressure Liquid Service with Cavitation Risk
Use this direction when: A clean liquid experiences a large pressure drop and local pressure falls below vapor pressure but recovers sufficiently for bubbles to collapse, making cavitation the controlling damage mechanism rather than persistent flashing.
Selection response: Start with a multi-stage high-pressure-drop globe control valve when the objective is to divide the pressure drop across staged throttling points instead of taking it at one edge.
- Verify before selection: Vapor pressure at actual temperature, inlet/outlet pressure for every case, FL, required Cv and travel, predicted cavitation level, critical-pressure effects, minimum trim passage, rust or scale, flow direction, seat leakage, trim materials and hardfacing, shutoff differential pressure and actuator thrust.
Multi-Stage High-Pressure-Drop Globe Control Valve
A staged pressure-reduction starting point for clean chemical or petrochemical liquids with verified cavitation risk.
High Pressure Ratio with Aerodynamic Noise Risk
Use this direction when: Clean compressible service has a high pressure ratio and a defined noise limit, so gas pressure reduction, choked flow, outlet velocity and aerodynamic noise must be reviewed together.
Selection response: Start with a multi-stage low-noise cage-guided globe control valve only after confirming the gas is clean enough for the staged passages and the complete flow envelope has been checked.
- Verify before selection: Composition, molecular weight or density, specific-heat ratio, compressibility, inlet/outlet pressure, temperature, minimum/normal/maximum/start-up/upset flow, xT, required Cv and travel, predicted sound pressure, outlet velocity, downstream pipe size, carryover, minimum trim passage, shutoff differential pressure and actuator response.

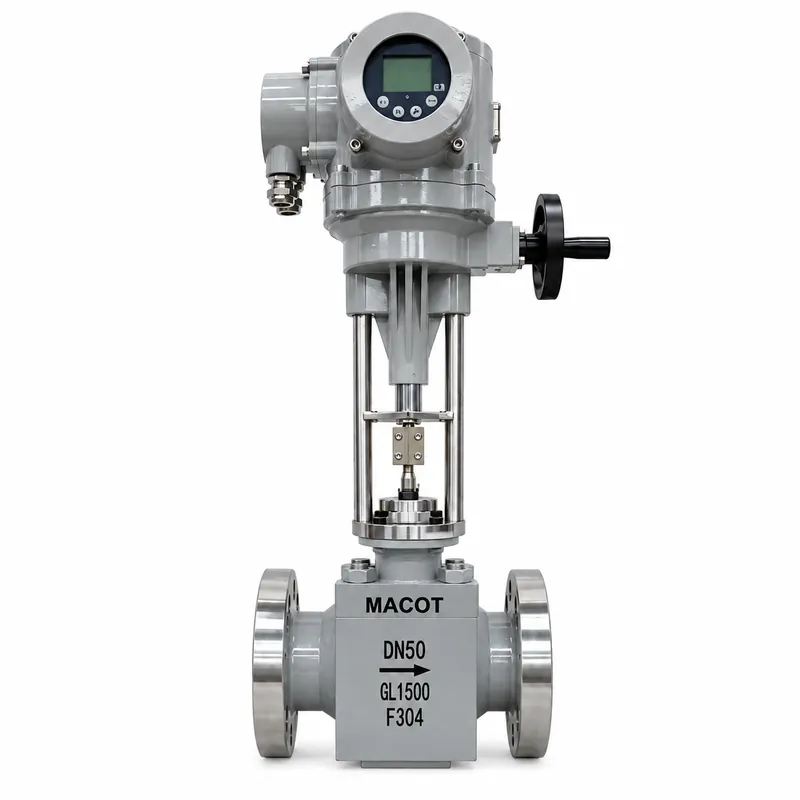

Multi-Stage Low-Noise Cage-Guided Globe Control Valve
For clean gas, vapor or steam letdown where staged pressure reduction and aerodynamic-noise control are required.
Persistent Flashing or an Erosive High-Velocity Discharge Path
Use this direction when: Downstream liquid remains partly vaporized, or when viscous or solids-bearing modulation makes narrow globe or multi-stage passages an unacceptable blockage or wear risk.
Selection response: Review a forged high-pressure angle control valve for inspectable flashing and outlet-erosion management. Where solids, fibres, crystals or viscosity dominate, evaluate a V-port control ball valve as a more open-flow-path alternative.
- Verify before selection: Flashing calculation and downstream vapor fraction, particle size/hardness/concentration, seat and outlet velocity, body and trim materials, hardfacing, erosion allowance, replaceable wear parts, minimum passage, Cv-versus-travel or Cv-versus-angle, required torque, seat construction, shutoff direction, shaft/stem sealing and maintenance access.
Forged High-Pressure Angle Control Valve
An angle-body starting point where persistent flashing or a concentrated erosive discharge path must be managed.
V-Port Control Ball Valve
A more open-flow-path alternative to evaluate for compatible viscous, crystallizing or solids-bearing modulation.
Three-Way Mixing and Diverting Duty
Use this direction when: One valve must combine two streams or divide one stream between two paths for jacket-medium routing, heat-exchanger bypass or another true mixing or diverting process duty.
Selection response: Start with a three-way mixing and diverting control valve only after the required port function and piping orientation are defined; it is not a generic replacement for two independent two-way valves.
- Verify before selection: Mixing versus diverting function, port labels and permitted flow direction, flow and pressure at every port, total and branch Cv, temperature difference between streams, allowable pressure drop, leakage between ports, installed characteristic, unbalanced force, fail position, actuator thrust and required travel.
Three-Way Mixing and Diverting Control Valve
For true mixing or diverting duties including jacket-medium routing and heat-exchanger bypass control.
Send Your Valve Datasheet or RFQ
Share the process duty, an existing datasheet, a valve list or photographs of the current problem. MacoTango can help identify which exposure, flow-performance, sealing and actuation questions should be resolved before a valve direction is proposed.
Chemical & Petrochemical Control Valve FAQ
No. Concentration, temperature, water content, impurities, aeration, velocity, phase and mechanical stress can change the exposure. Compatibility tables can support screening, but the final material combination should be checked against the complete process and cleaning conditions.
Compare the two directions when both can potentially meet the chemical duty. A lined valve may isolate the metal body from the medium, while a metallic construction may provide a different pressure, temperature, vacuum, erosion, permeation, maintenance or trim envelope. The complete duty—not the chemical name alone—should decide the direction.
No. Corrosion is a material-compatibility and damage question. Cavitation, flashing, gas expansion, velocity and noise are hydraulic questions. They can occur together, but a corrosion-resistant material does not automatically solve a severe pressure-drop problem.
Identify where the material can cool, settle, react or remain trapped. Review body cavities, guides, seat pockets, bearing areas, flow direction, drainability, wiping action, cleaning or purge method, required cycle and the effect of deposits on thrust or torque.
No universal guarantee should be made from the component name alone. Bellows material, pressure, temperature, movement, cycle demand, construction and secondary sealing must match the application, and any emissions claim requires the relevant evidence.
A V-port valve may suit a compact rotary package, high capacity, viscous flow or a duty that benefits from a more direct path and wiping action. A globe valve may offer a different trim, guidance and pressure-reduction approach. Compare the required characteristic, minimum opening, pressure recovery, solids, deposits, seat duty, actuator load and maintenance access.
A shell test addresses the pressure-containing boundary under its stated conditions. A closure test addresses internal shut-off under its stated direction, medium, pressure, duration and acceptance basis. Material identity, lining condition, external emissions and full-differential movement require different evidence.
Choose the actuator after confirming the required thrust or torque, fail position, available air or power, signal, operating time, ambient and hazardous-area requirements, feedback and accessories. The actuator must be reviewed against the complete valve and the most demanding operating or failure case.
