LNG and Cryogenic Control Valves Selected for the Cold Duty
Low temperature is only one part of the problem. Thermal contraction, packing temperature, shut-off, pressure drop, phase change and the required fail action all affect the complete valve assembly. MacoTango reviews these conditions before proposing a control-valve configuration.
Review the selection logic, product directions and evidence that should support a chemical-service valve recommendation.
LNG & Cryogenic Control Valve Problems: What Buyers Need and How to Solve Them
An LNG control valve is not selected by fluid name, line size or minimum temperature alone. Cooldown, pressure drop and phase change can affect clearances, packing friction, noise, shutoff load and fail action. We review the complete valve, trim and actuator package across the real cryogenic operating envelope.
Packing Leakage or Stem Sticking After Cooldown
A valve may work at ambient temperature but begin to leak, stick or respond slowly after cooldown. Thermal contraction changes trim clearances and can move the packing region outside its usable temperature range.

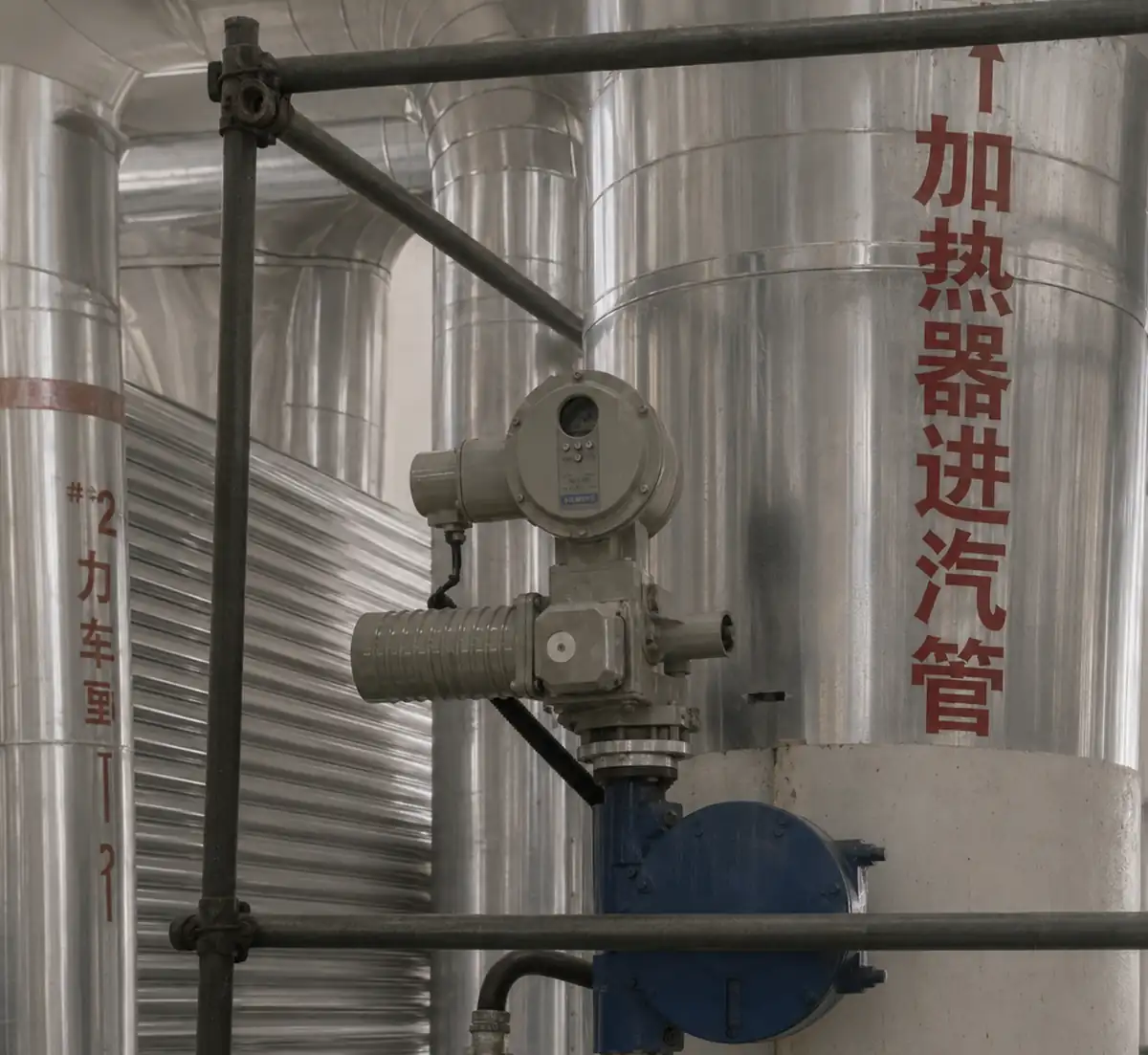

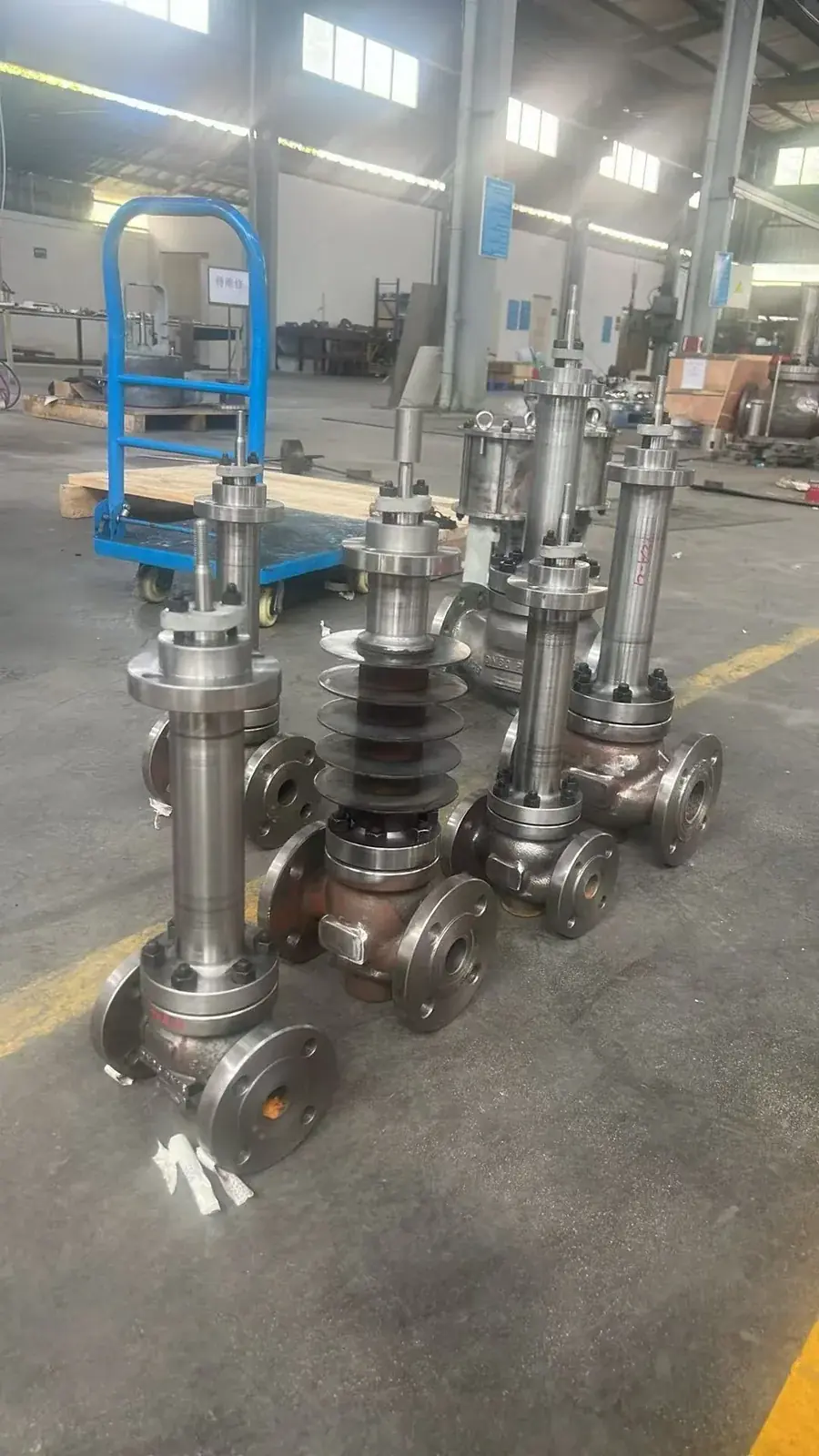

Selection response: Start with an extended cryogenic bonnet, then set bonnet length and insulation stop from the actual cold zone. Review body, bonnet, trim, packing, gasket, bolting and actuator as one assembly, with cold soaking, cycling or cold leakage tests where required.
Cryogenic Control Valve Selection Guide
Thermal Contraction Can Destabilize Flow Control
Hunting, stick-slip or operation close to the seat is not always a positioner problem. Oversized trim, changing friction and poor cold clearances can all reduce control stability as the valve cools.
Selection response: Size minimum, normal, maximum and transitional cases with matching pressure, temperature and fluid properties. Compare required Cv with expected travel, then check guiding, contraction and actuator margin against the same cases.
Control Valve Sizing Guide
JT Letdown Can Create Flashing, Noise and Trim Damage
A Joule-Thomson valve deliberately creates pressure drop, but the outlet may become liquid-and-vapour flow with high velocity, vibration and erosion. Warm and cold JT cases can also see different inlet phases and minimum temperatures.
Selection response: Review the real refrigerant composition and all operating cases, then determine whether the flow remains liquid, cavitates, flashes or becomes two-phase. Check outlet velocity and downstream geometry before choosing body size or special trim.
Choosing Valves for Multiphase Flow
BOG Control Can Become a Noise and Outlet-Velocity Problem
Boil-off gas and cold recycle service can combine wide turndown with a high pressure ratio. A valve may pass the required flow and still create excessive noise, vibration, poor low-load control or an outlet jet that is too fast.
Selection response: Use compressible-flow sizing with absolute pressures, gas properties and temperature. Check choked flow, valve pressure-ratio factor, predicted noise and outlet velocity at each case; balanced or cage-guided trim does not replace these calculations.
Choked Flow in Control Valves
The Valve Must Still Shut Off at the Worst Case
A valve can modulate normally yet lack thrust at maximum shutoff pressure, minimum air supply or the coldest packing condition. A balanced plug reduces static load, but seal friction and dynamic forces remain.
Selection response: Check actuator demand through the stroke using shutoff load, stem and packing friction, balance-seal friction, dynamic force and minimum available supply. Define fail-open, fail-closed or fail-last from the process consequence and verify the assembled package under the specified test condition.
Control Valve Actuator Selection GuideMatch the LNG or Cryogenic Duty to the Control Valve Product
Match each LNG duty first to the required temperature boundary and flow mechanism. The products below are current catalogue starting points; bonnet, trim, materials, actuator and cold-test scope must still be configured from the actual operating cases.
Engineering starting point: Confirm minimum metal temperature, phase behaviour, Cv and travel, shutoff load, actuator supply, fail position, leakage acceptance and cold-test requirements before technical approval.
Main Cryogenic Heat Exchanger Refrigerant and LNG Flow Control
Use the Cryogenic Globe Control Valve as the primary low-temperature platform for mixed refrigerant, feed gas or LNG throttling. Its extended cryogenic bonnet and available single-seat, cage-guided, balanced or unbalanced trim directions make it the closest direct product match in the current catalogue.
- Verify before selection: Minimum metal temperature, fluid state, minimum/normal/maximum flow, Cv and travel, insulation stop, shutoff pressure, selected trim, actuator margin and required cold-state evidence.
Cryogenic Globe Control Valve
The direct catalogue starting point for refrigerant and LNG flow control through production, turndown and cooldown.
Warm and Cold Joule-Thomson Pressure Letdown
Start with the Cryogenic Globe Control Valve for the cold-rated body and bonnet. Where the verified pressure and phase profile needs staged pressure reduction, compare the Top-Guided High-Pressure Control Valve as a conditional high-drop option; its cryogenic bonnet, complete material set and cold-test scope must be confirmed for the final assembly.
- Verify before selection: Refrigerant composition, inlet phase, minimum temperature, inlet and outlet pressure, flow range, flashing or two-phase behaviour, outlet velocity, pressure-reduction stages, shutoff load, actuator margin and downstream geometry.
Cryogenic Globe Control Valve
Extended-bonnet globe construction for warm or cold JT duty after phase behaviour and actuator load are verified.
Top-Guided High-Pressure Control Valve
Multi-stage high-pressure construction to compare when the calculated JT pressure profile requires staged letdown; verify the complete cryogenic execution.
Boil-Off Gas and Refrigeration Compressor Recycle
Use the Cryogenic Globe Control Valve when the minimum temperature and shutoff duty control the selection. For a high pressure ratio or a strict noise limit, compare the Porous-Cage Low-Noise Control Valve as a conditional cold-gas option; confirm its low-temperature bonnet, materials and cold-state evidence before approval.
- Verify before selection: Gas composition, minimum inlet temperature, absolute pressures, flow range, pressure ratio, choked flow, selected pressure-ratio factor, predicted sound level, outlet velocity, actuator response and fail action.
Cryogenic Globe Control Valve
A pressure-balanced or cage-guided cryogenic configuration to evaluate for BOG pressure control and compressor recycle.

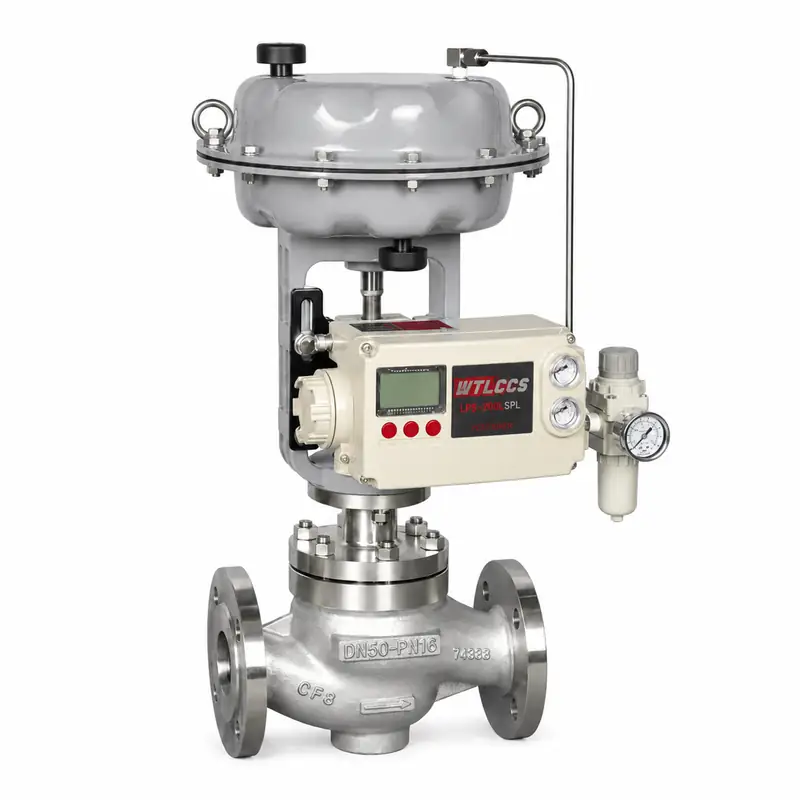

Porous-Cage Low-Noise Control Valve
Pressure-balanced porous-cage construction for high-ratio cold-gas duty; verify the complete cryogenic package and predicted noise.
LNG Storage Tank Fill, Pump Minimum Flow and Return Service
Use the Cryogenic Globe Control Valve where the deeper cold envelope or a project-specific cryogenic trim controls the decision. The Low-Temperature Control Valve is a second published LNG option for cold-liquid tank fill, minimum-flow recycle and return service, subject to the selected size, pressure class, materials and test scope.
- Verify before selection: LNG temperature, vapour pressure, tank-side backpressure, minimum/normal/maximum flow, Cv and travel, choked-flow status, seat construction, shutoff pressure, fail action and cold leakage requirement.
Cryogenic Globe Control Valve
Extended-bonnet cryogenic construction where low-load travel, thermal cycling and shutoff must be checked together.
Low-Temperature Control Valve
An extended-bonnet low-temperature valve for LNG liquid control; confirm the exact project temperature, materials and cold-test acceptance.
LNG Loading, Unloading and Vapour-Return Control
Use the Low-Temperature Control Valve or Cryogenic Globe Control Valve for liquid-transfer throttling after the full temperature and pressure envelope is checked. For vapour-return pressure control with a high pressure ratio or low-noise target, compare the Porous-Cage Low-Noise Control Valve as a conditional gas-service option. Isolation, ESD, non-return and relief functions remain separate valve duties.
- Verify before selection: Real liquid and vapour flow ranges, line pressure, minimum temperature, pressure drop, fluid phase, noise limit, leakage requirement, actuator supply, fail position and the project-specific cold-test scope.
Low-Temperature Control Valve
Extended-bonnet low-temperature construction for loading and unloading flow control after the transfer cases are confirmed.
Porous-Cage Low-Noise Control Valve
Porous-cage pressure control for noise-sensitive vapour return; verify minimum temperature, bonnet, materials and cold testing.
Send Your Valve Datasheet or RFQ
Send the operating cases, fluid composition, minimum temperature and project requirements available for the duty. The review can identify the proposed valve configuration, unresolved inputs and evidence required before approval.
LNG and Cryogenic Control Valve Questions
No. The bonnet extension helps manage the packing environment, but the body, bonnet, trim, seat, packing, gasket, bolting, clearances and actuator must still be reviewed against the minimum temperature and complete operating duty.
No. An ambient test proves only the defined ambient test condition. If the project requires cold-state leakage, thermal cycling or operation at low temperature, the test procedure and acceptance criteria must cover that requirement.
Not automatically. JT liquid or mixed-refrigerant service may involve phase change and a large pressure drop, while BOG service is normally evaluated as compressible gas flow. Each duty needs its own sizing, noise, phase and outlet-velocity review.
The insulation boundary should follow the approved valve drawing and thermal design. Do not cover the packing region simply because the adjacent piping is insulated.
Request evidence that matches the actual claim and order scope: configuration drawings, material traceability, sizing results, actuator review and any specified cold-state leakage, cycling or functional test records.
