Control Valves for Water and Wastewater Treatment
A valve that works in clean water may clog in sludge, corrode in a dosing line or cavitate during pressure reduction. MacoTango helps compare the valve, materials and actuator against the actual duty.
Review the selection logic, product directions and evidence that should support a chemical-service valve recommendation.
Water Treatment Control Valve Problems—and How We Address Them
Water treatment control valves cannot be selected from pipe size and pressure class alone. Clean water, raw water, wastewater, sludge, aeration air and dosing chemicals create different hydraulic and material risks. We review Cv and travel, pressure recovery, wetted materials, shutoff and actuator performance across the complete operating range.
Passing Maximum Flow Is Only the First Check
A valve may pass design flow and still hunt at normal or low demand. Oversizing can keep the valve close to the seat, where low valve authority, deadband, packing friction and pump-speed interaction reduce control stability.
Selection response: Compare required Cv and predicted travel at minimum, normal and maximum flow. Review the installed characteristic, valve authority, minimum useful opening and actuator or positioner response before deciding whether the problem is sizing or tuning.
Control Valve Hunting: Causes & Corrective Actions
Hard Trim Alone Does Not Control Cavitation
A water control valve can meet the required Cv and still suffer noise, vibration, pitting or downstream damage. Harder trim may slow wear, but it does not remove the pressure-recovery conditions that create cavitation.
Selection response: Check inlet and outlet pressure, temperature, vapor pressure, Cv, pressure recovery, choking, velocity and valve opening for each operating case. For sufficiently clean water, staged pressure reduction can be evaluated from the actual pressure profile.
Flashing & Cavitation in Control Valves
Anti-Cavitation Passages Can Become Plugging Points
Raw water and wastewater may contain sand, rust, fibers or biological debris. Fine multi-hole or labyrinth passages can reduce pressure in clean water but may plug in solids-bearing service; a more open flow path can reduce blockage risk.
Selection response: Separate clean-water and dirty-water selection paths. Check solids concentration, particle size, fibers, abrasiveness, settling and upstream screening, then compare open rotary paths, shearing action, wear-resistant trim or replaceable wear parts.
Water Treatment Control Valve Selection Guide
A Large Pipe Does Not Automatically Need a Full-Size Control Valve
Backwash, basin-level and transfer lines may need high peak flow but much lower normal flow. A butterfly or ball valve operating too close to closed can create a concentrated jet, weak control resolution, noise and localized wear.
Selection response: Match the flow range to valve-specific Cv-versus-opening data. Check minimum stable opening, peak-flow opening, pressure recovery, cavitation margin, dynamic torque, cycle frequency and the actuator or positioner as one modulating package.
V-Port Ball Valve vs Butterfly Control ValveA Small Valve Does Not Prove Repeatable Low-Flow Control
Dosing service can combine very low Cv with corrosion, crystallization, gas release and long idle periods. A small nominal valve may still be oversized, while a corrosion-resistant body alone does not prove complete wetted-material compatibility.
Selection response: Review chemical concentration, temperature, flow range, pressures, shutoff and cleaning conditions. Use purpose-sized low-Cv globe or needle trim for clean media, or a compatible lined flow path for corrosive chemicals. Avoid fine passages where dirty or crystallizing media can block them.
Control Valve Sizing GuideWater and Wastewater Operating Scenarios and Recommended Control Valve Families
These products are engineering starting points, not automatic selections. Final valve type, size, trim, materials, seat, packing, flow direction, actuator and accessories must be confirmed from water quality and the complete operating envelope.
Engineering starting point: Match the valve family to the actual control mechanism first, then verify Cv, travel, pressure drop, water quality, materials, shutoff and actuator performance.
Pressure-Reducing, Pressure-Holding and Clean-Water Letdown
A self-actuated pressure control valve can suit local pressure regulation without an external control signal. Where the setpoint comes from the plant control system, several operating cases must be covered, or cavitation requires staged pressure reduction, compare a modulating globe control valve.
- Verify before selection: Flow range, inlet and outlet pressure, temperature, vapor pressure, water cleanliness, Cv and travel, cavitation or choking, set range, shutoff differential pressure and failure behavior.
Self-Actuated Pressure Control Valve
For local upstream or downstream pressure control where the process medium provides the operating energy.

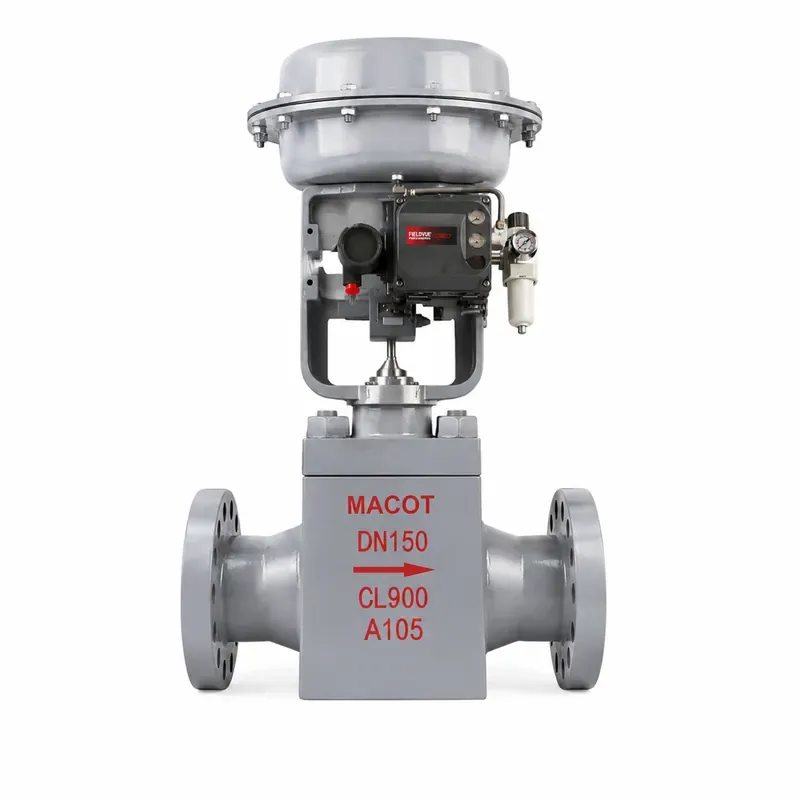

Multi-Stage High-Pressure-Drop Globe Control Valve
For sufficiently clean liquid service where staged pressure reduction is justified by cavitation and hydraulic checks.
Raw-Water Intake, Pump Discharge and Distribution Flow Control
For screened raw water or treated water, evaluate a V-port ball valve when characterized rotary control or shearing action is useful. For large, relatively clean low-pressure lines, compare pneumatic or electric concentric wafer butterfly valves configured for modulating duty.
- Verify before selection: Cv and operating angle at minimum, normal and maximum flow, valve authority, velocity, cavitation margin, solids or fibers, seat selection, dynamic torque, actuator duty, feedback and fail action.
V-Port Ball Valve
For screened water where a characterized opening, wider throttling range or shearing action is useful.
Pneumatic Wafer Butterfly Valve
A compact large-line option when the actuator, positioner, disc-angle range and fail action are selected for modulation.
Electric Concentric Wafer Butterfly Valve
For large-line modulation where the electric actuator can meet resolution, duty-cycle, speed, torque and feedback requirements.
Filter Backwash, Basin Level and Frequent-Cycle Water Control
Use a V-port ball valve where a characterized rotary port and wider useful throttling range are important. For large, relatively clean low-pressure water lines, compare a concentric wafer butterfly valve configured for modulation within a suitable disc-angle range.
- Verify before selection: Lowest controlled flow, peak backwash flow, normal opening, water quality, cycle frequency, seat and shaft wear, dynamic torque, actuator duty, feedback and required stroke time.
V-Port Ball Valve
For backwash or basin-level control where a wider useful throttling range is needed.
Pneumatic Wafer Butterfly Valve
A large-line option after disc-angle, torque, seat-wear and pneumatic cycle-duty checks.
Electric Concentric Wafer Butterfly Valve
An electric alternative where the actuator meets modulation resolution, cycle duty, speed and feedback requirements.
Wastewater, Grit, Fibers and Sludge Flow Control
When grit, fibers or deposits make narrow passages unreliable, evaluate an eccentric hemisphere control valve for a more open flow path and shearing action. For screened wastewater or moderate solids, compare a V-port ball valve.
- Verify before selection: Solids concentration, particle size, fiber length, abrasiveness, viscosity, settling or growth, screening, Cv-versus-angle data, velocity, seat and hardfacing materials, torque and cleaning access.
Eccentric Hemisphere Control Valve
For wastewater or sludge where an open flow path and shearing action help reduce jamming and buildup risk.
V-Port Ball Valve
A characterized rotary option for screened wastewater and moderate solids where flow regulation is still required.
Aeration Airflow Control
For blower air to aeration basins or header branches, evaluate a V-port ball valve when control range and resolution are priorities. For a large low-pressure air header with moderate pressure ratio, compare a pneumatic wafer butterfly valve configured for modulating duty.
- Verify before selection: Standard or actual airflow basis, flow range, gas density, absolute pressures, temperature, Cv and opening, pressure ratio, choking, noise, outlet velocity, blower turndown, actuator response and fail action.
V-Port Ball Valve
For aeration branches where repeatable rotary throttling and a wider airflow control range are required.
Pneumatic Wafer Butterfly Valve
A compact large-header option after gas sizing, usable disc-angle, noise, torque, positioner and actuator checks.
Chemical Dosing, Disinfection and pH-Control Service
Start with a purpose-sized small-bore globe valve when low Cv makes a standard valve operate too close to the seat. Use an ultra-small-flow needle valve only for clean filtered media, or evaluate a PTFE-lined globe valve for compatible corrosive chemicals.
- Verify before selection: Chemical and concentration, temperature, impurities, flow range, pressures, Cv-versus-travel, minimum opening, gas release, solids or crystallization, flushing method, lining limits, leakage and actuator thrust.
Small-Bore Single-Seated Globe Control Valve
A purpose-sized low-flow starting point where stable Cv-versus-travel performance is required.
Ultra-Small-Flow Needle Control Valve
For clean filtered dosing media requiring very fine flow control; not a default for dirty or crystallizing chemicals.
PTFE-Lined Globe Control Valve
For compatible corrosive chemicals after concentration, temperature, pressure, vacuum and wetted-material checks.
Send Your Valve Datasheet or RFQ
Send an existing datasheet, valve tag, water analysis, operating-case summary or photographs of the current valve and damaged parts. We can review the likely flow-path, hydraulic and material risks before comparing a valve configuration.
Water Treatment Valve FAQ
No. Clean water, wastewater, air, sludge, brine and dosing chemicals create different flow-path, material and control requirements. Select from the actual medium and duty rather than the industry name.
It can be when the expected opening, pressure drop, flow range and piping arrangement are suitable. Do not select it from line size alone or assume that a line-size butterfly valve will provide useful control near the closed position.
Start with solids concentration, particle size, fibres, viscosity and cleaning access. The valve needs a flow path that will pass the material; a restricted globe or cage passage may be unsuitable for fibrous or thick sludge.
No. Check the complete chemical composition, concentration, temperature, pressure and cleaning conditions. The lining, trim, seat, packing and gasket must be reviewed separately.
Verify the required approval against the exact valve model, size range and wetted configuration. A generic supplier certificate, stainless-steel description or unrelated product certificate does not prove that the proposed valve is covered.
