Control valves play a crucial role in industrial systems by precisely managing the flow, pressure, and temperature of various fluids—gases, steam, or liquids—to keep operations running safely and efficiently. While their function is well understood, one often-overlooked yet critical factor is their default position during power loss, emergency shutdowns, or maintenance. This brings us to a key operational question: What position should a control valve be in when things go wrong? The answer isn’t always obvious—and getting it wrong can have serious consequences. Improper valve positioning can disrupt processes, create safety hazards, damage equipment, or even lead to environmental incidents. Understanding how and when to choose fail-open, fail-closed, or mid-position setups is essential for reliable system design.

Understanding Control Valves: Basics

What Is a Control Valve?

A control valve is a power-operated device used to regulate or manipulate the flow of fluids—such as gas, oil, water, and steam—by varying the size of the flow passage. It responds to signals from a controller to adjust flow rates, thereby maintaining critical process variables like pressure, temperature, and fluid levels within desired ranges. This precise regulation ensures the safe and efficient operation of processes across various industries, including manufacturing, oil and gas, and chemical processing.​

Types of Control Valves

Control valves come in various types, each suited for specific applications:​

• Globe Valves: Ideal for precise throttling and flow regulation, commonly used in applications requiring accurate control.​

• Ball Valves: Known for their durability and quick shut-off capabilities, suitable for on/off control without pressure drop.​

• Butterfly Valves: Compact and lightweight, these valves are used in large pipe diameters for throttling or on/off control.​

Each valve type offers distinct advantages depending on the process requirements, such as flow characteristics, pressure conditions, and space constraints .​

Key Terms

• Fail-Safe Position: The predetermined position a valve moves to (open, closed, or last position) in the event of a power or signal failure, ensuring safety and process integrity.​

• Normal Operating Position: The standard position a valve maintains during regular operations to control process variables effectively.​

• Actuation Mechanisms: Devices responsible for moving the valve to the desired position, which can be pneumatic, electric, or hydraulic. The choice of actuator affects the valve’s responsiveness, control precision, and suitability for specific environments .​

The Default Position: Fail-Safe vs. Normal Operation

​

In industrial process control, determining the default position of control valves is crucial for ensuring safety and maintaining operational integrity. This section explores the concepts of fail-safe positions and normal operating positions, highlighting their significance and the role of automation systems in managing valve positions.​

Fail-Safe Positions

Control valves are designed to move to a predetermined position upon loss of power or control signal, known as the fail-safe position. The choice between fail-open and fail-closed configurations depends on the specific requirements and safety considerations of the application:​

• Fail-Open (FO): In this configuration, the valve opens when power or control signal is lost. This is typically used in applications where maintaining flow is essential to prevent equipment damage or safety hazards. For instance, in cooling systems, a fail-open valve ensures continuous coolant flow to prevent overheating during a power failure.​

• Fail-Closed (FC): Here, the valve closes upon loss of power or control signal. This setup is common in applications where stopping the flow is necessary to prevent unsafe conditions. For example, in fuel supply lines, a fail-closed valve prevents uncontrolled fuel flow in the event of a system failure.​​

Importance of Fail-Safe Design for Safety and System Protection

Implementing appropriate fail-safe positions is vital for:​

• Protecting Personnel and Equipment: Ensuring valves default to a safe position minimizes risks to operators and prevents equipment damage during emergencies.​

• Maintaining Process Integrity: Proper fail-safe configurations help preserve the stability and safety of the overall process, even during unexpected events.​

• Compliance with Safety Standards: Adhering to industry regulations often requires specific fail-safe measures to be in place.​

Normal Operating Position

The normal operating position of a control valve is dictated by the specific demands of the process it serves. Factors influencing this include:​

• Process Variables: Parameters such as flow rate, pressure, and temperature determine the required valve position to maintain optimal conditions.​

• System Dynamics: The behavior of the process system, including response times and stability, influences valve positioning strategies.​

• Operational Objectives: Goals like energy efficiency, product quality, and throughput affect how valves are positioned during normal operations.​

Role of Automation (DCS, PLC) in Valve Positioning

Automation systems, including Distributed Control Systems (DCS) and Programmable Logic Controllers (PLC), play a crucial role in managing valve positions:​

• Signal Processing: These systems receive input from sensors and determine the appropriate valve position to achieve desired process conditions.​

• Actuation Control: They send control signals to valve actuators, adjusting positions in real-time to respond to process changes.​

• Monitoring and Feedback: Automation systems continuously monitor valve positions and process variables, providing feedback for precise control and diagnostics.

<Learn more about how DCS and PLC systems influence valve positioning in our in-depth guide here.>

Common Mistakes in Control Valve Positioning​

Proper control valve positioning is crucial for maintaining process efficiency, safety, and equipment longevity. However, several common mistakes can compromise these objectives.​

Leaving Valves in Manual Mode Indefinitely

Control valves are designed to operate under automated control systems to ensure precise regulation of process variables. Leaving a valve in manual mode for extended periods can lead to:​

• Process Drift: Without automatic adjustments, process variables may deviate from setpoints, leading to inefficiencies or product quality issues.​

• Delayed Response: Manual mode disables automatic responses to changing conditions, potentially causing delays in corrective actions.​

• Increased Wear: Continuous manual adjustments can lead to uneven wear on valve components, reducing their lifespan.​

Incorrect Fail-Safe Configuration During Installation

Fail-safe positions determine how a valve behaves during power or signal loss. Incorrect configuration can have serious consequences:​

• Safety Hazards: A valve that fails open when it should fail closed (or vice versa) can lead to unsafe conditions, such as uncontrolled flow of hazardous materials.​

• Process Disruption: Improper fail-safe settings can cause process interruptions, leading to downtime and potential equipment damage.​

Ignoring Process Variability (e.g., Pressure, Temperature)

Process conditions such as pressure and temperature can fluctuate, affecting valve performance. Neglecting these variations can result in:​

• Inaccurate Control: Valves may not respond appropriately to changes, leading to deviations from desired process conditions.​

• Equipment Stress: Unaccounted variability can cause valves to operate outside their optimal range, increasing wear and the risk of failure.​

• Product Quality Issues: Inconsistent control can affect product quality, leading to waste or the need for reprocessing.

Industry-Specific Examples

Control valve positioning is critical across various industries, with specific configurations tailored to ensure safety and operational efficiency.​

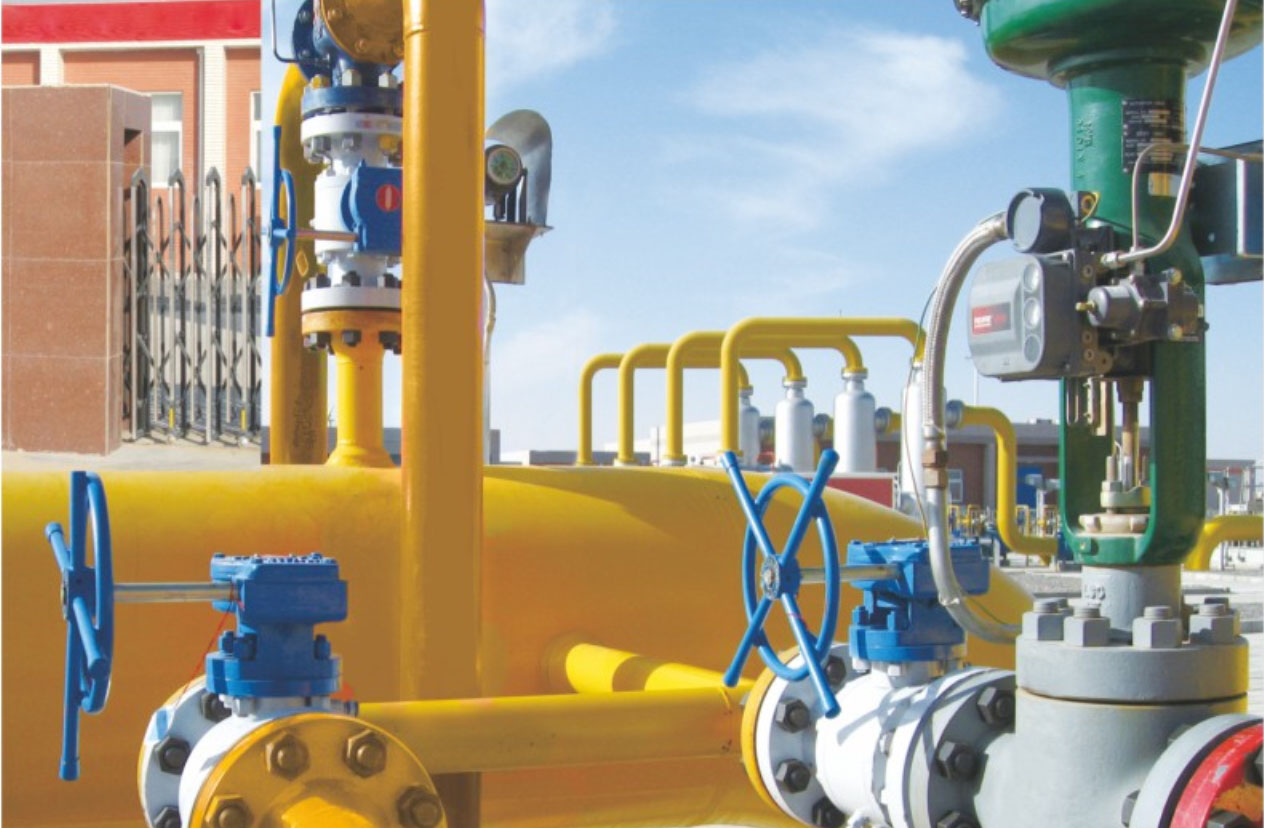

Oil & Gas: Fail-Closed Valves for Emergency Shutdowns

In the oil and gas sector, fail-closed (FC) valves are integral to emergency shutdown systems. These valves automatically close upon detecting hazardous conditions—such as excessive pressure or temperature—to isolate sections of the process and prevent the release of flammable or toxic substances. This rapid closure is vital for safeguarding personnel, equipment, and the environment. For instance, emergency shutdown valves (ESDVs) are designed to swiftly halt flow in pipelines during emergencies, ensuring that dangerous fluids are contained and do not exacerbate the situation. ​

Water Treatment: Fail-Open Valves to Prevent Overpressure

In water treatment facilities, fail-open (FO) valves are employed to mitigate the risk of overpressure scenarios. These valves default to an open position during power or control signal failures, allowing continuous flow and preventing pressure buildup that could damage equipment or compromise system integrity. By ensuring that water can still move through the system during unexpected shutdowns, fail-open valves help maintain safety and operational continuity. ​

HVAC Systems: Mid-Position Valves for Balancing Flow

Heating, ventilation, and air conditioning (HVAC) systems often utilize valves that can assume a mid-position to balance flow rates effectively. These valves are modulated to partially open or close, allowing precise control over airflow and temperature distribution within buildings. By adjusting to a mid-position, the system can maintain optimal comfort levels while enhancing energy efficiency.

Conclusion

Choosing the correct control valve position—whether fail-open, fail-closed, or modulating—depends entirely on your system’s design, process requirements, and safety priorities. There’s no universal answer, only what’s right for your specific application. Improper positioning can lead to system failures, safety risks, or costly downtime. That’s why it’s essential to assess every variable, from operating conditions to automation setup. For the best results, consult with professionals who understand how to match valve behavior with your process goals.
