A diaphragm control valve in this context uses a pneumatic diaphragm actuator to position the plug in a single-seat linear control valve. Loading air acts on the flexible diaphragm inside the actuator, while the plug and seat inside the valve body regulate the process fluid.
Control depends on the complete chain from controller command to positioner output, actuator pressure, stem travel and process response. A disturbance at any point can appear as hunting, slow movement, incomplete travel or poor shut-off.
What a Diaphragm Control Valve Is
The diaphragm actuator and valve body perform separate duties within one assembly. The actuator converts loading pressure into stem force. The valve body contains the plug and seat that control the process fluid.
The complete assembly normally includes the actuator diaphragm, springs, stem, positioner, feedback mechanism, single plug, single seat and valve body. The diaphragm remains isolated from the process fluid.
Changing the plug position changes the available flow area through the seat. Because conventional single-seat trim is generally pressure-unbalanced, process pressure also produces an axial force on the plug. The actuator must control stem position while working against this force, packing friction and spring load.
How the Control Signal Becomes a Change in Flow
The positioner converts the command into actuator pressure
The controller sends an electrical or pneumatic command representing the required valve travel. The positioner interprets this command and meters instrument air into or out of the diaphragm actuator.
Supply pressure, filter condition, tubing restrictions and positioner response affect how quickly and consistently the actuator receives its loading pressure.
Diaphragm pressure and spring force move the stem
Loading pressure acting across the effective diaphragm area creates actuator force. The springs oppose this force, while packing friction and process force add further resistance. Stem movement begins when the available pressure force overcomes the combined load.
An increase in loading pressure may extend or retract the stem, depending on the actuator arrangement. In either case, a controlled pressure change produces linear stem travel.
The single-seat plug changes the flow area
The stem transfers actuator movement to the plug. Moving the plug towards the seat increases flow restriction, while moving it away from the seat provides more flow area.
Valve travel and process flow are different measurements. The resulting flow also depends on the plug profile, pressure drop across the valve and resistance elsewhere in the piping system. Correct stem travel does not guarantee a proportional change in flow.
Travel feedback corrects position error
A linkage or travel sensor reports actual stem position to the positioner. The positioner compares this feedback with the command and admits, holds or vents air until the position error is reduced.
This local feedback loop controls valve travel rather than the process variable. Correct indicated travel confirms that the positioning system responded, but it does not prove that the expected flow passed through the valve.
What Single-Seat Construction Changes
A single-seat diaphragm control valve uses one plug and one seat to regulate and stop process flow. Stem movement changes the opening around this seating interface, so the plug profile directly affects the relationship between travel and flow area.
Conventional single-seat trim is generally pressure-unbalanced. The pressure difference across the plug produces an axial process force that acts on the stem and actuator. Its magnitude changes with pressure drop and plug position, while its direction depends on the specified flow direction and trim geometry.
The actuator must provide enough usable force to control the plug against spring load, packing friction and process force. A valve that travels normally under low pressure drop may move more slowly or stop short when operating pressure increases.
The flow arrow on the valve body should be treated as an operating requirement. Reversing the intended flow direction changes the force acting on the plug and may alter movement near the closed position.
Shut-off depends on the plug meeting the single seat correctly. Deposits, trim damage, stem misalignment or insufficient closing force can allow flow to pass even when the positioner indicates a closed position.

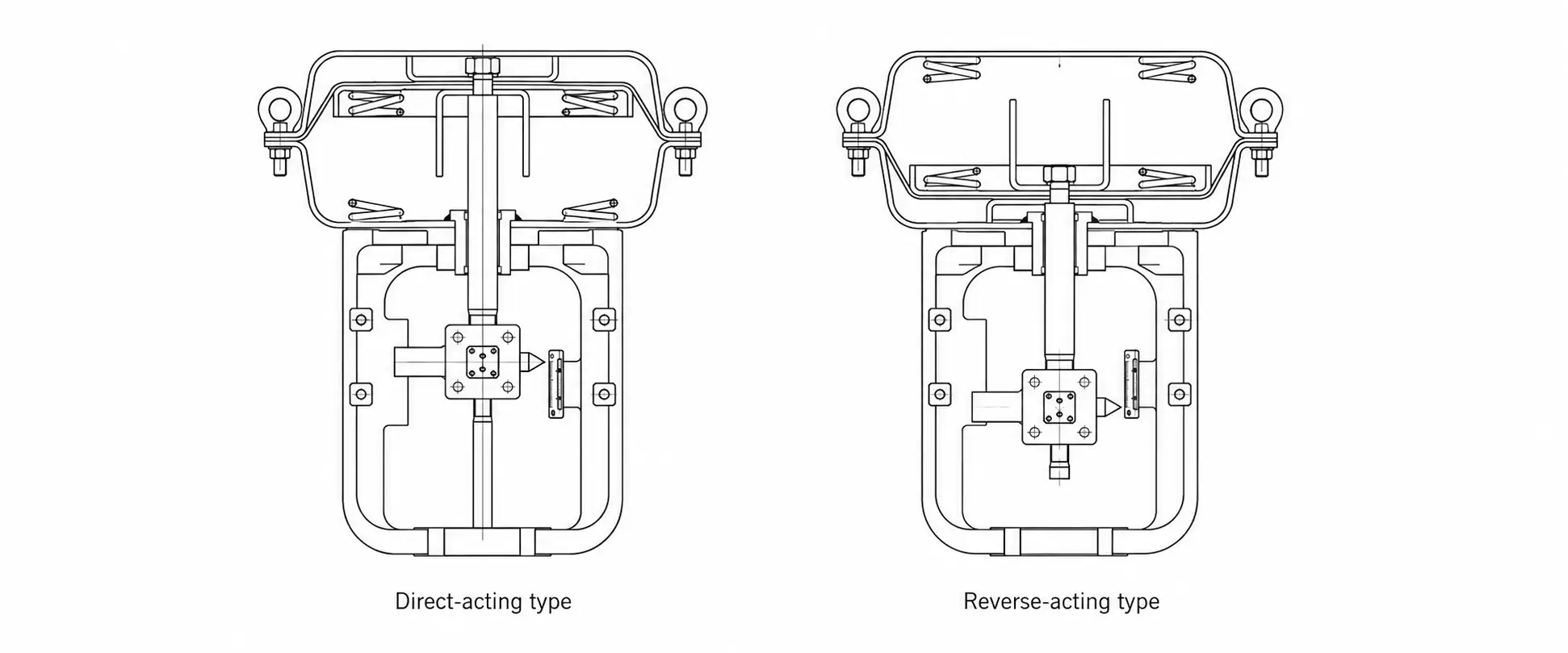

Direct-Acting and Reverse-Acting Diaphragm Actuators
Direct-acting and reverse-acting describe how the actuator stem responds when loading pressure increases. They describe actuator motion rather than the final effect on process flow.
In a direct-acting diaphragm actuator, increasing loading pressure normally moves the actuator stem downwards against the spring force. Releasing pressure allows the springs to move the stem in the opposite direction.
In a reverse-acting actuator, increasing loading pressure normally retracts the stem upwards. The springs return it downwards as pressure is released.
Whether either motion opens or closes the valve depends on the plug arrangement. Downward movement closes a push-down-to-close trim but opens a push-down-to-open trim. Actuator action and valve action must therefore be considered together before the assembly is described as air-to-open, air-to-close, fail-open or fail-closed.
The positioner must match the required relationship between command signal, output pressure and stem travel. Incorrect action settings can make the valve move away from its commanded position or drive directly to one end of travel.
Why the Valve May Hunt or Control Unevenly
Hunting is repeated stem movement around the requested position. Uneven control may instead appear as delayed movement followed by a sudden jump. Both can create an oscillating process trend, but their mechanisms differ.
Mechanical friction produces stick-slip movement
Tight packing, stem damage, deposits on guiding surfaces or internal trim contact can prevent small actuator-force changes from moving the plug. Loading pressure builds until the stem breaks free, causing the valve to jump beyond the required position.
This stick-slip behaviour is most visible during small corrections and direction changes. Packing adjustment may change the symptom, but damaged or misaligned moving parts require mechanical inspection.
Pneumatic delay can sustain repeated correction
Unstable supply pressure, a restricted filter, obstructed tubing, actuator leakage or inappropriate booster settings can delay changes in loading pressure. Loose feedback linkage or sensor backlash may also cause the positioner to correct an inaccurate position error.
The process loop may be driving the movement
Aggressive controller tuning, an unstable measurement or upstream pressure disturbance may produce a continuously changing command. If normal flow is controlled within a small part of valve travel, a minor stem movement can also create a large process response and prompt another correction.
Check whether the command starts oscillating before the valve moves. A stable command with oscillating output pressure points towards the positioner or pneumatic system. Smooth pressure change with jumping stem travel points towards friction or changing process force.
Why the Valve May Move Slowly or Stop Before Full Travel
Travel speed depends on the rate at which actuator pressure changes. Reaching the end position also depends on whether the resulting force can overcome spring load, friction and process force.
Air cannot enter or leave the actuator quickly enough
A blocked filter, incorrectly adjusted regulator, narrow tubing or restricted fitting can limit the rate at which the actuator chamber fills. A blocked vent, contaminated silencer or incorrectly configured pneumatic accessory can slow the exhaust stroke.
Leakage through tubing, fittings, the actuator casing or the diaphragm reduces available pressure. A small leak may slow the stroke, while a larger leak may prevent full travel.
Available force falls short of the operating load
Tight packing, corrosion, stem misalignment and internal contact consume actuator force. Pressure drop across an unbalanced single-seat plug adds another load that changes with operating conditions.
A valve may complete its travel during an offline test but stop short after process pressure is applied. This difference indicates that operating force, rather than calibrated travel alone, needs to be examined.
A mechanical or feedback limit can imitate low force
A partially engaged handwheel, incorrectly set travel stop or trapped debris can physically restrict movement. Incorrect calibration, loose linkage or a shifted travel sensor can indicate full travel before the plug reaches its intended position.
Compare both travel directions
Slow movement with a slow pressure change points towards the pneumatic path or positioner. Normal pressure change with little stem movement points towards friction, obstruction or process force. A problem in only one direction narrows the check to the corresponding filling or exhaust path and the direction of process load.
Manual movement, pressure testing and travel-stop adjustment should be performed under authorised conditions. Forcing the stem past an obstruction can damage the plug, seat, stem or actuator linkage.
Why a Single-Seat Valve May Pass Flow When Closed
A closed command, a 0% position indication and effective shut-off are different conditions. Actual shut-off requires the plug to reach the seat, apply sufficient seating force and contact an undamaged sealing surface.
The closed indication may not represent seat contact
Shifted calibration, loose feedback linkage or an incorrectly adjusted travel sensor can display 0% before the plug reaches the seat. A mechanical travel stop or partially engaged handwheel can produce the same result.
Closing force may be insufficient
Low supply pressure, restricted air flow, diaphragm leakage or incorrect positioner output can weaken an air-driven closing stroke. During spring-driven closing, packing resistance and process force may prevent the springs from completing the movement.
High pressure drop across an unbalanced plug can make poor shut-off more noticeable. The closing mechanism should be checked under operating pressure rather than judged only from an unpressurised stroke test.
The seating surfaces may be obstructed or damaged
Scale, fibres, weld debris and other solids can become trapped between the plug and seat. Throttling close to the seat may also produce erosion, scoring or wire drawing. A bent stem or worn guide can prevent even contact around the seating surface.
Confirm the leakage path and acceptance requirement
Flow may continue through an open bypass, equalising line, leaking isolation valve or connected branch while the control valve remains closed. A drifting flowmeter or pressure change in trapped fluid can also be mistaken for seat leakage.
A closed control valve is not automatically a zero-leakage isolation device. Acceptable leakage depends on the specified leakage class, seat construction, test pressure and test medium. The observed result should be compared with the applicable acceptance requirement before the valve is classified as defective.
Do not conceal persistent leakage by shifting the positioner zero or forcing the handwheel beyond its intended travel. Excessive seating load can damage the plug, seat or stem without correcting debris, erosion or misalignment.
Diagnose the Complete Chain Before Blaming the Valve
The first abnormal relationship in the control chain usually provides the clearest fault boundary. Compare the controller command, positioner output pressure, actuator pressure, physical stem travel and process response in that order.
Start with the controller command
An oscillating command means the valve is being instructed to move repeatedly. Check the process measurement, transmitter signal, controller tuning and upstream disturbances before changing the positioner.
If the command remains stable while the valve continues to move, the fault boundary shifts towards the positioner, feedback mechanism, pneumatic system or actuator.
Follow pressure into stem movement
Little or no positioner pressure response points towards signal configuration, positioner operation or instrument-air supply. A pressure response that rises or falls slowly suggests a restricted filter, tubing, fitting, vent or pneumatic accessory.
When actuator pressure changes normally but the stem remains stationary, moves late or stops short, the available force is being absorbed elsewhere. Check diaphragm leakage, packing friction, alignment, travel obstructions and process force acting on the plug.
Separate indicated travel from actual travel
Compare the indicated percentage with physical stem position at both ends of travel. A shifted sensor or loose linkage may show full opening or closing before the plug reaches its intended position.
If the stem follows its command correctly but flow remains wrong, move the investigation beyond the actuator. Check pressure drop, trim condition, seat leakage, bypass paths, flow measurement and piping-system resistance.
Use a controlled step test
Under an authorised operating condition, apply small command changes and record positioner output pressure, actual stem travel and process response. Compare opening and closing movement. A difference between directions can expose packing friction, an exhaust restriction or process force that assists one stroke and opposes the other.
Keep the process condition as stable as practical and change one adjustment at a time. Simultaneous changes to controller tuning, positioner settings, packing compression and travel calibration remove the evidence needed to identify the original fault.
Conclusion
In this diaphragm control valve, the actuator supplies stem force, the positioner corrects travel, and the single-seat trim controls the process fluid. Hunting, slow travel and poor shut-off should therefore be traced across the complete chain before any component is replaced. The MacoTango pneumatic control valve page shows the complete valve arrangement discussed here.
