When it comes to controlling fluid flow in industrial applications, choosing the right type of valve is crucial to ensuring efficiency, safety, and reliability. Among the many valve types available, diaphragm valves and ball valves are two of the most widely used. Each has its own set of features, advantages, and ideal use cases, making them suitable for different operational needs. Diaphragm valves are known for their precise flow control, chemical resistance, and ability to prevent contamination, making them a popular choice in industries like pharmaceuticals and food processing. On the other hand, ball valves are valued for their durability, ease of operation, and versatility in handling high-pressure and high-temperature environments. In this article, we will explore the key differences between diaphragm and ball valves, helping you understand when each type is best suited for specific applications and how to make an informed decision based on your system’s needs.

What is a Diaphragm Valve?

A diaphragm valve is a type of valve that controls the flow of fluids through the use of a flexible diaphragm, usually made of rubber or synthetic materials. The diaphragm is pressed against a seat to seal the valve and prevent the passage of fluid. This valve is often used in situations where a tight seal is essential, especially for corrosive or abrasive substances.

How Does a Diaphragm Valve Work?

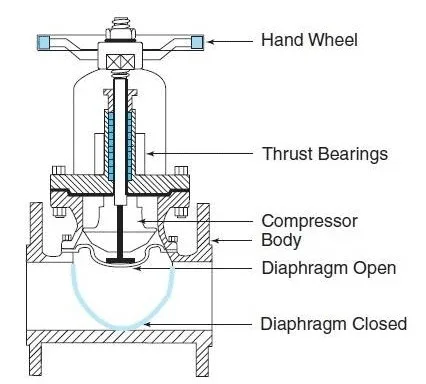

A Diaphragm Valve Diagram

Basic Components:

• Diaphragm: The flexible diaphragm is the key component of the valve. It sits between the valve body and the valve bonnet.
• Valve Body: The main part of the valve that houses the diaphragm and allows the flow of fluid.
• Compressor or Actuator: The device that moves the diaphragm to control the flow. It could be manual (e.g., handwheel) or automated (e.g., pneumatic or electric actuator).
• Flow Path: The path through which fluid flows when the valve is open.

Valve Operation:

• Closed Position: When the actuator or handwheel applies pressure, it pushes the diaphragm downward. This action seals the diaphragm against the valve seat, blocking the flow of fluid.
• Open Position: When the pressure on the diaphragm is released, the diaphragm lifts, opening the flow path and allowing fluid to pass through the valve.

Control:

• The diaphragm’s movement can be adjusted to precisely control the flow rate. In manual systems, operators adjust the actuator to get the desired flow, while automated systems offer more precise control.
• In many diaphragm valves, the design ensures that the diaphragm never comes into direct contact with the process fluid, providing a reliable seal and preventing leakage.

What is a Ball Valve?

A ball valve is a valve that controls fluid flow using a spherical ball with a hole in the middle (also known as a port). When the valve handle is rotated, the ball rotates inside the valve body, aligning the port with the flow path and allowing fluid to pass through. When the handle is turned in the opposite direction, the port is rotated away from the flow path, stopping the flow.

How Does it Work?

Ball valves operate by rotating the ball to open or close the valve. The handle is typically turned 90 degrees to fully open or close the valve. The simplicity of this design allows for a smooth, quick operation, and ball valves are often used in situations where a rapid shutoff is needed.

Diaphragm Valve vs Ball Valve: Key Differences

When choosing between a diaphragm valve and a ball valve, it’s crucial to consider the differences in their design, applications, performance characteristics, and maintenance needs. Here’s a breakdown of the key factors that differentiate these two valve types:

1. Design and Operation

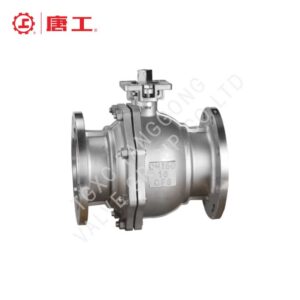

• Ball Valve: A ball valve has a spherical ball inside the valve body. The ball rotates 90 degrees to either open or close the valve. Its quarter-turn operation makes it easy to use and highly efficient for quick on/off control of fluid flow. This simplicity gives ball valves a robust and durable design.

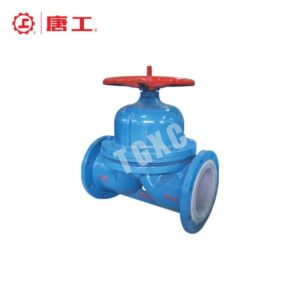

• Diaphragm Valve: A diaphragm valve operates with a flexible diaphragm, usually made from rubber or plastic, that moves up and down to control the flow. It is a linear valve, meaning it requires more movement to regulate flow compared to the ball valve’s quarter-turn. The diaphragm acts as a barrier between the flow media and the valve body, which makes diaphragm valves ideal for applications where contamination prevention and flow regulation are critical.

2. Applications

• Ball Valve: These valves are ideal for systems requiring quick on/off control with minimal flow restriction. Ball valves are commonly found in oil and gas pipelines, water treatment facilities, and industrial fluid control systems. Their ability to handle high pressures and temperatures makes them a preferred choice for demanding environments.
• Diaphragm Valve: Diaphragm valves excel in industries where fluid purity and flow control precision are paramount. They are widely used in the pharmaceutical, food processing, and biotechnology sectors due to their ability to prevent contamination. These valves are also valuable in applications where fluids need to be isolated from the external environment.

3. Performance and Control

• Ball Valve: Ball valves are known for their efficiency and durability. They offer high flow capacity and quick operation. Their spherical ball allows for minimal friction loss, making them ideal for applications that require a full port and low maintenance.
• Diaphragm Valve: Diaphragm valves are preferred when precise flow regulation is needed. Their flexible diaphragm enables accurate and consistent control, which is especially important in sensitive processes where fine adjustments are necessary. The diaphragm also serves as a barrier, preventing contamination or leakage.

4. Maintenance

• Ball Valve: Ball valves require less frequent maintenance, especially if the ball and valve casing are made of durable materials like stainless steel. These valves are robust and less prone to wear and tear. Since they don’t have stem packing, they are less likely to develop leaks over time.
• Diaphragm Valve: Diaphragm valves typically require more maintenance because the diaphragm material can degrade over time, leading to a need for replacements. The complexity of the diaphragm design can also make servicing more challenging, which can increase maintenance costs and downtime.

5. Cost

• Ball Valve: Ball valves tend to be more affordable due to their simpler construction and manufacturing process. They are cost-effective in applications where simplicity and efficiency are prioritized.
• Diaphragm Valve: Diaphragm valves are generally more expensive, as they require more intricate design and materials, particularly those used in food and pharmaceutical industries. The added precision and contamination control capabilities contribute to their higher initial cost.

Pros and Cons: Diaphragm Valve vs Ball Valve

Pros and Cons Chart of Diaphragm Valve

Pros and Cons Chart of Ball Valve

When to Choose Diaphragm Valves Over Ball Valves?

Precise Flow Control:Diaphragm valves are ideal for applications requiring fine adjustments in flow, such as in pharmaceuticals, food processing, and biotech, where accuracy is critical.

Corrosive or Slurry Handling:Diaphragm valves are better suited for handling abrasive, corrosive, or slurry media due to their design that isolates the fluid from the valve mechanism, reducing damage and contamination risks.

Contamination-Free Operation:Their ability to prevent contamination makes diaphragm valves perfect for sterile environments where fluid purity is crucial, like in food and pharmaceutical industries.

Variable Flow Conditions:Diaphragm valves can regulate a wide range of flow rates, making them suitable for applications where variable or low flow control is needed.

Durability in Harsh Conditions:Although requiring more maintenance, diaphragm valves are more durable than ball valves in systems dealing with chemicals and abrasive materials.

Conclusion

Choosing between diaphragm valves and ball valves depends on the specific needs of your application. Diaphragm valves are ideal for precise flow control, contamination prevention, and handling corrosive or abrasive media, making them perfect for industries like pharmaceuticals and food processing. They provide accurate regulation but require more maintenance. Ball valves, on the other hand, offer durability, easy operation, and cost-effectiveness, making them suitable for high-pressure, high-temperature applications like oil and gas. However, they are less effective for precise throttling or contamination-sensitive environments. Ultimately, the decision comes down to flow control needs, media type, and operating conditions.
