When comparing a single acting vs double acting pneumatic actuator, the main question is not which design is better in every case. The real question is which actuator gives the valve the right fail position, torque, air use, and control behaviour for the process.
In industrial valve service, a single acting pneumatic actuator usually uses compressed air for one stroke and a spring for the return stroke. A double acting pneumatic actuator uses compressed air in both directions. This small design difference affects safety logic, actuator size, solenoid valve choice, cycle speed, and maintenance.
This article compares the two actuator types in practical valve terms, including fail-open, fail-closed, air consumption, cycle duty, and selection points. If you are matching an actuator with a control valve package, MacoTango’s control valve series is the natural product path to review after the comparison.
What Do Single Acting and Double Acting Mean?
In pneumatic actuators, “single acting” and “double acting” describe how compressed air moves the actuator and how the actuator returns. The terms are often used for cylinders, but in valve automation they are most important because they affect the valve’s safe position during air loss.
A single acting pneumatic actuator uses air pressure for one direction of travel. A spring, or sometimes another external return force, moves it back when air pressure is removed. This is why single acting actuators are often called spring-return actuators.
A double acting pneumatic actuator uses air pressure in both directions. One air port drives the valve open, and another air port drives it closed. This design does not normally return to a safe position by spring force, so the valve usually stays near its last position if air supply is lost unless an extra fail-safe system is added.
How a Single Acting Pneumatic Actuator Works

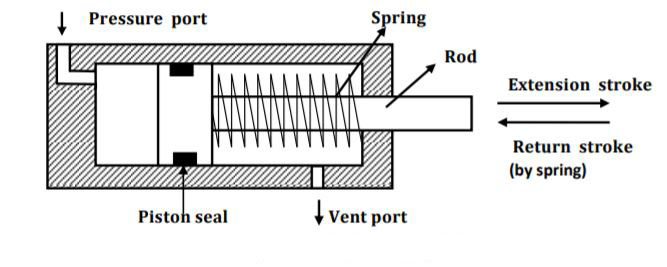

A single acting pneumatic actuator uses compressed air to move the actuator in one direction. When the air signal is removed, an internal spring pushes the actuator back to its original position. This spring-return action is the main reason single acting actuators are used where the valve must move to a defined safe position during air failure.
For a quarter-turn valve, the actuator may use air pressure to turn the valve open while the spring turns it closed, or the opposite arrangement may be used. The selected spring direction depends on whether the process needs the valve to fail closed or fail open.
- Air pressure drives one actuator stroke.
- The spring drives the return stroke.
- A 3/2 solenoid valve is commonly used for on-off control.
- Loss of air supply sends the actuator to its spring-return position.
- The spring package can make the actuator larger than a similar double acting unit.
In valve selection, this design is useful when the process has a clear safety preference. For example, fuel, steam, chemical feed, or emergency shut-off service may need a valve that moves to a known open or closed position when plant air is lost.
How a Double Acting Pneumatic Actuator Works
A double acting pneumatic actuator uses compressed air for both strokes. Air enters one side of the actuator to move the valve in one direction, then air enters the opposite side to move it back. There is no main return spring doing the second movement.
For a quarter-turn valve, one air chamber may rotate the shaft to open the valve, while the other chamber rotates it to close the valve. This makes the actuator fully air-driven in both directions and often gives a compact design for the torque output.
- Air pressure drives both opening and closing movement.
- A 5/2 or 4/2 directional control valve is commonly used for on-off control.
- The actuator does not normally move to a spring-return position during air loss.
- The valve may stay near its last position unless a separate fail-safe system is added.
- It can suit frequent cycling, larger valve torque, and applications where fail-last behaviour is acceptable.
This design is common where the process needs strong movement in both directions, or where the buyer wants a smaller actuator body than a spring-return design of similar output. The trade-off is that fail-safe behaviour must be reviewed carefully, especially for shut-off, venting, fuel, steam, or chemical dosing service.
Key Differences Between Single Acting and Double Acting Pneumatic Actuators
The main difference is the return method. A single acting actuator depends on a spring return, while a double acting actuator depends on air pressure in both directions. That difference changes the fail position, air circuit, actuator size, and the way the valve should be selected.
The table below compares the two designs from an industrial valve selection point of view.
| Factor | Single Acting Pneumatic Actuator | Double Acting Pneumatic Actuator | Selection Note |
|---|---|---|---|
| Return method | Spring return | Air return | Single acting is simpler for fail-safe movement. |
| Air ports | Usually one active air port | Two active air ports | Double acting needs a different air control circuit. |
| Air failure behaviour | Moves to spring-return position | Usually stays near last position | Check process safety before choosing. |
| Torque output | Spring load affects available torque | Air drives both directions | Double acting may suit higher operating torque. |
| Actuator size | Often larger due to spring pack | Often more compact for same duty | Check installation space. |
| Air use | Air used for one stroke | Air used for both strokes | Review air supply and cycle rate. |
| Typical use | Safety shut-off or fail-open duty | Frequent cycling or stable air supply | Match actuator action to process risk. |
Use this comparison as a first filter, not the final selection. For more pages that compare valve and actuator choices, see MacoTango’s valve comparison guides.
Fail Open, Fail Closed, and Fail in Last Position
Fail position is one of the most important reasons to compare single acting and double acting pneumatic actuators. It describes what the valve should do when air pressure, power, or control signal is lost. In many industrial systems, this is a safety decision before it is a cost decision.
A single acting actuator can be arranged as fail closed or fail open. If the spring closes the valve when air is removed, the valve is fail closed. If the spring opens the valve when air is removed, the valve is fail open. The correct choice depends on what is safer for the medium and process.
A double acting actuator is different. Because air drives both directions, it normally has no spring to force the valve to a preset safe position. If air supply is lost, the valve may stay near its last position. This is sometimes called fail in last position, but the real behaviour depends on the valve load, actuator design, air circuit, and any added fail-safe accessories.
For shut-off, venting, fuel, steam, and chemical dosing duties, the fail position should be defined before the actuator is sized. A valve that controls process flow is part of a wider automation package, so it also helps to understand how actuated valves work as a complete valve, actuator, and control system.
Torque, Air Use, Size, Cycle Speed, and Maintenance
Single acting and double acting pneumatic actuators also differ in daily operation. The right choice is not only about fail position. It also affects torque output, air consumption, installation space, cycle speed, and long-term maintenance.
A single acting actuator must overcome the valve load and the spring force. This can reduce the usable torque in one direction and may require a larger actuator body. A double acting actuator uses air pressure both ways, so it can often give more balanced force in open and close movement.
- Torque: Double acting actuators often suit higher or more balanced torque needs, while single acting units must be checked against spring load.
- Air use: Single acting actuators use air for one stroke, while double acting actuators use air for both strokes. Cycle rate changes the real plant-air demand.
- Size: A spring-return actuator may need a larger housing because of the spring pack.
- Cycle speed: Double acting units can be easier to tune in both directions, but actual speed depends on valve load, air pressure, tubing, solenoid size, and exhaust control.
- Maintenance: Single acting actuators add spring inspection risk, while both designs still need clean, dry air and seal checks.
- Control accessories: Limit switches, solenoid valves, positioners, speed controllers, and air filter regulators should match the actuator action.
For on-off isolation service, these differences may be simple to manage. For modulating control, high cycling, or safety-related shut-off duty, the actuator should be checked with the valve torque or thrust demand, not chosen only by catalogue size.
How to Choose the Right Pneumatic Actuator for an Industrial Valve
Choosing between a single acting and double acting pneumatic actuator starts with the valve’s safe position. After that, check valve motion, torque or thrust, air supply, cycle duty, space, control accessories, and maintenance access. For wider valve selection context, see MacoTango’s valve selection guides.
The matrix below gives a practical first filter for industrial valve packages.
| Selection Factor | Choose Single Acting When | Choose Double Acting When | What to Check |
|---|---|---|---|
| Fail position | Valve must fail open or fail closed | Fail-last is acceptable | Process safety state |
| Valve motion | Quarter-turn or linear valve needs spring return | Valve needs air-driven movement both ways | Rotary or linear action |
| Torque or thrust | Spring-return torque is enough | Higher or balanced output is needed | Breakaway and seating torque |
| Air supply | Plant air may be interrupted | Stable air supply is available | Pressure, dryness, filtration |
| Cycle duty | Low or moderate cycle service | Frequent cycling is expected | Cycle rate and seal wear |
| Installation space | Larger spring housing can fit | Compact actuator body is preferred | Clearance and access |
| Control accessories | Simple on-off fail-safe control is needed | More active control in both directions is needed | Solenoid, positioner, switches |
After choosing fail action, also confirm whether the valve needs rotary or linear movement. MacoTango’s guide to pneumatic rotary and linear actuators can help with that next decision. For part-turn valve mounting, the ISO 5211 mounting standard is also worth checking before final actuator selection.
Common Selection Mistakes
Most actuator problems start before installation. The actuator may look correct on paper, but the valve can still fail to open, fail to close, cycle too slowly, or move to the wrong position during air loss. These mistakes are common when selection focuses only on actuator type or price.
- Choosing by price only: A cheaper double acting actuator may not be safe if the process needs a spring-return fail position.
- Ignoring fail position: The buyer must confirm whether the valve should fail open, fail closed, or stay near its last position.
- Confusing actuator action with valve normal position: A normally closed valve and a fail-closed valve are related ideas, but they are not always the same selection detail.
- Underestimating valve torque: Breakaway torque, pressure differential, seat friction, temperature, and media build-up can all increase the required actuator output.
- Forgetting air quality: Wet or dirty compressed air can damage seals, slow movement, and shorten service life.
- Missing control accessories: Solenoid valves, limit switches, positioners, speed controllers, and air filter regulators should match the actuator action.
- Ignoring maintenance access: Spring packs, seals, tubing, and accessories need enough space for inspection and replacement.
A good actuator choice should make the valve move correctly during normal operation and predictably during failure conditions. That is why fail action, valve torque, air supply, and control accessories should be reviewed together.
Need Help Choosing a Pneumatic Actuator?
Single acting pneumatic actuators are often the better choice when the valve must move to a clear fail-open or fail-closed position. Double acting pneumatic actuators can be a better fit when the process has stable air supply, frequent cycling, higher torque demand, or acceptable fail-last behaviour.
If you are choosing an actuator for an industrial valve package, share the medium, valve type, operating pressure, required fail position, available air supply, signal type, cycle duty, and installation limits. You can contact MacoTango engineers to review the actuator action with the valve body and control accessories before final selection.
