Control valves are essential components in various industrial systems, regulating fluid flow to ensure optimal performance and efficiency. Among the different types, single-seat and sleeve control valves are commonly used, each with distinct structural designs and operational characteristics. Single-seat control valves feature a straightforward design with a single valve seat and plug, making them suitable for applications requiring precise flow control in smaller systems. In contrast, sleeve control valves incorporate a valve plug that moves inside a perforated sleeve, allowing for better flow characteristics and enhanced performance in larger systems with higher pressure differentials. Understanding the differences between single seat and sleeve control valves are crucial for selecting the appropriate valve to meet specific operational requirements.
What is a Single Seat Control Valve?
A single-seat control valve, commonly known as a single-port valve, is a type of control valve designed to regulate fluid flow within a piping system. It features a straightforward design comprising a valve body, a single valve plug, and a seat. The valve plug directly contacts the seat to control the flow of the medium.
Key Features:
-
Simplicity and Compactness: The single-seat control valve boasts a simple and compact design, making it easy to maintain and install.
-
High Flow Control Accuracy: This valve type offers precise control over flow rates, ensuring accurate regulation of fluid movement within the system.
Typical Applications:
Single-seat control valves are ideal for applications involving small diameters and low-pressure differentials. They are commonly used in industries such as:
-
Oil and Gas Production: Regulating the flow of oil and gas in production facilities.
-
Power Generation: Controlling the flow of steam and other fluids in power plants.
-
Chemical Processing: Managing the flow of chemicals in processing plants.
What is a Sleeve Control Valve?

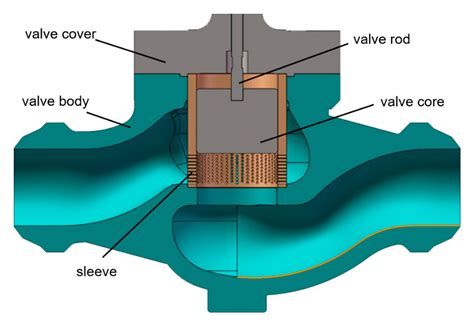

A sleeve control valve is a specialized type of control valve designed to regulate fluid flow in systems requiring precise control under challenging conditions. Unlike traditional single-seat valves, sleeve control valves feature a valve plug that moves inside a perforated sleeve, allowing for enhanced flow characteristics and improved performance in demanding applications.
Key Features:
-
Noise Reduction: The design of sleeve control valves, with their perforated sleeve, helps in dissipating energy and reducing noise levels during operation.
-
Vibration Resistance: The uniform distribution of flow through the holes in the sleeve contributes to better vibration resistance, ensuring stable operation even under fluctuating pressures.
-
Clogging Prevention: The sleeve’s design minimizes the risk of clogging by allowing debris to pass through the perforations, making these valves suitable for applications where particulate matter is present in the fluid.
Typical Applications:
Sleeve control valves are particularly suited for large diameter and high-pressure differential systems, including:
-
Reservoir Discharge: Used to control flow and dissipate excess energy from a reservoir outlet, often in areas with a high pressure drop.
-
Pressure Regulation: Employed to reduce pressure from a high-pressure supply to a lower-pressure distribution zone, or to discharge into a tank or reservoir at greatly reduced pressure to minimize damage.
-
Turbine Bypass: Utilized to bypass an energy recovery turbine, minimizing upstream and downstream pressure surges by slowly opening and closing in proportion with the turbine.
-
Tank Level Control: Ideal for controlling the water level in a distribution system storage tank in potable water applications.
Key Differences Between Single Seat and Sleeve Control Valves
Understanding the differences between single-seat and sleeve control valves are essential for selecting the appropriate valve for specific applications. Below is a comparison based on design complexity, performance under pressure, flow characteristics, and suitability by pipe diameter.
Design Complexity
-
Single Seat Control Valves: These valves feature a straightforward design with a single valve seat and plug, resulting in a compact and simple structure. This simplicity facilitates ease of maintenance and installation.
-
Sleeve Control Valves: In contrast, sleeve control valves incorporate a more intricate design, with a valve plug moving inside a perforated sleeve. This multi-hole configuration enhances flow control capabilities but adds to the valve’s complexity.
Performance Under Pressure
-
Single Seat Control Valves: While these valves offer high flow control accuracy, they have limitations under high-pressure differentials. Excessive pressure can lead to noise and vibration, potentially affecting system stability.
-
Sleeve Control Valves: Designed to handle larger pressure differentials, sleeve control valves provide enhanced stability. The uniform distribution of flow through the sleeve’s perforations helps in reducing noise and vibration, ensuring smoother operation under varying pressures.
Flow Characteristics
-
Single Seat Control Valves: These valves typically offer linear flow characteristics, making them suitable for applications where a direct relationship between valve position and flow rate is desired.
-
Sleeve Control Valves: Often designed with equal percentage flow characteristics, sleeve control valves provide a consistent percentage change in flow for equal increments of valve travel. This feature is advantageous in applications requiring precise control over a wide range of flow rates.
Suitability by Pipe Diameter
-
Single Seat Control Valves: Ideal for smaller diameter pipes, these valves are commonly used in applications where space constraints and cost considerations are significant factors.
-
Sleeve Control Valves: Recommended for larger diameter pipes (DN80 and above), sleeve control valves are better suited for high-flow applications where precise control and stability are paramount.
In summary, the choice between single-seat and sleeve control valves should be guided by specific operational requirements, including pipe diameter, pressure conditions, desired flow characteristics, and the complexity of the valve design.
Advantages and Limitations Between Single Seat and Sleeve Control Valves
| Valve Type | Pros | Cons |
| Single Seat Valves | Cost-effective, precise flow control, easy maintenance, compact design. | Noise and vibration issues in high-pressure systems, limited to smaller diameters, less effective under high-pressure differentials. |
| Sleeve Valves | Durability in harsh conditions, reduced noise and vibration, better clogging resistance, stable performance under high pressure. | Higher initial cost, more complex design leading to increased maintenance, larger footprint. |
How to Choose Between Single Seat and Sleeve Valves
Selecting the appropriate control valve is crucial for optimizing system performance and efficiency. The choice between single-seat and sleeve control valves depends on several critical factors:
Critical Factors:
-
Pipe Diameter (DN): The size of the pipe influences the valve’s capacity and suitability.
-
Pressure Differential: The difference in pressure across the valve affects its performance and longevity.
-
Flow Control Needs: The required precision and range of flow control determine the appropriate valve type.
Guidelines:
-
For Small Diameter Pipes (DN < 80): Single-seat valves are typically recommended due to their cost-effectiveness and suitability for smaller systems.
-
For Large Diameter Pipes (DN ≥ 80): Sleeve valves are preferred, especially when operating under high-pressure differentials, as they offer better stability and noise reduction.
-
For High-Pressure Differential Systems: Sleeve valves are advantageous due to their ability to handle larger pressure differences without compromising performance.
-
For Standard Flow Control Needs: Single-seat valves provide precise control and are suitable for applications where high precision is not critical.
Real-World Applications and Case Studies
Understanding the practical applications of single-seat and sleeve control valves is essential for selecting the appropriate valve for specific industrial needs. Below are examples illustrating their use in HVAC systems and oil and gas pipelines.
Single Seat Control Valves in HVAC Systems
In HVAC systems, single-seat control valves are commonly employed to regulate the flow of heating or cooling fluids, ensuring precise temperature control within buildings. Their straightforward design and high flow control accuracy make them suitable for managing the flow of water or steam in heating and cooling applications. For instance, in a commercial building’s heating system, a single-seat control valve can adjust the flow of hot water to radiators, maintaining the desired room temperature efficiently. These valves are also utilized in air handling units to control the flow of chilled water, contributing to effective cooling.
Sleeve Control Valves in Oil and Gas Pipelines
In the oil and gas industry, sleeve control valves are utilized to manage the flow of fluids through pipelines, especially in applications requiring high-pressure differentials. Their design allows for better flow characteristics and enhanced vibration resistance, making them ideal for the demanding conditions of oil and gas transportation. For example, in offshore oil platforms, sleeve control valves are used to regulate the flow of crude oil from the wellhead to the processing facilities, ensuring stable operation under varying pressure conditions. Additionally, these valves are employed in gas pipelines to control the flow of natural gas, maintaining pressure and flow rates within safe and efficient operating ranges.
Conclusion
In summary, single-seat and sleeve control valves each offer distinct advantages depending on the application. Single-seat valves are ideal for smaller systems with lower pressure differentials, offering simplicity, cost-effectiveness, and precise flow control. On the other hand, sleeve control valves excel in larger systems requiring higher pressure differentials, providing enhanced stability, noise reduction, and clog resistance. When choosing between the two, consider factors such as pipe diameter, pressure conditions, and flow control needs. For optimal performance, it’s always a good idea to consult industry experts who can recommend tailored solutions for your specific requirements.
