Butterfly valves are a cornerstone in fluid control systems across many industries, including water treatment, oil & gas, power generation, and HVAC systems. These valves are critical in controlling the flow of liquids, gases, and slurries, making them essential in managing industrial processes. However, the performance of a butterfly valve is highly dependent on the type of gear mechanism used to operate it. In this article, we will explore the different butterfly valve gear types, their applications, and how selecting the right one can impact efficiency, maintenance, and long-term reliability.

What Are Butterfly Valves

Butterfly valves are used to regulate or isolate the flow of fluids in pipelines. They consist of a disc that rotates to open or close the flow passage, and their compact design allows for cost-effective operation in various applications. The gear mechanism of the butterfly valve plays a pivotal role in the operation and performance of the valve, ensuring that the valve opens and closes smoothly and precisely.

Industries like water treatment, oil & gas, power plants, and HVAC systems rely on butterfly valves for their ability to handle a wide range of pressures, temperatures, and fluid types. The valve’s design allows for easy integration into pipeline systems, and the choice of gear mechanism is crucial in ensuring smooth operation and reliable performance.



Types of Butterfly Valve Gear Mechanisms

There are four main types of gear mechanisms used in butterfly valves: manual, electric, pneumatic, and hydraulic. Each type has its own set of advantages, limitations, and ideal applications. Let’s explore them in detail:

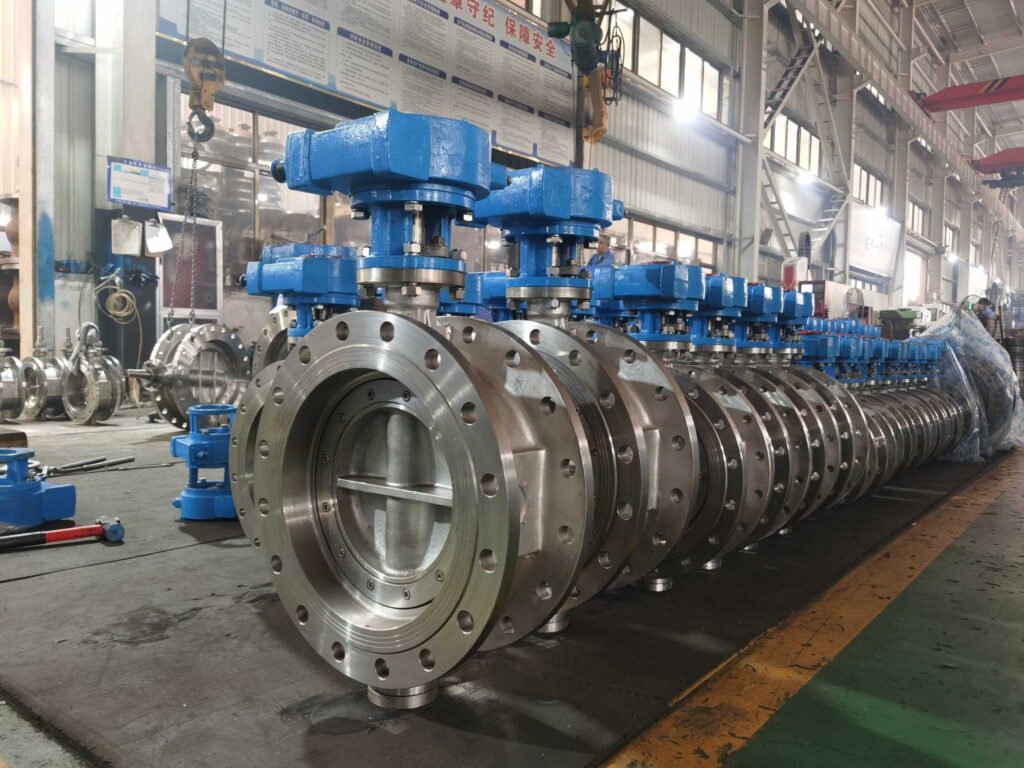

1. Manual Butterfly Valve Gear

A manual butterfly valve gear is a mechanism used to operate a butterfly valve, allowing for precise control of fluid flow through pipelines. This valve type is widely used across industries such as water treatment, chemical processing, and HVAC systems. It is particularly advantageous in applications where space is limited, and ease of operation is critical. The manual operation is achieved through the use of a gear mechanism that assists in turning the valve’s disc to regulate flow.

Key Components and Functionality

A butterfly valve consists of several primary components, including the valve body, disc, stem, and seal. The disc is the primary component that controls flow. The stem connects the disc to the actuator, which, in the case of a manual gear-operated valve, is a gear system. The gear system allows for controlled, slow rotation of the valve’s disc, ensuring that the valve is not over-tightened or damaged during operation.

The manual gear is typically mounted on the valve body, and it can be operated via a hand wheel or crank. The gear reduces the amount of force required to turn the valve, making it easier for operators to manage the valve, especially when dealing with larger valve sizes that require significant torque to turn the disc.

Benefits of Manual Gear Operated Butterfly Valves

1. Precise Control: The gear mechanism provides more accurate control over the valve’s operation, particularly in systems that require fine adjustments to regulate flow rates.
2. Ease of Use: Manual operation is often preferred in systems where electrical or pneumatic actuators are not viable, due to budget constraints or lack of power sources.
3. Durability: Manual gear-operated butterfly valves are robust, providing reliable performance in both low and high-pressure environments.
4. Versatility: They can be used in various industries for different applications, including water distribution, gas pipelines, and industrial fluid handling systems.

Types of Manual Butterfly Valve Gears

1. Standard Manual Gear: The simplest design, often used for smaller valves. It provides an efficient and straightforward mechanism for controlling the valve’s operation.
2. Heavy-Duty Manual Gear: Designed for larger valves, this type of gear operates under higher pressure and flow conditions. It is often used in industrial and municipal applications where the size of the valve requires significant manual effort to operate.
3. Double-Acting Gear: Used for valves that require more precise control, these gears allow for easier operation and a more consistent valve response, especially in larger valve sizes.

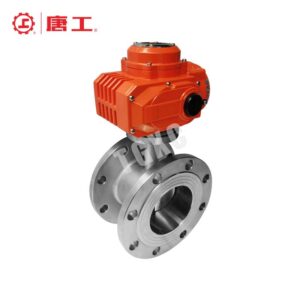

2.Electric Butterfly Valve Gear

Electric butterfly valves are equipped with an electric actuator that turns electrical energy into mechanical motion to control the valve. These valves can operate with high precision, providing fine throttling and isolation in fluid systems. Unlike manual valves, electric actuators offer remote operation capabilities, making them ideal for automated systems where efficiency, reliability, and consistent performance are crucial.

Key Features of Electric Butterfly Valve Gears

• Automation: Electric actuators enable automatic valve operation, which can be integrated into broader process control systems for enhanced efficiency and remote monitoring.
• Precision Control: They offer precise control of flow, making them suitable for applications requiring fine adjustments.
• Compact Design: Electric butterfly valves have a slim profile, which minimizes space requirements and reduces pressure drops across the valve.
• High Torque Capacity: They can generate sufficient torque for larger or more demanding valves, making them versatile for a variety of industrial applications.
• Energy Efficiency: Compared to pneumatic or hydraulic systems, electric butterfly valve actuators typically consume less energy and provide faster response times.
• Quiet Operation: Electric actuators operate more quietly than pneumatic systems, which is beneficial in noise-sensitive environments.

Advantages of Electric Butterfly Valve Gears

1. Remote Control: Electric actuators allow for remote valve operation, reducing the need for manual intervention and making them ideal for inaccessible or hazardous environments.
2. Fast and Efficient Operation: They offer quicker response times compared to mechanical or manual systems, reducing downtime and improving system productivity.
3. Low Maintenance: Electric butterfly valves generally require less frequent maintenance than pneumatic or hydraulic valves, which can be more complex and prone to failure due to moving parts or fluid leaks.
4. Energy Savings: These valves tend to consume less power than pneumatic or hydraulic counterparts, especially in low-power applications.



3. Pneumatic Butterfly Valve Gear

Pneumatic butterfly valve gears are widely used for controlling the flow of fluids in various industrial applications. These actuators are particularly well-suited for environments requiring rapid valve operation, frequent cycling, or automated control. Pneumatic actuators utilize compressed air to generate rotational force, which drives the valve’s disc to open or close.

The pneumatic actuator operates by directing compressed air into the actuator chamber. The air pressure moves a piston or diaphragm within the actuator, converting the energy into torque. This torque is then transferred through the valve shaft, rotating the butterfly valve’s disc to regulate flow. Pneumatic actuators come in two configurations: single-acting and double-acting. A single-acting actuator uses spring return mechanisms, while a double-acting actuator requires air supply for both opening and closing the valve.

These actuators offer several advantages:

1. Fast Response Times: Pneumatic actuators can respond almost instantaneously to changes in the control signal, making them ideal for operations requiring quick adjustments.
2. Safety: Due to their reliance on air pressure, pneumatic valves are inherently safe for use in hazardous environments, such as those with explosive atmospheres. Pneumatic actuators do not rely on electrical power, reducing the risk of sparks and explosions.
3. Simple Design and Low Maintenance: Pneumatic actuators generally have fewer moving parts compared to electric actuators, making them simpler to maintain and more durable over time.
4. Cost-Effectiveness: Compared to electric or hydraulic actuators, pneumatic systems tend to be less expensive, making them an economical choice for many applications.

However, pneumatic actuators also have limitations:

• They require a continuous supply of compressed air, which can lead to operational inefficiencies if the air quality is not properly managed.
• While they are fast, pneumatic actuators generally do not offer the same precision and control as electric actuators, making them less ideal for processes requiring fine adjustments.

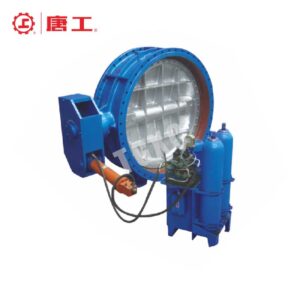

4. Hydraulic Butterfly Valve Gear

A hydraulic butterfly valve gear is an essential component in controlling the operation of butterfly valves in fluid systems. These valves are used to regulate the flow of liquids or gases by rotating a disc within a pipe, with the hydraulic actuator providing the necessary force to open and close the valve. The hydraulic actuator works by using pressurized fluid, typically oil, to generate the movement required for valve operation.

Hydraulic actuators are preferred for larger butterfly valves, especially in heavy-duty industrial applications, where higher torque is needed to operate the valve efficiently. These actuators are particularly useful in applications where precise control and strong sealing are essential, such as in power plants, chemical processing, and water treatment facilities.

The hydraulic system is often chosen for its robustness and ability to handle large volumes of fluid and high pressures. Hydraulic butterfly valves are also known for their ability to maintain operation under challenging conditions, such as high temperatures or aggressive media. This makes them ideal for systems where pneumatic or electric actuators may not be reliable due to environmental factors.

In addition to their durability, hydraulic butterfly valves are known for their smooth operation. The actuator provides a steady and controlled motion that ensures the valve reaches its fully open or closed position without risk of damaging the valve or the system. Furthermore, hydraulic systems often feature fail-safe mechanisms that ensure the valve will remain in a safe position in case of a system failure, either fully open or closed, depending on the specific application.

Overall, hydraulic butterfly valve gears offer a reliable and efficient solution for fluid control in large-scale industrial settings. Their strength, precision, and durability make them a key component in many demanding applications.



Butterfly Valve Gear Types Applications Chart



Choosing the Right Butterfly Valve Gear Types

When selecting a butterfly valve gear type for industrial applications, several factors must be considered to ensure optimal performance, reliability, and cost-effectiveness. These considerations include the nature of the fluid, pressure and temperature requirements, the operational speed, and the specific needs of the application environment. Here are some key points to consider when choosing the right butterfly valve gear types:

Media and Environmental Conditions

The type of media flowing through the valve plays a crucial role in gear type selection. For instance:

• For gaseous or corrosive environments, a pneumatic actuator may be best suited due to its speed and simplicity.
• For high-temperature and high-pressure media, an electric actuator or a hydraulic actuator may be necessary to maintain precise control and avoid the risk of failure under extreme conditions.

Pressure and Flow Requirements

• If the valve needs to control high-pressure flows or act as a shut-off valve, a hydraulic actuator or electric actuator may be more suitable due to their ability to provide high torque.
• For low-pressure applications, manual or pneumatic actuators may suffice, offering ease of control with lower operational costs.

Operational Speed and Control

• Pneumatic actuators are ideal for applications requiring fast opening and closing times, such as emergency shut-off systems.
• Electric actuators are often chosen when there is a need for precise, adjustable flow control, especially for throttling applications.
• Manual actuators are typically slower but may be used where human intervention is preferable, or speed is not a critical factor.

Maintenance Considerations

The complexity of the actuator system also impacts long-term maintenance:

• Manual actuators have the simplest design, requiring minimal maintenance.
• Electric and hydraulic actuators require more frequent maintenance, especially in extreme operating conditions, as their complexity involves more moving parts and electrical or hydraulic systems.
• Pneumatic actuators are relatively low-maintenance but may require air supply systems to be maintained regularly.

Cost

• Manual actuators are the most cost-effective, but they are limited in the scale and speed of operations.
• Pneumatic actuators generally fall in the mid-range for cost, making them suitable for many medium-to-large-scale applications.
• Electric actuators and hydraulic actuators tend to be more expensive but are essential for precise control in demanding applications.



By understanding these factors—actuator type, media compatibility, pressure and flow requirements, speed, maintenance needs, and cost—you can make an informed decision on the most suitable butterfly valve gear types for your application. This ensures efficiency, reliability, and longevity of the valve system in your specific industrial context.



Maintenance and Troubleshooting

Proper maintenance and troubleshooting of butterfly valve gear types are essential to ensure long-term reliability, reduce system downtime, and avoid costly repairs. Below are the key maintenance steps and troubleshooting guidelines that should be followed to maintain optimal performance of butterfly valves.

Visual Inspection

A visual inspection is the first and most crucial step in any maintenance routine. It helps detect any obvious signs of wear, corrosion, or leaks in the valve body, gaskets, actuators, and other critical components. Inspect the valve assembly for cracks, deformation, or oil seepage from seals. Check for loose or misaligned parts that could affect valve operation. Any anomalies identified during this inspection should be addressed promptly to prevent further damage.

Component Lubrication

Lubrication is vital for reducing friction and wear on the moving parts of the butterfly valve, including the gear mechanism. Regular lubrication with the recommended lubricants ensures smooth operation and extends the life of the valve. Lubrication frequency depends on the operational environment and the valve’s usage. In harsh conditions, such as high temperatures or exposure to dust, more frequent lubrication may be required.

Cleaning Procedures

Continuous cleaning of the valve and its components is necessary to remove sediment, debris, or contaminants that can interfere with valve performance. This includes cleaning both the internal and external parts of the valve. Proper cleaning techniques, using suitable products and methods, prevent the buildup of corrosive materials and ensure that seals, bearings, and other components remain in good condition. Neglecting cleaning could lead to blockages or mechanical failures.

Pressure Testing

Regular pressure testing is essential to verify that the valve operates within its designed pressure range. Anomalies in pressure readings could indicate internal leaks, blockages, or malfunctioning parts. Use calibrated pressure gauges to ensure accuracy. If the valve does not meet the expected pressure requirements, further investigation into potential causes, such as seal degradation or valve misalignment, is needed.

Seal and Gasket Replacement

Gaskets and seals are critical to prevent leakage and ensure that the valve operates effectively. Over time, seals can wear out due to high pressure, temperature fluctuations, or exposure to corrosive materials. Regular inspection and prompt replacement of worn seals and gaskets are necessary to prevent leaks that can compromise the system’s integrity.

Torque Settings

Incorrect torque settings during installation or maintenance can lead to operational issues such as jamming, leakage, or excessive wear on valve components. Always ensure that torque settings are applied as per manufacturer specifications during installation or during routine maintenance. Over-tightening can lead to damage, while under-tightening can result in leakage or improper sealing.

Troubleshooting Electrical Components (for Actuated Valves)

For butterfly valves equipped with electric actuators, it is important to regularly inspect the electrical circuits for shorts, overvoltage, or wiring issues. A multimeter can be used to check the voltage and ensure proper electrical connectivity. Corrosion or damage to electrical contacts should be addressed promptly to avoid malfunctioning of the valve control system.

Actuator Functionality

For gear-operated butterfly valves, ensure the actuator is functioning correctly. The actuator should have full range of motion and be free from obstruction or damage. If the actuator is manual, ensure that the handle moves freely and has no signs of damage. If the actuator is powered, inspect the power supply and the responsiveness of the valve in response to control signals.

Leak Detection

Leaks in butterfly valves can arise from a variety of sources, including faulty seals, gaskets, or valve body cracks. Performing regular leak detection through visual inspection or using specialized leak detectors helps catch issues early. If leaks are identified, they should be addressed immediately through repairs or part replacements to prevent further system damage or product loss.

Regular Calibration

Calibration of the valve’s positioner and actuator is crucial to ensure the butterfly valve operates correctly and efficiently. Over time, calibration can drift, leading to inaccurate flow control or valve positioning. Regular calibration ensures the valve operates within its intended parameters, providing precise control over fluid or gas flow.



Conclusion

Understanding the different butterfly valve gear types—manual, electric, pneumatic, and hydraulic—allows industry professionals to select the best valve gear mechanism for their specific needs. Each gear type has distinct benefits and limitations that affect valve performance, maintenance, and long-term reliability. By considering factors such as valve size, pressure requirements, automation needs, and cost, companies can make informed decisions that lead to more efficient and reliable fluid control systems. For expert guidance on choosing the right butterfly valve gear type for your industry needs, contact us today and ensure optimal performance and reliability.
