In the valve and metalworking industries, choosing the right material can significantly impact the performance, durability, and cost of a project. Ductile iron and cast iron are two of the most commonly used materials, and understanding their differences is crucial for engineers, procurement managers, and decision-makers. This article aims to provide a comprehensive comparison between ductile iron and cast iron, focusing on their properties, benefits, drawbacks, and suitable applications.
What are Ductile Iron and Cast Iron?
What is Cast Iron
Cast iron is a group of iron-carbon alloys with a carbon content greater than 2%. It is known for its high hardness and excellent castability, which makes it a popular material for a wide range of applications, from engine blocks to cookware. Cast iron is often recognized by its brittle nature, which results from its graphite content forming as flakes. This flake structure causes stress concentrations, leading to lower tensile strength and limited ductility.
Cast Iron Metal(Abhay)
What is Ductile Iron
Ductile iron, also known as nodular or spheroidal graphite iron, is a type of cast iron that has been treated to modify the graphite structure. By adding small amounts of magnesium or cerium, the graphite forms into nodules or spherical shapes rather than flakes. This transformation results in significantly improved ductility, impact resistance, and tensile strength compared to traditional cast iron. Ductile iron combines the castability of cast iron with mechanical properties similar to steel, making it a versatile material for many industrial uses.
Physical and Mechanical Properties
Graphite Structure
The key difference between ductile iron and cast iron lies in the structure of the graphite. In cast iron, the graphite appears in the form of flakes, whereas in ductile iron, it forms as nodules. This difference in microstructure has a significant impact on the mechanical properties of each material.
- Cast Iron: Graphite flakes create stress concentrations that lead to brittleness. As a result, cast iron has excellent compressive strength but poor tensile strength and ductility.
- Ductile Iron: Graphite nodules in ductile iron act as “crack-arresters,” preventing the propagation of cracks and providing higher ductility and impact resistance.

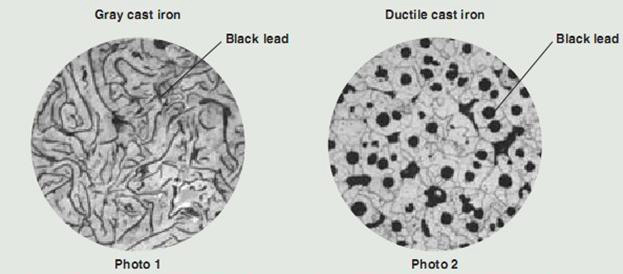

Ductile cast iron microstructure(source:clevenard)
Strength and Ductility
- Cast Iron: Typically, cast iron has a tensile strength ranging from 20,000 to 60,000 psi, depending on the specific alloy. It is known for its hardness but lacks flexibility, which makes it prone to cracking under tension.
- Ductile Iron: Ductile iron, on the other hand, can have tensile strengths ranging from 60,000 to 120,000 psi. Its improved ductility allows it to withstand deformation without fracturing, making it a better choice for applications requiring toughness.
Corrosion Resistance
Both ductile iron and cast iron have similar corrosion resistance, as they are both prone to oxidation when exposed to moisture and air. However, ductile iron is often coated or lined to enhance its resistance in corrosive environments, particularly in piping and valve applications.
Applications: When to Use Ductile Iron vs Cast Iron
When to Use Cast Iron
Cast iron is often used in applications where compressive strength is more critical than tensile strength, and where cost considerations are paramount. Examples include:
- Engine Blocks: The material’s hardness and wear resistance make it suitable for engine blocks and other components subject to high compressive loads.
- Piping and Drainage: Cast iron is widely used in plumbing systems and drainage due to its excellent castability and resistance to abrasion.
- Cookware: The thermal properties of cast iron make it an ideal material for cooking applications, where even heat distribution is crucial.
When to Use Ductile Iron
Ductile iron is preferred in applications requiring greater strength, ductility, and resistance to impact. Some common uses include:
- Valves and Fittings: Ductile iron is frequently used in valves, pipe fittings, and pumps due to its superior tensile strength and ability to withstand internal pressures.
- Structural Components: In construction, ductile iron is used for components like bridge bearings and supports, where both strength and flexibility are important.
- Automotive Components: Due to its combination of strength and ductility, ductile iron is often used for suspension and steering components in vehicles.
Cost, Performance, and Durability Considerations
Cost
- Cast Iron: Generally, cast iron is more affordable to produce than ductile iron. Its lower cost makes it a cost-effective choice for applications where the brittleness of the material is not a significant concern.
- Ductile Iron: The additional processing required to create the nodular graphite structure makes ductile iron more expensive than traditional cast iron. However, the improved mechanical properties often justify the higher cost, especially in critical applications.
Performance and Durability
- Cast Iron: Cast iron’s brittleness makes it less suitable for applications where impact or tensile stress is expected. However, its high compressive strength and resistance to wear make it durable for many stationary uses.
- Ductile Iron: Ductile iron offers enhanced performance in terms of strength, ductility, and impact resistance. Its ability to deform under stress without cracking provides greater durability in dynamic or load-bearing applications.
Pros and Cons of Ductile Iron vs Cast Iron
| Feature | Ductile Iron | Cast Iron |
|---|---|---|
| Tensile Strength | High tensile strength (60,000 – 120,000 psi) | Lower tensile strength (20,000 – 60,000 psi) |
| Ductility | High, can deform without fracturing | Low, brittle and prone to cracking |
| Compressive Strength | Moderate | High, excellent for compressive loads |
| Impact Resistance | High, resists shock and dynamic loads | Low, prone to fracture under impact |
| Corrosion Resistance | Good, often coated for enhanced protection | Moderate, can corrode if not treated |
| Heat Retention | Moderate | Excellent, ideal for cookware |
| Machinability | Moderate, requires power tools for cutting | High, easier to machine due to graphite flakes |
| Cost | Higher production cost | Lower production cost |
| Applications | Valves, automotive components, structural parts | Valves, engine blocks, plumbing, cookware |
FAQs: Ductile Iron vs Cast Iron
1.Which Material is More Corrosion Resistant?
Ductile iron typically offers better corrosion resistance compared to cast iron, largely due to the presence of graphite nodules that minimize stress points and reduce the risk of cracking under corrosive conditions. However, both materials can be treated to improve their corrosion resistance through coating or lining, depending on the application requirements.
2.Why is Ductile Iron Preferred for Dynamic Applications?
Ductile iron is preferred for dynamic applications because of its high ductility and impact resistance. The spherical graphite structure allows ductile iron to absorb shocks and vibrations more effectively than the flake graphite found in cast iron. This makes ductile iron suitable for components exposed to dynamic loads, such as automotive suspension parts and bridge supports.
3.How Does the Graphite Structure Affect Mechanical Properties?
The graphite structure is the main differentiator between ductile and cast iron. In ductile iron, the graphite is in nodular form, which provides higher tensile strength and flexibility. In contrast, the flake graphite in cast iron creates internal stress points that make it more brittle and prone to cracking under tension. This distinction is crucial when deciding between the two materials for specific applications.
4.Are There Environmental Considerations in Using Ductile vs Cast Iron?
The environmental impact of ductile iron vs cast iron depends largely on production practices and recycling methods. Ductile iron requires additional processing, which generally results in higher energy consumption and carbon emissions compared to cast iron. However, advancements in production technology and improved recycling practices are helping to mitigate these environmental concerns for both materials.
5.Which Material is More Cost-Effective?
Cast iron is generally more cost-effective to produce compared to ductile iron due to its simpler manufacturing process. For applications where brittleness is not a significant drawback, cast iron provides a more economical solution. Ductile iron, while more expensive, justifies its cost in applications that require higher strength, flexibility, and impact resistance.
Conclusion
Both ductile iron and cast iron have unique properties that make them suitable for different industrial applications. Cast iron, with its high compressive strength and affordability, is ideal for static applications like engine blocks, plumbing, and cookware. In contrast, ductile iron’s superior ductility, strength, and impact resistance make it the material of choice for demanding applications such as valves, fittings, and structural components. Understanding these differences is key to selecting the right material for your specific needs, ensuring optimal performance, safety, and cost-effectiveness.
If you’re looking for expert guidance in choosing the right material for your next project, feel free to contact us. Our team can help you make an informed decision that best fits your application requirements and budget.
