In large-diameter pipeline systems—especially those above DN1000—engineers frequently narrow their valve choices down to two practical options: the electric butterfly valve vs the electric gate valve. Alternatives like ball and globe valves often get ruled out due to high costs, bulky dimensions, or excessive torque demands. The real challenge lies in picking the right valve type to match the specific needs of high-demand sectors such as water treatment, power generation, and chemical processing. Electric butterfly valves stand out for their compact build, fast actuation, and lower cost—ideal for tight spaces and frequent cycling. Meanwhile, electric gate valves provide a full-bore flow path with near-zero pressure drop, making them the better fit for clean-flow, high-stability applications. Ultimately, valve selection should be driven by performance priorities, system pressure profiles, operational demands, and total lifecycle cost.

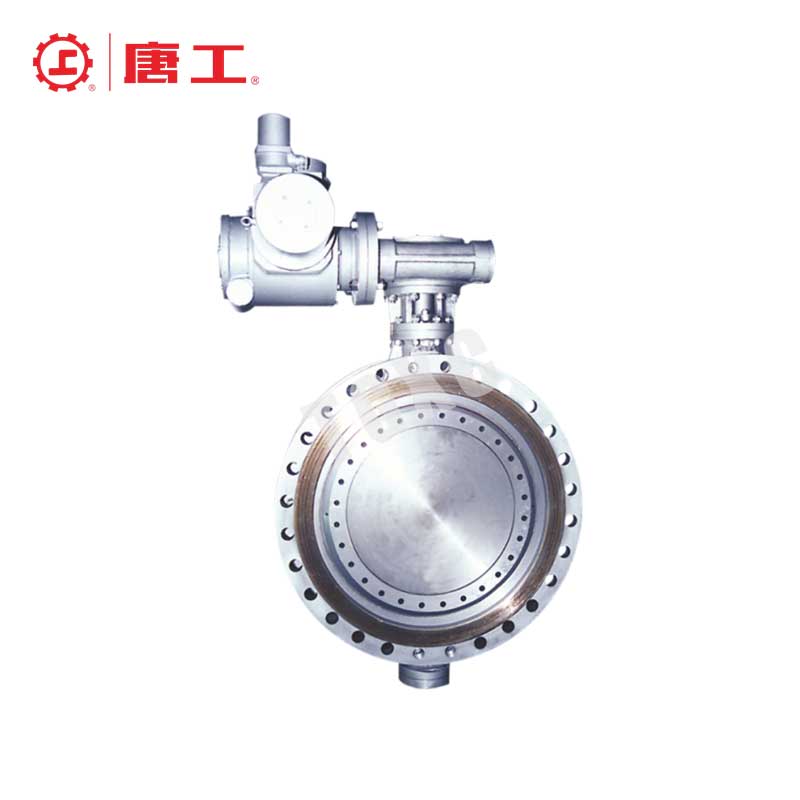

Understanding Electric Butterfly Valves
Structural Characteristics
90-Degree Operation Mechanism
Electric butterfly valves utilize a quarter-turn (90-degree) rotational movement to open or close the valve. This design allows for rapid operation, making them suitable for applications requiring quick shutoff or flow regulation.
Compact Design Advantages
The compact and lightweight structure of butterfly valves offers significant space-saving benefits. Their short face-to-face dimensions and reduced weight compared to other valve types facilitate easier installation and lower support requirements.
Performance Advantages
Fast Response Time
The quarter-turn operation enables swift opening and closing actions, enhancing system responsiveness and control efficiency.
Cost-Effectiveness in Large Diameters
In large-diameter applications, electric butterfly valves are more economical due to their simpler design and lower material costs. Their streamlined construction reduces manufacturing complexity, leading to cost savings .
Lower Torque Requirements
The design of butterfly valves typically requires less torque to operate, which allows for the use of smaller, more cost-effective actuators. This characteristic is particularly beneficial in large-scale systems where actuator size and power consumption are critical considerations.
Limitations to Consider
Permanent Flow Obstruction by Disc
Even when fully open, the disc of a butterfly valve remains in the flow path, causing a continuous obstruction. This can lead to a reduction in flow efficiency and may not be suitable for applications requiring an unobstructed flow path.
Higher Flow Resistance
The presence of the disc in the flow stream increases turbulence and pressure drop across the valve. This higher flow resistance can affect system performance, especially in processes sensitive to pressure variations.
Turbulence in Fully Open Position
The design of butterfly valves can cause flow disturbances even when fully open. The disc’s position may induce turbulence, leading to potential issues such as vibration, noise, and uneven flow distribution.
Understanding Electric Gate Valves
Structural Characteristics
Linear Stem Movement Mechanism
Electric gate valves operate through a linear motion, where an electric actuator drives the gate (a flat or wedge-shaped disc) vertically to open or close the flow path. This design ensures precise control, especially in applications requiring full open or full close positions.
Full-Bore Design Explanation
In the fully open position, gate valves offer an unobstructed, straight-through flow path, matching the diameter of the pipeline. This full-bore design minimizes pressure drop and allows for efficient flow of fluids, making them ideal for applications where flow efficiency is critical.
Performance Advantages
Zero Pressure Drop When Fully Open
The unobstructed flow path in a fully open gate valve results in negligible pressure loss across the valve. This characteristic is beneficial in systems where maintaining pressure is essential.
Undisturbed Flow Characteristics
The straight-through design ensures that the flow remains laminar, reducing turbulence and potential damage to the system. This feature is particularly advantageous in processes involving sensitive fluids or where flow stability is paramount.
Superior Flow Stability
Gate valves provide consistent and stable flow rates, which is crucial in applications requiring precise flow control and minimal fluctuations. Their design ensures that the flow characteristics remain consistent over time.
Limitations to Consider
Longer Actuation Time
Due to the linear movement required to open or close the valve fully, electric gate valves typically have longer actuation times compared to other valve types. This slower operation may not be suitable for applications requiring rapid valve response.
Space and Weight Requirements
Gate valves are generally larger and heavier than other valve types, necessitating more installation space and robust support structures. This can be a limitation in systems where space is constrained or weight is a critical factor.
Higher Initial Cost
The complex design and robust construction of electric gate valves often result in higher upfront costs compared to simpler valve types. However, their durability and performance can offset these initial expenses over the valve’s operational life.
Head-to-Head Comparison: Electric Butterfly Valve vs Electric Gate Valve
| Category | Feature | Electric Butterfly Valve | Electric Gate Valve |
|---|---|---|---|
| Flow Efficiency | Pressure Loss | Higher, due to the disc remaining in the flow path even when fully open | Minimal when fully open; provides a full-bore, unobstructed flow path |
| Flow Regime | Prone to turbulence; disc disrupts flow | Promotes laminar flow; ideal for stable and clean flow | |
| Operational Metrics | Cycle Time | Fast—90° rotation enables rapid actuation | Slow—requires full linear travel of the gate |
| Energy Consumption | Lower; needs less torque and smaller actuators | Higher; longer strokes and greater torque increase energy use | |
| Economic Factors | Initial Cost | Lower upfront, especially in large-diameter applications | Higher initial investment, especially as valve size increases |
| Lifecycle Cost | Generally lower with simpler maintenance and lower energy use | Can be higher due to energy consumption and more complex servicing | |
| Maintenance Requirements | Simple design; fewer moving parts and less space needed | More components; may require disassembly and lubrication for long-term reliability |
Application-Specific Recommendations
When to Choose Electric Butterfly Valves
HVAC Systems Case Study
Electric butterfly valves are ideal for HVAC applications due to their compact design and efficient flow control. A notable case involves a financial services company in Alabama that retrofitted its HVAC system with advanced butterfly valves, leading to improved energy efficiency and project completion within a tight schedule.
High-Frequency Cycling Applications
In processes requiring frequent valve operations, such as Vacuum Pressure Swing Adsorption (VPSA) plants, electric butterfly valves like the Neles BO series are preferred. These valves are designed for high-cycle durability, maintaining tight shutoff even after up to 2 million cycles.
Budget-Constrained Projects
For projects with limited budgets, electric butterfly valves offer a cost-effective solution. Their simpler design and lower material costs make them more affordable compared to other valve types, without compromising on performance.
When Electric Gate Valves Shine
Water Treatment Plant Examples
Electric gate valves are extensively used in water treatment facilities for their reliable shutoff capabilities. For instance, a large water treatment plant utilizes a network of gate valves to efficiently control various treatment processes, ensuring a consistent supply of clean drinking water.
Critical Process Pipelines
In critical process pipelines where flow stability and minimal pressure drop are essential, electric gate valves are the preferred choice. Their full-bore design allows for unobstructed flow, making them suitable for applications like oil and gas transportation.
High-Purity Fluid Systems
For high-purity fluid systems, such as those in semiconductor manufacturing, gate valves made from corrosion-resistant materials are essential. These valves ensure contamination-free operation, maintaining the integrity of ultra-pure fluids.
5 Key Selection Factors
Choosing between electric butterfly valves and electric gate valves requires a comprehensive evaluation of several critical factors. Below are five essential considerations to guide your decision-making process:
1. Flow Characteristic Requirements
Understanding the flow characteristics of a valve is crucial for optimal system performance. Valves exhibit different flow behaviors—linear, equal percentage, or quick opening—that affect how fluid flow responds to changes in valve position. For instance, a linear valve provides a direct proportional relationship between valve position and flow rate, making it suitable for applications requiring precise flow control.
2. Pipe System Pressure Profile
The pressure conditions within your piping system significantly influence valve selection. It’s essential to consider the maximum and minimum operating pressures, as well as potential pressure surges. Gate valves, with their full-bore design, are ideal for systems requiring minimal pressure drop. Conversely, butterfly valves may introduce a higher pressure drop due to the presence of the disc in the flow path.
3. Operational Frequency Demands
The frequency of valve operation impacts both performance and longevity. In systems where valves are actuated frequently, such as in high-cycle processes, selecting a valve designed for durability under such conditions is vital. Butterfly valves are often preferred in these scenarios due to their quick operation and lower wear rates.
4. Installation Space Constraints
Space availability can dictate the type of valve suitable for your application. Butterfly valves are compact and lightweight, making them ideal for installations with limited space. In contrast, gate valves require more installation space due to their linear operation and larger size.
5. Total Cost of Ownership
While initial purchase price is a consideration, evaluating the total cost of ownership (TCO) provides a more comprehensive financial perspective. TCO encompasses not only the purchase price but also installation, maintenance, energy consumption, and potential downtime costs. For example, a valve with a higher upfront cost but lower maintenance requirements may be more economical over its lifespan.
Frequently Asked Questions
1.Can butterfly valves achieve zero leakage?
Yes, certain butterfly valves are engineered to provide zero leakage. Triple-offset butterfly valves, such as the Neles™ Neldisc™ and Bray’s Tri Lok series, feature a metal-to-metal sealing design that ensures bidirectional, bubble-tight shutoff. These valves are suitable for high-pressure, high-temperature, and critical applications where absolute tightness is required.
2.Which valve lasts longer in slurry applications?
In slurry applications, valve longevity depends on the valve design and materials used. Knife gate valves are commonly used due to their ability to cut through thick slurries; however, their seals can wear out quickly when handling highly abrasive slurries, necessitating regular maintenance . To enhance durability, it’s advisable to select valves with reinforced seats and abrasion-resistant coatings, and to implement regular maintenance practices.
3.Do gate valves require regular lubrication?
Yes, gate valves require periodic lubrication to ensure proper operation and extend their service life. Lubrication helps to reduce friction between the gate and seat surfaces, preventing sticking and wear. It’s recommended to inject appropriate valve lubricants into the valve cavity during regular maintenance intervals.
Conclusion
Choosing between electric butterfly valves vs electric gate valves comes down to understanding their core differences—quick operation and compact design for butterfly valves versus full-bore flow and pressure efficiency for gate valves. Each type serves distinct strengths depending on system demands, from high-cycle HVAC and budget-driven setups to critical pipelines and high-purity applications. For engineers and project planners, the smartest valve choice is the one aligned with your system’s performance goals, space constraints, and long-term cost expectations. Still unsure? Contact our technical team today for expert advice tailored to your specific application.
