In industrial systems, choosing between a Fail Close vs Fail Open valve is more than a technical decision—it’s a critical safety and reliability choice. Pneumatic valves depend on compressed air to function, but what happens when that air fails? A fail-close valve shuts tight, ideal for containing hazardous substances and preventing leaks. A fail-open valve, on the other hand, keeps flow going—crucial for systems like cooling, fire protection, or air supply where interruptions could cause equipment failure or safety risks. Understanding the role each plays in failure scenarios helps engineers strike the right balance between safety and process continuity, ensuring the system performs as intended when it matters most.



Understanding Fail Close Valves (FC)

How Fail-Close Mechanisms Work

Fail-close (FC) valves are engineered to automatically shut when there’s a loss of power or air pressure. This is achieved through a spring return mechanism within the actuator, which applies force to close the valve in the absence of an external power source. The actuator uses compressed air to open the valve, and when the air supply is interrupted, the spring’s stored energy drives the valve to its closed position.

This “air-to-open” functionality ensures that the valve remains open only when air pressure is actively applied. In the event of air supply failure, the valve defaults to a closed position, effectively halting the flow of fluids or gases. This fail-safe design is crucial in applications where stopping the flow is necessary to prevent hazardous situations.

Key Applications of Fail-Closed Valves

Fail-close valves are vital in scenarios where safety and containment are paramount:

• Hazardous Material Containment: In systems transporting flammable gases or toxic chemicals, FC valves prevent leaks during power or air supply failures, safeguarding personnel and the environment.

• Overpressure Prevention Systems: FC valves act as a safeguard against overpressure by closing upon signal loss, thereby protecting downstream equipment from potential damage.

• Emergency Shutdown (ESD) Scenarios: In emergency situations, such as equipment malfunctions or fire hazards, FC valves automatically shut to isolate and secure critical sections of the process, minimizing risk.

• Explosion-Proof Environments: In industries like oil and gas or chemical processing, where explosive atmospheres may occur, FC valves are employed to prevent the release of hazardous substances during system failures.



Demystifying Fail Open Valves (FO)

How Fail-Open Valve Mechanisms Work

Fail-open (FO) valves are engineered to default to an open position when there’s a loss of power or air pressure. This design ensures that, in the event of a failure, the valve allows continuous flow, which is critical for certain safety and operational processes.

Air-to-Close Functionality

In normal operations, compressed air is applied to the actuator to keep the valve closed. This “air-to-close” mechanism means that the valve relies on air pressure to maintain a closed state. When the air supply is interrupted, the actuator can no longer hold the valve closed, leading to its opening.

Spring-Return Dynamics

The actuator contains a spring mechanism that is compressed when the valve is closed. Upon loss of air pressure, the stored energy in the spring is released, driving the valve to its open position. This fail-safe feature ensures that the valve opens automatically during power or air supply failures, maintaining essential flow.

Where Fail-Open Valves Shine

Fail-open valves are vital in applications where maintaining flow during a failure is essential to prevent equipment damage, ensure safety, or sustain critical processes.

Critical Cooling Systems

In facilities like nuclear power plants and data centers, continuous cooling is paramount. Fail-open valves ensure that, even during power outages, cooling water continues to circulate, preventing overheating and potential system failures.

Fire Protection Water Lines

Fire suppression systems rely on immediate water availability. Fail-open valves guarantee that, in the event of a fire or power loss, water flow is not obstructed, allowing sprinklers and hydrants to function effectively.

Continuous Production Processes

Industries such as pharmaceuticals and food processing require uninterrupted operations. Fail-open valves ensure that, during control system failures, the flow of materials continues, preventing batch losses and maintaining product quality.

Compressed Air Supply Maintenance

In manufacturing and processing plants, compressed air is often a critical utility. Fail-open valves in the main air supply lines ensure that, even if control systems fail, air delivery to essential equipment is maintained, avoiding operational disruptions.

Selecting fail-open valves for these applications is a strategic decision to uphold safety, prevent equipment damage, and ensure process continuity during unforeseen failures.

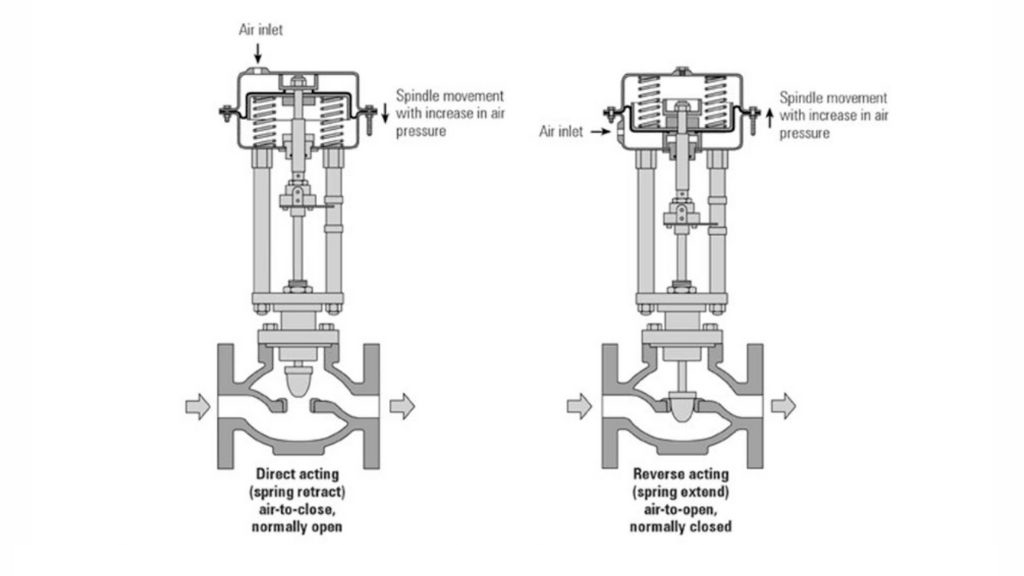

Head-to-Head Comparison: Fail-Close vs. Fail-Open Valves

Fail-Close (FC) vs. Fail-Open (FO) Valves: Comparison Table

Feature	Fail-Close (FC)	Fail-Open (FO)
Activation Method	Air-to-open (requires air pressure to open)	Air-to-close (requires air pressure to close)
Failure Action	Closes upon loss of power or air supply	Opens upon loss of power or air supply
Energy Requirement	Energy needed to maintain open position	Energy needed to maintain closed position
Default State	Closed when unpowered	Open when unpowered
Primary Purpose	Ensures safety by stopping flow during failures	Maintains process continuity during failures
Typical Applications	Hazardous material containment, emergency shutdowns	Cooling systems, fire protection, continuous processes



Safety Priority vs. Process Continuity Spectrum

Selecting between fail-close and fail-open valves hinges on the criticality of safety versus the necessity for uninterrupted process flow:

• Safety-Critical Systems: In environments handling hazardous or flammable substances, fail-close valves are preferred to prevent leaks or uncontrolled releases during power or air supply failures. This approach prioritizes containment and minimizes potential risks to personnel and equipment.

• Process-Critical Systems: For operations where continuous flow is essential—such as cooling systems in data centers or fire suppression systems—fail-open valves ensure that the process remains uninterrupted during failures, thereby preventing equipment damage or safety hazards due to halted operations.



5-Step Selection Guide for Fail-Safe Valve Positions

1. Identify Failure Consequences: Leakage vs. Blockage

Begin by assessing the potential outcomes of a valve failure:

• Leakage Risk: In systems handling hazardous or flammable substances, unintended flow due to valve failure can lead to safety hazards. In such cases, a fail-close valve is typically preferred to prevent leaks.

• Blockage Risk: For processes requiring continuous flow, such as cooling systems or fire suppression lines, a stoppage can cause equipment damage or safety issues. Here, a fail-open valve ensures flow continuity during failures.

2. Align with Industry Standards (API, ASME, ISO)

Ensure compliance with relevant industry standards:

• API Standards: The American Petroleum Institute provides guidelines for valve design and selection, especially in the oil and gas sector.

• ASME Standards: The American Society of Mechanical Engineers offers codes for pressure vessel and piping systems, emphasizing safety and reliability.

• ISO Standards: The International Organization for Standardization sets global benchmarks for valve performance and safety.

Adhering to these standards ensures that valve selections meet recognized safety and performance criteria.

3. Analyze Process Fluid Characteristics

Understand the properties of the fluid or gas in the system:

• Corrosiveness: Corrosive fluids may necessitate specific valve materials and fail-safe positions to prevent damage.

• Toxicity: Toxic substances require fail-close valves to prevent harmful exposures during failures.

• Temperature and Pressure: High-temperature or high-pressure systems might influence the choice of valve type and fail-safe position.

Evaluating these characteristics ensures that the valve’s fail-safe position aligns with the process’s safety and operational requirements.

4. Consider Redundancy Requirements

In critical systems, redundancy enhances reliability:

• Dual Valve Systems: Implementing two valves in series can provide backup in case one fails.

• Redundant Actuators: Using multiple actuators ensures valve operation even if one actuator fails.

Incorporating redundancy is vital in applications where valve failure can lead to significant safety or operational issues.

5. Factor in Maintenance Accessibility

Ease of maintenance affects long-term reliability:

• Location: Valves should be positioned for easy access, allowing for regular inspections and maintenance.

• Isolation Capabilities: Valves that can be isolated without shutting down the entire system facilitate maintenance without disrupting operations.



Industry-Specific Recommendations

Oil & Gas: Fail-Close Valves for Wellhead Control

In the oil and gas sector, fail-close (FC) valves are essential for wellhead control systems. Surface Safety Valves (SSVs) and Subsurface Controlled Safety Valves (SCSSVs) are designed to automatically shut in the event of power or signal loss, preventing uncontrolled release of hydrocarbons. These valves are actuated hydraulically and rely on spring mechanisms to ensure closure upon failure, aligning with stringent safety standards such as API and ISO.

Water Treatment: Fail-Open Valves in Sludge Lines

In wastewater treatment facilities, fail-open (FO) valves are commonly used in sludge handling systems. These valves, such as pinch valves, are designed to remain open during power failures, ensuring continuous flow of sludge and preventing system blockages. Their design accommodates the abrasive nature of sludge, reducing maintenance requirements and operational disruptions.

HVAC: Hybrid Approaches for Chiller Systems

Heating, Ventilation, and Air Conditioning (HVAC) systems often employ a combination of fail-open and fail-close valves to maintain optimal performance. For instance, cooling systems may use fail-close valves to prevent coolant loss during power outages, while heating systems might utilize fail-open valves to ensure continued heat supply. This hybrid approach balances safety and comfort, adapting to the specific needs of the building and its occupants.



Conclusion

Choosing between a Fail Close vs Fail Open Valve is more than a technical detail—it reflects your system’s safety philosophy and operational priorities. Whether you’re protecting against hazardous leaks or ensuring uninterrupted cooling, the right fail-safe position can make the difference between a controlled response and a costly failure. Maintenance access, fluid behavior, and compliance with standards all influence how a valve performs under pressure—literally. Don’t wait for a failure to test your decision. Instead, take a proactive approach: audit your current valve configurations and ensure each one aligns with your process risk, safety goals, and reliability needs.
