The term flow control valve does not describe one valve construction. In hydraulic and pneumatic circuits, it often means a fixed or adjustable restriction used to set actuator speed. In water networks, it can mean a pressure-compensated or pilot-operated regulator that limits flow as line pressure changes. In an industrial process loop, it usually means a modulating control valve that responds to a measured flow signal.
These devices share one purpose: controlling how much liquid or gas moves through a system. Their mechanisms, performance limits and selection criteria are different. Identifying the control task first prevents a pressure regulator, isolation valve or check valve from being selected for a job it was not designed to perform.
What Is a Flow Control Valve?
A flow control valve is a device that adjusts or stabilises fluid flow by changing the effective flow area, maintaining a controlled pressure differential across a restriction, or modulating in a feedback control loop. Depending on the system, the target may be volumetric flow, mass flow, actuator speed or a maximum permitted flow rate.
A restriction alone does not guarantee constant flow. The actual rate also depends on the pressure difference across the valve, fluid density or compressibility, viscosity and the valve’s flow characteristic. A simple needle valve may provide repeatable adjustment when pressure is stable, while a compensated regulator or closed-loop control valve is better suited to changing conditions.
Flow and pressure influence each other, but they are not the same control objective. A pressure-reducing valve primarily controls downstream pressure, while a check valve prevents reverse flow. For a direct comparison, see flow control valves versus pressure control valves.
How Do Flow Control Valves Work?
Variable restriction and pressure drop
The simplest method is throttling. A needle, plug, ball segment, disc or other closure element changes the opening through the valve. A smaller opening creates more resistance and usually reduces flow. A larger opening reduces resistance and allows more flow when the system can provide the required pressure differential.
This explains why valve position is not the same as flow rate. The same opening can pass different flow when upstream pressure, downstream pressure or fluid properties change. It also explains why a valve selected only by line size can be unstable or inefficient in service.
Pressure-compensated and pilot-operated regulation
A pressure-compensated valve adds an element that reacts to changing differential pressure or load. The compensator adjusts the effective restriction so the controlled flow remains relatively stable within the valve’s operating envelope. Hydraulic flow regulators commonly use this approach.
In water distribution, a pilot-operated valve can sense differential pressure across an orifice and reposition the main valve to limit flow to a set value. This is not absolute independence from pressure. Minimum differential pressure, usable adjustment range, contamination, fluid properties and internal design still set practical limits.
Closed-loop process flow control
Industrial process systems often use feedback. A flow transmitter measures the process, a controller compares the measurement with the setpoint, and the controller sends an output signal to the valve actuator or positioner. The valve changes its opening, the process responds, and the measurement closes the loop.
The valve is one part of this control chain. Valve sizing, installed pressure drop, actuator response, positioner tuning, sensor quality and controller settings all affect the final result.

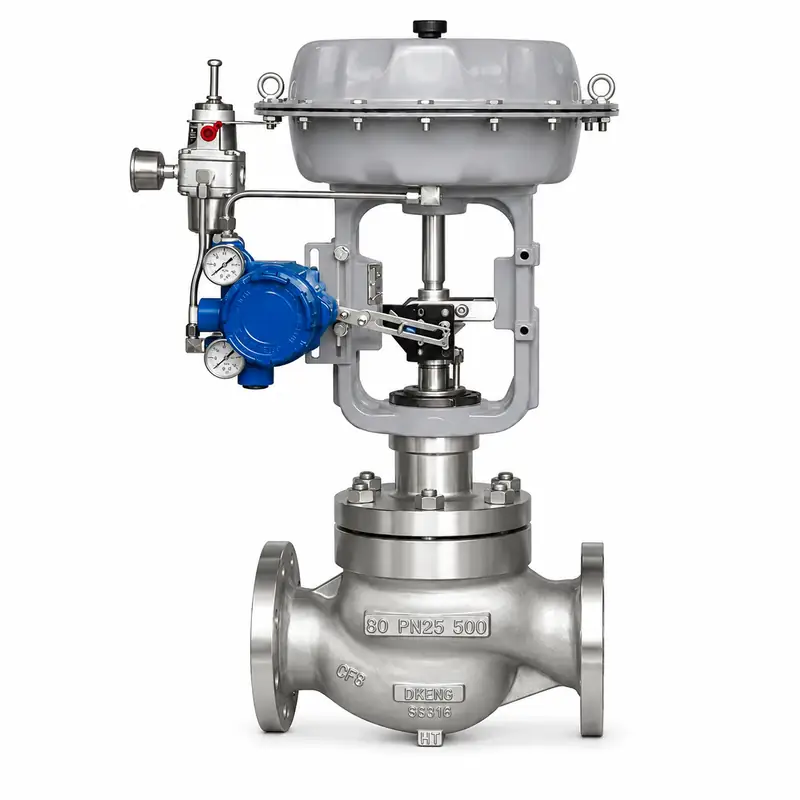

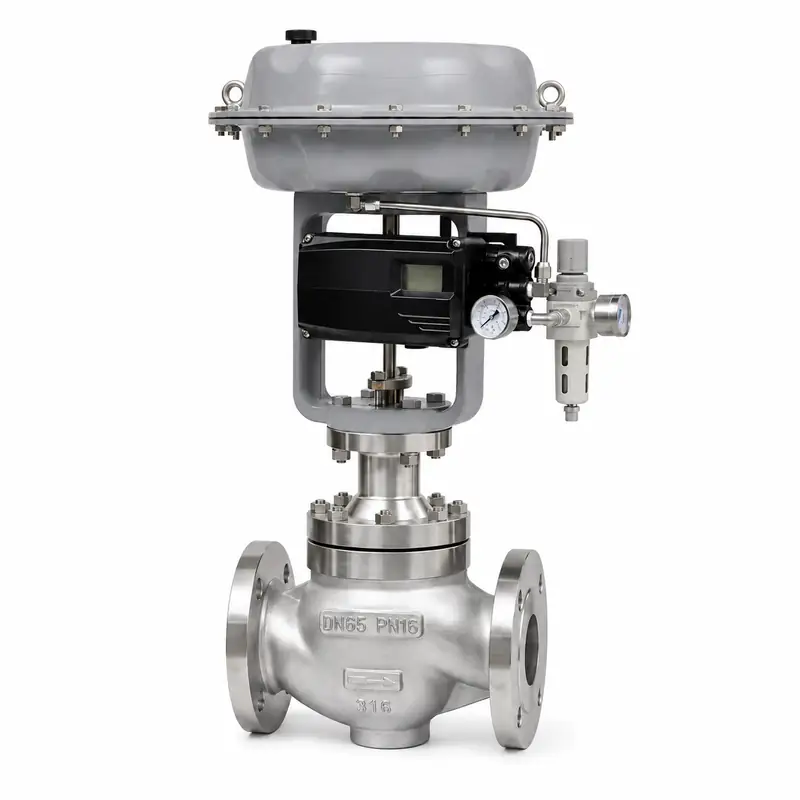

Main components
Construction varies, but an automated industrial flow control valve normally includes the following functional groups:
- Pressure-containing parts: the body, bonnet, end connections and gaskets retain the process fluid.
- Flow-control element: the plug, cage, ball, disc, needle or diaphragm changes the effective flow area.
- Seat and trim: these parts establish the throttling geometry, shut-off capability and resistance to erosion or cavitation.
- Stem or shaft and packing: these parts transmit motion while controlling external leakage.
- Actuation and control accessories: a manual operator or pneumatic, electric or hydraulic actuator moves the valve. Automated valves may also use a positioner, solenoid, limit switches and air-set equipment.
Common Flow Control Valve Types and Trade-Offs
Flow control valves can be classified by both body construction and control method. Fixed-orifice, adjustable, pressure-compensated, priority-flow and pilot-operated devices describe how flow is regulated. Globe, needle, ball, butterfly and diaphragm describe the valve construction. Keeping these two classifications separate makes comparison clearer.
| Valve construction | Where it fits | Main strength | Important check |
|---|---|---|---|
| Globe control valve | Modulating process service | Flexible trim and stable throttling geometry | Body pressure loss, size, weight and actuator thrust |
| Needle valve | Manual adjustment of small flows | Fine movement at a small opening | Limited capacity and sensitivity to debris |
| V-port ball valve | Rotary process control with higher capacity | Compact rotary motion and characterised opening | Seat, trim, low-opening control and shut-off duty |
| Control butterfly valve | Large lines and moderate throttling duties | Compact body and lower weight | Disc forces, installed characteristic and pressure recovery |
| Diaphragm valve | Selected corrosive, dirty or cleanliness-sensitive services | Process isolation from moving actuator parts | Diaphragm material, cycling, pressure and temperature limits |
A standard gate valve is mainly an isolation valve, and a standard full-bore ball valve is often selected for on-off duty. Either may reduce flow when partly closed, but that does not make it suitable for continuous modulation. If a rotary valve is being considered for control, compare the port geometry, seat design, operating torque and installed range rather than relying on the body name alone. The guide to using a ball valve as a control valve explains this distinction in more detail.
Where Are Flow Control Valves Used?
Hydraulic and pneumatic motion control
Flow rate controls the speed of a hydraulic cylinder or motor and strongly affects the speed of a pneumatic actuator. Hydraulic circuits may meter flow into an actuator, meter it out, or divert excess flow through a bypass. Pneumatic one-way flow controls commonly throttle one direction while a check element permits freer flow in the other. Load behaviour, pressure variation and the consequences of uncontrolled motion determine which arrangement is appropriate.
Water treatment and distribution
Water systems use flow-control functions to limit branch flow, protect downstream equipment, dose treatment processes and balance demand. The valve may be a simple manual throttling device, a pilot-operated regulator or an actuated valve in a measured loop. Water quality, suspended solids, minimum operating differential and surge conditions must be considered. See the water-treatment control valve application overview for related service factors.
HVAC water circuits
Hydronic systems regulate water through coils, branches and heat exchangers to match heating or cooling demand. A manual balancing valve, pressure-independent flow device and modulating control valve solve different parts of this task. Selection should account for available differential pressure, controllability at partial load, actuator authority and system balancing strategy.
Industrial process plants
Oil and gas, chemical, petrochemical, power and manufacturing plants use modulating valves to control liquid, gas or steam flow. Service severity can vary from clean utility water to flashing liquid, compressible gas, corrosive media or erosive particles. The same flow setpoint can therefore require very different body, trim, material and actuator choices. Relevant examples of service considerations are covered in the oil and gas and chemical and petrochemical application pages.
How to Select a Flow Control Valve
Selection should follow the control duty rather than start with a familiar valve type. A practical sequence is:
- Define the task. Separate manual throttling, speed control, maximum-flow limiting, pressure compensation, branch priority and closed-loop modulation. State accuracy, response and shut-off needs separately.
- Define the service envelope. Record fluid composition, solids, viscosity, temperature, operating and design pressures, corrosion risks and cleaning requirements.
- Size at minimum, normal and maximum flow. Use actual upstream and downstream pressures and fluid properties. Check liquid cavitation or flashing and gas or steam noise and choking.
- Choose construction and flow characteristic. Compare capacity and range for globe, characterised ball, butterfly, needle and diaphragm designs under installed conditions.
- Match the actuator and signal chain. Check available power, required thrust or torque, speed, fail action, control signal, positioner and environmental protection.
- Verify installation and maintainability. Review flow direction, sensing requirements, pipe loads, orientation, drainage, access, bypass philosophy and safe isolation.
The control valve sizing guide explains the Cv and Kv workflow. For industrial process valves, IEC 60534-2-1 provides sizing equations for fluid flow under installed conditions. The control valve actuator selection guide covers the actuation decisions in more detail.
Common Flow Control Valve Problems and Practical Checks
Unstable flow, noise, leakage and slow travel can come from the valve, actuator, instrumentation or the wider system. Before removing the valve, compare the controller command, actual valve travel, process flow and upstream and downstream pressures. This separates competing causes and preserves useful evidence.
| Observed symptom | Plausible causes | First useful evidence |
|---|---|---|
| Flow changes at a steady command | Changing differential pressure, load change, sticking, sensor noise or loop hunting | Trend command, travel, flow and both valve pressures on the same time base |
| Required flow cannot be reached | Insufficient supply pressure, upstream blockage, limited travel, undersizing or downstream restriction | Verify available differential pressure and confirmed full valve travel |
| Noise or vibration | Cavitation, flashing, gas velocity, turbulent fittings, oversizing or pipe forces | Locate the source and compare operating pressure, temperature and flow with the sizing case |
| Slow, sticky or erratic travel | Packing friction, damaged trim, poor air supply, positioner calibration or electrical signal faults | Compare input signal with measured travel and inspect the actuator supply |
| Internal leakage when closed | Debris, erosion, seat damage, insufficient actuator force or incorrect seating direction | Confirm commanded closure and use the specified leakage test after safe isolation |
| External leakage | Packing, gasket, fastener, corrosion or pipe-load problems | Identify the exact leak path before depressurisation and inspection |
Never loosen packing, bonnet fasteners or pressure-retaining joints while equipment is pressurised. Follow the site’s isolation, depressurisation and stored-energy procedures. The control valve troubleshooting guide provides a wider symptom-to-evidence workflow.
Maintenance intervals should be based on service risk, manufacturer instructions and operating history rather than a universal calendar. Useful practices include keeping a baseline for valve travel and leakage, inspecting air or power supplies, trending control performance and recording the condition of removed trim. See the control valve preventive maintenance guide for a condition-based approach.
Conclusion
The right answer to “which flow control valve?” starts with the system and control objective. A manual restriction, compensated regulator and loop-controlled process valve solve different problems. Once the duty is clear, the valve construction, Cv or Kv, materials, actuator and diagnostic plan can be evaluated in the correct order. For industrial process applications, browse the MacoTango control valve series.
