Forged Steel Valve A105N: Comprehensive Guide

In high-pressure systems, a single valve failure can cost millions. Forged Steel A105N valves are engineered to prevent exactly that. Forged Steel Valve A105N is made from ASTM A105 carbon steel and is normalized to improve its mechanical properties. This material is widely used in manufacturing a broad range of forged steel valves, including gate, globe, and check valves. These valves are essential in various industries such as oil and gas, refinery, and petrochemical. It is suitable for high-temperature and high-pressure environments, and it offers excellent durability and strength. Compared to cast steel valves, which are made by pouring liquid metal into molds to create various sizes and complex shapes, forged valves are particularly suited for high-temperature and high-pressure applications due to their superior mechanical properties.



What is a Forged Steel A105N Valve?

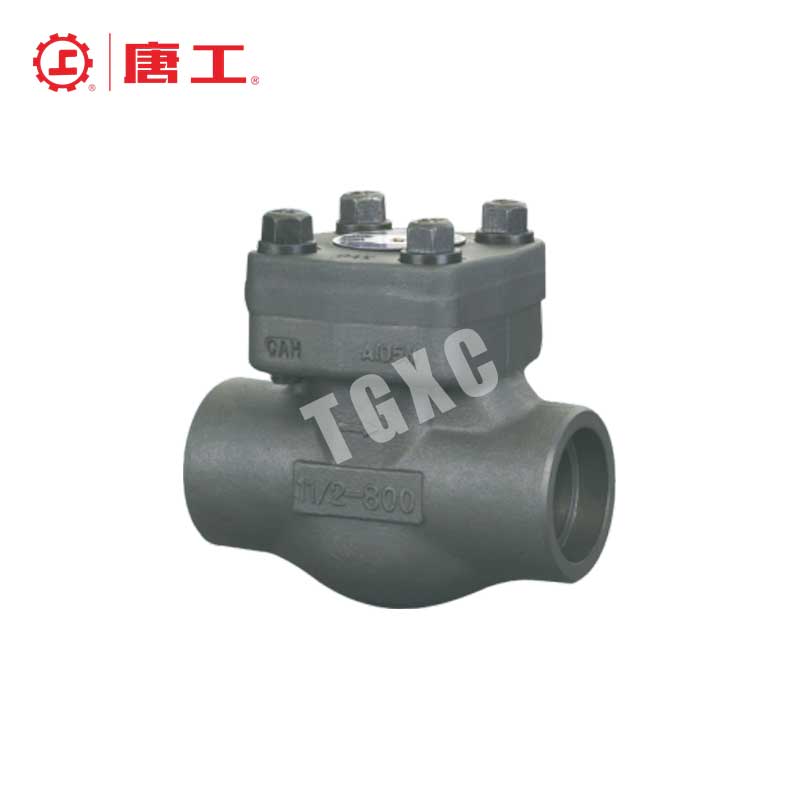

A105N Socket Weld Check Valve

A Forged Steel A105N valve is a high-quality component crafted from ASTM A105N carbon steel, specifically designed for high-temperature and high-pressure applications. The ‘N’ denotes that the material has undergone normalization, a heat treatment process that enhances its mechanical properties, resulting in improved strength and toughness.

Key Properties:

  • Temperature Range: ASTM A105N carbon steel is suitable for temperatures ranging from -29°C to 425°C, making it ideal for applications involving steam, oil, and gas.
  • Pressure Ratings: These valves are designed to meet ASME B16.34 standards, accommodating pressure classes from 150 to 2500, ensuring reliability under varying pressure conditions.



Why Forged?

The forging process refines the grain structure of the steel, resulting in enhanced mechanical properties. This method reduces the risk of porosity and other defects commonly associated with casting, leading to valves that offer superior strength, durability, and reliability in demanding environments.



Advantages Over Cast Steel & Stainless Steel Valves

Durability: These valves exhibit approximately 30% greater strength than cast steel valves, significantly reducing the risk of leaks and enhancing performance in high-pressure applications.

Cost-Effectiveness: In non-corrosive environments, A105N forged steel valves are 40-50% more affordable than stainless steel valves, such as those made from SS316, making them a cost-effective choice for many industries.

Weight: The lighter weight of forged steel valves compared to cast valves simplifies installation and handling, contributing to reduced labor costs and increased efficiency.

Limitations: It’s important to note that A105N forged steel valves are not suitable for cryogenic temperatures below -29°C or for handling highly corrosive media.



Manufacturing Process Breakdown

Forged-Steel-vs-Carbon-Steel

The manufacturing process of Forged Steel Valves using A105N material involves several critical steps to ensure optimal performance and durability.

Step 1: Raw Material Testing

The process begins with rigorous testing of the raw material. A105N is a carbon steel forging material with a maximum carbon content of 0.35%. Ensuring the material meets the ASTM A105 chemical composition standards is essential for the valve’s integrity.

Step 2: Hot Forging

The steel is heated to approximately 1,200°C to achieve the desired malleability. Hot forging at this temperature refines the grain structure, resulting in uniform strength and enhanced mechanical properties throughout the valve component.

Step 3: Precision Machining

After forging, precision machining is performed using CNC lathes. This step ensures that critical features such as seats and threads are accurately shaped, providing proper sealing and functionality in the final valve assembly.

Step 4: Heat Treatment

The machined components undergo heat treatment, specifically normalizing, which involves heating the steel to a specific temperature followed by air cooling. This process relieves internal stresses, enhances toughness, and ensures a uniform microstructure.

Quality Checks

To guarantee the valve’s reliability, comprehensive quality checks are conducted. Hydrostatic testing is performed at 1.5 times the rated pressure to verify the valve’s pressure-holding capability. Additionally, ultrasonic non-destructive testing (NDT) is utilized to detect any internal flaws, ensuring the integrity of the valve without compromising its structure.



How to Choose the Right A105N Valve

Socket Weld Gate Valve

Selecting the appropriate A105N forged steel valve involves careful consideration of several key factors to ensure optimal performance and compatibility with your system.

Operating Pressure

Determine the system’s operating pressure to match it with the valve’s class rating. Ensuring compatibility between the valve’s pressure rating and the system’s pressure is crucial for safety and efficiency.

Fluid Type

Identify the type of fluid the valve will handle. A105N valves are suitable for non-corrosive and mildly corrosive media. For acidic or highly corrosive fluids, consider valves with appropriate coatings or alternative materials to prevent degradation.

Certifications Needed

Verify if specific certifications are required for your application. For instance, API 602 certification applies to compact forged steel gate, globe, and check valves, ensuring they meet industry standards for design and performance.

Pro Tip

For pipelines exceeding 24 inches in diameter, trunnion-mounted ball valves are recommended. These valves provide enhanced support and sealing capabilities, making them ideal for large-scale pipeline applications.



Top 5 Applications of A105N Valves

A105N forged steel valves are versatile components utilized across various industries due to their strength and reliability.

Oil & Gas Pipelines: These valves are commonly employed in oil and gas pipelines, including those transporting sour gas containing hydrogen sulfide (H₂S). When compliant with NACE MR0175 standards, they effectively handle such challenging environments.

Power Generation: In power generation facilities, A105N valves are integral to steam systems within turbines and boilers, managing high-temperature and high-pressure conditions efficiently.

Petrochemical Plants: Petrochemical plants utilize these valves in hydrocarbon processing applications, where their robust construction provides resistance to various corrosive substances encountered during operations.

Water Treatment: In water treatment facilities, A105N forged steel valves are used in high-pressure pump systems, ensuring reliable flow control and system integrity.

HVAC Systems: Within industrial heating, ventilation, and air conditioning (HVAC) systems, these valves are ideal for managing fluid flow in heating and cooling loops, contributing to system efficiency and performance.



FAQ

Q: Can A105N valves handle LNG?

A: No, A105N valves are not suitable for cryogenic applications such as handling Liquefied Natural Gas (LNG). For such low-temperature services, materials like ASTM A350 LF2 are recommended due to their enhanced toughness at sub-zero temperatures.

Q: How can galvanic corrosion be prevented in valve assemblies?

A: To prevent galvanic corrosion, it’s essential to insulate dissimilar metals within the valve assembly. This can be achieved by using non-conductive materials or coatings to separate metals like carbon steel and brass, thereby avoiding direct contact and reducing the risk of corrosion.
