Ball valves are critical components in many industrial applications, particularly in controlling the flow of fluids in pipes. The two main types of ball valves—full port and standard port—differ in their design, performance, and applications. Full Port Ball Valves feature an unrestricted flow path, ensuring minimal pressure drop and maximum flow capacity, making them ideal for high-flow or high-viscosity systems. In contrast, Standard Port Ball Valves offer a more compact design with a slightly smaller opening, making them cost-effective and suitable for systems where flow restrictions are less critical. In this article, we will explore the key differences between Full Port vs Standard Port Ball Valves, their advantages, and when to choose each type for your specific application.

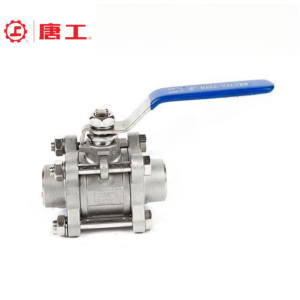

What is a Full Port Ball Valve?
A full port ball valve is designed with a ball that has an opening equal in diameter to the pipe, allowing unrestricted flow. The size of the ball aligns with the inner diameter of the pipe, ensuring that the flow path remains as wide as the pipe itself, resulting in minimal friction and pressure drop.
- Design: The ball in a full port valve is the same size as the pipe, allowing fluid to pass through without any reduction in diameter.
- Function: Full port ball valves are ideal for applications that require smooth and unobstructed flow, particularly in systems where high flow rates are necessary or where minimizing pressure drop is critical.
The primary benefit of full port ball valves is their ability to allow maximum flow capacity, which makes them particularly effective in larger systems or systems handling viscous fluids.
What is a Standard Port Ball Valve?
A standard port ball valve, in contrast, has a smaller opening in the ball than the pipe itself. This results in a constriction in the flow path, which can lead to a higher pressure drop compared to full port valves.
- Design: The ball in a standard port valve is slightly smaller than the pipe diameter, resulting in a smaller opening through which fluid flows.
- Function: These valves are typically used in systems where flow capacity is less critical, and a slight reduction in flow rate and increase in pressure drop is acceptable.
While standard port ball valves have a more compact design and are cost-effective, they are not suitable for high-flow or high-pressure applications where flow restriction needs to be minimized.
Full Port vs Standard Port Ball Valves: Key Differences
| Feature | Full Port Ball Valve | Standard Port Ball Valve |
|---|---|---|
| Ball Size | Equal to the pipe diameter | Smaller than the pipe diameter |
| Flow Capacity | High flow capacity with minimal restriction | Reduced flow capacity due to restriction |
| Pressure Drop | Low pressure drop due to unobstructed flow | Higher pressure drop due to the smaller opening |
| Size and Space Requirements | Larger and requires more space | Compact and space-efficient |
| Cost | More expensive due to larger ball and design | More affordable, simpler design |
Advantages of Full Port Ball Valves
Full port ball valves are preferred in many industrial applications due to several performance benefits:
- Higher Flow Rates: The full diameter of the valve ensures that fluid flows without restriction, making these valves ideal for high-flow systems.
- Lower Pressure Drop: The design minimizes friction and pressure loss, improving overall system efficiency.
- Better Performance in Viscous Fluids: Full port valves are effective in handling high-viscosity fluids where flow restrictions could otherwise cause issues.
- Reduced Risk of Cavitation: The larger diameter reduces the risk of cavitation, which is the formation of vapor bubbles that can cause damage to the valve and system.
Advantages of Standard Port Ball Valves
While full port valves are often the go-to choice for high-flow applications, standard port ball valves offer several advantages, particularly in specific conditions:
- Compact Design: Standard port ball valves are smaller, making them a better fit for space-constrained applications.
- Cost-Effective: Due to their simpler design and smaller size, standard port valves are typically less expensive than full port valves, offering significant cost savings.
- Ideal for Low-Flow Applications: Standard port valves are well-suited for applications where flow rates are not as critical, such as in gas transport and low-pressure systems.
Applications of Full Port Ball Valves
Full port ball valves excel in high-flow systems where efficiency and minimal pressure loss are crucial. Common applications include:
- Water Treatment: Used in systems that require high flow rates and minimal pressure drop to effectively transport water.
- Oil & Gas: Effective in handling high-viscosity fluids or gases, ensuring smooth flow in pipelines.
- Industrial Processing: Commonly used in large-scale manufacturing processes where fluid flow must be maintained at optimal rates for continuous operation.
Applications of Standard Port Ball Valves
Standard port ball valves are commonly used in less demanding applications, including:
- Gas Transport: Ideal for systems that transport gases at lower pressure and flow rates.
- Cryogenic Systems: Often used in low-temperature applications where full port valves would be overkill.
- Pneumatic Systems: Used in systems that do not require high flow or where space is a limiting factor.
Flow Characteristics: Full Port vs Standard Port Ball Valves
The key difference between the two types of valves lies in their impact on fluid flow. Full port ball valves allow for:
- Higher Flow Rates: Full port valves offer little to no restriction in flow, making them suitable for applications that need high-volume flow.
- Efficient Flow Path: The straight-through design of the full port valve reduces turbulence, enhancing system efficiency.
In contrast, standard port ball valves cause a more significant restriction in the flow path, leading to:
- Higher Pressure Drop: The smaller ball opening results in more friction, which can reduce overall system efficiency.
- Reduced Flow Capacity: These valves are better for applications that do not require maximum flow.
When to Choose Full Port Ball Valves
Full port ball valves feature a larger bore that matches the internal diameter of the pipe, allowing for an unrestricted flow of fluid, which is vital for a range of applications.
High Flow Rates and Low Pressure Drop
Full port ball valves excel in systems where high flow rates are required. Since the internal diameter of the valve matches the pipe diameter, there is minimal restriction to the flow, ensuring a smooth and consistent rate of fluid transportation. The unrestricted flow path also reduces the potential for pressure drop, which can be crucial in maintaining the efficiency of high-capacity systems such as oil pipelines, chemical processing, and large water treatment plants.
Viscous Fluids and Slurries
For applications involving viscous fluids or slurries with solid particles, full port valves are often the ideal choice. The larger diameter prevents blockages, buildup, and clogging, which can occur in smaller valves with restricted flow paths. Full port ball valves are designed to handle thick liquids and abrasive substances, ensuring that systems do not become compromised by accumulated materials.
Pigging and Cleaning Operations
In certain industries, such as oil and gas, the need for pipeline cleaning—referred to as “pigging”—is essential. Full port ball valves are especially beneficial in these situations, as their full bore allows cleaning tools, or “pigs,” to pass through without obstruction. This characteristic is essential for maintaining pipeline integrity and avoiding downtime.
Maintaining Consistent Flow
Systems requiring precise control over flow rates benefit from full port ball valves. These valves are ideal for applications where flow consistency is crucial, as the unrestricted flow path ensures no variation in the rate of fluid passing through. Whether for critical industrial processes or applications where exact flow measurements are required, full port ball valves help in maintaining this stability.
Minimizing Wear and Tear
The larger internal diameter of full port ball valves not only promotes smoother flow but also minimizes turbulence, reducing the wear and tear that typically occurs with higher flow velocities in smaller valves. This makes them particularly useful in long-term applications where minimizing valve maintenance and maximizing longevity is a priority.
Cavitation Prevention
Cavitation, the formation of vapor bubbles due to a drop in pressure, can be problematic in certain systems. Full port ball valves help mitigate this risk due to their larger internal diameter, which prevents rapid pressure drops and ensures the fluid maintains its integrity. This feature is particularly useful in systems dealing with liquids under high pressure.
When to Choose Standard Port Ball Valves
Standard port ball valves offer several distinct advantages in terms of cost, space, and manufacturing simplicity, but they are also limited by the reduced flow capacity compared to full port ball valves.
Cost-Effectiveness:
Standard port ball valves are generally more affordable than their full port counterparts due to their smaller design and reduced material requirements. This makes them an attractive option when operating within budget constraints or where flow restrictions are tolerable.
Space Constraints:
When installation space is limited, standard port valves are preferable. Their more compact design allows them to fit into tighter spaces without compromising the integrity of the valve body or the surrounding system.
Pressure Ratings:
One of the standout features of standard port ball valves is their ability to handle higher pressure ratings. With their thicker valve walls, these valves can be rated for higher pressure classes (such as ANSI 600 and beyond), making them suitable for applications requiring robust pressure handling, like gas transportation and high-pressure systems.
Maintenance and Durability:
Because of their design, standard port ball valves typically offer easier maintenance access than full port versions. The smaller ports often result in less wear and tear over time, especially in systems with moderate flow or lower viscosity fluids. However, the smaller ports can accumulate debris and contaminants more easily in dirty or slurry-laden flows, leading to clogging or erosion.
Material and Construction: Full Port vs Standard Port Ball Valves
Ball valves, designed for controlling the flow of fluids and gases, come in two major configurations based on their port size: Full Port (Full Bore) and Standard Port (Reduced Bore). These two types differ significantly in material choice, construction design, and the way they handle media flow. Below are key material and construction distinctions:
Construction Design
- Full Port Ball Valves:
Full port ball valves have a port that matches the pipe’s internal diameter. This ensures that the ball inside the valve has the same diameter as the pipe, allowing unrestricted flow. The straight flow path minimizes resistance, reducing the potential for pressure drop. These valves are typically larger in size due to the need to accommodate the full internal diameter of the pipe.
The body of a full port valve is designed to handle this increased flow capacity and often incorporates robust materials to ensure reliability in high-pressure and high-temperature applications. They are typically used in industrial settings where maintaining optimal flow is crucial. - Standard Port Ball Valves:
Standard port ball valves, on the other hand, feature a smaller opening inside the ball compared to the internal diameter of the pipe. This design causes a slight reduction in flow area, which results in a minor pressure drop when fluid flows through. The smaller ball opening is usually one size smaller than the diameter of the connecting pipe. These valves are more compact and easier to install, making them suitable for systems where space is limited.
Material Choices
- Full Port Materials:
Full port ball valves often require high-strength materials like stainless steel, brass, or other high-performance alloys to support the higher pressure and flow rates associated with their design. Materials like stainless steel are particularly valued for their resistance to corrosion, wear, and the ability to withstand high pressures and temperatures, making them ideal for demanding industrial applications in the oil, gas, and chemical sectors. - Standard Port Materials:
While standard port ball valves are also made from stainless steel or brass, they can sometimes be manufactured from more cost-effective materials like PVC, aluminum, or other lightweight alloys. This is because their application is generally for lower pressure and temperature environments, where material strength requirements are less demanding. As a result, standard port valves are often more economical but may not perform as well in high-pressure or corrosive conditions.
Conclusion
Selecting the right ball valve depends on your specific needs. Full port ball valves are ideal for high-flow, low-pressure drop applications, particularly in large systems handling high-viscosity fluids. Standard port ball valves, on the other hand, are perfect for cost-sensitive and space-constrained applications with less demanding flow requirements. By understanding the key differences between full port vs standard port ball valves in design, flow characteristics, and cost implications, you can make an informed decision to choose the valve best suited to your system’s needs.
