A gate valve is one of the most widely used isolation valves in industrial and plumbing systems, designed to control fluid flow by lifting or lowering a gate (wedge) inside the body. Unlike valves meant for throttling, gate valves are built for reliable on/off service, offering a full, unobstructed bore that minimizes pressure drop when fully open. Their simple yet durable design makes them indispensable in industries such as water supply, wastewater treatment, oil and gas, chemical processing, and power generation, as well as in building plumbing systems where dependable shut-off is critical.
What is a Gate Valve?
A gate valve, sometimes referred to as a sluice valve, is a linear-motion isolation valve designed to either fully open or fully close the flow of fluid. It features a sliding component—the gate or wedge—that moves vertically between port openings to either establish or block the fluid path.
How It Controls Fluid Flow (Open/Close Mechanism)
Opening the Valve:
Turning the handwheel (or activating an actuator) rotates the threaded stem, causing the gate to lift upward. When fully raised, the gate is clear of the flow path, resulting in an unobstructed, straight-through channel that minimizes pressure drop and flow resistance.
Closing the Valve:
Reversing the rotation lowers the gate into the fluid passage, seating it firmly against sealing surfaces and completely blocking flow. This results in a tight shut-off with minimal chance of leakage.
Operational Nuances:
Gate valves are not designed for throttling; their partially open state can lead to vibration, uneven flow, and accelerated wear on both gate and seats.
Flow control is nonlinear—small changes in stem travel near shutoff can cause large shifts in flow rate.

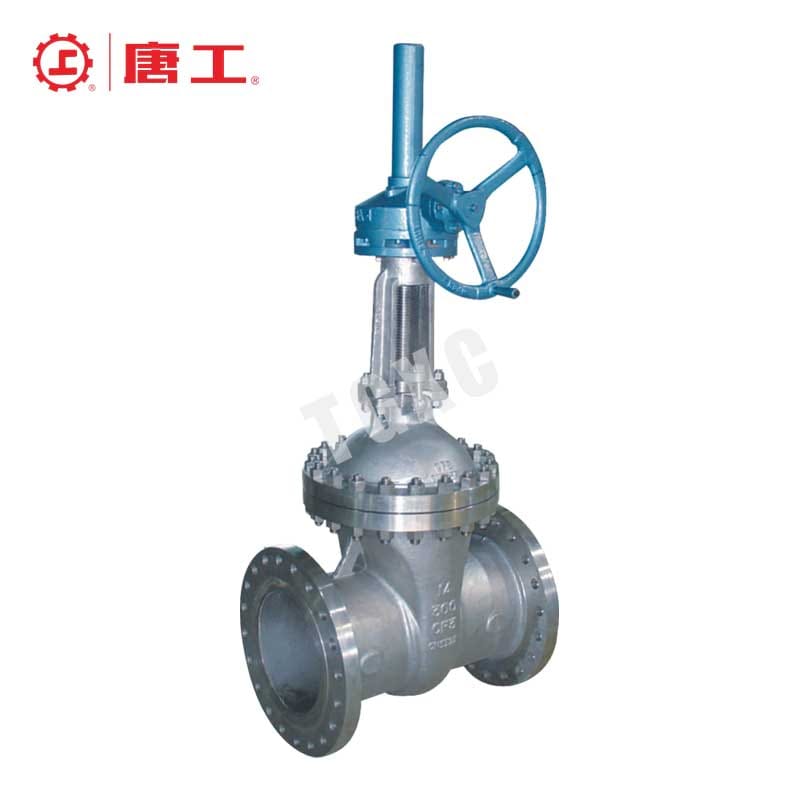

Manual vs. Powered Operation:
Most gate valves operate via a manual handwheel, but many systems—especially industrial ones—use electric, pneumatic, or hydraulic actuators for remote or frequent control.
Parts of a Gate Valve
Gate (Disk or Wedge)
The gate—also known as the disk or wedge—is the central blocking element that moves vertically to stop or allow fluid flow. It typically features a wedge shape, providing tight sealing and resistance to seat wear under high differential pressure. Some gates are designed as flexible or split wedges to compensate for thermal expansion and improve sealing in fluctuating temperatures.
Stem
The stem is a crucial linkage that transfers motion from the actuator (e.g., handwheel or motor) to the gate. It comes in two main configurations:
- Rising stem: The stem itself moves up and down during valve operation, giving a visual indication of valve position—but its exposed threads can face corrosion or debris issues.
- Non-rising stem: The stem is fixed in position while the gate moves, making this setup ideal for tight or automated environments.
Body & Bonnet
- The body forms the valve’s main pressure boundary and houses internal elements like the gate and seats. It’s also where connection options (flange, threaded, weld, etc.) come into play.
- The bonnet functions as the cover and structural extension atop the body—it encloses the stem and gate assembly and allows maintenance access. Bonnet types vary, including screwed-in, bolted, welded, and pressure-seal variants, chosen based on pressure, valve size, and service conditions.
Seat
The seat refers to the sealing surfaces the gate interfaces with when closed. Gate valves feature two seats—one on each side of the gate—ensuring a tight shut-off in both directions. Seats can be integral (part of the body) or separate rings fitted into the body, with the latter offering easier maintenance and higher resistance to wear or thermal stress.
Types of Gate Valves
1. Based on Disk/Gate Shape
Solid Wedge (Taper Wedge): A single-piece wedge that’s durable and simple. Ideal for steady environments but prone to thermal binding under high temperatures and pressure fluctuations.
Flexible Wedge: Features perimeter cuts for flexibility, accommodating misaligned seats and reducing thermal binding—widely used in steam systems.
Split Wedge / Parallel Disks: Two-part discs that compensate for seat misalignment. Parallel disk versions are spring-loaded for constant contact and bidirectional sealing.
2. Based on Stem Movement

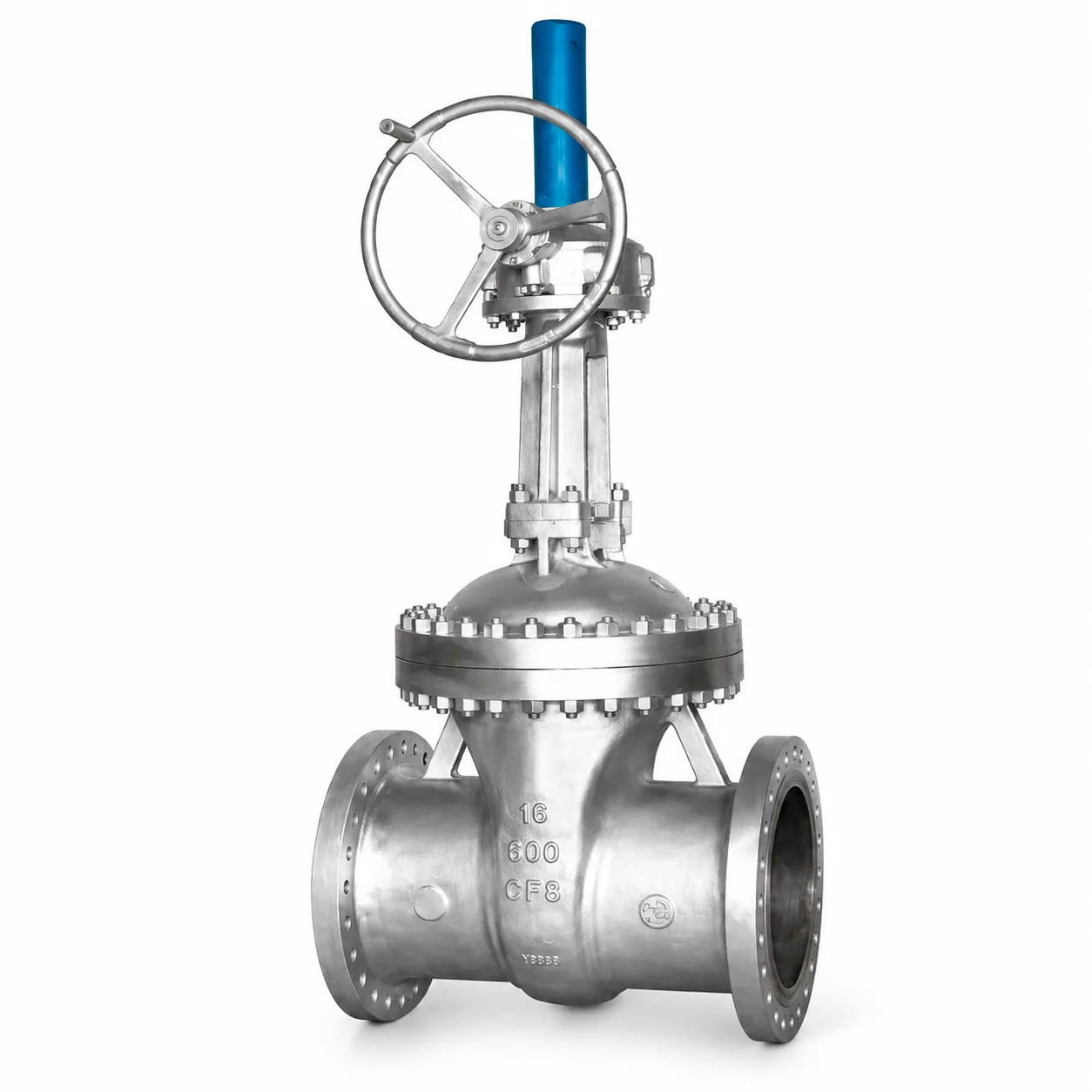

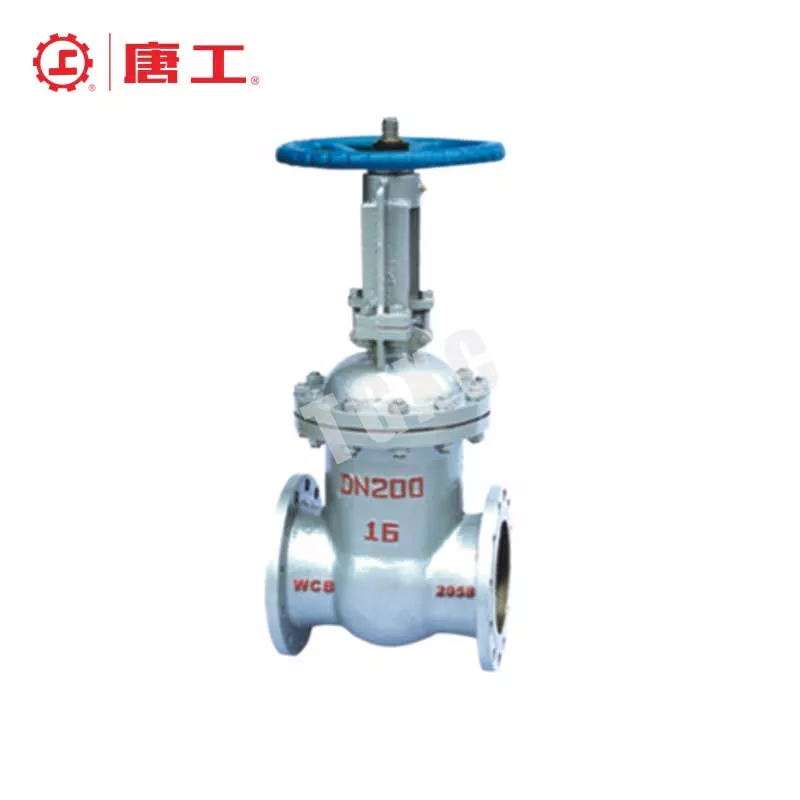

Rising Stem (OS & Y, Outside Stem & Yoke): The stem visibly moves up/down during operation, giving a direct position indicator. Threads remain exposed, ideal for inspection-heavy systems.
Non-Rising Stem: The stem stays stationary; only internal gate movement indicates position. Good for confined spaces but lacks visual position feedback.
3. Based on Body-Bonnet Connection
Screwed Bonnet: Simple design with threaded body–bonnet; cost-effective but primarily for low-pressure use.
Bolted Bonnet: A commonly used, gasketed joint providing a reliable seal in many industrial setups.
Welded Bonnet: Permanently sealed and lighter—ideal where disassembly isn’t needed.
Pressure-Seal Bonnet: Designed for high-pressure systems. Internal pressure enhances the seal by pressing the bonnet down into the body.
4. Other Specialized Types
Knife Gate Valve: Features a sharp-edged gate that slices through thick fluids or slurries. Common in mining, paper, and wastewater industries.
Slab Gate Valve (Through-Conduit): Contains a rectangular gate with a bore, enabling full-bore flow with minimal turbulence. Ideal for pigging operations in oil and gas pipelines.
How Does a Gate Valve Work?
Mechanism of Opening and Closing
A gate valve operates via a linear motion that raises or lowers a gate—or wedge—to control fluid flow. When you rotate the handwheel or actuator, the stem moves the gate vertically:
To open, the gate lifts clear of the flow path, allowing fluid to pass through with virtually no obstruction, minimizing pressure loss.
To close, the gate descends and seats tightly against the valve body, creating a solid seal and preventing flow.
Due to their design, gate valves have a non-linear flow response—small adjustments near closure can lead to significant changes in flow rate. This makes them unsuitable for throttling, as partial openings can cause vibration, seat wear, and signal instability.
Visual Indication by Stem Position
Gate valves offer simple yet effective position feedback through stem movement:
In rising stem (OS&Y) designs, the stem visibly rises above the handwheel as the gate opens, offering a clear visual indicator of valve status.
In non-rising stem designs, the stem remains mostly stationary, with the gate moving internally. These often include a pointer or position marker for indication—making them ideal for spaces where vertical clearance is limited.
Gate Valve vs. Globe Valve vs. Ball Valve
Understanding how a gate valve stacks up against other common valve types can help readers choose the right one for their needs:
| Valve Type | Mechanism & Best Use Case | Key Considerations |
|---|---|---|
| Gate Valve | Linear motion, full bore, best for on/off and isolation applications. | Low pressure drop, bidirectional—but not for throttling. |
| Globe Valve | Uses disc and seat for throttling and fine flow control. | Offers excellent sealing and flow control, but higher pressure drop. |
| Ball Valve | Quarter-turn, flow controlled by rotating a hollow ball. | Quick action and reliable sealing; low wear and compact—but limited for precise regulation. |
In summary:
Gate valves shine in full-flow situations with little pressure loss.
Globe valves are better where flow regulation is critical.
Ball valves are prized for speed, compactness, and longevity, especially in repeated cycles.
Applications of Gate Valves
Gate valves are widely used across a variety of industries due to their ability to provide dependable flow isolation with minimal pressure drop:
Water Supply & Wastewater Treatment: Gate valves are integral to the control systems in municipal water distribution networks and sewage treatment plants. Their robust design makes them particularly well-suited for on/off control in large-diameter, often buried, pipelines where long-term reliability is essential.
Oil & Gas Industry: From wellhead control and pipeline sectioning to tank farms and emergency shutdowns, gate valves are essential. They can handle high pressures and temperatures, offer tight sealing, and accommodate full-bore flow—especially critical for operations involving crude oil, natural gas, and slurry media.
Power Plants: Gate valves play a vital role in steam, condensate, and cooling water systems. Their full-bore design minimizes turbulence and pressure loss, which is crucial in high-temperature, high-pressure environments.
Industrial & Mining: Specialized versions like knife gate valves are used in metallurgy and mining applications to handle slurries, fly ash, and abrasive media. Their design helps prevent clogging and abrasion, ensuring reliable service in harsh conditions.
Chemical Processing: Gate valves are deployed in chemical plants where tight shut-off and material compatibility (e.g., corrosion resistance) are critical.
Other Utilities & Infrastructure: You’ll also find gate valves in fire protection systems, irrigation, and general municipal infrastructure as reliable on/off isolation devices.
Situations Where Gate Valves Are Preferred
Gate valves stand out for specific performance requirements:
| Situation | Why Gate Valves Are Preferred |
|---|---|
| On–Off Service | Ideal for applications requiring full opening or full closure, offering a reliable isolation seal. |
| Full Flow Required / Minimal Pressure Drop | The full-bore passage ensures straight-line flow with very low friction loss, saving energy and reducing total cost of ownership. |
| High-Pressure / High-Temperature Service | Robust construction handles demanding conditions with high sealing integrity—key in steam lines and wellheads. |
| Slurries & Abrasive Media | Knife gate valves cut through thick fluids and help avoid clogging or seat damage in abrasive service. |
| Buried or Long-Term Service | Durable and simple design makes gate valves reliable for underground or hard-to-access installations. |
Advantages of Gate Valves
1.Minimal Pressure Drop When Fully Open
Gate valves feature a straight-through, full-bore design, meaning that when fully open, the flow path is unobstructed—resulting in very low fluid resistance and minimal pressure loss. This improves system efficiency and reduces energy costs.
2.Suitable for Large Pipe Diameters
Gate valves are commonly used for large-diameter pipelines (from 2 inches upward) because their simpler construction scales more effectively than other valve types in larger sizes.
3.Simple Construction and Maintenance
Thanks to their straightforward internal design—composed typically of a gate, stem, body, and seat—gate valves are both easier to manufacture and maintain. Their fewer parts simplify assembly, reduce potential failure points, and streamline upkeep.
Disadvantages and Limitations of Gate Valves
1.Not Suitable for Throttling or Flow Regulation
Gate valves are designed for full open or full closed operation and aren’t meant for flow control. Using them partially opened for throttling can lead to high-velocity fluid hitting the seats and disc, causing erosion, vibration, and damage to sealing surfaces. This not only compromises valve integrity but also reduces lifespan.
2.Potential for Thermal Binding and Pressure Locking
Some gate valve designs—especially those with rigid solid wedges—are susceptible to thermal binding. This occurs when the valve is closed under high-temperature conditions, then cools; differential contraction between the gate and seats can jam the valve, preventing it from reopening until reheated.
Additionally, pressure locking can occur when fluids become trapped in the bonnet area upon shutdown, building pressure that physically prevents the gate from lifting.
3.Significant Space Requirements for Rising Stem Valves
Rising stem (OS&Y) gate valves require considerable vertical clearance because the stem travels upward as the valve opens. This can be problematic in space-constrained environments or compact installations.
Maintenance and Troubleshooting Tips
Common Issues and Solutions
1.Leakage at Packing Gland or Stem
Cause: Loose packing or worn seals allow fluid to escape around the stem.
Fix: Tighten the packing gland nut to compress the packing material—if leakage persists, replace it with a new seal or O-rings and perform alignment checks.
2.Gate Valve Sticking or Failing to Seal
Cause: Debris, sediment, or corrosion jammed between the gate and seat.
Fix: Flush the valve repeatedly by opening and closing to dislodge debris; if that fails, disassemble, clean, replace parts, and retest.
3.Corrosion or Rust Build-Up
Cause: Exposure to moisture and harmful media degrades metal components.
Fix: Implement anti-corrosion coatings before installation. For valves already affected, clean with rust removers (e.g., baking soda and vinegar) or consider replacing severely corroded parts.
4.Loose Connections or External Leaks
Cause: Bolts or flange joints can loosen over time, especially with thermal cycling.
Fix: Inspect and retighten all bolts, gaskets, and flange surfaces. Replace any damaged seal rings or clean flaws in the sealing grooves.
5.Worn Seats Leading to Poor Sealing
Cause: Gate-seat surfaces wear down from repeated cycling or abrasive fluids.
Fix: Inspect seat surfaces and regrind them to restore sealing integrity, or replace the seat if significantly worn or damaged.
Importance of Regular Inspection
Early Detection: Routine checks help identify worn seals, damaged seats, corrosion, or any performance decline before serious failure occurs.
Extended Lifespan and Reliability: Regular lubrication, cleaning, and part replacement significantly reduce wear and prevent unplanned downtime, maximizing valve life.
Safety and Compliance: In industries with strict safety or regulatory requirements, well-maintained valves play a crucial role in preventing accidents—leaks or malfunctions can pose significant hazards.
Conclusion
In summary, gate valves are reliable isolation devices that provide full-bore flow with minimal pressure loss, making them a preferred choice in industries ranging from water and wastewater to oil, gas, and power generation. Their advantages—such as simple construction, scalability for large diameters, and ease of maintenance—are balanced by limitations like unsuitability for throttling, potential thermal binding, and space requirements for rising stem designs. For industry professionals, understanding how gate valves work and where they excel is essential to making informed decisions that improve system efficiency, safety, and long-term performance.
