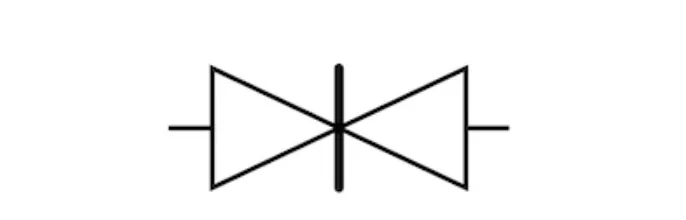

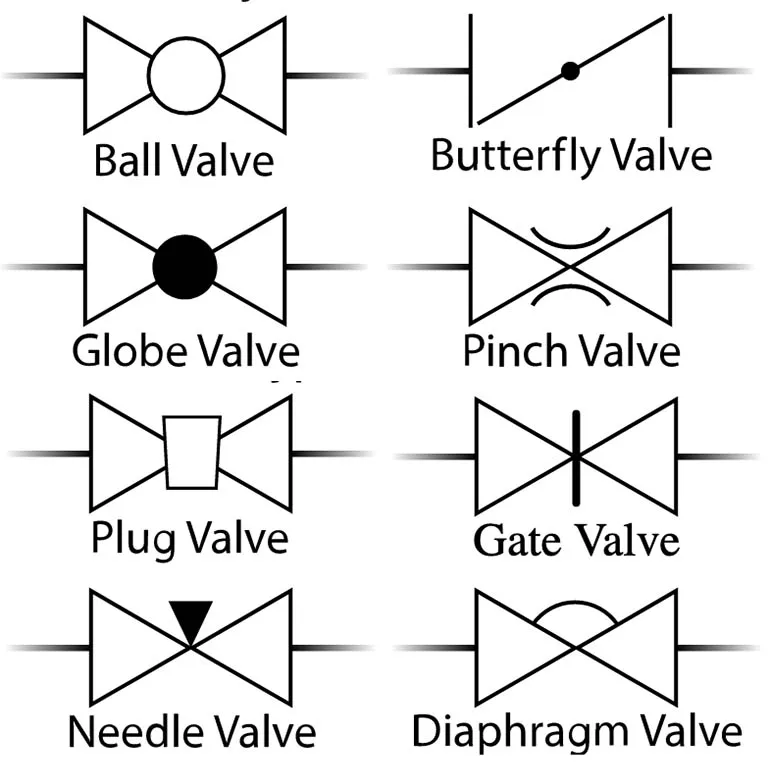

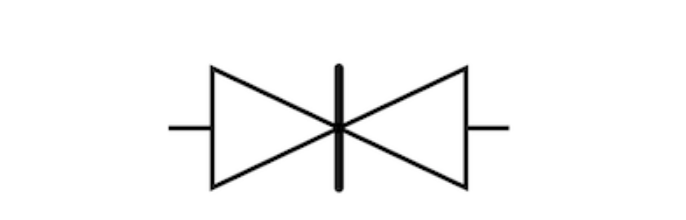

Common Variations of the Gate Valve Symbol in P&IDs

Symbols for Actuated Gate Valves

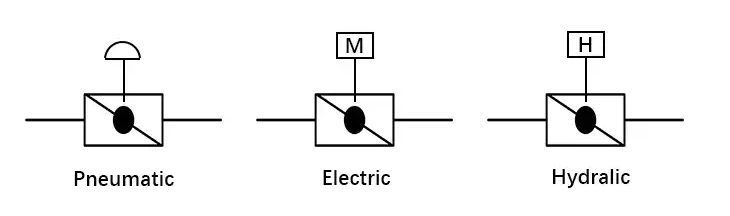

When manual hand-wheel operation isn’t sufficient for a gate valve, the P&ID symbol will often include an actuation indication. Standard sources confirm that the symbol for a valve may carry additional marks (like a letter, box or modified outline) to show actuator type.
For example:

• A motor-operated gate valve might have a small “M” box or motor icon attached to the basic two-triangle symbol.

• A pneumatic actuator may be shown via a small circle or a line leading to a piston-symbol above the valve drawing.

• Hydraulic actuators likewise may be indicated by a “H” or square/symbol variation.
  This detail matters because it tells anyone reading the drawing whether the valve is expected to be manually operated on site or remotely/automatically controlled — a key distinction for procurement, installation, maintenance and safety.

Normally Open (NO) vs. Normally Closed (NC) Depictions

Beyond actuation, the default or normal state of a valve — that is, whether it is shown in the open or closed position when the system is at rest — may also be indicated. Some P&ID legend sets distinguish between “normally open (NO)” and “normally closed (NC)”.
When it comes to a gate valve:

• Most gate valves used for isolation are shown in the open position because the ‘normal’ condition is that flow is allowed unless the system requires shut-off.

• If a gate valve is shown in the closed position (i.e., NC) on the drawing, it often implies the valve is part of a safety, shut-down or bypass service.
  Clarifying the default state helps plant operators and maintenance teams understand what to expect in normal operation — and what the valve should be set at during start-up or standby.

Symbols for Different End Connections

Finally, the symbol may convey the type of end connection (flanged, welded, threaded) used by the valve — which is critical for installation and maintenance logistics. According to P&ID guidelines, connection type may be depicted by small auxiliary symbols:
Here’s how:

• Flanged connection: often shown with small perpendicular lines on either side of the valve body within the drawing, signifying the valve can be removed without cutting the pipe.

• Welded (butt-weld or socket-weld): might be shown as the pipeline line continuing through the valve symbol uninterrupted, or the ends may carry filled-in square markers for permanent welds.

• Threaded/screwed end: often depicted using unfilled circles at the ends, implying the connection is temporary and removable via unscrewing.
  Including this information in your documentation (and in your blog) helps engineers match the symbol to the physical valve spec — so they know not just that a gate valve is present, but how it connects and what servicing may require.

How to Read Gate Valve Annotations on a P&ID

Decoding Valve Tag Numbers

When you spot a valve symbol on a P&ID and then look at the tag – something like GV-1001 – there’s a whole system hiding behind those letters and numbers. Knowing how to decode them helps you link the drawing to the actual valve in the field.

• Prefix letters: In our example, “GV” might stand for “Gate Valve” (type) or could reflect the manufacturer’s or client’s short code. Often the first one or two letters identify the equipment type (for instance, V for valve, CV for control valve) or the function.

• Area or system code: Some tagging systems embed the plant area, unit or process line number. So the “1” in 1001 could mean area 1 or system 100 series.

• Sequence number: The remaining digits (001) are generally the unique sequence for that valve type in that area or system. This ensures each valve tag is unique.

• Suffixes/modifiers: Sometimes additional letters are added after the numbers (e.g., GV-1001A) to highlight specific variants (such as actuator type, special service or spare).

By reading the tag “GV-1001” you thereby learn: this is a gate valve (GV), installed in system/area 100, and it’s the first one (001) in that series. That aids coordination among design, purchasing and maintenance.

Finding Key Specifications

Seeing the tag is useful—but the next step is to find which gate valve you’re dealing with. A P&ID will typically carry more annotations around or near the valve symbol so you can identify critical attributes. Here’s how to interpret those:

• Line number / pipe code: Look for the pipe line number alongside or connected to the valve. This tells you which pipeline the valve belongs to—essential for correct service matching, isolation planning or maintenance.

• Pipe size: Often shown as “Ø50 mm”, “3 in”, or similar. This size should match the valve’s nominal size to avoid mismatches.

• Material or class: The drawing may include the material specification (e.g., “SS316L”, “Carbon Steel Class 150”). This links to the valve body, trim, temperature/pressure ratings and compatibility with the media.

• Pressure rating / service: On some P&IDs you’ll find annotations like “PN16”, “150#”, or “10 bar” near the line or valve tag. These inform you what pressure the system is designed for and therefore what valve rating is needed.

• Valve function or service description: While not always included, some drawings add a note such as “Isolation”, “Emergency”, “Bypass” or “Steam”. This gives context.

• Actuation / control information: If the valve is actuated (motor, pneumatic, hydraulic), there may be a symbol or note next to the tag (for example “MO” for motor-operated). This helps ensure the correct variant is ordered or maintained.

By combining the tag number with these key specs, you move from simply seeing a valve symbol on the drawing to actually understanding which physical component it corresponds to, how it should be installed, and what operational conditions apply.

Why Accurate Gate Valve Representation Is Critical

Impact on Plant Safety and Operation

When a valve symbol—such as that for a gate valve—is mis-represented or omitted in a drawing, the consequences can ripple through plant safety and daily operations. Accurate representation in the P&ID ensures operators and engineers know exactly where isolation points are, what equipment they connect to, and how the system behaves under given conditions. One article notes that “outdated or inaccurate P&IDs can lead to mis-communication, operational errors and safety incidents.”

In practical terms: if a valve that’s meant to isolate a section of pipe during maintenance is not correctly shown, staff may assume it exists elsewhere or isn’t required. That can lead to unexpected flow during work, with risk to personnel, equipment damage or even regulatory non-compliance. Clear, correct drawings help ensure safe shutdowns, start-ups and emergency response.

Role in Maintenance and Troubleshooting

Beyond operations, accurate valve representation is foundational to effective maintenance. Technicians rely on drawings to locate valves, understand their type (gate, ball, butterfly etc) and determine how to service them. When the chart is wrong—or the symbol doesn’t match the physical valve—it complicates troubleshooting and increases downtime. According to a source: “detailed diagrams improve response times and reduce downtime by allowing operators and technicians to quickly locate isolation valves during an emergency.”

For example, maintenance might require isolating a section of pipe to remove a component. If the P&ID shows a gate valve in one position, but the actual valve type or location differs, extra effort is required to re-map the system, delaying work and increasing risk of error. Having the correct symbol and annotation ensures the right gear is ordered, the right part is replaced, and the field team is aligned with what the drawing says.

Ensuring Clear Communication for Projects and Shutdowns

Large engineering projects, turnarounds or shutdowns involve many stakeholders—process engineers, maintenance crews, contractors, safety teams and procurement. The P&ID is their common language. Accurate gate valve representation means everyone speaks the same language: the drawing says “gate valve here, this size, this rating, this function” and the field knows how to respond.

When drawings are inconsistent, communication breaks down: procurement may order a wrong valve type, installation crews may place an incorrect actuator, or operations might mis-interpret the valve’s role. One article emphasises that P&IDs “serve as a universal language among engineers, operators, maintenance crew and stakeholders.”

For shutdowns and change-overs, this clarity is even more vital. Planning relies on knowing which valves isolate which systems, which can remain operational, and which must be shut off. Accuracy in the symbol and annotation prevents delays, cost overruns and risk of unplanned incidents during a critical period.

Conclusion

In summary, understanding the gate valve symbol in P&ID is essential for engineers, operators, and maintenance teams to ensure safe, efficient, and accurate plant operations. A correctly represented gate valve symbol helps avoid costly mistakes, supports clear communication during design and shutdowns, and maintains compliance with industry standards. Whether interpreting valve tags, identifying actuation types, or planning maintenance, precise P&ID documentation enables smoother workflows and better decision-making. By mastering these symbols, organisations enhance reliability, minimise downtime, and strengthen overall process safety — key factors that drive operational excellence and long-term success.
