If you’re in the market for industrial valves, chances are you’ve come across both gate valves and butterfly valves. These two types of valves are crucial components in piping systems, but how do they differ? Which one suits your specific needs? Let’s explore the differences, applications, and advantages of gate valves and butterfly valves so you can make an informed decision.
What is a Gate Valve?

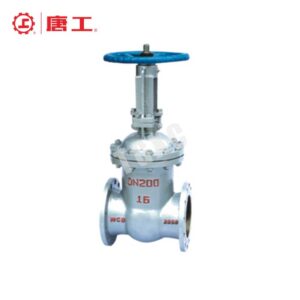

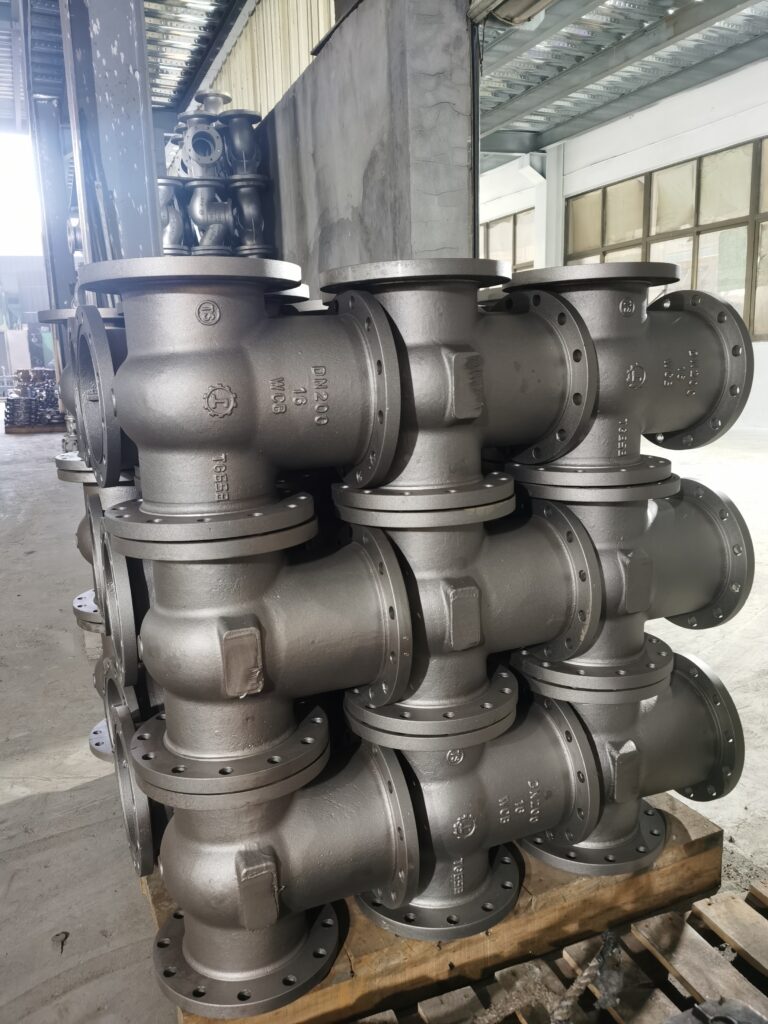

A gate valve is a linear motion valve used to start or stop the flow of liquid. The valve operates by raising or lowering a gate—hence its name—to regulate the flow. When the gate is fully raised, the valve allows maximum flow with minimal pressure drop, and when lowered, it stops the flow entirely.
Key Features of Gate Valves
Gate valves are linear motion valves that utilize a gate or disc to fully open or close the passage, providing efficient flow with minimal pressure drop. They are bi-directional, allowing fluid flow in either direction, and provide a tight seal when fully closed, making them suitable for high-pressure environments such as oil, gas, and chemical processing. Constructed from materials like cast steel, stainless steel, and ductile iron, gate valves are durable, low maintenance, and versatile for handling a wide range of fluids.
Types of Gate Valves

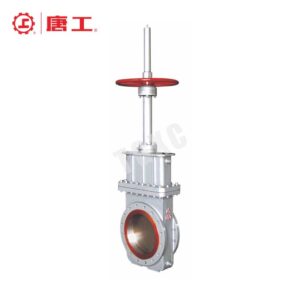

There are multiple types of gate valves, each designed for specific applications:

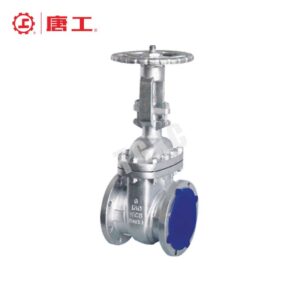

- Rising Stem Gate Valve: The stem moves up and down as the valve opens or closes, making it easy to see whether the valve is in the open or closed position. Commonly used in oil and gas and water treatment applications.
- Non-Rising Stem Gate Valve: The stem remains within the valve body, making it more compact and suitable for applications with limited vertical space.
- Wedge Gate Valve: A wedge-shaped gate provides a strong, tight seal and is ideal for handling high pressures and ensuring minimal leakage.
- Split Wedge and Flexible Wedge Gate Valves: These types allow for flexibility in sealing, which helps accommodate temperature or pressure changes and reduces issues related to sticking during operation.
What is a Butterfly Valve?

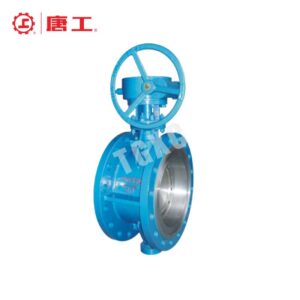

A butterfly valve is a quarter-turn valve that uses a rotating disc to regulate flow. It gets its name from the resemblance of its disc—which rotates inside the body of the valve—to the wings of a butterfly.
Key Features of Butterfly Valves
Butterfly valves are characterized by a simple design consisting of key components such as a disc, stem, seat, and actuator. Their compact and lightweight construction makes them easy to install and suitable for space-constrained environments like HVAC systems and marine installations. Their cost-effectiveness, due to fewer components, and quick operation with a quarter-turn mechanism make them ideal for applications requiring fast opening or closing, such as emergency systems.

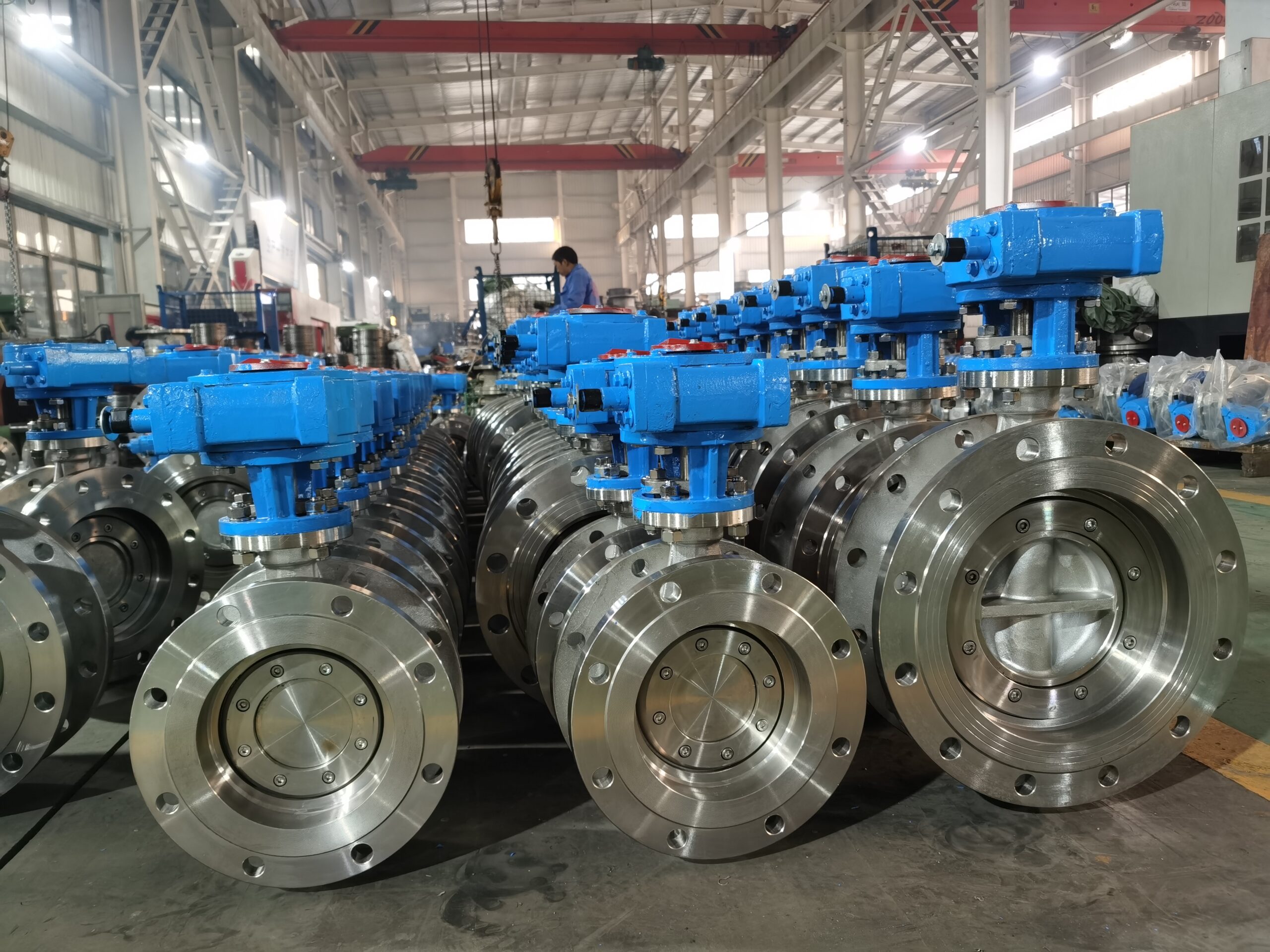

Butterfly valves can be operated manually or through automation using electric, pneumatic, or hydraulic actuators, which allows for precise control and easy integration into automated processes. While butterfly valves offer efficient flow control with low pressure drop, they are not suitable for high differential pressure conditions due to potential leakage risks. Moreover, the disc remains in the flow path even when fully open, which can cause some flow resistance and makes them less ideal for applications requiring completely unrestricted flow. Despite these limitations, butterfly valves are versatile, cost-effective, and widely used across industries such as water treatment, chemical processing, and oil and gas.
Types of Butterfly Valves
Butterfly valves come in multiple configurations, including:
- Concentric Butterfly Valves: The simplest type, where the stem and disc are aligned with the centerline of the valve body. These are suitable for low-pressure applications like water systems.
- Double Offset Butterfly Valves: Features an offset stem and disc alignment to minimize friction. These are suitable for higher pressure and temperature applications, reducing wear.
- Triple Offset Butterfly Valves: Has three offsets, which eliminate most friction and provide tight metal-to-metal sealing. These valves are used in critical applications with extreme pressures, temperatures, or aggressive chemicals.
Difference Between Gate Valve and Butterfly Valve
| Feature | Gate Valve | Butterfly Valve |
|---|---|---|
| Operation Mechanism | Multi-turn valve (requires multiple handwheel turns) | Quarter-turn valve (uses rotating disc mechanism) |
| Pressure Applications | Suitable for high-pressure systems, such as oil, gas, and chemicals | Ideal for low- to medium-pressure applications like HVAC and water treatment |
| Flow Control | Primarily used for on/off control; not suitable for throttling | Capable of throttling flow via partial disc closure |
| Shut-off Capability | Provides tight shut-off; effective for complete isolation | Not as effective for complete shut-off; prone to leakage |
| Pressure Drop | Higher pressure drop due to turbulence when partially open | Lower pressure drop; streamlined disc design allows efficient flow |
| Cost | More expensive; complex design requires precision machining | More cost-effective; simple design with fewer components |
| Size and Weight | Bulkier and larger, requires more space for installation | Compact and lightweight; suitable for installations with space constraints |
| Material Options | Cast steel, stainless steel, PVC, bronze, etc., suitable for diverse environments | Stainless steel, cast iron, PVC; suitable for less aggressive environments |
| Disc Types | Wedge, knife, double disc | Wafer, lug, double offset |
Choosing Between Gate Valve and Butterfly Valve
The choice between a gate valve and a butterfly valve depends largely on the specific application requirements. For applications that require tight shut-off and are under high pressure, gate valves are the better option due to their superior sealing and durability. However, for situations where space is limited, rapid operation is needed, and cost is a factor, butterfly valves are ideal. Their compact size, lower cost, and versatility in managing flow make them suitable for a wide range of medium- to low-pressure applications such as water distribution and HVAC systems.
For industries where throttling and flow regulation are important, butterfly valves offer better control due to their design, whereas gate valves should be avoided for throttling as they are prone to causing damage under such conditions.
Key Factors to Consider:
- Pressure Requirements: Gate valves for high pressure; butterfly valves for medium to low pressure.
- Space Constraints: Butterfly valves are more compact and suitable for limited space.
- Cost: Butterfly valves are generally more cost-effective.
- Flow Control: Butterfly valves are better for throttling, while gate valves are ideal for full shut-off.
- Maintenance: Consider the long-term maintenance needs and installation complexity.
Applications of Gate Valves and Butterfly Valves
Gate Valve Applications
Gate valves are used across various industries due to their versatility:
- Oil and Gas Industry: Used to regulate the flow of crude oil, natural gas, and other fluids in pipelines and storage tanks.
- Water and Wastewater Treatment: Gate valves help isolate sections of the system for maintenance and control the flow of water and chemicals.
- Power Generation: Employed to manage the flow of steam, cooling water, and other fluids in power plants.
- Marine Industry and HVAC Systems: Gate valves are also used in marine systems and HVAC to handle different fluids under varying conditions.
Butterfly Valve Applications
- Water Treatment: Control flow in municipal systems and treatment plants.
- Chemical Processing: Manage aggressive chemicals due to corrosion-resistant materials.
- Oil and Gas: Butterfly valves are often replacing traditional ball valves due to their lower cost and ease of installation.
- Food and Beverage: Easy maintenance and cleaning make them appropriate for food-grade applications.
Maintenance Considerations
Gate Valve Maintenance
Gate valves typically have fewer wear-prone components, which means they’re generally easy to maintain. However, due to their heavier construction and size, they may require more labor during installation or replacement. Additionally, gate valves can experience issues with the gate sticking, especially in applications with infrequent operation or when exposed to debris buildup, which may require additional maintenance efforts.
Butterfly Valve Maintenance
Butterfly valves have simple, lightweight designs and fewer moving parts, which often makes maintenance quicker and more cost-effective. If you require frequent valve operation, butterfly valves’ ease of access and low maintenance make them a preferable option.
Conclusion
Ultimately, the choice between a gate valve and a butterfly valve will depend on factors such as cost, available space, and the specific requirements of your pipeline system. Gate valves are more suitable for applications where full shut-off is crucial, while butterfly valves are a great option for frequent operation and throttling needs.
If you’re unsure about which valve best fits your needs, consider consulting with a valve expert who can provide advice tailored to your specific application.
