When selecting valves for any piping system—whether residential or industrial—understanding the distinctions between gate valve vs stop valve is essential. While both types are designed to control the flow of fluids, they operate differently and serve unique functions in various applications. In this article, we will break down the primary differences between gate valve vs stop valve, highlighting their designs, functions, and applications. By the end, you’ll have a clear understanding of which valve to choose for specific needs, ensuring the efficiency, durability, and safety of your system.



Overview of Gate Valves

Gate valves are primarily designed to start or stop the flow of liquids and gases. Their operation involves lifting a gate (usually wedge-shaped) out of the flow path when open, allowing the fluid to pass freely. Gate valves are characterized by their linear motion, with the valve stem raising or lowering the gate as it is turned. One of the key advantages of gate valves is their ability to offer minimal resistance to the flow when fully open, making them ideal for situations where a fully open or closed valve is required. However, they are not suitable for throttling applications due to their tendency to create flow disturbances. Gate valves are often used in pipelines where full flow is needed and where frequent valve cycling is not required​



Overview of Stop Valves

Stop valves, also known as globe valves, are used to regulate the flow of liquids and gases. They operate through the motion of a disc or plug that moves along the valve stem. This design allows stop valves to control flow precisely by adjusting the opening size, which is proportional to the valve’s stem movement. Unlike gate valves, stop valves can be used for throttling applications, offering accurate flow control. They are particularly useful in situations where flow needs to be regulated over time, as the valve’s design allows for adjustments without fully opening or closing the valve. However, stop valves tend to generate more pressure drop compared to gate valves, as the flow path is more obstructed​.



Gate Valve vs Stop Valve: An In-Depth Comparison

Operating Mechanism

Gate and stop valves both serve important functions in controlling fluid flow, but they operate differently. A gate valve uses a wedge-shaped gate that moves up and down along the flow path to either block or allow fluid passage. It operates with a multi-turn mechanism, where the valve stem is turned multiple times to lift or lower the gate, providing a clear path for fluid when open. This design makes gate valves ideal for on/off control, but they are not meant for throttling applications as partial opening can damage the valve.

In contrast, a stop valve—often referred to as a globe valve in certain contexts—uses a disc or ball mechanism that moves perpendicularly to the flow direction. This enables it to either block or reduce the flow. The valve is typically operated by a single-turn or multi-turn stem, depending on the design, allowing precise regulation of fluid flow. Stop valves are more suited for throttling and flow control because the seat and disc mechanism are designed to handle variable flow rates.

Pressure Handling and Flow Control

Gate valves excel in high-pressure applications where fluid needs to be fully blocked or allowed to flow with minimal resistance. When fully open, a gate valve has virtually no obstruction to the fluid, offering minimal pressure drop and optimal flow characteristics. However, gate valves are not ideal for controlling the flow rate or withstanding fluctuating pressures over extended periods. Their function is best suited for isolating a section of a pipeline, rather than managing pressure levels during continuous operation.

Stop valves, on the other hand, are more effective at controlling pressure and regulating flow. Their design allows them to throttle the flow with precision, making them a better choice for systems requiring fine flow adjustment or constant pressure maintenance. While gate valves may be used in applications with steady flow and pressure, stop valves are preferred for scenarios where dynamic pressure management is necessary.

Key Design Differences

The design differences between gate and stop valves are primarily in their closure mechanisms. Gate valves feature a gate that moves in and out of the flow path, typically with a rising stem. This design allows the valve to be either fully open or fully closed, with minimal resistance to flow when open. Gate valves can be quite large and bulky due to the need for a stem assembly that lifts the gate, making them less suited for compact applications.

Stop valves, meanwhile, have a plug or disc that seals against the valve seat to stop the flow of fluid. The valve body is generally more compact, and the design facilitates precise control over the flow rate. Stop valves often have a higher cost and more intricate mechanisms compared to gate valves, but their ability to adjust the flow rate makes them indispensable for many fluid regulation tasks.

Sealing Mechanisms

Gate valves typically use a self-sealing mechanism, where the gate tightly fits into the valve seat to stop fluid flow. The gate is moved into the seat by a stem, and when the valve is closed, the contact between the gate and seat forms a seal that prevents leakage. Over time, the sealing surfaces of gate valves can wear, especially if the valve is used to throttle flow, which can cause leakage.

Stop valves employ a similar sealing principle, but they rely on a soft, resilient sealing surface, such as rubber, that offers a tight seal when the valve is closed. This ensures a leak-proof design when the valve is in the fully closed position, and their ability to maintain an effective seal is crucial when used for pressure regulation or flow control. The softer sealing material also ensures less wear and tear under variable conditions compared to the metal gate in a gate valve.

Differences in Flow Characteristics

Gate valves are best known for their ability to provide uninterrupted, high-volume flow with minimal pressure drop when fully open. The flow path in a gate valve is virtually unobstructed when the valve is open, making them ideal for applications where the fluid must pass freely without interference. However, they are not suited for partial opening, as this can cause turbulence, cavitation, and eventual damage to the valve seats.

Stop valves, however, are specifically designed to handle variable flow conditions. They are used in systems that require gradual flow adjustments, allowing operators to throttle the flow more precisely. The design of the stop valve limits flow when partially open, enabling better regulation and control. This makes stop valves a better option for applications such as pressure relief systems or systems requiring precise fluid regulation, where flow must be adjusted frequently and reliably.



Materials and Construction: Gate Valve vs Stop Valve

Gate Valve Materials and Build

Gate valves are constructed using a wide array of materials, chosen based on the fluid being controlled, pressure and temperature requirements, and the environment in which the valve will operate. The most common materials used in gate valve construction include cast iron, carbon steel, stainless steel, alloy steels, brass, and bronze.

• Cast Iron Gate Valves: These are ideal for handling non-corrosive fluids like water and steam in industrial applications. Cast iron is strong, durable, and cost-effective but is prone to rusting, making it unsuitable for corrosive environments​.

• Carbon Steel Gate Valves: Widely used in industrial settings, these valves are adaptable and can handle a variety of fluids, making them appropriate for high-temperature and moderate-pressure applications. However, carbon steel is susceptible to corrosion, so protective coatings are often necessary​.

• Stainless Steel Gate Valves: Known for their exceptional corrosion resistance, stainless steel gate valves are used in harsh environments, including chemical processing and high-temperature settings. Despite being more expensive, their durability justifies the cost​.
• Bronze and Brass Gate Valves: Bronze is favored in marine environments due to its resistance to seawater, while brass is typically used in low-pressure, residential plumbing systems. Both materials resist corrosion but are less suited for high-pressure or highly corrosive environments.



Stop Valve Materials and Design Variations

Stop valves, often used for regulating and isolating fluid flow, are constructed from materials similar to those used in gate valves, though their specific design may vary based on the intended application.

Source:IndiaMart

• Cast Iron Stop Valves: Like gate valves, stop valves can be made from cast iron for general-purpose applications involving water, steam, and non-corrosive fluids. They are robust but less suitable for corrosive environments​.

source:Zava Marine

• Bronze and Brass Stop Valves: These materials are common in low-pressure, non-corrosive systems like domestic plumbing. Their resistance to corrosion and ease of machining make them ideal for residential applications.

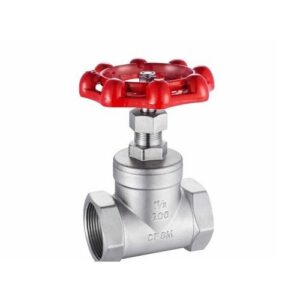

• Stainless Steel Stop Valves: These are designed for more demanding applications, especially where higher pressure or corrosive fluids are involved. Stainless steel is the material of choice in chemical processing, power generation, and other high-performance sectors​.



How To Choose Between Gate Valve and Stop Valve

Choosing between a gate valve and a stop valve requires understanding their distinct characteristics and application suitability. A gate valve is typically used for fully opening or closing the flow of liquids or gases in a system. It uses a sliding gate mechanism to block or allow the flow, making it ideal for applications that require minimal pressure drop and full-on or full-off operation. Gate valves are highly durable and work well in high-pressure environments but are not suitable for throttling or flow regulation because partial opening can cause damage to the valve’s internal components. They are often found in industrial applications such as pipelines, water systems, and fire protection systems.

In contrast, a stop valve is more specialized for controlling or stopping flow, often with an internal plug mechanism. Stop valves are typically employed in plumbing for residential or small-scale applications, particularly for turning off water supply to individual fixtures like sinks or dishwashers. They are also used in situations where pressure needs to be controlled, making them suitable for situations where flow regulation is more frequent. Stop valves can be more compact and easier to use than gate valves but may not be as durable under high-pressure conditions or heavy industrial applications.

When selecting between these two, consider the application’s pressure requirements, frequency of use, and whether you need full control over the flow or simply on/off functionality. Gate valves are preferred for larger systems requiring full flow control, while stop valves are best suited for smaller systems or areas requiring more precise pressure management.



Practical Guide to Gate Valve and Stop Valve Usage

Gate Valve Installation Tips

When installing a gate valve, the key considerations revolve around ensuring the correct position, pipe alignment, and proper sealing to prevent leaks. Here are some crucial steps:

• Preparation: Before installing, gather the necessary tools—gate valve, pipe cutter, wrench, Teflon tape, and pipe cleaner. Shut off the water supply to avoid accidents and drain excess water from the pipes.
• Pipe Cutting: Use a pipe cutter to make a clean, straight cut in the designated section where the valve will be installed. Accuracy is important to avoid leaks from uneven cuts.
• Cleaning and Sealing: Clean the pipe ends to remove any debris, and then apply Teflon tape around the threads to ensure a tight seal. This step is essential to prevent leakage at the joint.
• Valve Alignment: Ensure the valve’s orientation is correct, positioning it with its handle facing a user-friendly direction. Tighten it securely using a pipe wrench but avoid overtightening to prevent damage to the valve or threads.
• Testing: Once installed, gradually open the water supply, checking for leaks around the valve. If no leaks are found, test the valve by opening and closing it several times to confirm smooth operation​.



Stop Valve Installation Considerations

Stop valves, commonly used for pressure regulation, also require careful installation. While the process may appear similar to gate valve installation, there are specific nuances to be mindful of:

• Pressure Control: Stop valves are designed to manage pressure, and incorrect installation could lead to failure in regulating flow or pressure. Before installation, ensure that the pressure requirements are known, as stop valves are often used in systems with varying pressures.
• Correct Positioning: Just like gate valves, stop valves must be installed with consideration of the system’s design. Ensure the valve is positioned in a way that allows easy operation and maintenance, particularly in confined spaces or industrial settings.
• Pipe Connections: Attach the stop valve securely to the pipe using appropriate sealant and fittings. Be mindful of the torque used when tightening connections to avoid damaging the valve components​.
• Testing and Maintenance: As with any valve installation, once the valve is securely attached, test the system for leaks. Periodically cycle the valve, especially if it isn’t used frequently, to prevent it from seizing or malfunctioning​.



Common Mistakes to Avoid

When installing either a gate valve or a stop valve, certain mistakes can compromise the system’s functionality:

1. Incorrect Valve Orientation: Installing the valve backward or in an incorrect position can impede proper operation. Double-check the direction of flow marked on the valve.
2. Over-tightening: Excessive torque when tightening can damage the threads, valve body, or seals, causing leaks and premature wear. Always follow the manufacturer’s guidelines for torque limits.
3. Not Testing After Installation: Skipping the testing phase can lead to undetected issues like leaks or operational failures. Always test the valve’s functionality and inspect for any leaks after installation.
4. Failure to Consider System Pressure: For stop valves, failing to account for the operating pressure can result in the valve not functioning properly or even failing. Ensure the chosen valve matches the system’s pressure requirements​.



Conclusion

In summary, gate valves are best suited for on/off flow control in high-pressure applications, offering minimal resistance and full flow when open but are not ideal for throttling or precise flow regulation. On the other hand, stop valves are designed for precise flow control and pressure regulation, making them ideal for throttling applications where flow needs to be adjusted or maintained, though they create more pressure drop. The choice between the two depends on the system’s flow control needs, pressure management, and whether fine adjustments are required.
