A globe control valve uses linear stem motion to position a plug relative to a seat, changing the open flow area. In modulating service, the actuator can hold the plug at positions between fully open and fully closed as the control signal changes.
The globe body does not set control performance on its own. Trim geometry must match the installed pressure-drop profile and actuator thrust; a poor match can leave the valve controlling at low travel, raise noise, or prevent the actuator from applying the required shut-off load.
What makes a globe valve a control valve?
The word globe describes the valve body and closure arrangement, while control describes the duty of the complete assembly. A manual globe valve can limit flow at a fixed opening, but it does not change position automatically when a process variable moves away from its target.
An actuated globe valve is not always a modulating valve. A switch, relay, or solenoid may command only fully open and fully closed positions. The valve provides modulating control when its body and trim are designed for throttling and the actuator can position the plug across a usable stroke as the control command changes.
The assembly includes the valve body, trim, and actuator. A positioner and other accessories may be added when the application needs signal conversion, position correction, feedback, or a set failure behaviour, but these parts do not define the globe body itself. The difference between a globe valve and a control valve is therefore a difference between construction and process duty, and the two categories can overlap.
How does a globe control valve regulate flow?
Flow changes as the actuator moves the valve stem through a linear stroke. The stem positions the plug relative to the seat, changing both the open flow area and the restriction created by the trim.
Signal, actuator and stem travel
A controller sends a changing command either directly to the actuator or through a positioner. A pneumatic actuator turns air pressure into stem thrust, while an electric actuator uses a motor and drive mechanism. In either case, the actuator must provide enough thrust to overcome process forces, packing friction, and the load needed to move or seat the plug.
Changes in the command do not always produce the same stem movement. Friction, deadband, air-supply limits, and pressure forces can change the response under load. When tighter position control is needed, a positioner compares the requested position with the actual valve travel and adjusts the actuator output.
Plug, seat and cage action
As the plug moves away from the seat, the open area through the trim increases. Moving the plug towards the seat reduces this area until it reaches the closing surface. The plug profile and the shape of the surrounding flow passages determine how the valve’s flow coefficient changes through the stroke.
A cage or guide may keep the plug aligned, hold the seat ring in place, or form part of the throttling passages. Its exact role depends on the trim design. The separate guide to control valve parts and diagrams shows how these components work together.
Inherent and installed behaviour
The inherent flow characteristic shows how flow capacity changes with valve travel while the pressure drop across the valve stays constant. Linear and equal-percentage trims describe this test relationship, not the full response of a working pipeline.
After installation, the valve shares the available pressure drop with the piping and other equipment. As system flow changes, the pressure drop across the valve also changes, so the installed characteristic may differ from the inherent curve. The same trim can therefore behave differently in two systems, while an oversized valve may spend normal operation close to the seat, where small travel changes produce large flow changes.
Which globe control valve configurations change performance?
Two globe control valves with similar body sizes can need different actuator thrust, provide different flow capacities, and respond differently under the same process conditions. The main design choices include plug balance, guiding method, body arrangement, and actuator type.
Single-seat, balanced and cage-guided trim

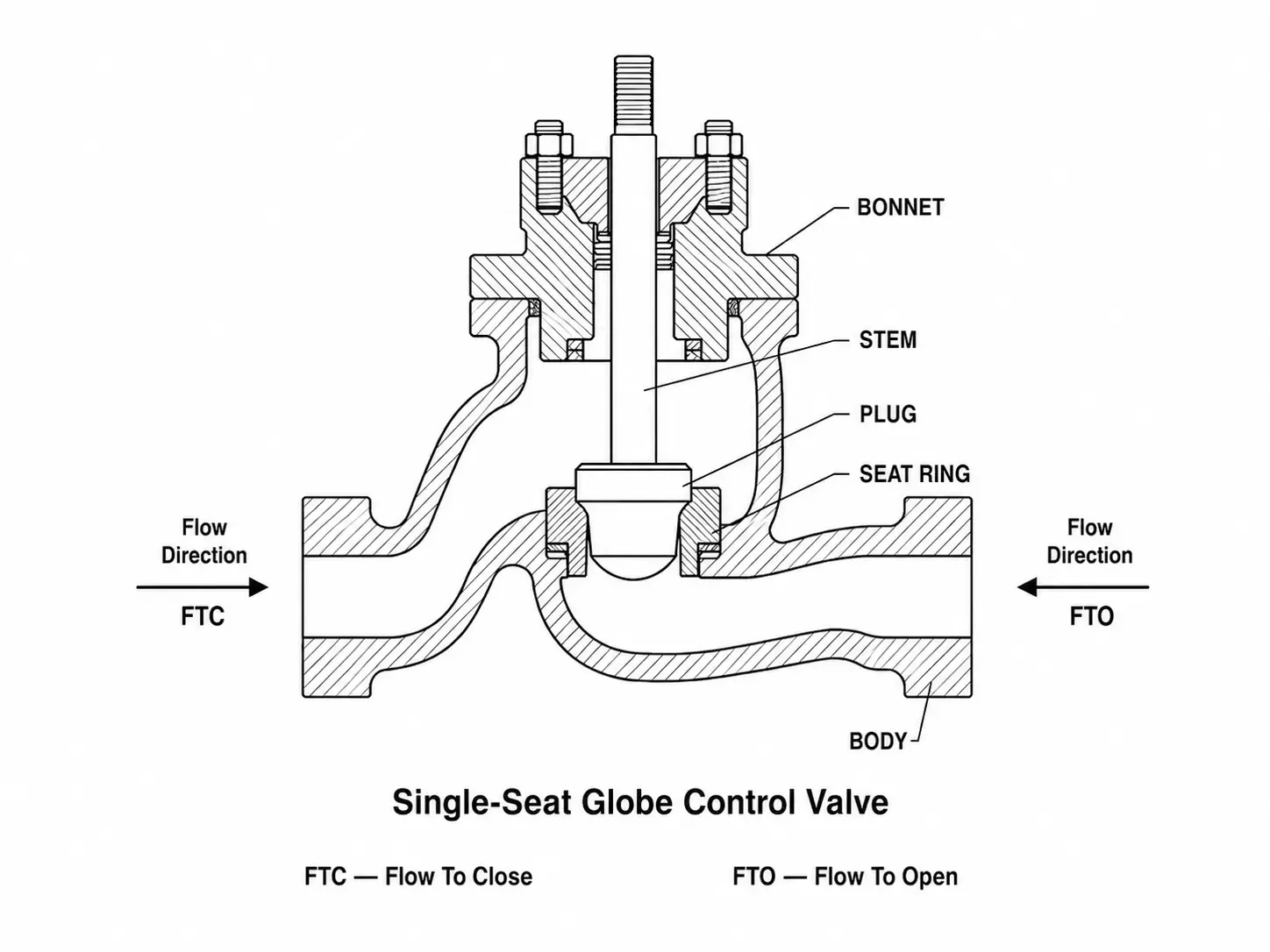

A standard unbalanced single-seat design has one main plug-and-seat sealing interface. Differential pressure across the plug creates an unbalanced force that the actuator must overcome throughout the required stroke. As the port size or pressure difference rises, this force can become a major factor in actuator sizing.
A balanced plug uses pressure passages and effective areas on opposite sides of the plug to reduce the net hydraulic force. This design can lower the actuator thrust needed for a given duty, but it adds more sealing surfaces. Shut-off performance then depends on the seat design, balance seals, temperature, and differential pressure.

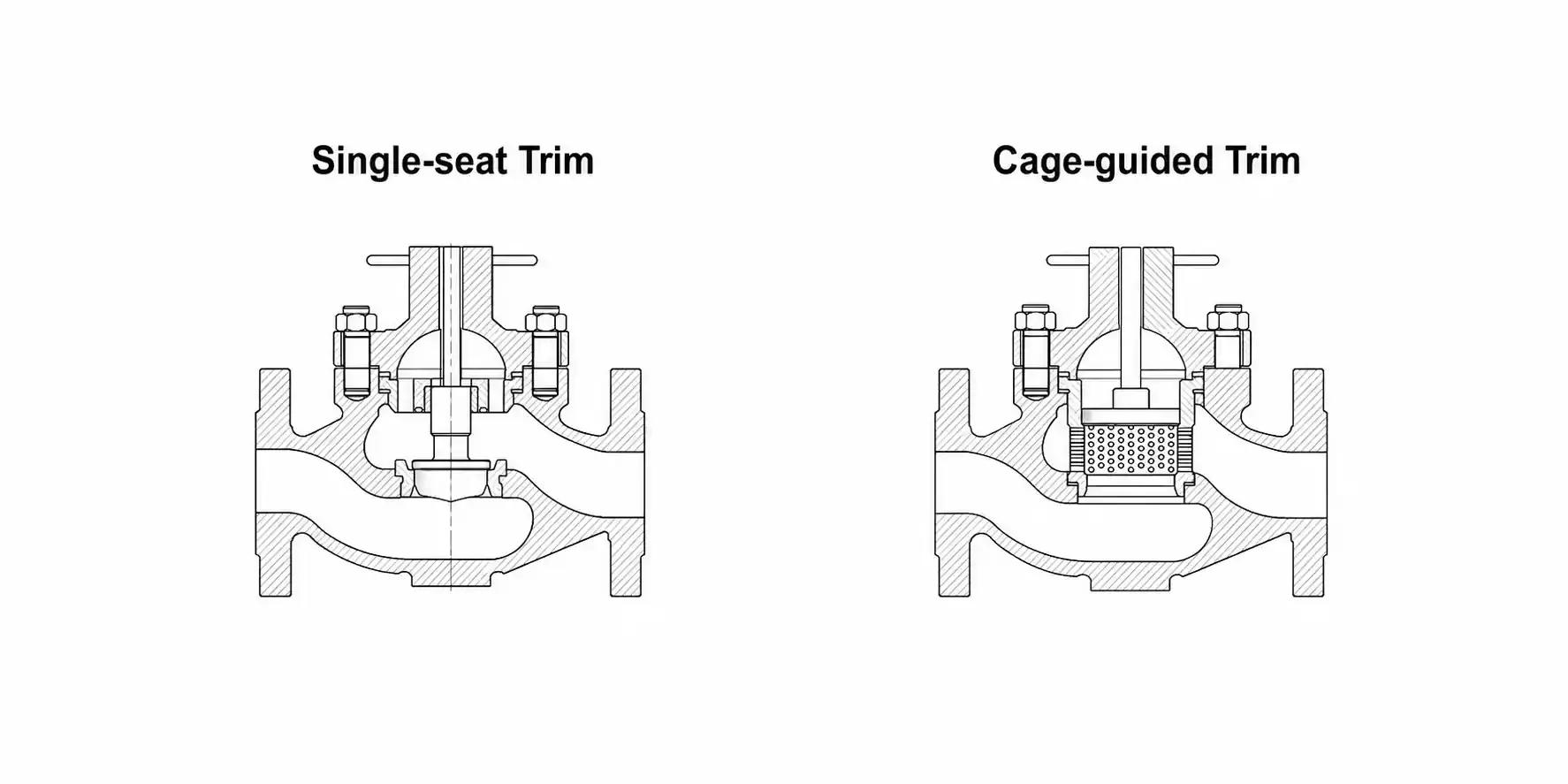

Cage-guided trim uses the cage to support and align the plug during travel. The cage may also hold the seat ring or form the throttling passages that set the inherent flow characteristic. However, cage guidance does not always mean that the plug is pressure-balanced or that the trim can handle severe pressure-reduction service. These are separate design features that must be checked for the selected trim.
Straight, angle and three-way bodies
A straight-pattern globe body has two connections on the same pipeline axis, although the fluid still changes direction inside the body as it passes through the trim. This design is often used for two-way throttling, but its internal flow path can cause more pressure loss than some rotary valve designs of the same nominal size.
An angle body combines throttling with a change in pipeline direction. It can simplify the piping where a separate elbow would otherwise be needed, and some angle designs are used for duties with high outlet velocity. Their suitability still depends on the internal geometry, material, pressure recovery, and the location of the most damaging flow conditions.
A three-way globe control valve connects three flow paths for mixing or diverting service. Its ports and plug arrangement must match the intended flow direction because mixing and diverting designs may not be interchangeable. A three-way valve must also be checked as part of its full circuit instead of being treated as a two-way valve with an extra connection.
Pneumatic and electric actuation
A pneumatic diaphragm or piston actuator turns air pressure into linear stem force. A positioner can adjust actuator pressure in response to the control signal, while a spring or another stored-energy device may move the valve to its required failure position. Actual response depends on actuator volume, air supply, positioner capacity, friction, and the forces acting on the trim.
An electric actuator uses a motor and drive mechanism to create linear movement. It may suit a site where instrument air is not available or where electrical control and position feedback are preferred. Stroke time, modulating duty, available thrust, environmental protection, and the method used to reach the required failure position must be checked for the specific actuator.
The power source does not change the valve’s inherent flow characteristic. Instead, actuator selection must confirm that enough thrust is available across the full stroke, including the load needed to move the plug under differential pressure and meet the required shut-off condition.
When does globe construction fit the duty, and when does it not?
Globe construction is a strong choice when its trim options and linear plug travel provide a useful control advantage. The following conditions help compare it with other valve families before detailed sizing.
| Decision condition | How a globe valve fits | Compare another valve when |
|---|---|---|
| Modulating duty | Trim options and linear travel can match the required response. | More flow capacity or a smaller package matters more. |
| High pressure drop | Suitable trim can split the pressure drop and limit noise or cavitation. | Noise, flashing, or outlet velocity stays above the allowed limit. |
| Low pressure-loss requirement | The internal flow path may use too much of the available pressure drop. | A higher-capacity rotary body can meet the control duty. |
| Large line size | Possible, but valve size, weight, and actuator load may rise. | A rotary valve can meet both the control and shut-off duties. |
| Fibres or suspended solids | Fit depends on passage size, guiding, and how particles move through the trim. | A more open flow path lowers the risk of blockage. |
These are screening conditions, not fixed rules. The final choice still depends on the installed pressure-drop profile, required capacity, shut-off duty, and the behaviour of the actual medium. For a more detailed comparison, see the guide to linear and rotary control valves.
What can rule out a globe control valve?
A globe control valve may appear suitable by valve type, line size, and material but still fail the final checks. The final choice must be checked against the installed system, the pressure profile through the trim, and the actuator force needed under both operating and shut-off conditions.
Why rated Cv does not predict the installed response
The published Cv at full travel shows the valve’s capacity under set test conditions. It does not show where the valve will operate in the actual system or how much stem travel will be used as the required flow changes.
Required Cv should be checked at minimum, normal, and maximum operating conditions using the pressure drop available across the valve at each point. If the selected Cv is too large, normal control may take place close to the seat, where small position changes can cause much larger flow changes. If it is too small, the valve may reach full travel without providing the required peak flow.
The installed response also changes as pumps, exchangers, piping, and other restrictions use different shares of the available pressure. This is why the valve’s inherent characteristic must be checked together with the system curve. The calculation process is covered in the control valve sizing guide.
When the trim must manage pressure-recovery risk
The pressure at the trim restriction can fall far below the downstream pressure. In liquid service, cavitation can start when this local pressure falls below the liquid vapour pressure and then recovers, causing vapour bubbles to collapse. If the downstream pressure stays below the vapour pressure, the liquid can continue downstream as a flashing mixture.
Cavitation and flashing need different design responses. Staged pressure reduction may limit cavitation under set conditions, while flashing service usually needs close control of velocity, erosion, outlet geometry, and material because the vapour does not collapse inside the valve. A standard globe body cannot handle either condition without correct sizing and trim checks.
Gas and steam services can also reach choked flow, where lowering the downstream pressure further no longer gives the expected increase in mass flow. The resulting high velocity may cause aerodynamic noise, vibration, or trim loading. The calculated pressure ratio, acoustic requirement, and mechanical limits may therefore rule out a general-purpose trim.
How plug balance changes actuator thrust and shut-off
Differential pressure acting over the effective plug area creates a net force that the actuator must overcome. The required actuator thrust must also cover packing friction, stem forces, and the load needed to meet the specified shut-off condition.
A balanced plug can reduce the net pressure force during travel, but the balance design may add seals and extra leakage paths. Its shut-off capability therefore depends on the full trim design rather than the word balanced alone.
The specified flow direction can change the force acting on the plug and affect stability, required thrust, and failure movement. The actuator must be checked at the operating condition that creates the highest demand, while the selected failure position must follow the process consequence analysis. If these checks show that the available thrust is too low or that the required shut-off performance cannot be met, the trim or actuator selection must change.
Conclusion
A globe control valve should be selected as a complete control assembly rather than by body style or rated Cv alone. The final design must match the trim capacity and characteristic to the installed system, control pressure-recovery risks, provide enough actuator thrust, and meet the required shut-off and failure behaviour. Once these process needs are known, the available control valve series can provide a starting point for comparing suitable configurations.
