Valves are essential components in fluid handling systems, allowing precise control over the flow of gases, liquids, and slurries. Precise control is important because it ensures the efficient and safe operation of industrial processes, minimizing waste and preventing system failures. Among the many types of valves available, globe valves and ball valves are two of the most commonly used. While both serve similar functions, their designs, operation, and applications differ significantly. In this article, we will compare globe valve vs ball valve, providing insights into their advantages, disadvantages, and ideal use cases.

What Is a Globe Valve?

​A globe valve is a type of linear motion valve designed to start, stop, and regulate fluid flow in a pipeline. It features a movable disc (or plug) and a stationary ring seat within a generally spherical body. The valve’s name originates from its original spherical body shape, although modern designs may vary. ​

How It Works: Mechanism and Flow Control

The globe valve operates by moving the disc perpendicular to the seat, allowing precise control over fluid flow. When the valve is open, fluid flows through the space between the disc and seat. Turning the handwheel or actuator raises or lowers the stem, which in turn moves the disc away from or towards the seat, regulating the flow accordingly. ​

This design provides excellent throttling capabilities, making globe valves ideal for applications requiring precise flow control. However, the flow path through a globe valve is not straight; it changes direction within the valve body, resulting in a higher pressure drop compared to other valve types like gate or ball valves. ​

Key Components

• Body: The main pressure-containing structure that houses the internal components and connects to the pipeline.​

• Bonnet: Attached to the body, it encloses the valve’s moving parts and provides a leak-proof closure.​

• Stem: Connects the actuator or handwheel to the disc, transmitting motion to open or close the valve.​

• Disc (Plug): The movable element that comes into contact with the seat to regulate or stop flow.​

• Seat: A stationary ring providing a sealing surface for the disc to shut off flow when closed.​

For a visual explanation of how a globe valve operates, you might find the following video helpful:

Source: saVRee

What Is a Ball Valve?

A ball valve is a type of quarter-turn valve that uses a spherical ball with a hole through its center to control the flow of fluids or gases. When the valve handle is turned 90 degrees, the hole aligns with the flow path, allowing fluid to pass through. Rotating the ball another 90 degrees so that the hole is perpendicular to the flow path stops the flow. This design offers quick and reliable shut-off capabilities, making ball valves ideal for applications requiring rapid on/off control. ​

How It Works: Quarter-Turn Operation and Sealing

The operation of a ball valve is straightforward: turning the handle or actuator rotates the ball inside the valve body. In the open position, the ball’s bore aligns with the pipeline, creating an unobstructed flow path. When closed, the ball is rotated so that the bore is perpendicular to the flow path, effectively blocking fluid passage. This quarter-turn mechanism allows for quick operation and provides a tight seal, even after prolonged periods of disuse. ​

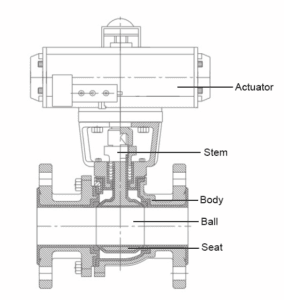

Key Components

• Valve Body: The main housing that contains all internal components and connects to the pipeline.​

• Ball: A spherical component with a central bore that controls flow through its rotation.

• Seats: Sealing rings, typically made of materials like PTFE, that provide a tight seal between the ball and the valve body.​

• Stem: Connects the ball to the handle or actuator, transmitting motion to rotate the ball.​

• Handle or Actuator: The external mechanism used to manually or automatically operate the valve.​

• Bonnet: Covers the stem and provides a seal to prevent leakage.​

Key Differences Between Globe Valves and Ball Valves

When selecting the appropriate valve for an industrial application, understanding the fundamental differences between globe valves and ball valves is crucial. These differences influence performance, efficiency, and suitability for specific tasks.​

Design and Operation

• Globe Valves: Operate using a linear motion mechanism. The valve’s disc moves up and down perpendicular to the flow, allowing for precise regulation of fluid flow. This design is particularly effective for applications requiring throttling.​

• Ball Valves: Utilize a rotational motion mechanism. A spherical ball with a central hole rotates 90 degrees to align or block the flow path, enabling quick and straightforward on/off control. This design is ideal for applications where rapid shutoff is necessary.​

Flow Control Capabilities

• Globe Valves: Excel in throttling applications due to their ability to finely adjust flow rates. The linear movement of the disc allows for gradual changes in flow, making them suitable for systems requiring precise flow control.​

• Ball Valves: Primarily designed for on/off control. While they can be used for flow regulation, they are less effective than globe valves for precise throttling. Their design is best suited for applications where full open or full closed positions are needed.​

Pressure Drop

• Globe Valves: Typically exhibit a higher pressure drop. The fluid flow path within a globe valve changes direction, creating resistance and resulting in energy loss. This characteristic makes them less suitable for applications where maintaining pressure is critical.​

• Ball Valves: Feature a straight-through flow path when fully open, resulting in minimal pressure drop. This design allows for efficient fluid flow with reduced energy loss, making them ideal for applications where pressure conservation is important.​

Sealing Mechanisms

• Ball Valves: Provide a tight seal due to the ball’s contact with the valve seats, effectively preventing leakage. This makes them suitable for applications where a secure shutoff is essential.​

• Globe Valves: While they offer good sealing capabilities, the potential for leakage exists, especially if the valve is not properly maintained. The linear motion and multiple components can lead to wear over time, affecting the seal’s integrity.​

Applications: Globe Valve vs Ball Valve

Understanding the specific applications where globe valves and ball valves perform optimally is crucial for selecting the right valve for your industrial needs. Each valve type offers unique advantages tailored to particular system requirements.

Ideal Applications for Globe Valves

Globe valves are renowned for their precise flow regulation capabilities, making them indispensable in systems where accurate throttling is essential. Their design allows for fine adjustments to flow rates, which is particularly beneficial in the following applications:​

• Steam Systems: Globe valves are commonly used in steam applications due to their ability to control flow and pressure effectively. They are ideal for regulating steam flow in heating systems, turbines, and other steam-related processes. ​

• Oil and Gas Industry: In the oil and gas sector, globe valves are utilized for their precise control in various processes, including fuel oil systems, cooling water systems, and feedwater systems. ​

• Chemical Processing: The chemical industry benefits from globe valves’ ability to handle corrosive fluids and provide accurate flow control, essential for maintaining process stability and safety. ​

• Power Generation: Globe valves are employed in power plants to regulate the flow of feedwater, cooling water, and other fluids critical to plant operations. ​

Ideal Applications for Ball Valves

Ball valves are favored for their quick shutoff capabilities and reliable sealing, making them suitable for applications where rapid isolation of flow is necessary. Their straightforward operation and durability are advantageous in the following scenarios:​

• Water Supply Systems: Ball valves are widely used in residential and industrial water supply lines due to their ease of operation and ability to provide a tight seal, preventing leaks. ​

• Chemical Processing: In chemical plants, ball valves are utilized for their resistance to corrosive substances and their capacity to quickly stop the flow of hazardous chemicals in emergency situations. ​

• Oil and Gas Industry: Ball valves are employed in the oil and gas sector for applications requiring immediate shutoff, such as emergency shutdown systems and blowout preventers. ​

• HVAC Systems: Heating, ventilation, and air conditioning systems use ball valves to control the flow of refrigerants and water, benefiting from their reliable performance and minimal maintenance requirements.

Pros and Cons: Globe Valve vs Ball Valve

When selecting between globe valve vs ball valve, it’s essential to weigh their respective advantages and disadvantages to determine the most suitable option for your application.​

Globe Valve Advantages and Disadvantages

Pros:

• Precision Flow Control: Globe valves offer excellent throttling capabilities, making them ideal for applications requiring precise flow regulation.​

• Durability in High-Pressure Systems: Their robust design allows globe valves to withstand high-pressure environments, ensuring longevity and reliable performance.​

Cons:

• Higher Pressure Drop: The tortuous flow path in globe valves results in significant pressure loss, which can affect system efficiency.​

• Bulkier Design: Globe valves are generally larger and heavier than other valve types, potentially requiring more space and support structures.​

Ball Valve Advantages and Disadvantages

Pros:

• Compact and Lightweight: Ball valves have a simple and compact design, making them easy to install and requiring less space.​

• Low Maintenance: With fewer moving parts and a straightforward mechanism, ball valves typically require minimal maintenance.​

• Fast Operation: The quarter-turn operation allows for quick opening and closing, which is beneficial in emergency situations.​

Cons:

• Limited Throttling Capability: Ball valves are not ideal for flow regulation, as partially open positions can cause seat erosion and reduce sealing effectiveness.​

• Not Suitable for Slurries: The cavities around the ball can trap particles, making ball valves less effective in applications involving slurries or viscous fluids.​

Factors to Consider When Choosing Between Globe Valve vs Ball Valve

Selecting the appropriate valve for your system is crucial to ensure optimal performance, safety, and cost-effectiveness. Here are key factors to consider when deciding between globe and ball valves:​

System Pressure and Temperature

• Globe Valves: Well-suited for high-pressure and high-temperature applications. Metal-seated globe valves can handle temperatures ranging from -196°C to 550°C, making them ideal for steam systems and other demanding environments. ​

• Ball Valves: Soft-seated ball valves are typically rated for temperatures between -29°C and 180°C. However, metal-seated designs can extend this range up to 450°C, accommodating various industrial processes. ​

Required Flow Control (Throttling vs. On/Off)

• Globe Valves: Designed for precise flow regulation, globe valves are ideal for applications requiring accurate throttling. Their linear motion allows for fine adjustments, making them suitable for systems where flow control is critical. ​

• Ball Valves: Primarily used for on/off control, ball valves offer quick operation with a simple quarter-turn mechanism. While not typically recommended for throttling, specialized designs like V-port ball valves can provide improved flow control in certain applications. ​

Maintenance and Lifecycle Costs

• Globe Valves: Generally easier to maintain due to their accessible components. However, they may require more frequent maintenance, especially in high-cycle applications, due to wear on the seating surfaces. ​

• Ball Valves: Known for their durability and low maintenance requirements. Their simple design reduces the likelihood of wear and tear, leading to longer service life and lower lifecycle costs. ​

Compatibility with Fluids (Corrosive, Viscous, etc.)

• Globe Valves: Suitable for a wide range of fluids, including corrosive and high-temperature media. Their design allows for better handling of fluids that require precise control. ​

• Ball Valves: Ideal for clean fluids and gases. However, they may not be suitable for thick or viscous fluids, as these can cause clogging and increased wear on the valve components.

Conclusion

Choosing between globe valve and ball valve comes down to your system’s specific needs. Globe valves offer precise flow control and are ideal for high-pressure, high-temperature applications like steam and chemical processing. In contrast, ball valves provide quick shutoff, low maintenance, and are better suited for water supply and general-purpose on/off control. While globe valves excel in throttling, they come with higher pressure drops and cost. Ball valves are compact, cost-effective, but not ideal for flow regulation. For critical applications, it’s always best to consult with valve experts to ensure you’re selecting the most efficient and reliable solution for your system.
